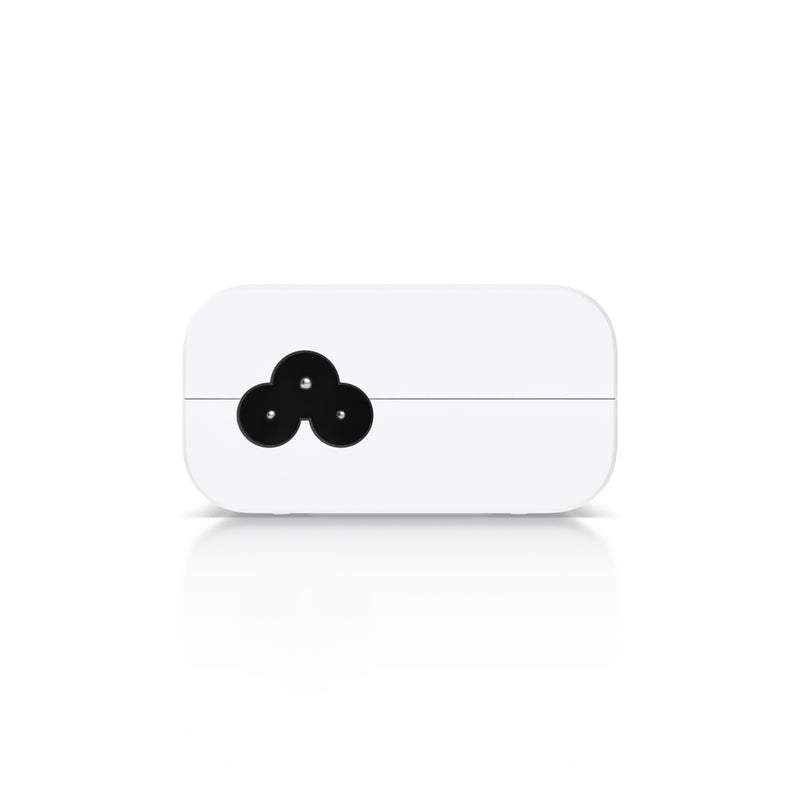

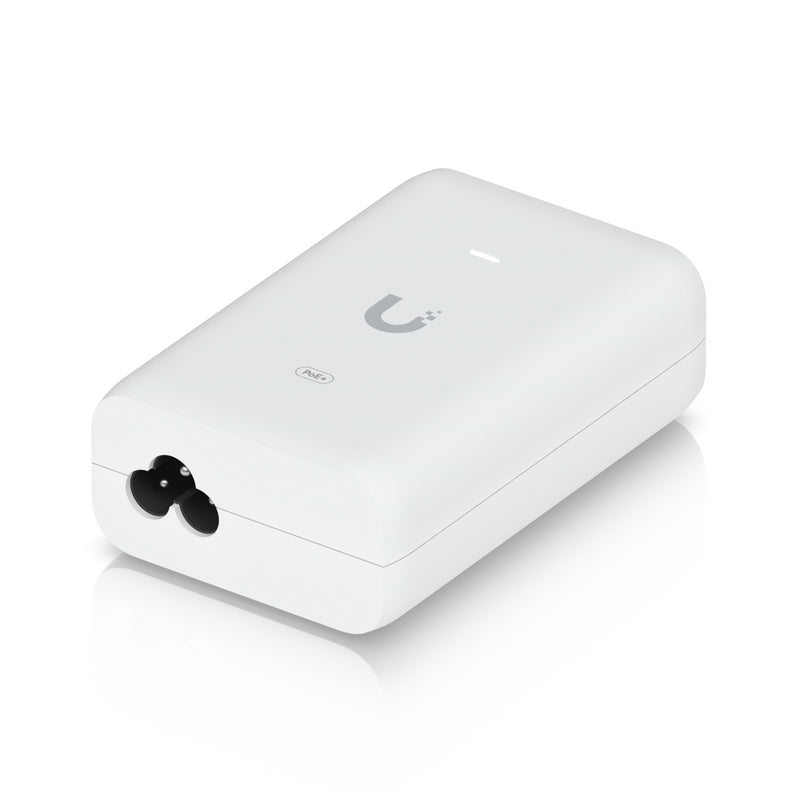

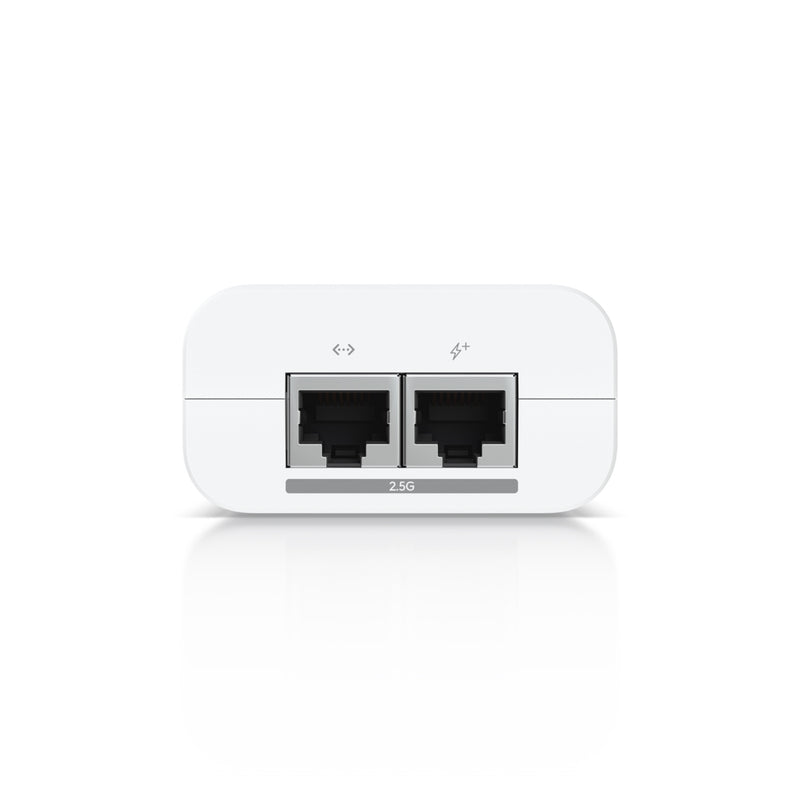

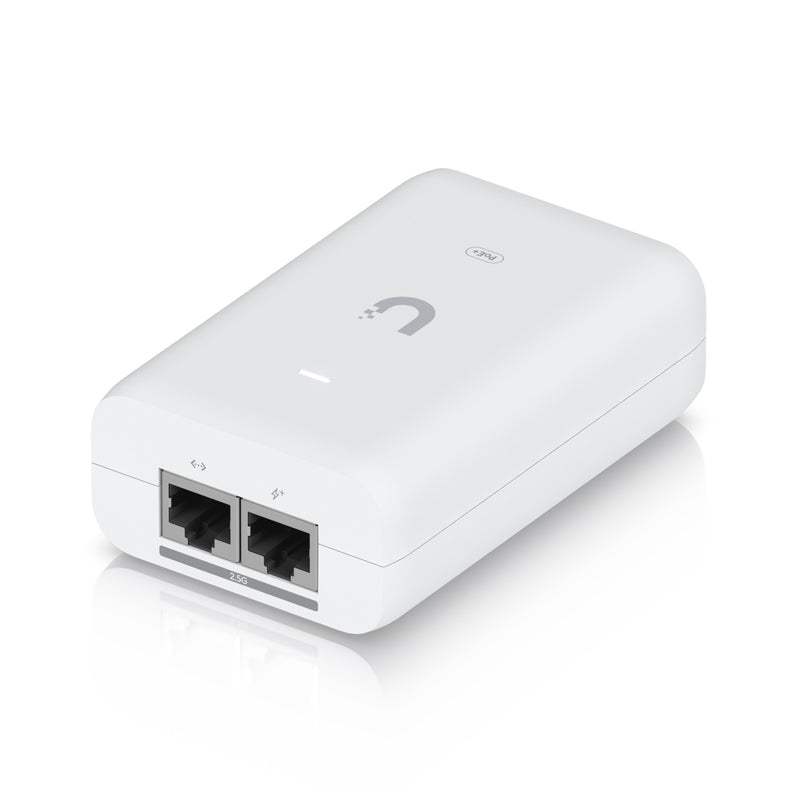

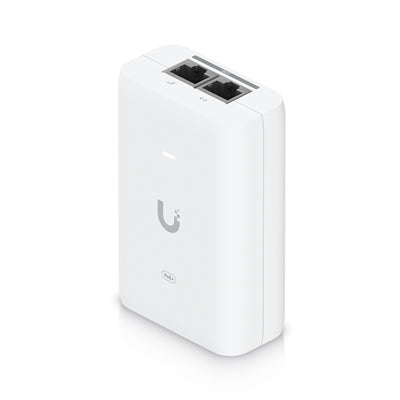

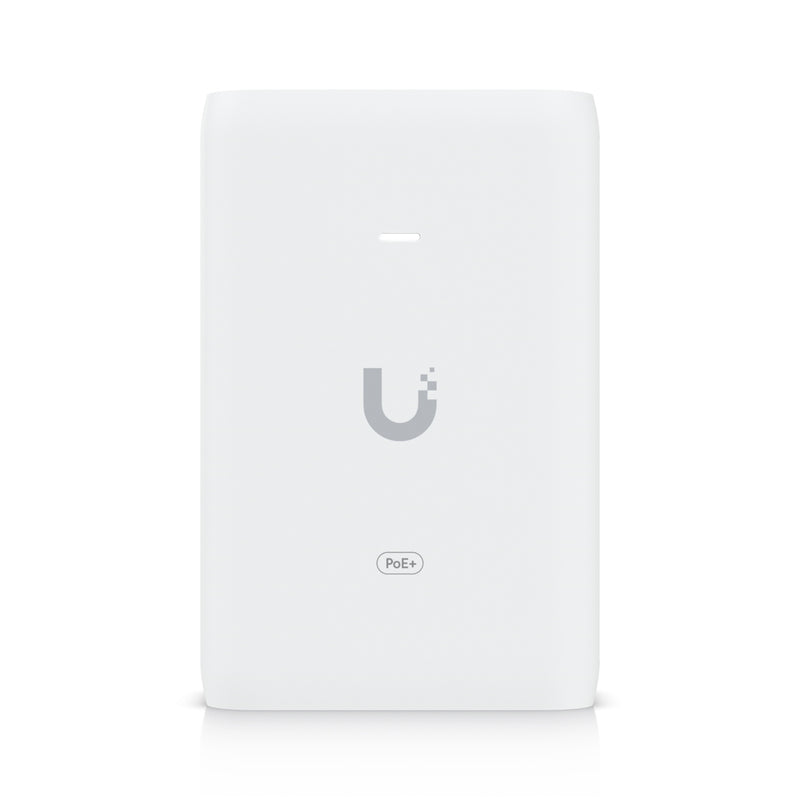

Ubiquiti UACC-POE+-2.5G PoE+ Injector – 30W, 2.5GbE, Surge-Protected

The Ubiquiti UACC-POE+-2.5G is a compact and reliable PoE+ injector that provides up to 30W of 802.3at-compliant power with advanced surge and overcurrent protection. Perfect for powering UniFi and other 802.3at PoE+ devices without relying on a PoE switch.

✅Delivers up to 30W of PoE+ power (802.3at)
✅Supports Multi-Gigabit speeds up to 2.5 GbE
✅Integrated surge, peak pulse, and overcurrent protection
✅Includes RJ45 data input and shielded PoE+ output
✅Compact form factor with status LED indicator
✅No LAN activity indicator or reset button for added simplicity
✅Ideal for UniFi access points, cameras, or VoIP phones

Technical Specifications

•Power Output: 48V DC @ 0.65A (30W)
•Power Input: 100–240V AC @ 50/60Hz
•Input Current: 0.75A max
•Inrush Current: <150A peak @ 230V AC
•Efficiency: >87%
•Output Ripple: ≤1%
•Switching Frequency: Up to 65 kHz
•Line Regulation: <1%
•Load Regulation: <3%
•Powering Method: 2-pair PoE (Pins 4,5 + / Pins 7,8 -)
•Gigabit Port: Yes, up to 2.5 GbE
•Data In / PoE: RJ45 shielded socket
•Remote Reset: Not supported
•LAN Activity Indicator: Not available
•LED Indicator: Power status LED

Protection Features

•Surge protection (differential and common mode)
•Clamping: 11V (data), 60V (power)
•Max Surge Discharge: 1500A (power)
•Peak Pulse Current: 36A (data)
•Response Time: <1 ns
•Shunt Capacitance: <5 pF (data)

Physical & Environmental

•Dimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4 in)
•Weight: 156 g (5.5 oz)
•Included: AC cable with earth ground

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
