Ubiquiti U7-PRO-XGS UniFi 7 Pro WiFi 7 10GbE Ceiling Access Point

Ubiquiti UniFi U7-PRO-XGS — The Future of WiFi is Here

Step into the era of WiFi 7 with the UniFi 7 Pro XGS, a ceiling-mounted access point engineered for unparalleled speed, coverage, and device capacity. Designed for enterprise environments, stadiums, large offices, and cutting-edge smart buildings, the U7-PRO-XGS delivers ultra-low latency, massive throughput, and advanced radio intelligence—future-proofing your wireless network today.

Blazing Fast WiFi 7 Performance
Harness the power of 8 spatial streams and support for the new 6 GHz band, alongside 5 GHz and 2.4 GHz radios, to deliver aggregate data rates beyond anything before:

• 6 GHz: Up to 5.8 Gbps

• 5 GHz: Up to 8.6 Gbps

• 2.4 GHz: Up to 688 Mbps

Massive Capacity & Wide Coverage
Covering up to 160 m² (1,750 ft²), the U7-PRO-XGS supports 500+ simultaneous clients with flawless reliability, perfect for high-density deployments in corporate offices, campuses, and hospitality venues.

Real-Time Spectral Analysis & Advanced Radio Management
Benefit from the dedicated spectral scanning radio that monitors interference and automatically optimises channel selection. Features like band steering, zero-wait DFS, and advanced RRM ensure maximum network performance and minimal downtime.

Blazing 10 GbE Uplink & PoE++ Power

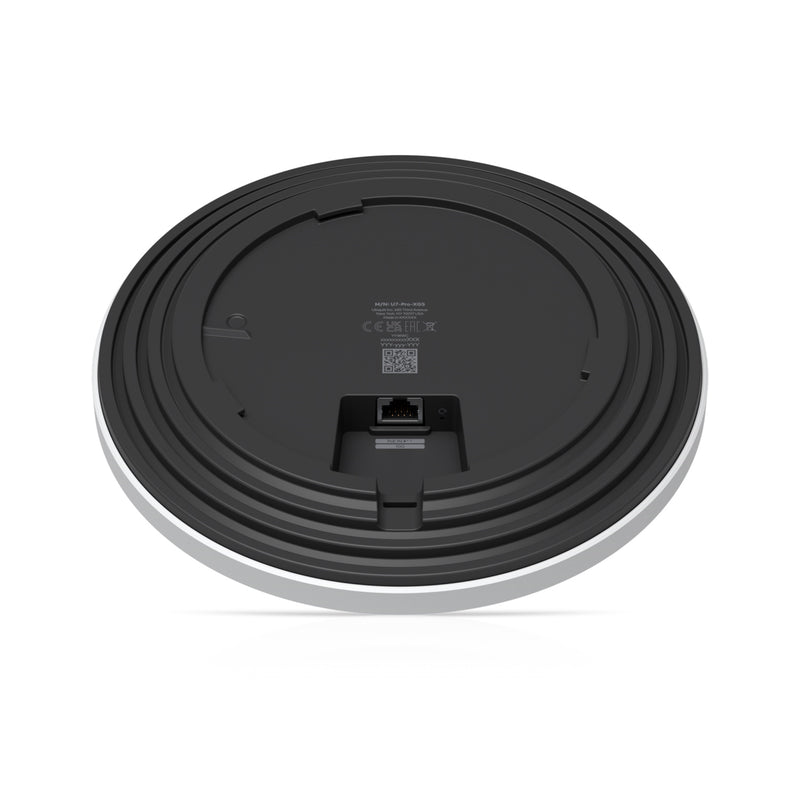

Built for the most demanding backhaul needs, the AP includes a 10 GbE RJ45 port for lightning-fast uplink speeds. Powered through PoE++, it simplifies installation while delivering robust power for all its advanced features.

Robust & Sleek Design
Crafted with UV-stabilised polycarbonate and aluminium alloy, this ceiling or wall-mountable access point blends durability with a discreet, modern look. Mounts include stainless steel and galvanized steel hardware for secure, lasting installation.

Why Choose the UniFi U7-PRO-XGS?
✔️ Future-ready WiFi 7 with 8-stream, tri-band radios including 6 GHz
✔️ Supports 500+ devices with ultra-wide 160 m² coverage
✔️ Dedicated spectral analysis radio for interference-free performance
✔️ 10 GbE uplink for maximum throughput in demanding environments
✔️ PoE++ powered with flexible ceiling or wall mounting
✔️ Advanced security & management via UniFi Controller ecosystem
✔️ Ideal for enterprise, education, hospitality, and smart building deployments

Technical Specifications:
• Dimensions: Ø215 x 32.5 mm (8.5 x 1.3 in)
• WiFi Standard: 802.11be (WiFi 7), backward compatible with WiFi 6/5/n
• Spatial Streams: 8 total (6 GHz: 2x2, 5 GHz: 4x4, 2.4 GHz: 2x2 MU-MIMO)
• Max Data Rate: 6 GHz (5.8 Gbps), 5 GHz (8.6 Gbps), 2.4 GHz (688 Mbps)
• Max TX Power: 6 GHz (24 dBm), 5 GHz (29 dBm), 2.4 GHz (23 dBm)
• Coverage Area: Up to 160 m² (1,750 ft²)
• Max Clients: 500+
• Uplink: 1 x 10 GbE RJ45 port
• Power: PoE++ (42.5–57 V DC)
• Weight: 800 g (1.8 lb)
• Enclosure: UV-stabilised polycarbonate, aluminum alloy
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• Management: Ethernet via UniFi Controller
• Certifications: CE, FCC, IC

Package Includes:
• Ubiquiti UniFi U7-PRO-XGS Access Point
• Lite Mount for Ceiling/Walls
• Mounting Hardware
• Quick Start Guide

Unleash the power of WiFi 7 with the Ubiquiti UniFi 7 Pro XGS — where speed, capacity, and intelligence converge for next-level wireless performance.
