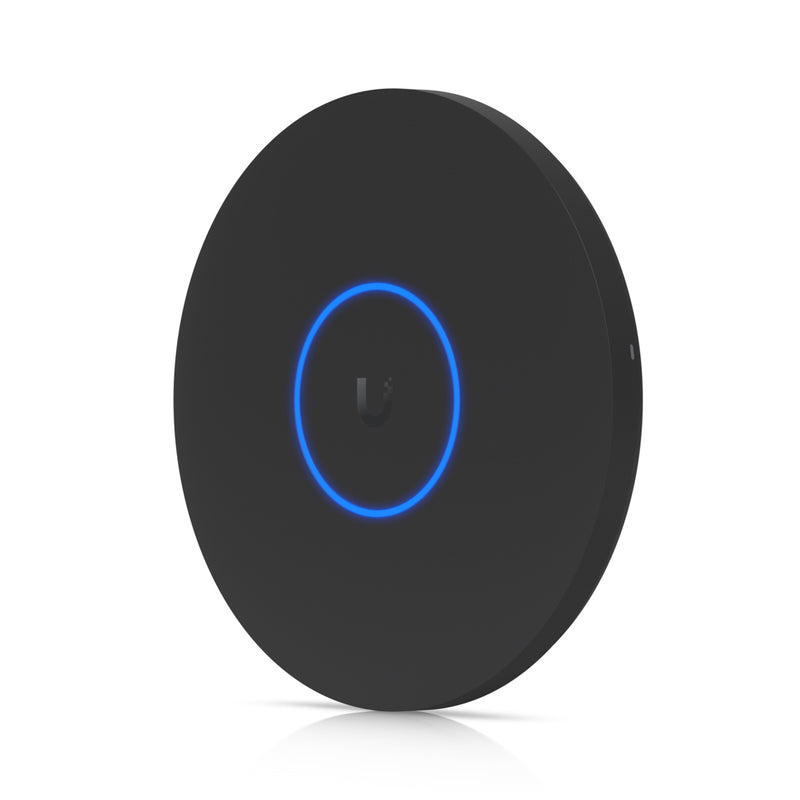

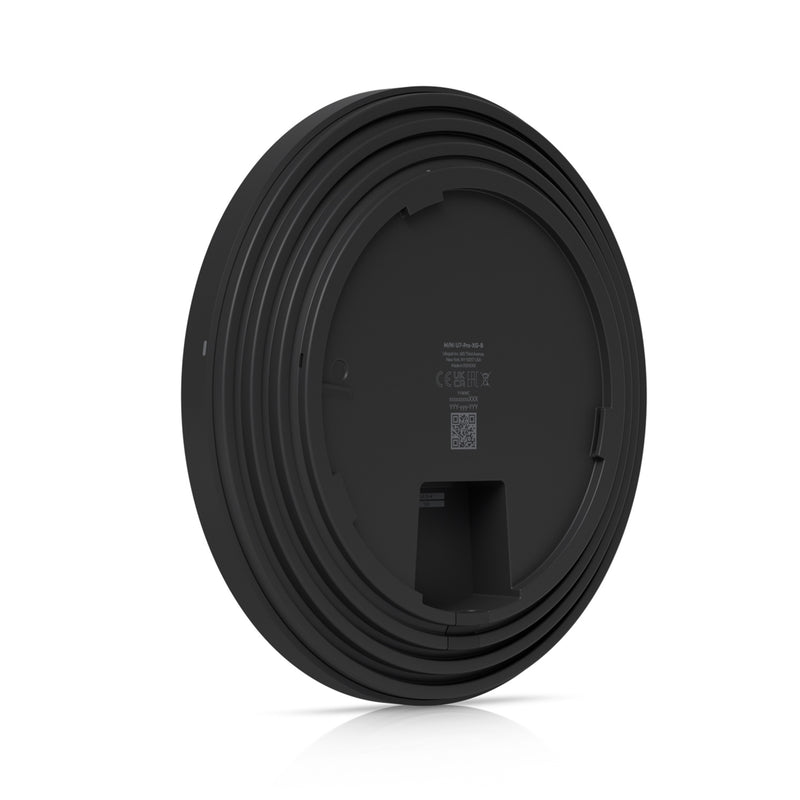

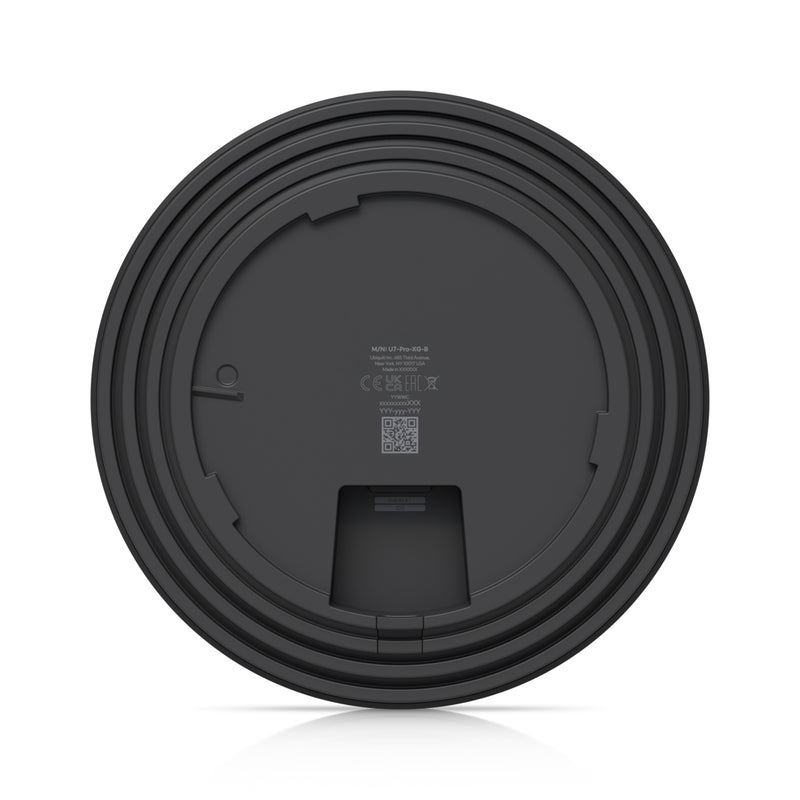

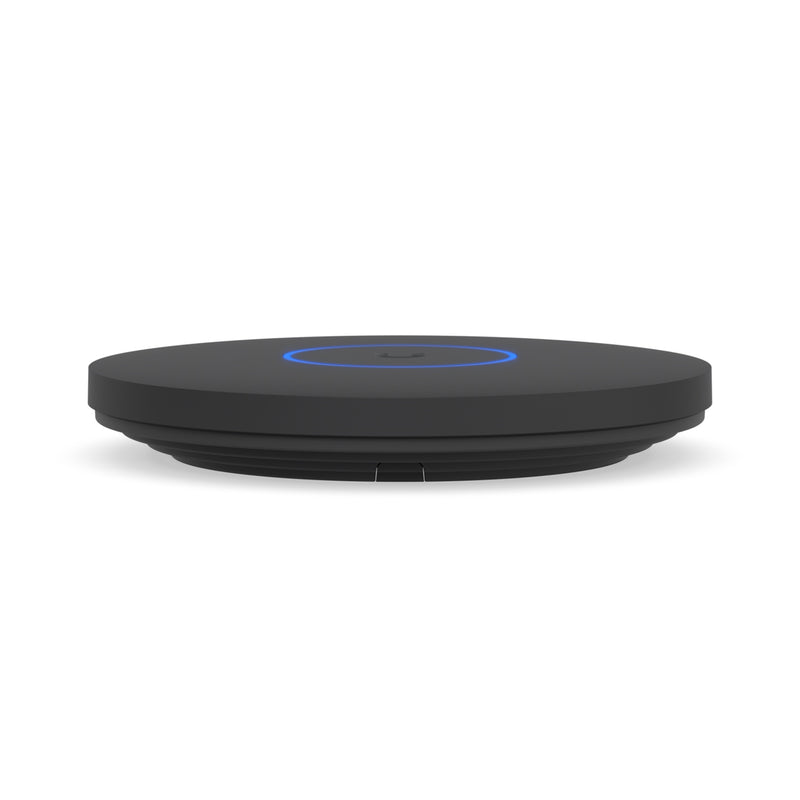

Ubiquiti U7-PRO-XG-B UniFi Pro XG WiFi 7 Access Point | 10GbE, PoE+, Black

Ubiquiti U7-PRO-XG-B UniFi 7 Pro XG Black | High-Performance 10GbE Ceiling Mount WiFi 7 Access Point

Deliver next-gen wireless performance with the UniFi U7-Pro-XG-B, a sleek, ceiling-mounted WiFi 7 access point engineered for high-density, high-throughput environments. With six spatial streams, 10GbE uplink, and advanced radio management, it's ideal for demanding business, education, or hospitality networks.

✅ Key Features

✅ WiFi 7 Tri-Band Performance
Delivering up to 5.8 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz for total multi-gigabit throughput.

✅ 10 GbE Uplink with PoE+ Power
Streamline your setup with PoE+ support and ultra-fast 10 Gigabit Ethernet backhaul.

✅ High-Density Coverage
Supports 300+ simultaneous clients with a 140 m² (1,500 ft²) coverage area.

✅ Mesh-Ready & Advanced Roaming
Supports wireless meshing, 802.11r fast roaming, band steering, and BSS transition for seamless user experience.

✅ Enterprise-Grade Security
Includes PPSK, RADIUS over TLS, client isolation, WiFi scheduling, captive portal, and more.

📦 Specifications

WiFi Standard:
802.11a/b/g/n/ac/ax/be (WiFi 7)

Antenna & Streams:

• 6 Spatial Streams

• MIMO: 2x2 on each band (6/5/2.4 GHz)

• Antenna Gain: 6 dBi (6 GHz), 5 dBi (5 GHz), 4 dBi (2.4 GHz)

Data Rates:

• 6 GHz: Up to 5.8 Gbps (EHT320)

• 5 GHz: Up to 4.3 Gbps (EHT240)

• 2.4 GHz: Up to 688 Mbps (BW40)

Coverage & Capacity:

• Coverage: 140 m² (1,500 ft²)

• Clients: 300+

Networking Interface:

• 1x 10 GbE RJ45 Port

• Power Method: PoE+ (42.5–57V DC)

• Max Power Consumption: 22W

Security Features:

• WPA/WPA2/WPA3, PPSK

• RADIUS over TLS (RadSec)

• Captive Portal

• Passpoint (Hotspot 2.0)

• Client Isolation

• WiFi Speed Limiting

• VLAN Support

Roaming & Management:

• Wireless Meshing

• 802.11k/v/r

• UniFi Controller Integration

• WiFi Schedules

• Advanced Radio Management

Build & Mounting:

• Dimensions: Ø206 x 32.5 mm (Ø8.1 x 1.3 in)

• Weight: 750 g (1.7 lb)

• Mount: Ceiling, wall (Lite Mount included)

• Enclosure: UV-stabilised polycarbonate + aluminium alloy

• Mount Hardware: Stainless Steel (SUS304), Galvanised Steel (SGCC)

Certifications: CE, FCC, IC

Perfect for high-performance wireless deployments where speed, security, and user capacity are critical. Let me know if you'd like a comparison table or upsell suggestions with compatible switches or UniFi gateways!
