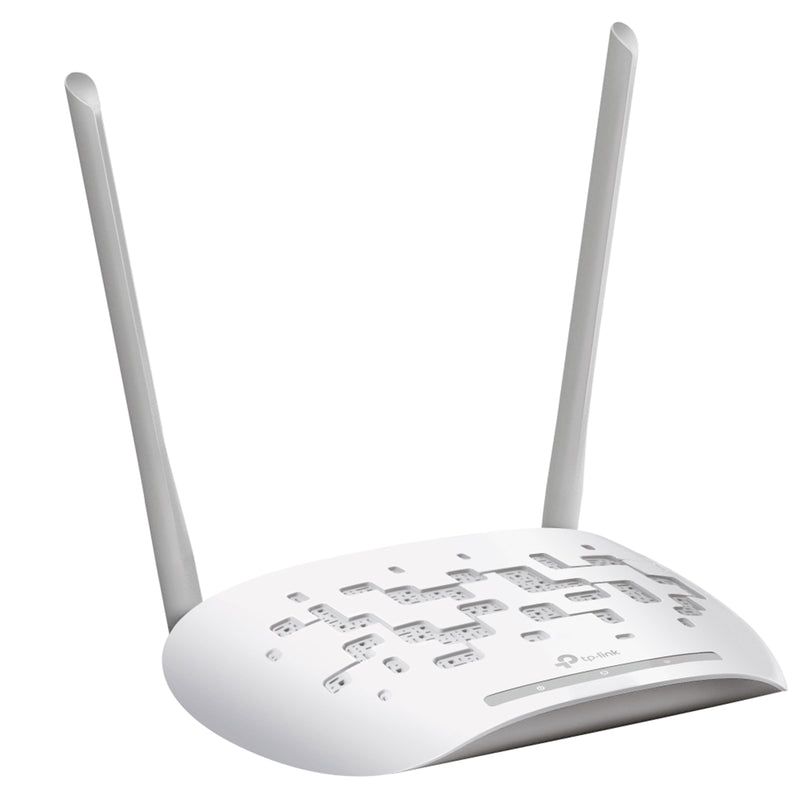

TP-Link TL-WA801N N300 Wireless Access Point Range Extender
Flexible Wireless Networking for Homes and Small Businesses
The TP-Link TL-WA801N N300 Wireless N Access Point is a versatile networking solution designed to create, expand or enhance wireless coverage throughout your home, office or business environment. Delivering wireless speeds of up to 300Mbps, it provides reliable performance for HD video streaming, online gaming, web browsing and everyday networking tasks.
Supporting multiple operating modes including Access Point, Range Extender, Client and Multi-SSID, the TL-WA801N adapts to a wide range of networking requirements. Combined with Passive PoE support, flexible installation options and robust wireless security, it's an ideal solution for extending WiFi coverage and eliminating wireless dead zones.
Whether you're upgrading an existing network or creating wireless access in hard-to-reach areas, the TL-WA801N delivers dependable wireless performance at excellent value.
Key Features & Benefits
Fast 300Mbps Wireless N Performance
Enjoy wireless speeds of up to 300Mbps on the 2.4GHz band, providing smooth performance for:
- HD video streaming
- Online gaming
- Video calls
- Web browsing
- File downloads
- Home office applications
Multiple Operating Modes
The TL-WA801N supports a range of networking modes, making it suitable for numerous deployment scenarios.
Access Point Mode
Convert a wired network into a wireless network and provide WiFi access throughout your property.
Range Extender Mode
Expand the coverage of your existing wireless network and eliminate WiFi dead spots.
Client Mode
Connect wired devices to a wireless network when direct WiFi support is unavailable.
Multi-SSID Mode
Create multiple wireless networks with separate SSIDs for different users or applications.
Advanced MIMO Technology
The dual-antenna MIMO (Multi-Input Multi-Output) design improves signal strength and wireless stability by transmitting and receiving data simultaneously.
Benefits include:
- Improved range
- Better stability
- Reduced interference
- Enhanced performance through walls and obstacles
Passive PoE Support
The included Passive Power over Ethernet injector allows both power and data to be delivered through a single Ethernet cable.
Advantages include:
- Installation up to 30 metres away from the power source
- Flexible placement options
- Cleaner cable management
- Ideal for wall or ceiling mounting
Enhanced Wireless Security
Protect your network with industry-standard wireless encryption protocols.
Supported security options include:
- WEP
- WPA
- WPA2
- WPA-PSK
- WPA2-PSK
Quick & Easy Setup
The dedicated WPS button allows secure wireless connections at the touch of a button, while the intuitive web-based management interface makes configuration simple.
Eliminate Wireless Dead Zones
Ideal for extending coverage to locations where signal strength is weak, helping ensure reliable connectivity throughout larger homes and offices.
Technical Specifications
General
- Model: TL-WA801N
- Product Type: Wireless N Access Point
Network Interface
- 1 × 10/100Mbps Fast Ethernet Port (RJ45)
- Passive PoE Support
Wireless Standards
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
Wireless Performance
- Wireless Speed: Up to 300Mbps
- Frequency Band: 2.4GHz
Antennas
- 2 × Fixed Omni-Directional Antennas
Wireless Modes
- Access Point (AP) Mode
- Multi-SSID Mode
- Client Mode
- Range Extender Mode
Reception Sensitivity
- 11g 6Mbps: -90dBm
- 11g 54Mbps: -77dBm
- 11n HT20 MCS7: -73dBm
- 11n HT40 MCS7: -70dBm
Wireless Features
- Wireless Radio Control
- WMM Support
- Short GI
- AP Isolation
- Throughput Monitor
- Wireless Statistics Monitoring
Wireless Security
- WEP
- WPA/WPA2
- WPA/WPA2-PSK
Quality of Service
- WMM (Wi-Fi Multimedia)
Management Features
- SNMP Support
- Web-Based Management

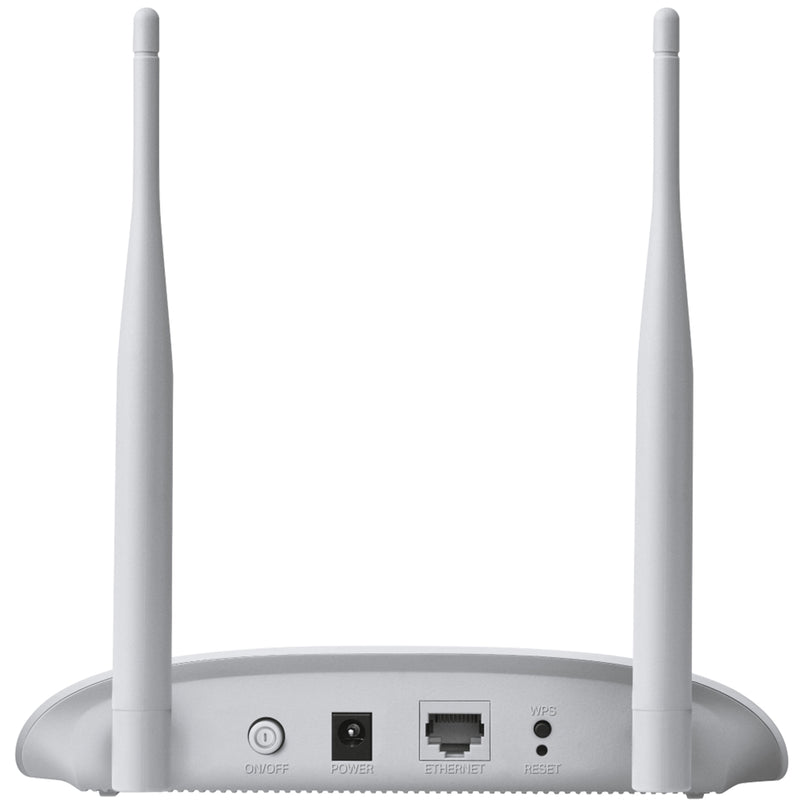

Buttons
- Power On/Off Button
- WPS Button
- Reset Button
Power
- External Power Supply: 9V DC / 0.6A
- Passive PoE Supported up to 30 Metres
Transmission Power
- CE: <15dBm
- FCC: <20dBm
Dimensions
- 181.6 × 129.5 × 36.2 mm
Certifications
- CE
- FCC
- RoHS
Operating System Compatibility
- Windows 98SE
- Windows NT
- Windows 2000
- Windows XP
- Windows Vista
- Windows 7
- Windows 8 / 8.1
- Windows 10
- macOS
- NetWare
- UNIX
- Linux
Browser Requirements
- Internet Explorer 11+
- Firefox 12+
- Chrome 20+
- Safari 4+
- Other Java-enabled browsers
Ideal For
- Extending existing WiFi coverage
- Small offices and businesses
- Home networking upgrades
- Gaming consoles
- Smart TVs
- Network printers
- Media streaming devices
- Hard-to-wire locations
- Eliminating wireless dead zones
What's in the Box?
- TP-Link TL-WA801N Wireless N Access Point
- Power Adapter
- Passive PoE Power Injector
- RJ45 Ethernet Cable
- Quick Installation Guide
Why Choose the TP-Link TL-WA801N?
The TP-Link TL-WA801N is a proven and affordable solution for extending wireless coverage and improving network flexibility. With 300Mbps Wireless N performance, multiple operating modes, MIMO technology, Passive PoE support and strong wireless security, it offers everything needed to build a reliable wireless network in homes and small businesses.
Whether you're expanding an existing WiFi network, connecting wired devices wirelessly or eliminating coverage gaps, the TL-WA801N delivers dependable performance, flexible deployment and exceptional value.
