TP-Link TL-WA1201 AC1200 Wireless Gigabit Access Point
Expand Fast Dual-Band Wi‑Fi Throughout Your Home or Office
The TP-Link TL-WA1201 AC1200 Wireless Gigabit Access Point is a versatile networking solution designed to extend and enhance wireless coverage in homes, offices and business environments. Featuring AC1200 dual-band Wi‑Fi, a Gigabit Ethernet port, Passive PoE support, and multiple operating modes, the TL-WA1201 delivers fast and reliable wireless connectivity wherever you need it.
Whether used as a dedicated access point, range extender, client adapter or Multi-SSID solution, the TL-WA1201 provides flexible deployment options and strong wireless performance for modern networks.
Key Features & Benefits
Fast AC1200 Dual-Band Wi‑Fi
Enjoy combined wireless speeds of up to:
- 867Mbps on 5GHz
- 300Mbps on 2.4GHz
- 1200Mbps Combined Speed
Ideal for:
- HD Video Streaming
- Online Gaming
- Video Conferencing
- Remote Working
- Smart Home Devices
Expand Wireless Coverage
The TL-WA1201 helps eliminate weak signal areas and extends wireless coverage throughout your property.
Perfect for:
- Homes
- Offices
- Retail Spaces
- Hospitality Environments
- Meeting Rooms

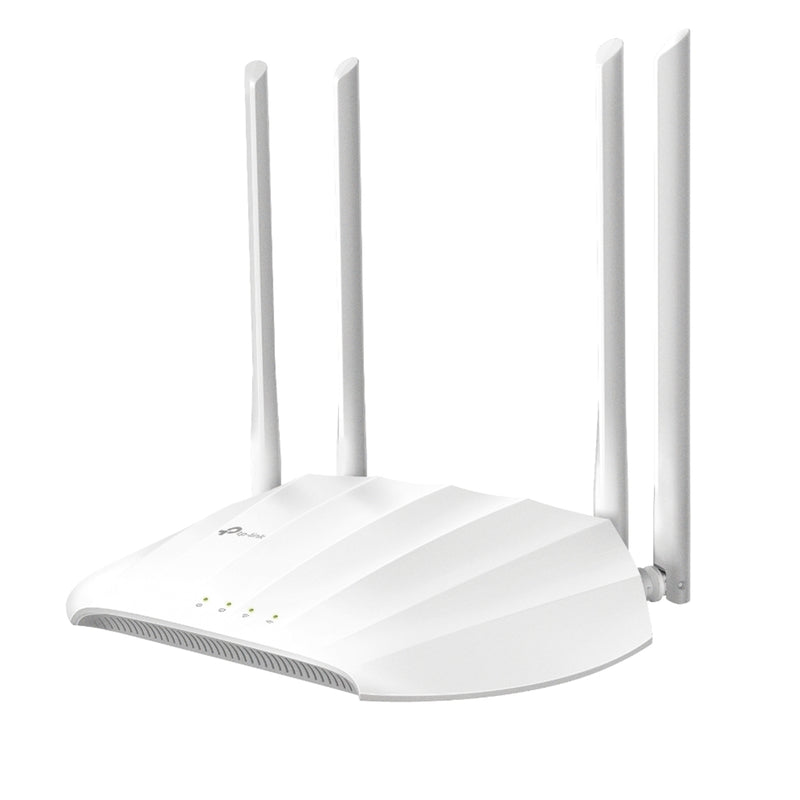

Four High-Performance Antennas
Equipped with four fixed high-performance antennas, the access point delivers:
- Stronger Signal Coverage
- Improved Stability
- Better Device Connectivity
- Enhanced Wireless Range
Gigabit Ethernet Connectivity
The integrated Gigabit Ethernet port ensures high-speed wired networking for maximum performance.
Features:
- 1 × 10/100/1000Mbps Ethernet Port
- Supports Data-Intensive Applications
- Ideal for High-Speed Backhaul Connections
Passive PoE Support
Power and data can be delivered through a single Ethernet cable using Passive PoE support.
Benefits include:
- Flexible Installation
- Reduced Cable Clutter
- Simplified Deployment
- Easier Ceiling or Wall Placement
A PoE injector is included in the package.
Multiple Operating Modes
Access Point Mode
Create a high-performance wireless network from an existing wired connection.
Perfect for:
- Offices
- Business Networks
- Home Network Expansion
Range Extender Mode
Expand existing wireless coverage into areas with weak or limited Wi‑Fi reception.
Client Mode
Connect wired devices to a wireless network using the access point as a wireless adapter.
Ideal for:
- Smart TVs
- Games Consoles
- Printers
- Media Players
Multi-SSID Mode
Create multiple wireless networks from a single device for improved network separation and management.
Advanced Wireless Performance
Dual-Band Connectivity
Distribute devices across two frequency bands for enhanced stability and network efficiency.
2.4GHz Band
- Longer Range
- Better Wall Penetration
- Everyday Connectivity
5GHz Band
- Higher Speeds
- Lower Interference
- Streaming & Gaming Performance
WPA3 Security
Protect your wireless network using the latest security standards.
Supported security options include:
- WPA3
- WPA2
- WPA
- WPA-PSK
- WPA2-PSK
Captive Portal Support
The built-in Captive Portal feature enables a customised authentication page for guest users.
Ideal for:
- Hotels
- Cafés
- Retail Stores
- Guest Networks
Quality of Service (WMM)
WMM technology prioritises network traffic for smoother:
- Streaming
- VoIP Calls
- Online Gaming
- Video Conferencing
Easy Setup & Management
Simple Configuration
Manage and configure the TL-WA1201 using:
- Web Browser Interface
- Mobile App Support
One-Touch WPS Setup
Quickly connect devices using the integrated WPS button for simple wireless installation.
Network Monitoring
Built-in tools provide:
- Wireless Statistics
- DHCP Management
- Access Control
- Radio Enable/Disable Controls
Why Choose the TP-Link TL-WA1201?
The TL-WA1201 offers exceptional flexibility with multiple operating modes, Gigabit connectivity and strong wireless coverage. Whether you're expanding an existing network, creating a dedicated wireless access point or deploying guest Wi‑Fi services, it provides reliable AC1200 performance and modern WPA3 security.
Its PoE support and versatile deployment options make it suitable for both residential and professional environments.
Technical Specifications
Wireless Standards
- IEEE 802.11ac/n/a (5GHz)
- IEEE 802.11b/g/n (2.4GHz)
Wireless Speeds
- 867Mbps on 5GHz
- 300Mbps on 2.4GHz
- AC1200 Combined Speed
Frequency Bands
- 2.4GHz
- 5GHz
Operating Modes
- Access Point Mode
- Range Extender Mode
- Client Mode
- Multi-SSID Mode
Antennas
- 4 × Fixed High-Performance Antennas
Ethernet Interface
- 1 × Gigabit Ethernet Port
- Passive PoE Support

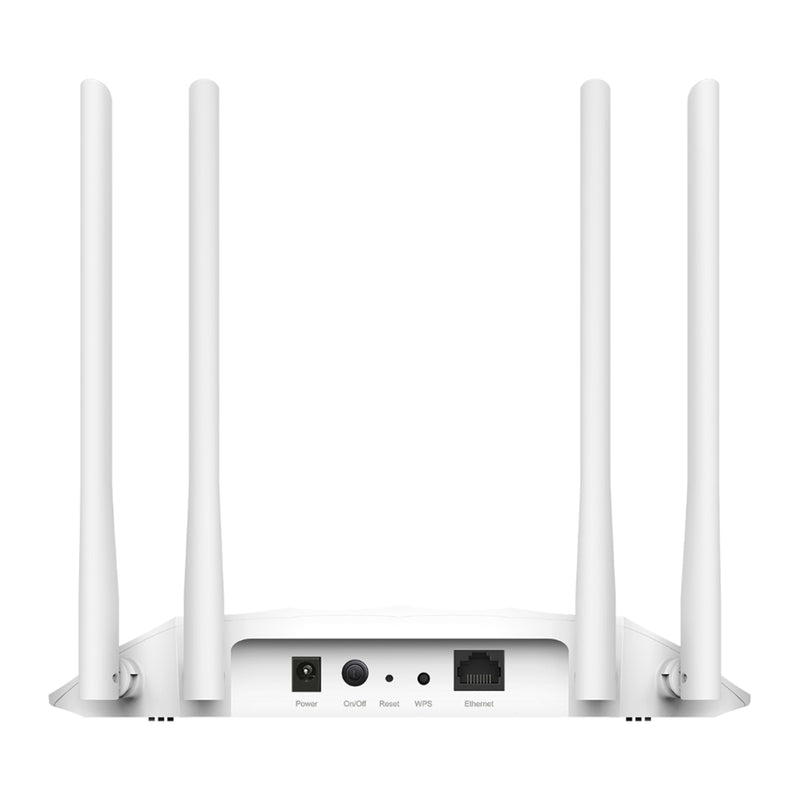

Buttons
- Power On/Off
- WPS
- Reset
Wireless Features
- WMM
- DHCP Server
- Wireless Statistics
- Access Control
- Captive Portal
Security
- WPA3
- WPA2
- WPA
- WPA-PSK
- WPA2-PSK
Protocol Support
- IPv4
- IPv6
Quality of Service
- WMM
Transmission Power
CE
- <20dBm (2.4GHz)
- <23dBm (5GHz)
FCC
- <30dBm (2.4GHz & 5GHz)
Dimensions
- 225 × 145.5 × 37mm
Operating Environment
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10%–90%
- Storage Humidity: 5%–90%
Certifications
- CE
- FCC
- RoHS
Perfect For
- Home Wi‑Fi Expansion
- Small Offices
- Retail Environments
- Hospitality Networks
- Guest Wi‑Fi Access
- Access Point Deployments
- Range Extension
- Wired-to-Wireless Networking

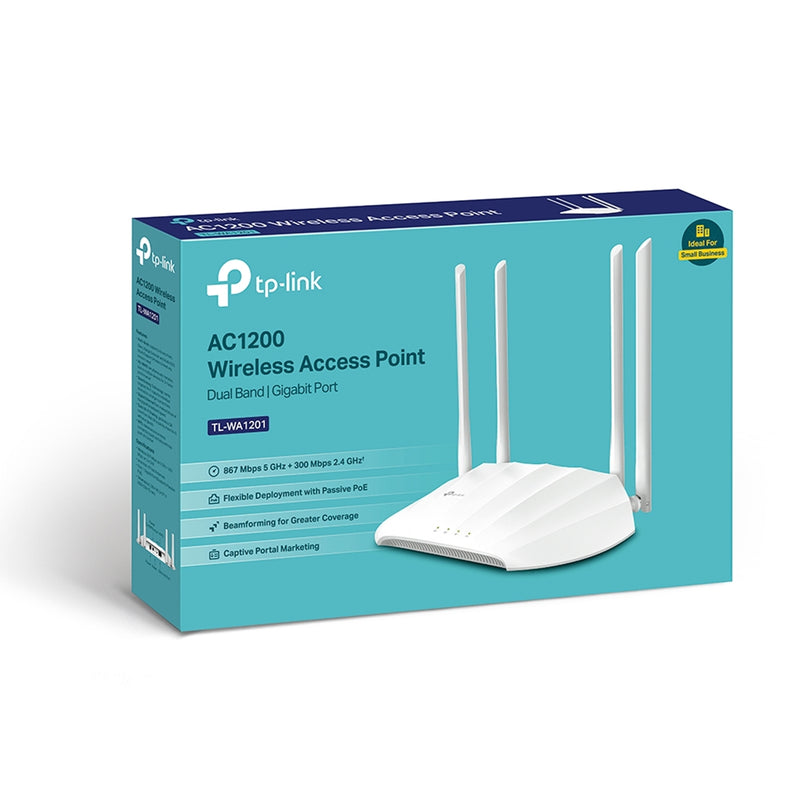

What's in the Box?
- TP-Link TL-WA1201 AC1200 Wireless Access Point
- Power Adapter
- RJ45 Ethernet Cable
- PoE Power Injector
- Quick Installation Guide
Flexible, High-Speed Wireless Networking
The TP-Link TL-WA1201 AC1200 Wireless Gigabit Access Point combines fast dual-band Wi‑Fi, Gigabit Ethernet connectivity, Passive PoE support, multiple operating modes, WPA3 security and flexible deployment options, making it an ideal solution for extending and enhancing wireless coverage in homes and businesses.
