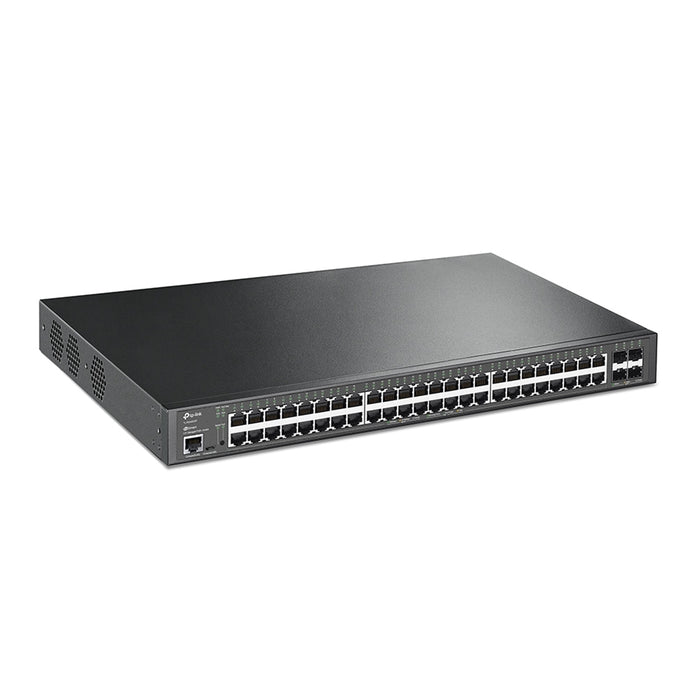

TP-Link TL-SG3452XP 48-Port PoE+ L2+ Switch with 10G Uplink
TP-Link TL-SG3452XP 48-Port L2+ Managed GbE PoE+ Access Switch with 4 x 10G SFP+ Ports & 3-Year Omada Hosted Cloud Controller
Enterprise-Class Switching with PoE+ and 10G Uplink Performance
The TP-Link TL-SG3452XP is a high-performance L2+ managed switch built for enterprises, campuses, and ISPs. Featuring 48 PoE+ Gigabit ports, a 500W power budget, and four 10G SFP+ uplinks, it ensures lightning-fast, reliable data transfer for demanding business networks. Integrated with TP-Link’s Omada SDN Cloud, this switch provides centralized management, advanced security, and easy scalability—ideal for professional installations.
Key Features & Benefits
✓ 10G Lightning-Fast Uplink – Four 10 Gbps SFP+ ports deliver ultra-low latency, non-blocking connectivity to servers and core switches.
✓ 48 PoE+ Gigabit Ports – Supports 802.3af/at with a total 500W power budget for powering access points, IP cameras, and VoIP phones.
✓ Omada SDN Cloud Integration – Centralized, cloud-based management for seamless control of multiple network devices from anywhere.
✓ Advanced L2+ & L3 Features – Supports Static Routing, VLAN, QoS, IGMP Snooping, Link Aggregation, and more for efficient traffic control.
✓ Robust Security – Equipped with IP-MAC-Port Binding, ACL, Storm Control, DoS Defense, and 802.1X authentication for secure operations.
✓ ISP-Ready Capabilities – Includes sFlow, QinQ, L2PT, and IGMP authentication—ideal for service providers and enterprise-grade environments.
✓ IPv6 Compatible – Fully supports IPv6 protocols and ready for next-generation network infrastructure.
✓ Standalone Management – Flexible control via Web GUI, CLI (Console, Telnet, SSH), SNMP, RMON, and Dual Image for reliable performance.
Technical Specifications
Hardware Features
• 48 × 10/100/1000 Mbps RJ45 PoE+ Ports
• 4 × 10G SFP+ Slots
• 1 × RJ45 Console Port
• 1 × Micro-USB Console Port
• 3 × Smart Cooling Fans
• Power Supply: 100–240V AC, 50/60Hz
• PoE+ Standard: IEEE 802.3af/at, up to 30W per port
• Total PoE Power Budget: 500W
• Dimensions: 440 × 330 × 44 mm (19" Rackmount)
Performance
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.9 Mpps
• MAC Address Table: 16K
• Packet Buffer: 12 Mbit
• Jumbo Frame: 9 KB
Software Features
Layer 2 & 2+ Features
• 802.1Q VLAN (up to 4K VLAN groups)
• Link Aggregation (static & dynamic LACP)
• Spanning Tree (STP/RSTP/MSTP)
• IGMP/MLD Snooping and Querier
• Port Mirroring, Loopback Detection, Flow Control
Layer 3 Features
• Static Routing (IPv4/IPv6) – up to 48 routes
• DHCP Server & Relay
• ARP & Proxy ARP Support
Quality of Service (QoS)
• 8 Priority Queues, 802.1p/DSCP Prioritization
• Bandwidth Control per Port/Flow
• SP, WRR, and SP+WRR Scheduling
Security Features
• IP-MAC-Port Binding, DHCP Snooping, ARP Inspection
• IPv6-MAC-Port Binding and ND Detection
• DoS Protection and Storm Control
• ACL (L2–L4), Time-based Access Policies
• 802.1X, MAB, Guest VLAN, RADIUS/TACACS+ Authentication
• Secure Management via HTTPS/SSH
ISP & Advanced Features
• sFlow, QinQ, PPPoE ID Insertion, L2PT
• 802.3ah OAM, DLDP for link monitoring
• Private VLAN, Voice VLAN, MAC/Protocol VLAN
IPv6 Features
• Dual Stack (IPv4/IPv6)
• IPv6 ACL, DHCPv6 Snooping, ND, MLD Snooping
• IPv6 Ping, Traceroute, SNMP, SSH, and SSL
Management
• Omada Cloud-Based, Hardware, or Software Controller
• Zero-Touch Provisioning via Omada SDN
• Web GUI, CLI, SNMP v1/v2c/v3, RMON
• Dual Image & Configuration, LLDP, Cable Diagnostics
Package Contents
• TP-Link TL-SG3452XP Switch
• Power Cord
• Rackmount Kit
• Rubber Feet
• Quick Installation Guide
Why Choose the TL-SG3452XP
The TP-Link TL-SG3452XP delivers enterprise-grade power, speed, and management for demanding business environments. Its high PoE capacity, 10G uplinks, and Omada SDN integration make it a perfect core switch for organizations requiring scalable, secure, and easily managed networks.
