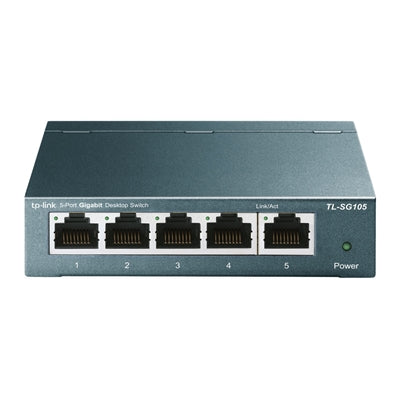

TP-Link TL-SG105 5-Port Gigabit Desktop Switch Metal
TP-Link TL-SG105 5-Port Gigabit Metal Desktop Switch
Upgrade your network to high-speed Gigabit performance with the TP-Link TL-SG105. Designed for reliability and simplicity, this compact 5-port switch delivers fast, stable wired connections for both home and office environments. With a durable metal housing and plug-and-play functionality, it’s the perfect solution for expanding your network with minimal effort.
Key Features & Benefits
✔ 5 x Gigabit Ethernet Ports
Supports 10/100/1000Mbps connections for ultra-fast data transfer and improved network efficiency
✔ Plug & Play Deployment
No configuration required – connect devices and instantly expand your network
✔ Non-Blocking Switching Performance
Ensures smooth data transmission without bottlenecks, even when handling large files
✔ Advanced Traffic Optimisation (QoS & IGMP Snooping)
Prioritises critical traffic such as VoIP and streaming for improved performance
✔ Durable Metal Casing
Robust, professional-grade build for enhanced durability and heat dissipation
✔ Fanless Silent Operation
Noise-free design makes it ideal for desktops, offices, and quiet environments
✔ Energy-Efficient Green Ethernet
Automatically adjusts power consumption based on link status and cable length
✔ Auto-Negotiation & Auto MDI/MDIX
Eliminates the need for crossover cables while ensuring optimal connection speeds
Technical Specifications
Model: TL-SG105
Ports: 5 x 10/100/1000Mbps RJ45 (Auto-Negotiation, Auto MDI/MDIX)
Standards & Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, IEEE 802.1p
Performance:
Packet Forwarding Rate: 7.4 Mpps
MAC Address Table: 2K
Packet Buffer Memory: 1 Mb
Jumbo Frame Support: 16 KB
Switching Method: Store and Forward
Software Features:
QoS: 802.1p/DSCP
IGMP Snooping
Flow Control: IEEE 802.3x
Green Ethernet Technology
Hardware Features:
Fan: Fanless
LED Indicators: Power, Link/Activity (per port)
Power:
External Adapter: 5V DC / 0.6A
Max Power Consumption: 2.3W
Physical:
Dimensions: 100 x 98 x 25 mm
Mounting: Desktop or Wall-Mountable
Casing: Metal
Environmental:
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%–90% non-condensing
Certifications: CE, FCC, RoHS
Why Choose the TP-Link TL-SG105?
The TL-SG105 is a compact, high-performance Gigabit switch built for users who need fast, reliable networking without complexity. Its robust metal design, silent operation, and intelligent traffic management make it ideal for small offices, home networks, and professional environments. If you need a straightforward upgrade to Gigabit speeds with dependable performance, this switch offers excellent value and long-term reliability.
