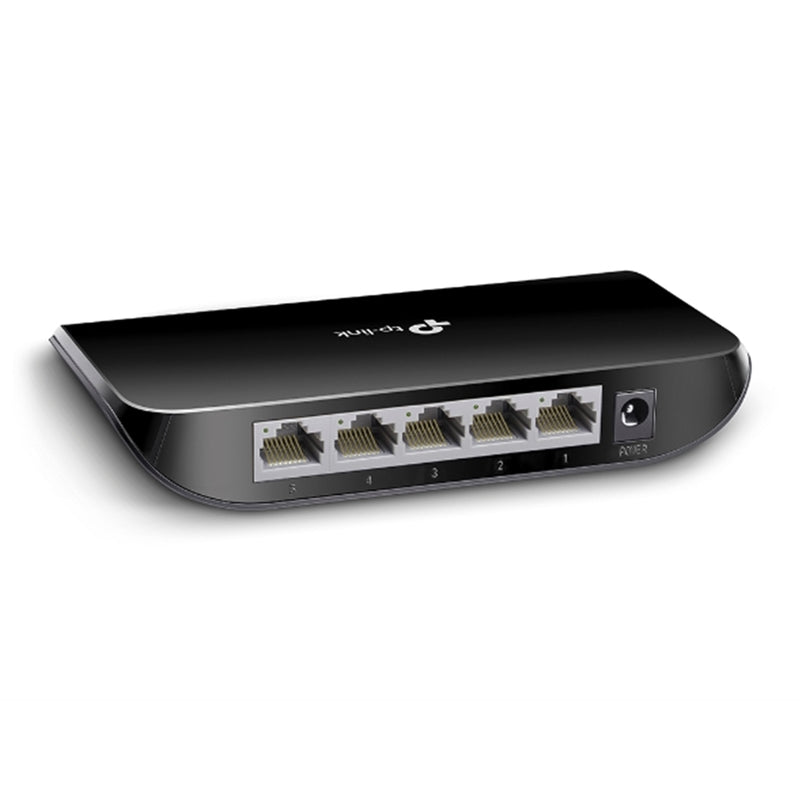

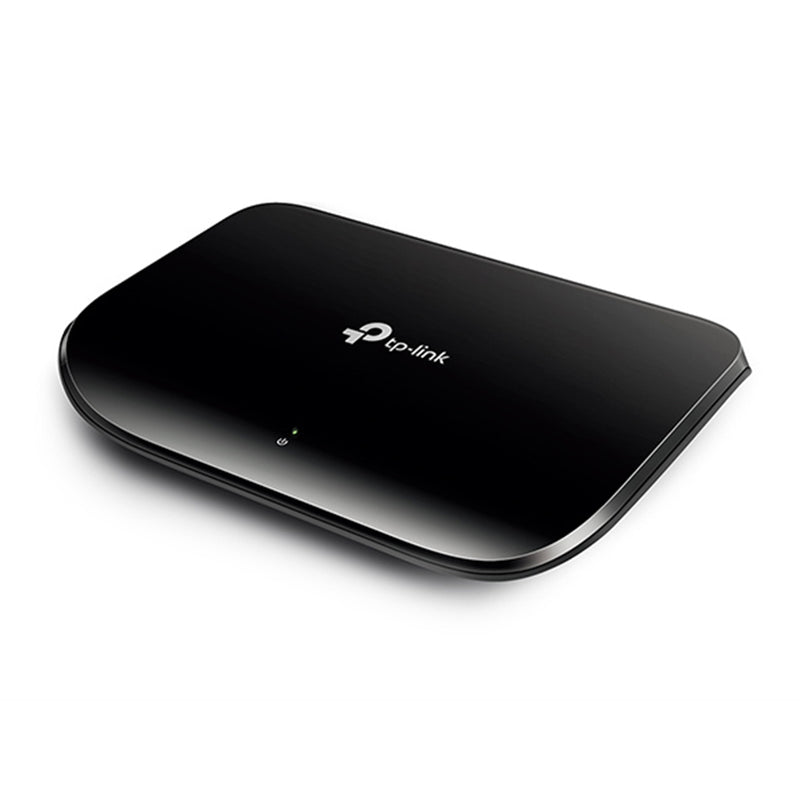

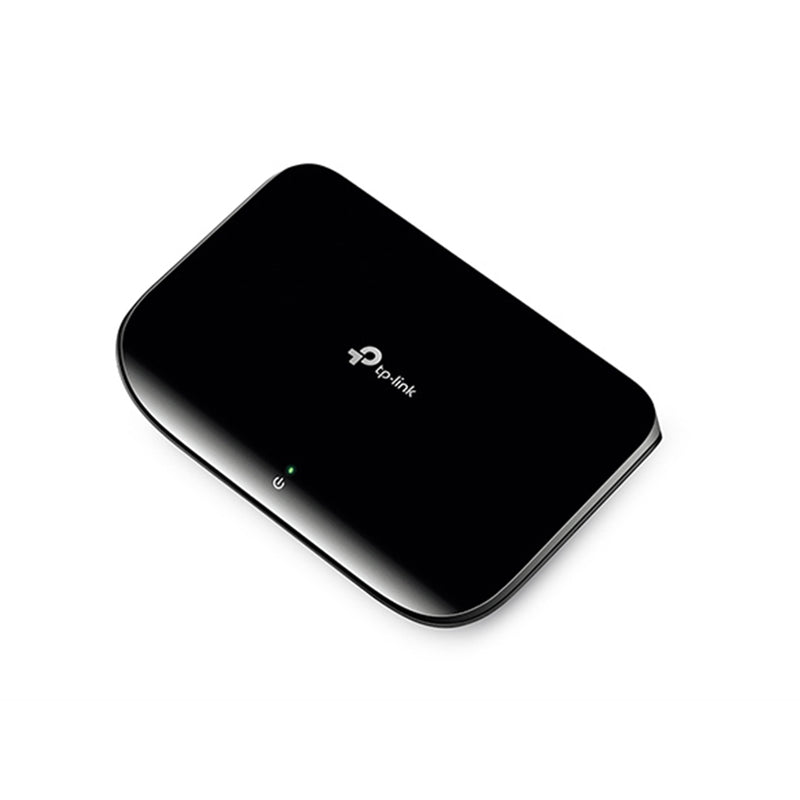

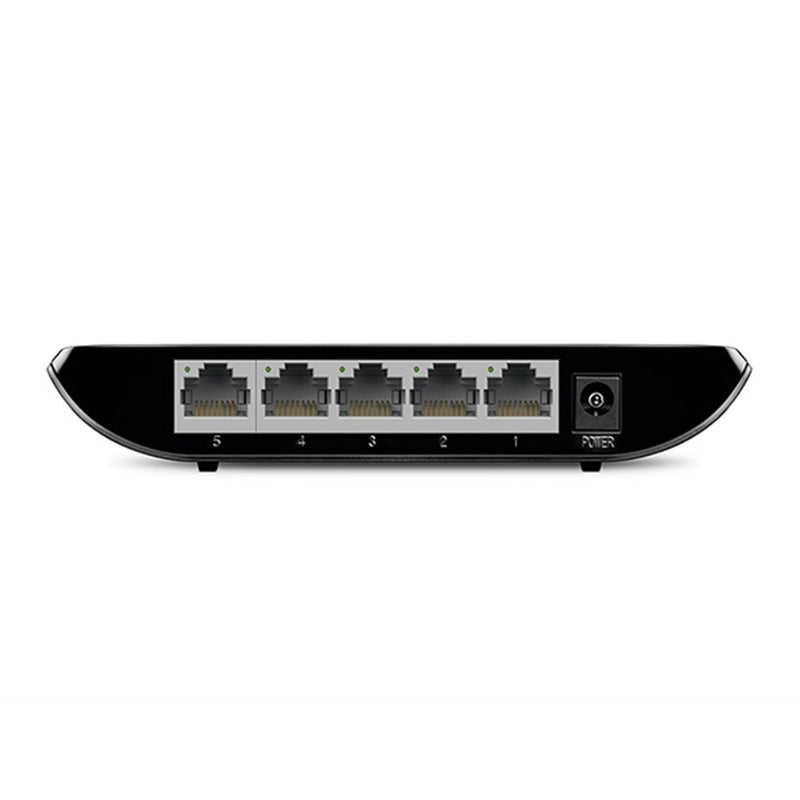

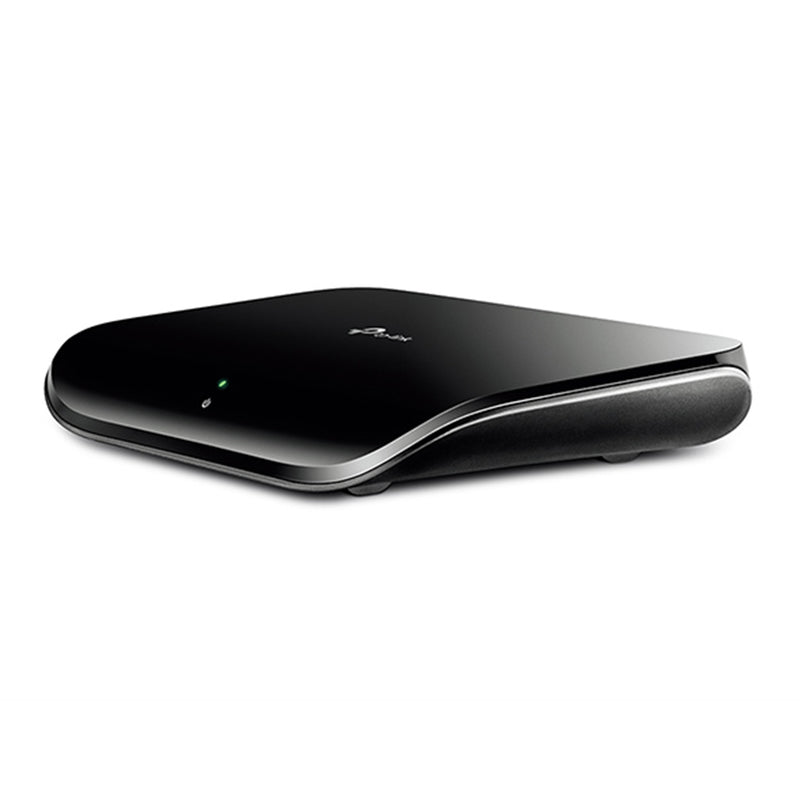

TP-Link TL-SG1005D 5-Port Gigabit Switch – Energy Efficient, Plug & Play

The TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch offers a simple, high-speed solution for expanding your wired network. With five auto-negotiation Gigabit Ethernet ports, this compact switch delivers reliable, high-performance connectivity for homes and small offices. Designed with energy efficiency in mind, it intelligently reduces power consumption based on link status and cable length—helping you save energy without compromising performance.

Key Features

✅ 5 Auto-Negotiation Gigabit Ports – Provides ultra-fast wired connections for PCs, printers, and NAS devices.
✅ Green Ethernet Technology – Automatically adjusts power usage based on connection status and cable length.
✅ Reliable Data Transfer – IEEE 802.3x flow control ensures smooth, stable network performance.
✅ Silent, Fanless Design – Compact plastic housing supports desktop or wall mounting.
✅ Plug and Play Setup – No configuration needed; auto MDI/MDIX eliminates the need for crossover cables.

Technical Specifications

Hardware Features
• Interface: 5× 10/100/1000Mbps RJ45 Ports (Auto MDI/MDIX)
• Fan Quantity: Fanless
• Power Supply: External 5VDC / 0.6A Adapter
• Dimensions: 140 × 88 × 23 mm
• Max Power Consumption: 3.1W
• Heat Dissipation: 10.57 Btu/hr

Software Features
• Transmission Method: Store and Forward
• Advanced Functions:
– Green Ethernet Technology
– 802.3x Flow Control and Back Pressure
– 802.1p/DSCP QoS (V7 and later versions)

Certifications
FCC, CE, RoHS

Operating Environment
• Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~60°C
• Operating Humidity: 10%~90% non-condensing

Package Contents
• TL-SG1005D 5-Port Gigabit Desktop Switch
• Power Adapter
• Installation Guide

Ideal For

Perfect for home offices, small business networks, and media workstations—the TL-SG1005D ensures seamless, high-speed data transfer while saving energy and reducing operational noise.
