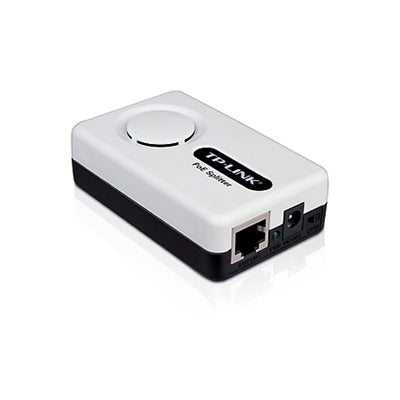

TP-Link TL-POE10R IEEE 802.3af PoE Splitter 5V 9V 12V
Convert PoE Power for Non-PoE Devices
The TP-Link TL-POE10R PoE Splitter is an efficient solution for powering non-PoE network devices using an existing Power over Ethernet (PoE) network. Fully compliant with the IEEE 802.3af PoE standard, the splitter separates power and data from a PoE-enabled Ethernet cable, delivering selectable DC power outputs while maintaining network connectivity.
Ideal for installations where a traditional power outlet is unavailable, the TL-POE10R enables devices such as wireless access points, IP cameras and IP phones to be deployed quickly and conveniently.
Key Features & Benefits
IEEE 802.3af Compatibility
Designed to work seamlessly with:
- IEEE 802.3af PoE switches
- PoE injectors
- PoE-enabled network infrastructure
- TP-Link PoE devices and third-party PoE equipment
Selectable Output Voltage
The TL-POE10R provides adjustable output voltages to match a variety of network devices.
Supported outputs include:
- 5V DC / 2A
- 9V DC / 1A
- 12V DC / 1A
This flexible power output allows compatibility with a wide range of equipment.
Simple Plug-and-Play Operation
No software configuration or special setup is required.
Simply:
- Connect a PoE-enabled Ethernet cable.
- Select the required output voltage.
- Connect the powered device.
- Begin operation immediately.
Power Devices Where No Mains Power Exists
Perfect for installations where electrical outlets are unavailable or difficult to access.
Common applications include:
- Wireless Access Points
- IP Cameras
- VoIP Phones
- Embedded Network Devices
- IoT Equipment
Network and Power Through One Cable
By transmitting power and data over a single Ethernet cable, deployment becomes:
- Easier
- Cleaner
- More cost-effective
- Faster to install
Ideal for Remote Installations
The TL-POE10R helps simplify deployments in:
- Offices
- Schools
- Warehouses
- Retail Environments
- Security Installations
- Hospitality Venues
Technical Specifications
Product
- Model: TP-Link TL-POE10R
- Product Type: PoE Splitter
Standards
- IEEE 802.3af Compliant
Input
- Power over Ethernet (PoE)
- Compatible with IEEE 802.3af Power Sourcing Equipment (PSE)
DC Output Options
| Output Voltage | Current |
|---|---|
| 5V DC | 2A |
| 9V DC | 1A |
| 12V DC | 1A |
Installation
- Plug-and-Play
- No Configuration Required
Function
- Splits PoE power and data
- Supplies regulated DC output to non-PoE devices
Typical Applications
Wireless Access Points
Power access points in locations without nearby power outlets.
IP Security Cameras
Enable flexible camera placement with power and connectivity provided through Ethernet infrastructure.
VoIP Phones
Power compatible IP phones without the need for separate power adapters.
Embedded Network Devices
Suitable for supporting networking hardware requiring low-voltage DC power.
Compatible Network Equipment
The TL-POE10R can operate with:
- IEEE 802.3af PoE Switches
- TP-Link PoE Switches
- TP-Link TL-POE150S PoE Injector
- Third-Party IEEE 802.3af PoE Equipment
Why Choose the TP-Link TL-POE10R?
The TP-Link TL-POE10R PoE Splitter provides a simple, cost-effective way to power non-PoE devices using existing PoE network infrastructure. With IEEE 802.3af compliance, selectable 5V, 9V and 12V outputs, and plug-and-play installation, it offers exceptional flexibility for network deployments where power sockets are unavailable.
Perfect for access points, IP cameras, VoIP phones and other low-voltage networking equipment, the TL-POE10R helps reduce installation complexity while making the most of your PoE-enabled network.
