TP-Link Tapo D230S1 Smart Video Doorbell Camera Kit

Smart Front Door Security with Crystal-Clear 2K Video

The TP-Link Tapo D230S1 Smart Video Doorbell Camera Kit combines advanced doorstep monitoring, intelligent AI detection and flexible installation into a complete smart home security solution. Featuring a 2K 5MP video doorbell, full-colour night vision, a rechargeable battery and the included Tapo H200 Smart Hub, this kit helps you see, hear and respond to visitors wherever you are.

With head-to-toe viewing, package detection, local storage support and compatibility with Alexa and Google Assistant, the Tapo D230S1 provides comprehensive front door protection day and night.

Key Features & Benefits

Sharp 2K 5MP Video Resolution

Capture exceptional detail with:

2560 x 1920 (2K 5MP) Resolution

The advanced image sensor and starlight technology deliver crisp, detailed footage for improved identification of visitors, deliveries and activity around your entrance.

Full-Colour Night Vision

See clear, full-colour footage at night using:

• Starlight Sensor Technology
• Integrated Spotlight
• Enhanced Low-Light Performance

This allows you to identify visitors and monitor activity even after dark.

Head-to-Toe Viewing

Unlike many traditional doorbells, the Tapo D230S1 offers a 4:3 aspect ratio with an ultra-wide field of view, allowing you to see:

• Visitors from Head to Toe
• Parcels on the Ground
• Doorstep Activity
• Delivery Packages

Wide-Angle Coverage

The ultra-wide lens delivers:

• 166° Diagonal Field of View
• 135° Horizontal View
• 102.8° Vertical View

Helping reduce blind spots around your entrance.

Smart AI Detection

Built-in AI technology can accurately identify:

• People
• Pets
• Vehicles
• Packages
• Motion Events

Receive only relevant notifications while reducing false alarms.

Smart Notifications

Receive real-time smartphone alerts whenever important activity is detected, allowing you to stay connected to your property at all times.

Two-Way Audio Communication

Speak directly with visitors through:

• Built-In Microphone
• Built-In Speaker
• Noise Cancellation Technology

Ideal for:

• Greeting Guests
• Speaking with Delivery Drivers
• Managing Deliveries Remotely

Quick Response Options

Respond even when you are unavailable by using:

• Pre-Recorded Quick Responses
• Remote Communication Through the Tapo App

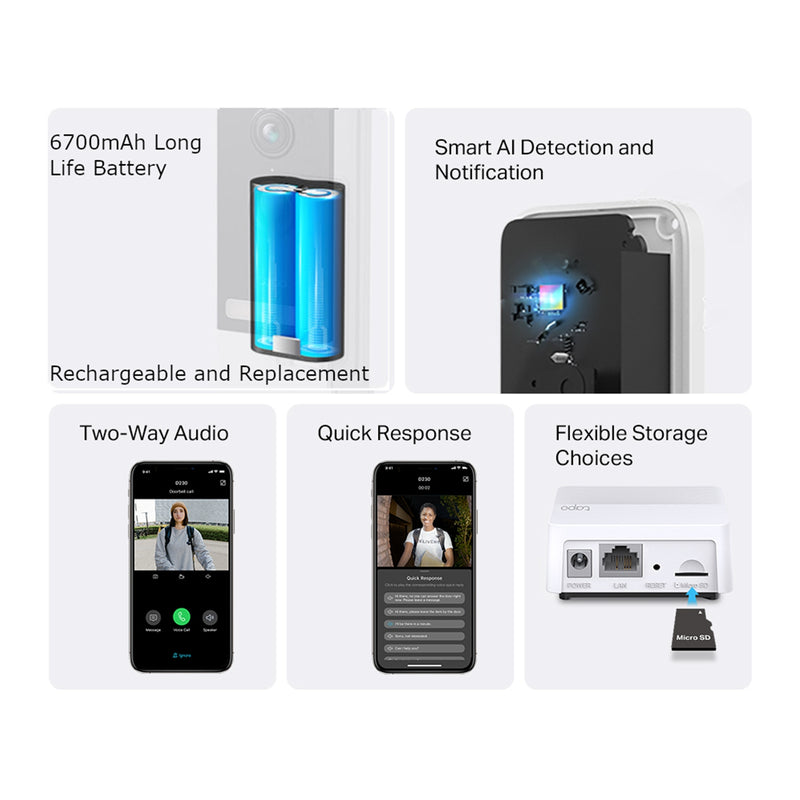

Rechargeable Battery Operation

The included rechargeable battery provides flexible installation without requiring complex wiring.

Benefits include:

• Easy Installation
• Removable Battery Design
• Long Battery Life
• Reduced Installation Costs

Flexible Installation Angles

Included mounting wedges allow installation in a variety of locations while helping optimise viewing angles.

Anti-Theft Protection

The integrated anti-theft alarm immediately alerts you if someone attempts to remove the doorbell from its mounting position.

Flexible Video Storage

Store recordings locally or in the cloud.

Local Storage

• MicroSD Card Installed in Hub
• Up to 512GB Capacity

Cloud Storage

• Tapo Care Cloud Storage
• Secure Online Backup
• Remote Video History

Smart Home Compatibility

Works seamlessly with:

• Amazon Alexa
• Google Assistant

Integrate the doorbell into your existing smart home ecosystem for convenient voice control and live viewing.

IP64 Weather Resistance

Built to withstand outdoor conditions including:

• Rain
• Dust
• Moisture
• Daily Outdoor Exposure

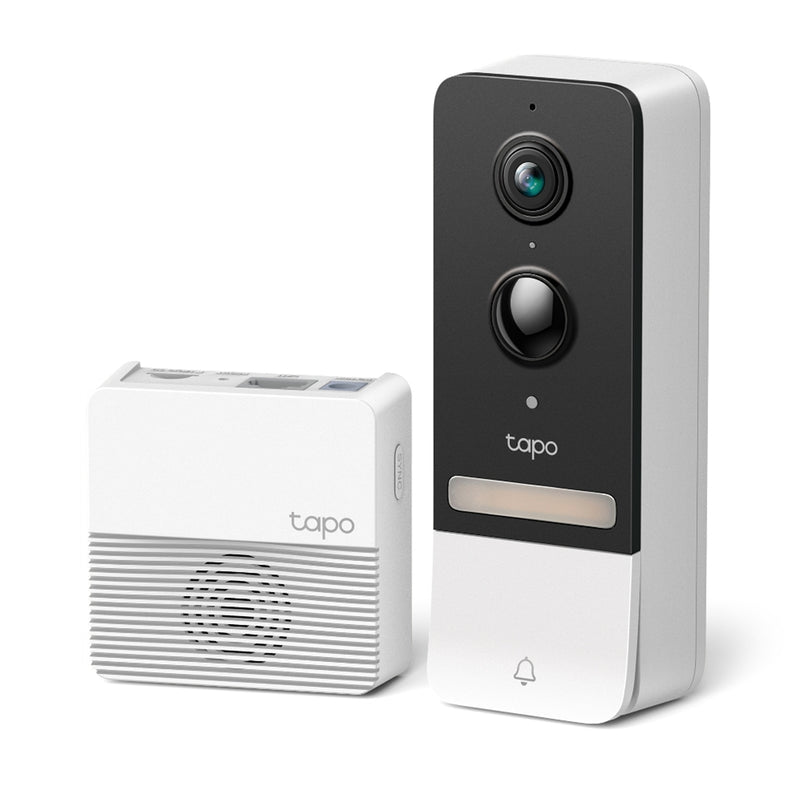

Included Tapo H200 Smart Hub

The included Tapo H200 Hub acts as the central communication point between the doorbell and your network.

Hub Features

• Local Video Storage
• Integrated Chime Function
• Ethernet Connectivity
• Smart Sensor Expansion

Supports:

• Up to 64 Tapo Sensors, Switches or Buttons
• Up to 4 Cameras or Video Doorbells

Providing room for future smart home expansion.

Why Choose the TP-Link Tapo D230S1?

The Tapo D230S1 offers premium video doorbell features without the complexity of hardwired installation. With detailed 2K footage, full-colour night vision, AI-powered detection and local storage support, it delivers an exceptional balance of convenience, security and value.

The included H200 Hub expands functionality while allowing local recording without monthly subscription requirements.

Technical Specifications

Doorbell Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Lens: 2.1mm
• Aperture: F2.1
• Field of View:
  • 166° Diagonal
  • 135° Horizontal
  • 102.8° Vertical

Video

• Maximum Resolution: 2560 x 1920 (2K 5MP)
• Frame Rate: 15fps
• Digital Zoom: 16x
• Video Compression: H.264
• Live View: Yes
• Image Enhancement:
  • 3DNR
  • WDR

Night Vision

• Full-Colour Night Vision
• 850nm Infrared LEDs
• Visibility Up To 7.6m (25ft)

Audio

• Built-In Microphone
• Built-In Speaker
• Two-Way Audio
• Noise Cancellation

Alarm System

Doorbell Siren

• 96dB

Hub Siren

• 100dB

Detection Features

• Motion Detection
• Person Detection
• Pet Detection
• Vehicle Detection
• Package Detection

Storage

• MicroSD Card Slot on Hub
• Supports Up To 512GB
• Tapo Care Cloud Storage Available

Connectivity

Wireless

• IEEE 802.11b/g/n
• 2.4GHz Wi‑Fi

Hub Communication

• Sub-1G 868MHz Communication

Wired

• 10/100Mbps Ethernet Port on Hub

Security

• WPA/WPA2-PSK
• SSL/TLS Encryption
• 128-Bit AES Encryption
• On-Device Machine Learning

Power

Doorbell

• 6700mAh Rechargeable Lithium-Ion Battery

Hub

• 9V DC Power Adapter

Weather Protection

• IP64 Rated

Mounting

• Wall Mount
• Adhesive Installation

Dimensions

Doorbell

• 146 x 54.5 x 35.5mm

Hub

• 71.45 x 71.45 x 31.25mm

Certifications

• CE
• RoHS
• FCC
• UKCA
• RCM
• EAC

Perfect For

• Front Door Security
• Package Monitoring
• Smart Home Systems
• Family Homes
• Apartment Entrances
• Visitor Management
• Remote Property Monitoring

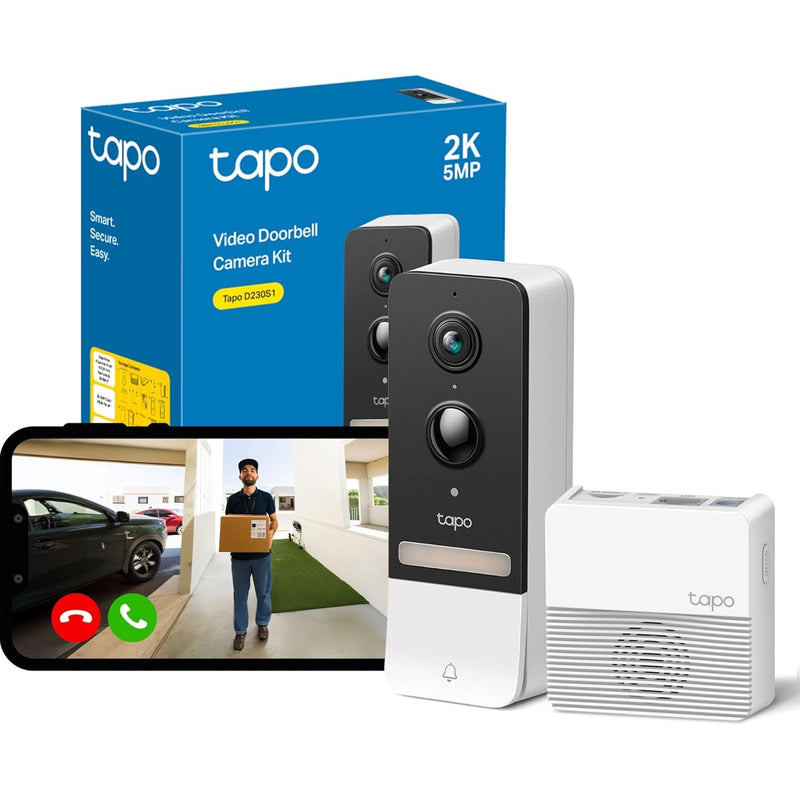

What's in the Box?

• TP-Link Tapo D230 Video Doorbell
• Tapo H200 Smart Hub
• Tapo A100 Rechargeable Battery
• Power Adapter
• Ethernet Cable
• USB Adapter Cable
• Mounting Bracket
• 15° Mounting Wedge
• Adhesive Pad
• Mounting Hardware
• Detaching Pin
• Quick Start Guide

Smarter Front Door Protection

The TP-Link Tapo D230S1 Smart Video Doorbell Camera Kit combines 2K 5MP video quality, full-colour night vision, AI-powered detection, rechargeable battery operation, local storage support and smart home integration, making it an excellent solution for securing and monitoring your front door with confidence.
