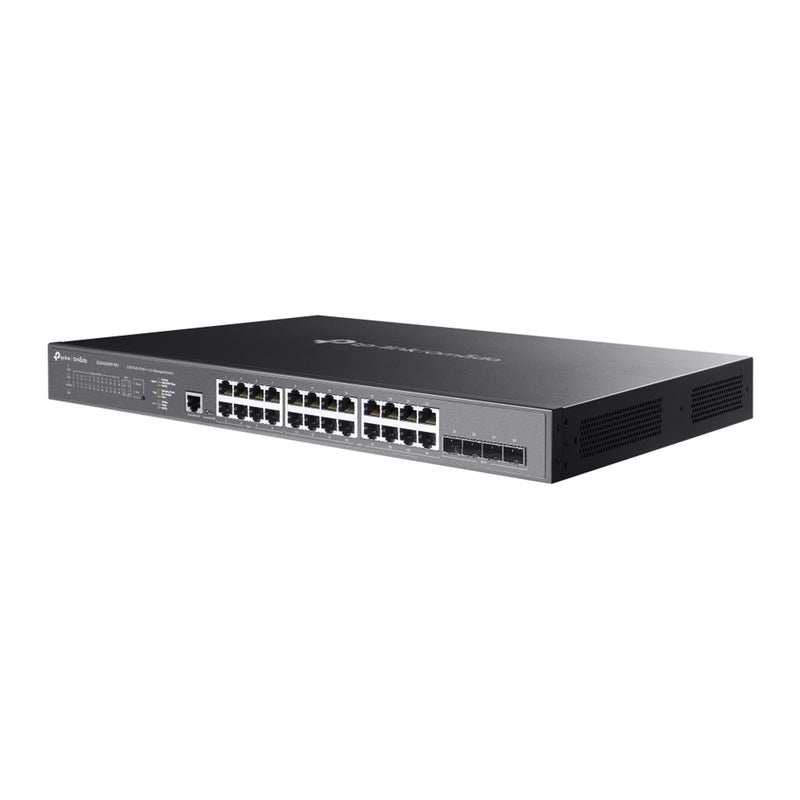

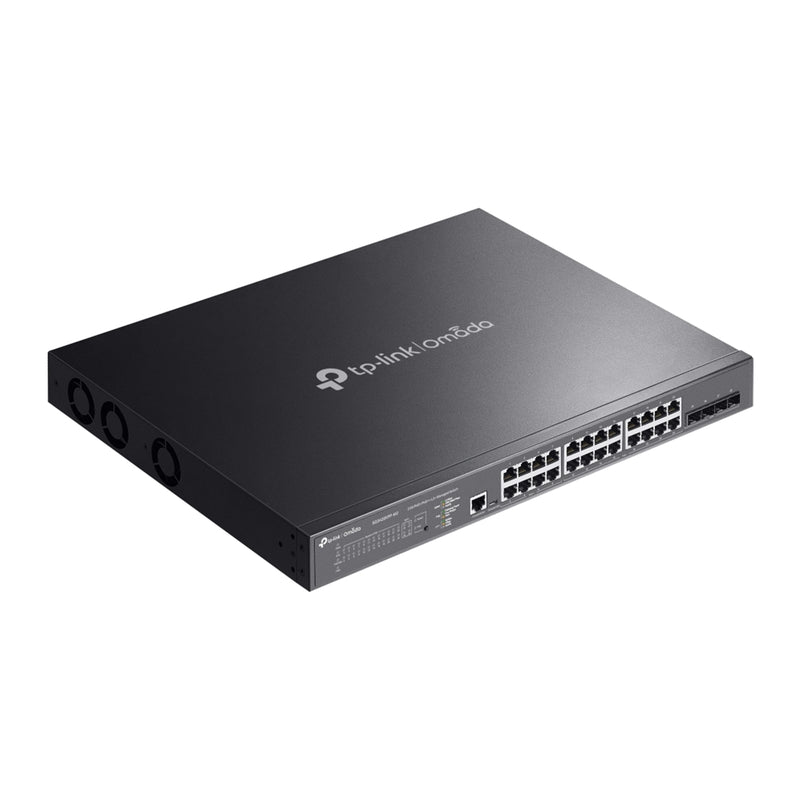

TP-Link Omada SG3428XPP-M2 24-Port 2.5G L2+ Managed PoE Switch
TP-Link Omada SG3428XPP-M2 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
High-Performance 2.5G PoE++ Switch for Next-Gen Networks
The TP-Link Omada SG3428XPP-M2 delivers powerful Layer 2+ switching performance with full 2.5GBASE-T connectivity and 10G SFP+ uplinks. Designed for enterprise and high-bandwidth networks, it offers 8 PoE++ ports (60 W), 16 PoE+ ports (30 W), and a total PoE budget of 500 W. Integrated with Omada SDN, it supports centralised cloud management, static routing, and robust network protection for mission-critical deployments.
Key Features & Benefits
✓ 24× 2.5GBASE-T Ports with PoE Power Delivery
8 × PoE++ ports (up to 60 W) and 16 × PoE+ ports (up to 30 W), ideal for access points, cameras, and VoIP systems.
✓ 4× 10G SFP+ Slots
High-speed fibre uplinks ensure seamless aggregation and network scalability.
✓ Massive 500 W PoE Budget
Power multiple high-demand devices simultaneously without additional injectors or splitters.
✓ Omada SDN Integration
Centrally manage and monitor networks via the Omada Cloud, Hardware Controller, or Software Controller with Zero-Touch Provisioning.
✓ Layer 2+ with Static Routing
Efficiently routes internal traffic for improved network performance and bandwidth optimisation.
✓ Comprehensive Security & Management
Supports ACL, 802.1X, AAA, IP-MAC-Port Binding, DHCP Snooping, and DoS protection.
✓ Enterprise-Class Reliability
Three intelligent cooling fans, rackmountable design, and 200 Gbps switching capacity ensure consistent high-performance operation.
✓ Advanced QoS & VLAN Control
Guarantees optimal performance for latency-sensitive applications such as voice and video.
✓ ISP-Grade Features
Includes ERPS ring protection, OAM monitoring, and DDM for professional deployments.
Hardware Specifications
Ports:
• 24 × 2.5 Gbps RJ45 Ports (8 × PoE++ / 16 × PoE+)
• 4 × 10G SFP+ Slots
• 1 × RJ45 Console Port
• 1 × Micro-USB Console Port
PoE Standard: 802.3bt/at/af compliant
Power Budget: 500 W
Max Power Consumption: 629.1 W (110 V / 60 Hz)
Power Supply: 100–240 V AC 50/60 Hz
Cooling: 3 Fans
Mounting: Rackmountable
Dimensions: 440 × 330 × 44 mm
Performance
• Switching Capacity: 200 Gbps
• Forwarding Rate: 148.8 Mpps
• MAC Address Table: 32 K
• Packet Buffer Memory: 16 Mbit
• Jumbo Frame: 9 KB
Software Features
Quality of Service (QoS)
– 8 Priority Queues
– 802.1p CoS/DSCP Priority
– Scheduling Modes: SP, WRR, SP + WRR
– Port/Flow Rate Limiting
Layer 2 & 2+ Functions
– IPv4/IPv6 Static Routing (48 routes)
– DHCP Server & Relay
– Link Aggregation, STP, Loopback Detection
– IGMP Snooping & Authentication
– MLD Snooping, MVR
– ERPS & OAM Support
VLAN
– Up to 4,000 VLAN Groups
– 802.1Q Tag VLAN, Private VLAN, Voice VLAN
– MAC, Protocol, and VLAN Mapping
Security
– IP-MAC-Port Binding (512 entries)
– 802.1X Authentication & RADIUS Support
– ARP Inspection & DHCP Snooping
– IPv6 Source Guard & ND Detection
– DoS Protection, AAA (TACACS+)
– SSH/SSL Secure Management
Management
– Web GUI, CLI via Console/Telnet
– SNMP v1/v2c/v3, RMON (1,2,3,9)
– Omada Cloud Management & App Access
– Dual Image & Config, Cable Diagnostics, EEE
– LLDP/LLDP-MED, AutoInstall, System Log
Certifications & Package Contents
Certifications: CE, FCC, RoHS
Package Includes: Switch Unit, Power Cord, Rackmount Kit, Rubber Feet, Quick Installation Guide
Why Choose the TP-Link Omada SG3428XPP-M2
This professional-grade Omada switch combines 2.5G multi-gigabit connectivity, 10G fibre uplinks, and 500 W of PoE power for an all-in-one solution built for Wi-Fi 6 access points, security cameras, and enterprise networks. With cloud-based SDN control and advanced L2+ features, it delivers high speed, security, and scalability for modern IT infrastructure.
