High-Performance Network Management and Security in One Device

The TP-Link Omada Fusion 2.5G Gateway Controller combines a powerful enterprise-grade gateway, Omada controller and security appliance into a single compact solution. Designed for businesses, retail environments, hospitality deployments and multi-site networks, it delivers advanced routing, centralised management, VPN connectivity and robust security without ongoing licensing costs.

Equipped with a Quad-Core CPU, five 2.5 Gigabit ports, integrated cloud management and advanced IDS/IPS protection, this gateway provides the performance and flexibility required for modern business networking.

Key Features & Benefits

Built-In Omada Controller

Simplify network management with an integrated Omada controller.

Benefits include:

• Centralised network management
• No additional controller required
• Easy device provisioning
• Unified monitoring and reporting
• Omada ecosystem integration

License-Free Cloud Management

Manage networks from anywhere with:

• Cloud-based administration
• Multi-site management
• Remote monitoring
• Centralised configuration
• No recurring licence fees

Powerful Quad-Core Processing

Enterprise-level performance powered by a high-performance Quad-Core CPU.

Supports:

• High network throughput
• Real-time security inspection
• VPN connectivity
• Multi-WAN deployments
• Large client environments

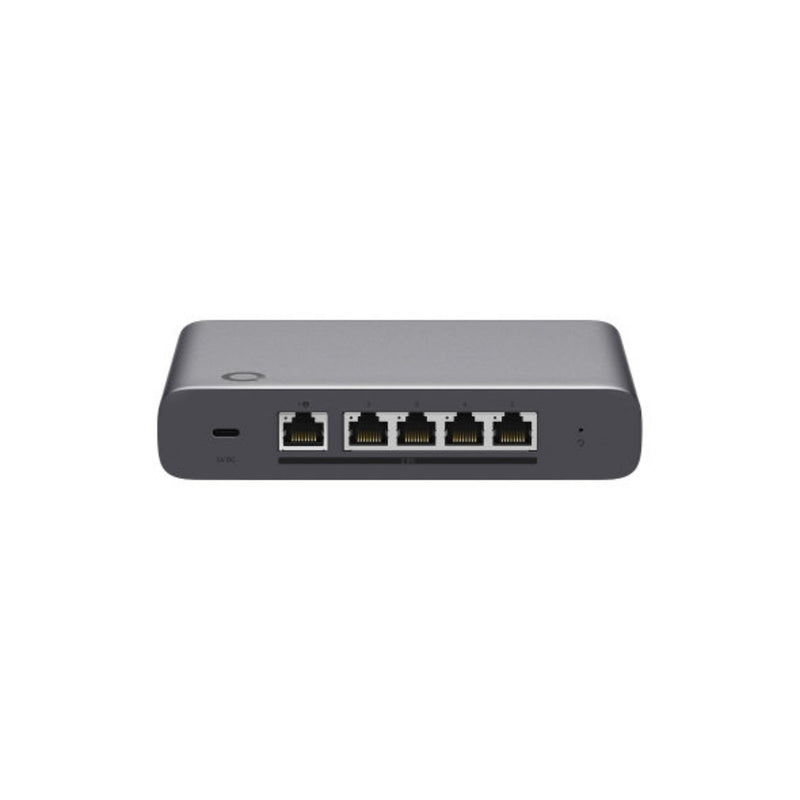

Five 2.5 Gigabit Ethernet Ports

Flexible high-speed connectivity includes:

• 1 x 2.5G RJ45 WAN Port
• 4 x 2.5G RJ45 LAN/WAN Ports
• Up To 4 Simultaneous WAN Connections

Ideal for modern fibre internet services and bandwidth-intensive environments.

Multi-WAN Load Balancing & Failover

Increase reliability and uptime with:

• Up to 4 WAN Connections
• Automatic Failover
• Intelligent Traffic Distribution
• Load Balancing Support

Integrated Touchscreen Display

A built-in 2.51-inch colour touchscreen enables:

• Quick troubleshooting
• Real-time monitoring
• Status checks
• Easier on-site management

Bluetooth Onboarding

Deploy devices quickly using:

• Bluetooth Setup
• App-Guided Configuration
• One-Tap Device Adoption
• Simplified Installation

Enterprise Security Features

IDS/IPS Protection

Built-in Intrusion Detection and Prevention delivers:

• Real-time threat monitoring
• Attack mitigation
• Enhanced network security

Performance

• IDS/IPS Throughput: 2,183 Mbps

Deep Packet Inspection (DPI)

Gain visibility into network usage and applications through advanced traffic analysis.

Content Filtering

Control internet access with:

• Website Filtering
• Content Categories
• User Control Policies

Built-In Ad Blocking

Reduce unwanted traffic and improve browsing experiences.

DNS Security

Protect users from malicious websites and suspicious domains.

Advanced Firewall

Enterprise firewall features include:

• Access Control Lists (ACLs)
• Attack Defence
• ARP Inspection
• Security Policy Enforcement

VPN & SD-WAN Features

Omada LightLink VPN

Create secure remote network connections with one-click deployment.

LightLink VPN Throughput

• 527 Mbps

Site-to-Site VPN

Supported VPN technologies:

• WireGuard VPN
• IPsec VPN

Site-to-Site VPN Throughput

• Up to 1,023 Mbps

VPN Server Support

Supports:

• WireGuard VPN
• OpenVPN
• IPsec VPN
• SSL VPN
• L2TP VPN
• PPTP VPN

VPN Client Support

Compatible with:

• WireGuard VPN
• OpenVPN
• L2TP VPN
• PPTP VPN

SD-WAN

Features:

• Full Mesh SD-WAN
• Intelligent Routing
• Multi-Site Connectivity
• Traffic Optimisation

Omada Management Features

Centralised Network Administration

Manage networks through:

• Cloud Portal
• Local Web Interface
• Omada Mobile App

Management Tools

• Dashboard Monitoring
• Network Topology View
• Device Discovery
• Device and Client Lists
• Alerts and Event Logging
• Health Monitoring
• Internet Usage Statistics
• Firmware Management

Authentication Features

• Captive Portal
• RADIUS Authentication
• LDAP Authentication
• 802.1X Authentication

Monitoring & Diagnostics

Tools include:

• Ping Testing
• Packet Capture
• Terminal Access
• Cable Testing
• Interference Detection
• Port Mirroring
• Remote Access
• IntelliRecover

Networking Features

WAN Support

Compatible with:

• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
• MAP-E
• DS-Lite

Routing Features

• Static Routing
• Policy Routing
• Multi-WAN Routing

NAT Features

• Port Forwarding
• Virtual Server
• DMZ
• ALG
• UPnP
• One-to-One NAT
• Disable NAT

VLAN Support

• VLAN Segmentation
• OUI-Based VLAN

Traffic Optimisation

• QoS
• Auto QoS
• Bandwidth Control

IPv6 Support

Includes support for:

• Static IPv6
• DHCPv6
• PPPoE IPv6
• SLAAC
• 6to4 Tunnel
• Pass-Through

Hardware Specifications

Processor

• Quad-Core CPU

Memory

• 2GB DDR4

Ports

• 1 x 2.5G RJ45 WAN
• 4 x 2.5G RJ45 LAN/WAN

Display

• 2.51-Inch Colour Touchscreen

Cooling

• Fanless Design

Power

• USB-C Power Adapter
• Input: 100-240V AC
• Output: 5V DC / 3A

Maximum Power Consumption

• 8.18W

Protection

• 4kV Surge Protection
• ±8kV Air ESD Protection
• ±4kV Contact ESD Protection

Physical Specifications

Dimensions

• 160 × 130 × 31.5 mm

Weight

• 510g

Enclosure

• Polycarbonate

Mounting Options

• Desktop Placement
• Wall Mount Compatible (Optional Plate Required)
• Rack Mount Compatible (Optional Kit Required)

Capacity & Scalability

Recommended Device Capacity

• Up to 30 Omada Devices

Recommended Client Capacity

• Up to 300 Connected Clients

Certifications

• CE
• FCC
• RoHS

Ideal For

• Small and Medium Businesses
• Multi-Site Organisations
• Retail Stores
• Hospitality Networks
• Educational Institutions
• Professional Offices
• Managed Service Providers
• Branch Office Connectivity
• Secure Remote Access Deployments
• SD-WAN Environments

Why Choose the TP-Link Omada Fusion 2.5G Gateway Controller?

The TP-Link Omada Fusion 2.5G Gateway Controller combines enterprise-grade routing, advanced security, built-in network management and SD-WAN capabilities in a single compact appliance. With five 2.5GbE ports, a Quad-Core processor, integrated IDS/IPS, extensive VPN support and license-free cloud management, it provides a powerful networking platform for modern business environments.

Its built-in Omada controller, touchscreen management interface and support for up to 300 connected clients make it an ideal solution for organisations seeking simplified deployment, strong security and scalable networking performance.
