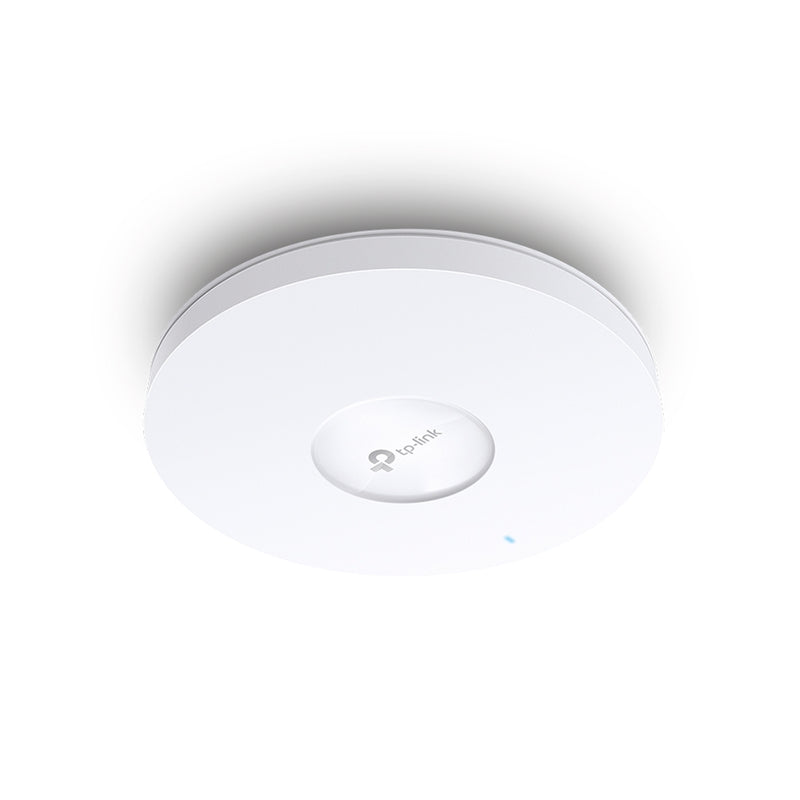

TP-Link Omada EAP650 AX3000 WiFi 6 Ceiling Mount Access Point
Enterprise-Grade AX3000 WiFi 6 Performance for Business Networks
The TP-Link Omada EAP650 AX3000 Ceiling Mount WiFi 6 Access Point is a high-performance business-class wireless solution designed to deliver fast, reliable and scalable WiFi coverage for offices, schools, retail environments, hospitality venues and enterprise deployments.
Powered by the latest WiFi 6 (802.11ax) technology, the EAP650 delivers combined wireless speeds of up to 2976Mbps, advanced network efficiency and support for large numbers of connected devices. Integrated with the Omada Software Defined Networking (SDN) platform, it provides centralised cloud management, seamless roaming, mesh networking and enterprise-grade security features.
With PoE+ support, slim-profile design and flexible ceiling or wall mounting options, the EAP650 is ideal for modern professional WiFi deployments.
Key Features & Benefits
Ultra-Fast AX3000 WiFi 6 Speeds
Deliver high-speed wireless connectivity with combined WiFi speeds of up to 2976Mbps:
- 2402Mbps on 5GHz
- 574Mbps on 2.4GHz
Perfect for:
- High-density office environments
- Video conferencing
- Cloud applications
- Large file transfers
- VoIP systems
- Guest WiFi networks
Advanced WiFi 6 Efficiency
WiFi 6 technologies increase network capacity and efficiency, allowing more devices to connect without compromising performance.
Key technologies include:
- OFDMA
- MU-MIMO
- 1024-QAM
- Extended OFDM Symbols
- HE160 (160MHz Bandwidth)
This makes the EAP650 ideal for busy business environments with numerous simultaneous connections.
160MHz Channel Support
HE160 doubles available channel width, enabling significantly higher throughput and faster wireless performance when used with compatible devices.
Omada SDN Centralised Management
Manage your entire network from a single interface using:
- Omada Cloud-Based Controller
- Omada Software Controller
- Omada Hardware Controllers (OC200 & OC300)
- Omada App
Benefits include:
- Centralised configuration
- Network monitoring
- Firmware management
- Performance analytics
- Multi-site management
Cloud Management Anywhere
Access and manage your network remotely from virtually anywhere using secure cloud-based controls through the Omada platform.
Seamless Roaming
Users can move between access points without losing connectivity.
Ideal for:
- Voice calls
- Video meetings
- Mobile devices
- Large office deployments
Roaming transitions occur automatically for uninterrupted wireless performance.
Omada Mesh Technology
Omada Mesh enables wireless backhaul between compatible Omada access points, simplifying deployment where wired connections are limited.
Benefits include:
- Expanded coverage
- Easier installation
- Flexible deployment options
- Reduced cabling requirements
Business-Class Security
Protect users and network resources with advanced enterprise security features.
Security capabilities include:
- WPA3 Enterprise
- WPA2 Enterprise
- WPA Enterprise
- 802.1X Authentication
- Rogue AP Detection
- VLAN Assignment
- Client Isolation
- MAC Filtering
- Captive Portal Authentication
PoE+ Powered Installation
Flexible power options include:
- IEEE 802.3at PoE+
- 48V Passive PoE
- DC Power Adapter
Allowing convenient deployment without requiring nearby mains outlets.

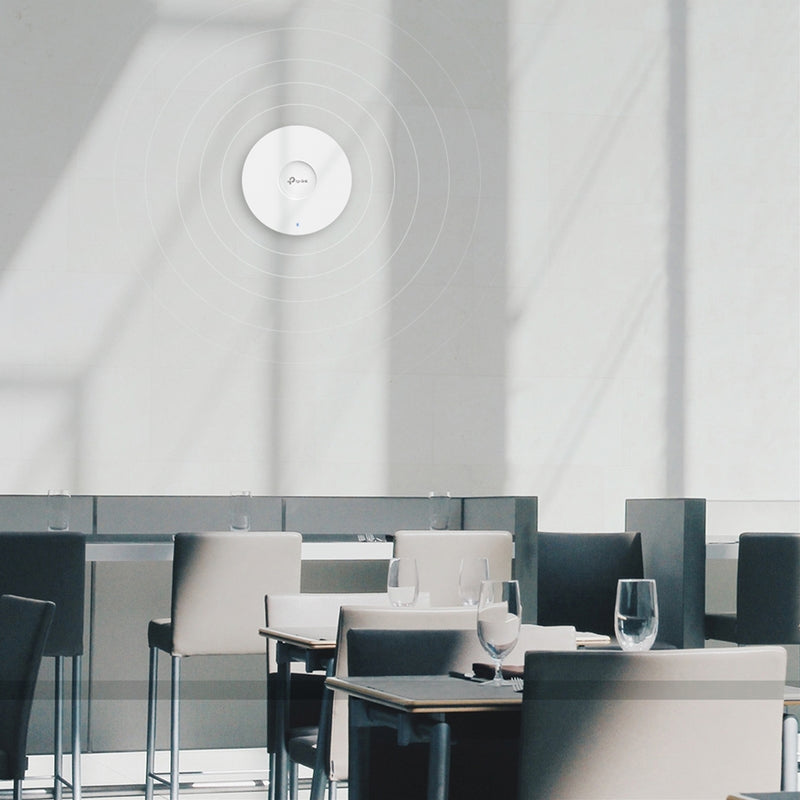

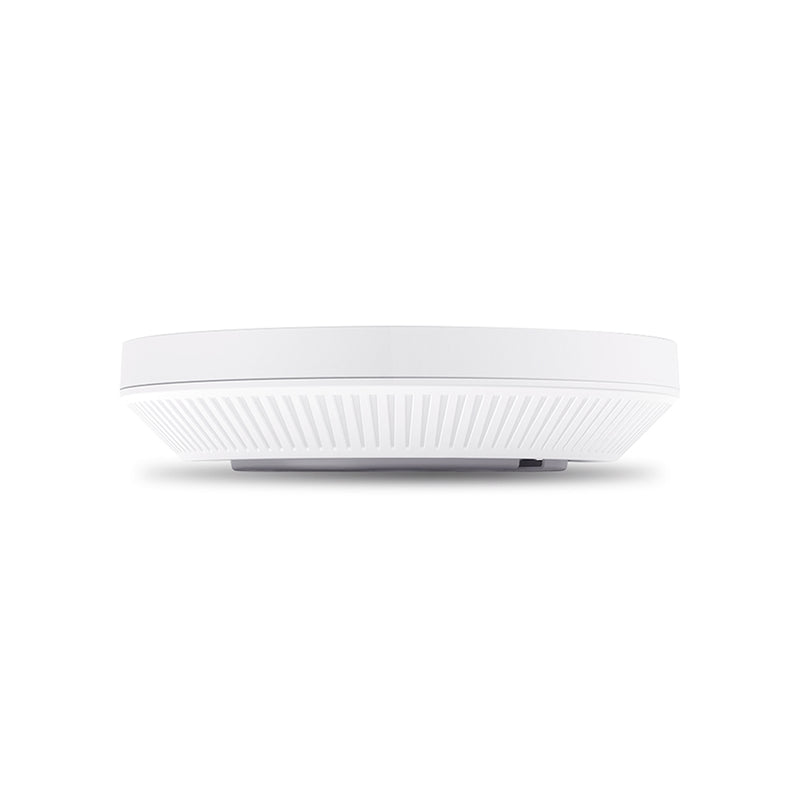

Slim Professional Design
The ultra-slim housing provides a clean, modern appearance ideal for:
- Offices
- Hotels
- Educational facilities
- Retail stores
- Healthcare environments
Technical Specifications
Wireless Standards
- IEEE 802.11ax
- IEEE 802.11ac
- IEEE 802.11n
- IEEE 802.11a
- IEEE 802.11g
- IEEE 802.11b
Wireless Speeds
5GHz Band
- Up to 2402Mbps
2.4GHz Band
- Up to 574Mbps
Combined Speed
- AX3000 (2976Mbps)
Frequency Bands
- 2.4GHz
- 5GHz
Antennas
Internal Omni Antennas
- 2 × 4dBi (2.4GHz)
- 2 × 5dBi (5GHz)
Network Interface
- 1 × Gigabit Ethernet Port (RJ45)
- IEEE 802.3at PoE Support
Wireless Features
- WiFi 6 Technology
- OFDMA
- MU-MIMO
- 1024-QAM
- HE160 (160MHz)
- Beamforming
- Band Steering
- Load Balancing
- Airtime Fairness
- Omada Mesh
- Seamless Roaming
- Multiple SSIDs
- Rate Limiting
- Reboot Scheduling
- Wireless Scheduling
SSID Support
- Up to 16 SSIDs
- 8 Per Band
Security Features
- WPA Personal
- WPA2 Personal
- WPA3 Personal
- WPA Enterprise
- WPA2 Enterprise
- WPA3 Enterprise
- 802.1X Authentication
- Captive Portal
- Rogue AP Detection
- Client Isolation
- SSID-VLAN Mapping
- MAC Address Filtering
Transmission Power
CE
- <20dBm (2.4GHz)
- <23dBm (5GHz Band 1 & 2)
- <30dBm (5GHz Band 3)
FCC
- <25dBm (2.4GHz)
- <25dBm (5GHz)
Management Features
- Omada App Support
- Local Management
- Cloud Management
- Multi-Site Management
- Zero-Touch Provisioning
- SNMP v1/v2c/v3
- SSH
- HTTP/HTTPS Management
- Syslog Support
- Email Alerts
- Management VLAN
Power
Supported Power Methods
- IEEE 802.3at PoE+
- 48V Passive PoE
- 12V DC Power Adapter
Power Consumption
- EU: 13.5W
- US: 14.7W

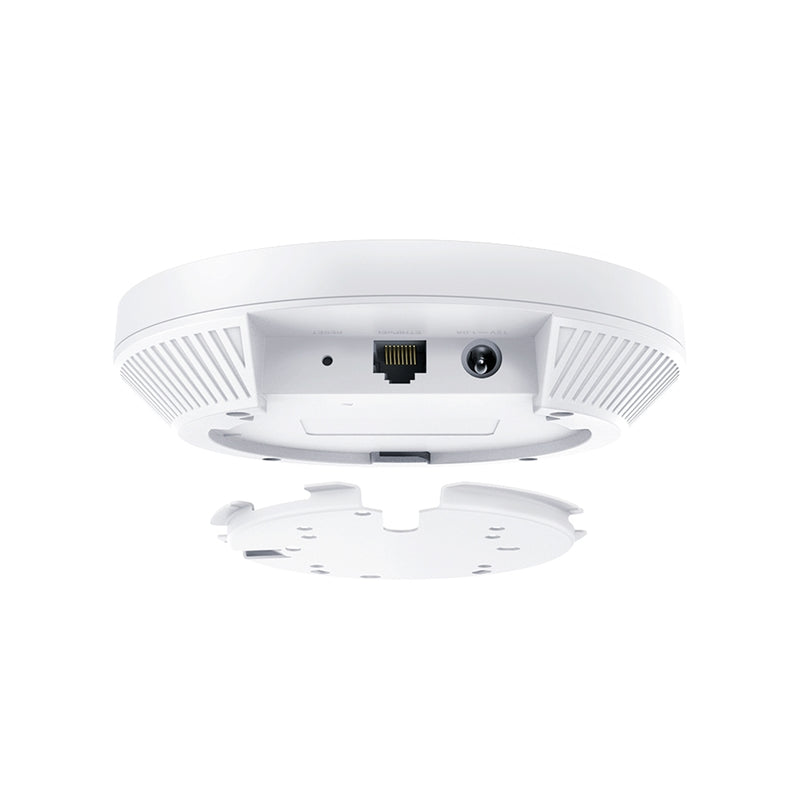

Mounting Options
- Ceiling Mount
- Wall Mount
- Junction Box Mount
Dimensions
- 160 × 160 × 33.6 mm
Environmental Specifications
Operating Temperature
- 0°C to 40°C
Storage Temperature
- -40°C to 70°C
Operating Humidity
- 10% to 90% RH
Storage Humidity
- 5% to 90% RH
Certifications
- CE
- FCC
- RoHS
What's in the Box?
- TP-Link Omada EAP650 Access Point
- Power Adapter
- Ceiling Mount Kit
- Wall Mount Kit
- Installation Guide
Why Choose the TP-Link Omada EAP650?
The TP-Link Omada EAP650 delivers powerful AX3000 WiFi 6 performance, advanced enterprise management and secure, scalable wireless networking for professional environments. With centralised cloud management, PoE+ support, Omada Mesh, seamless roaming, enterprise security features, and support for high-density deployments, it provides everything required to build a modern business-grade wireless network.
Whether you're upgrading an office, deploying campus-wide WiFi or expanding a managed network infrastructure, the Omada EAP650 offers speed, flexibility, security and reliability in a compact professional design.
