TP-Link Omada EAP235-Wall AC1200 WiFi Wall Access Point
TP-Link Omada EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
Deliver fast, reliable, and discreet Wi-Fi coverage with the TP-Link Omada EAP235-Wall. Designed for professional environments such as hotels, offices, and student accommodation, this wall-mounted access point provides dedicated dual-band wireless connectivity alongside integrated Gigabit ports for wired devices. With seamless integration into the Omada SDN platform, it offers powerful centralised management and scalable networking.
Key Features & Benefits
✔ AC1200 Dual-Band Wi-Fi Performance
Combined speeds of up to 1167Mbps (300Mbps on 2.4GHz and 867Mbps on 5GHz) for smooth streaming, browsing, and business applications
✔ MU-MIMO & Advanced Wireless Technologies
Improves efficiency and performance across multiple devices with MU-MIMO, Beamforming, and Band Steering
✔ In-Wall Design for Discreet Installation
Ultra-slim wall plate form factor blends seamlessly into hotels, offices, hospitals, and residential environments

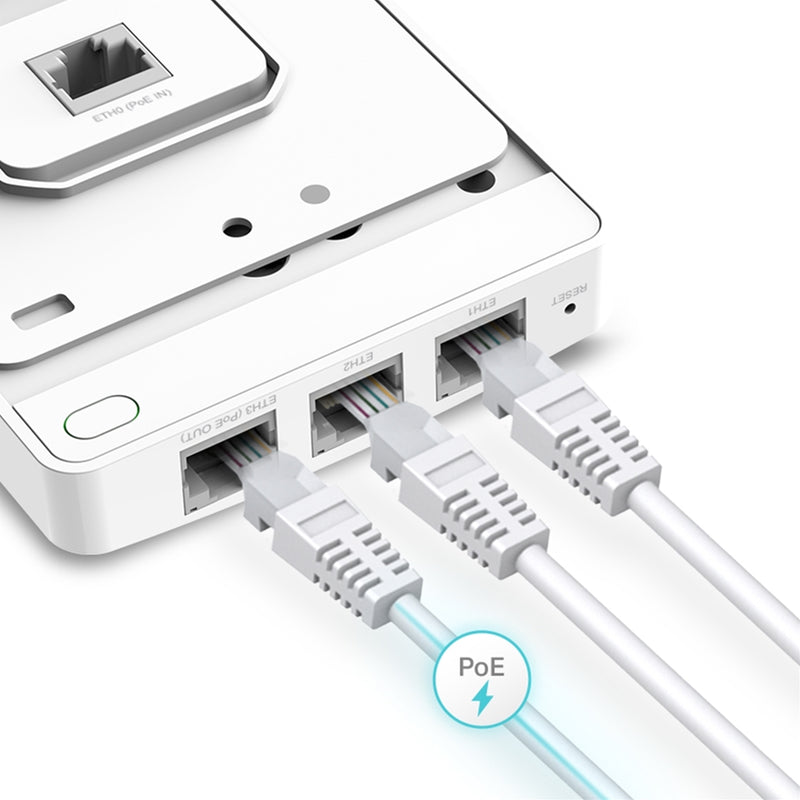

✔ Four Gigabit Ethernet Ports
Includes 1 uplink and 3 downlink ports, with PoE pass-through support to power additional devices such as IP phones
✔ PoE Powered for Easy Deployment
Supports 802.3af/at Power over Ethernet, eliminating the need for additional power cabling
✔ Omada SDN Integration
Centralised cloud management with Zero-Touch Provisioning, remote monitoring, and multi-site control
✔ Secure Guest Networking
Supports captive portal authentication, VLANs, and advanced wireless security protocols for controlled access

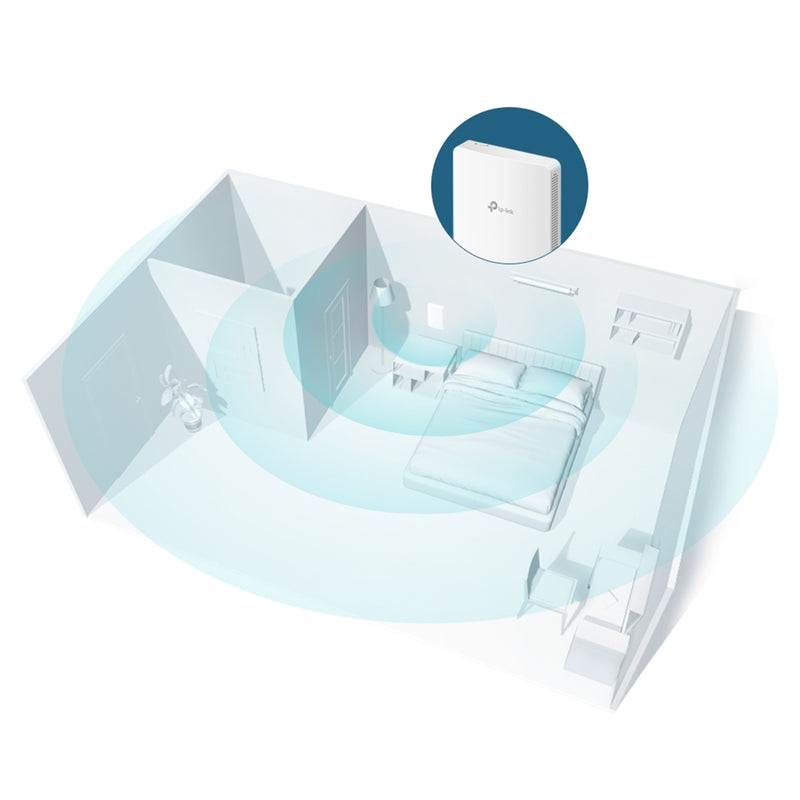

✔ Optimised Per-Room Wi-Fi Coverage
Ideal for deployments where each room requires its own dedicated access point for consistent performance
Technical Specifications
Model: EAP235-Wall
Wi-Fi Standard: IEEE 802.11a/b/g/n/ac
Frequency Bands: 2.4GHz & 5GHz
Wireless Speeds:
2.4GHz: Up to 300Mbps
5GHz: Up to 867Mbps
Antenna:
2 x Dual-Band Internal Antennas (4 dBi)
Ports:
1 x Gigabit Uplink Port
3 x Gigabit Downlink Ports (1 with PoE Out up to 13W)
Power:
802.3af/at PoE Input
Power Consumption: 9.8W (24.4W with PoE Out)
Wireless Features:
MU-MIMO, Beamforming, Band Steering
Up to 16 SSIDs (8 per band)
QoS (WMM), Load Balancing
Captive Portal & VLAN Support
Security:
WPA/WPA2-PSK/Enterprise
802.1X Authentication
MAC Filtering, Rogue AP Detection
Management:
Omada Cloud-Based Controller
Omada Hardware Controllers (OC200 / OC300)
Web Management (HTTP/HTTPS), SNMP, SSH
Zero-Touch Provisioning (ZTP)
Physical:
Dimensions: 143 x 86 x 20 mm
Mounting: Standard Wall Plate (EU/US compatible)
Lock Slot: Yes
Environmental:
Operating Temperature: 0°C to 40°C
Operating Humidity: 10%–90% non-condensing
Certifications: CE, FCC, RoHS
Why Choose the TP-Link Omada EAP235-Wall?
The EAP235-Wall is purpose-built for structured environments where reliable, room-level Wi-Fi coverage is essential. Its combination of high-speed dual-band performance, integrated Gigabit switching, and centralised cloud management makes it an ideal choice for hotels, offices, and multi-room deployments. With its sleek design and enterprise-grade features, it delivers professional networking performance while remaining easy to install and manage.
