TP-Link Archer NX200 5G AX1800 Wireless Dual-Band Gigabit Router

Ultra-Fast 5G Internet with Next-Generation Wi‑Fi 6

The TP-Link Archer NX200 is a powerful 5G AX1800 Wi‑Fi 6 router designed to deliver high-speed internet access wherever traditional broadband may be unavailable, inconvenient or slow. With 5G download speeds of up to 4.67Gbps, dual-band Wi‑Fi 6 technology and simple SIM-based setup, the Archer NX200 provides fast, reliable connectivity for homes, remote offices, holiday properties and temporary business locations.

Combining advanced 5G mobile networking, Wi‑Fi 6 performance, EasyMesh compatibility and Gigabit Ethernet connectivity, the Archer NX200 offers a versatile networking solution for modern connected lifestyles.

Key Features & Benefits

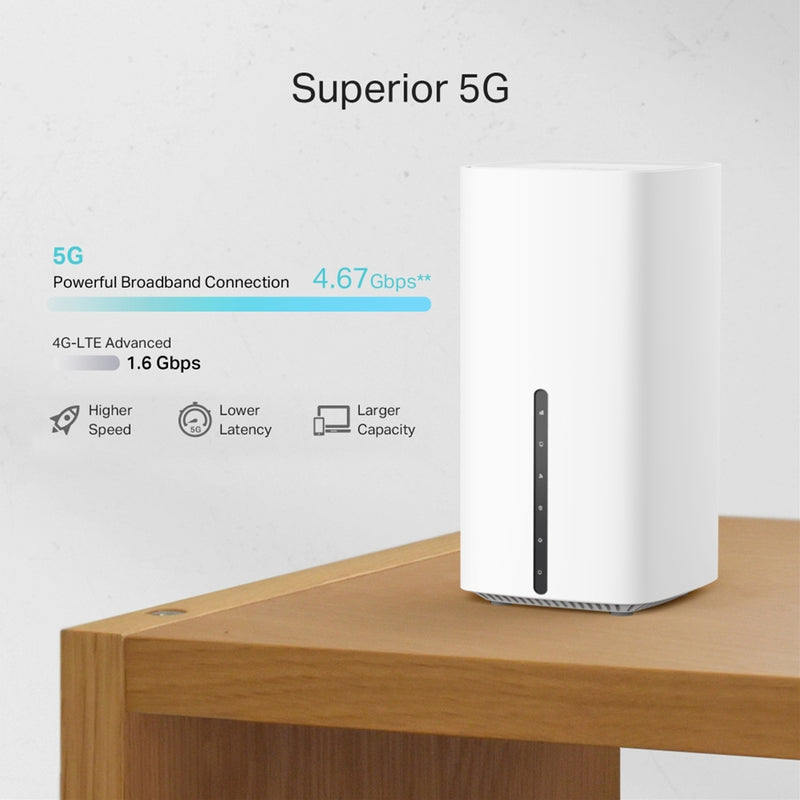

Blazing-Fast 5G Connectivity

Take full advantage of advanced 5G mobile networks with download speeds of up to:

4.67Gbps

Perfect for:

• Ultra HD Streaming
• Video Conferencing
• Remote Working
• Cloud Applications
• Large File Downloads
• Online Gaming

The router is also backwards compatible with 4G LTE networks for wider coverage compatibility.

AX1800 Wi‑Fi 6 Performance

Experience improved network efficiency, higher speeds and greater capacity with Wi‑Fi 6 technology.

Wireless speeds include:

• 1201Mbps on 5GHz
• 574Mbps on 2.4GHz
• Combined AX1800 Performance

Designed to support multiple connected devices simultaneously with reduced congestion and improved responsiveness.

Plug & Play SIM Connectivity

Getting online is simple:

1. Insert a Nano SIM card.
2. Power on the router.
3. Connect your devices.

No complicated broadband installation or lengthy service appointments required.

Ideal for Flexible Internet Access

Perfect for locations where traditional broadband may be difficult to install, including:

• Rural Properties
• Holiday Homes
• Temporary Offices
• Construction Sites
• Retail Pop-Ups
• Warehouses
• Student Accommodation

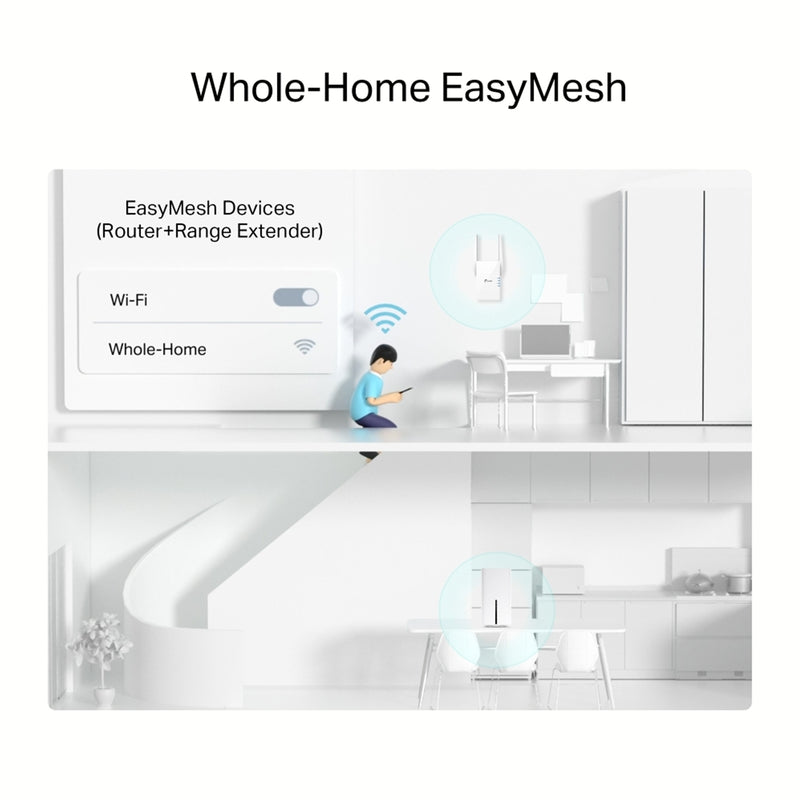

EasyMesh Whole-Home Wi‑Fi

Create a seamless mesh network by pairing the Archer NX200 with compatible TP-Link EasyMesh devices.

Benefits include:

• Single Wi‑Fi Network Name
• Improved Coverage
• Seamless Roaming
• Elimination of Wi‑Fi Dead Zones

Dual-Band Wi‑Fi 6 Technology

The two wireless frequency bands help optimise network performance:

2.4GHz

• Extended Range
• Ideal for Smart Home Devices
• Stable Everyday Connectivity

5GHz

• Faster Speeds
• Lower Latency
• Ideal for Streaming & Gaming

Gigabit Ethernet Connectivity

The Archer NX200 includes:

• 1 x Gigabit WAN/LAN Port
• 2 x Gigabit LAN Ports

Connect wired devices such as:

• Gaming Consoles
• Desktop PCs
• Smart TVs
• NAS Storage Systems

Broadband Backup Functionality

Use the Gigabit WAN/LAN port to connect traditional broadband services.

When configured, the 5G connection can act as a backup internet connection, helping maintain connectivity if your primary broadband service fails.

Advanced Network Security

Protect your network and connected devices with built-in security features including:

• SPI Firewall
• DoS Protection
• IPv4 & IPv6 Firewall Support
• Access Control
• IP & MAC Address Binding
• Parental Controls

Convenient Remote Management

Manage your network from anywhere using:

• TP-Link Tether App
• TP-Link Cloud Management
• Web-Based Interface

Monitor performance, update settings and control network access easily.

Why Choose the TP-Link Archer NX200?

The Archer NX200 combines the speed of modern 5G mobile broadband with the efficiency of Wi‑Fi 6 technology, providing a flexible and future-ready networking solution. Whether you're replacing traditional broadband or adding a high-speed backup connection, it offers fast internet access without the need for extensive installation.

Its EasyMesh compatibility, dual-band coverage and enterprise-grade networking features make it suitable for both home and business users.

Technical Specifications

Mobile Network Support

5G Bands

• N1
• N3
• N5
• N7
• N8
• N20
• N28
• N38
• N40
• N41
• N77
• N78

4G LTE Bands

• FDD-LTE B1/B3/B5/B7/B8/B20/B28/B32
• TDD-LTE B38/B40/B41/B42/B43

3G Bands

• DC-HSDPA
• HSPA+
• HSPA
• UMTS B1/B5/B8

Wireless Standards

• IEEE 802.11ax/ac/n/a (5GHz)
• IEEE 802.11ax/n/b/g (2.4GHz)

Wireless Speeds

5GHz

• Up to 1201Mbps

2.4GHz

• Up to 574Mbps

Antennas

• 8 x Internal 5G/LTE Antennas
• 2 x Internal Wi‑Fi Antennas
• 2 x External SMA-F Antenna Interfaces

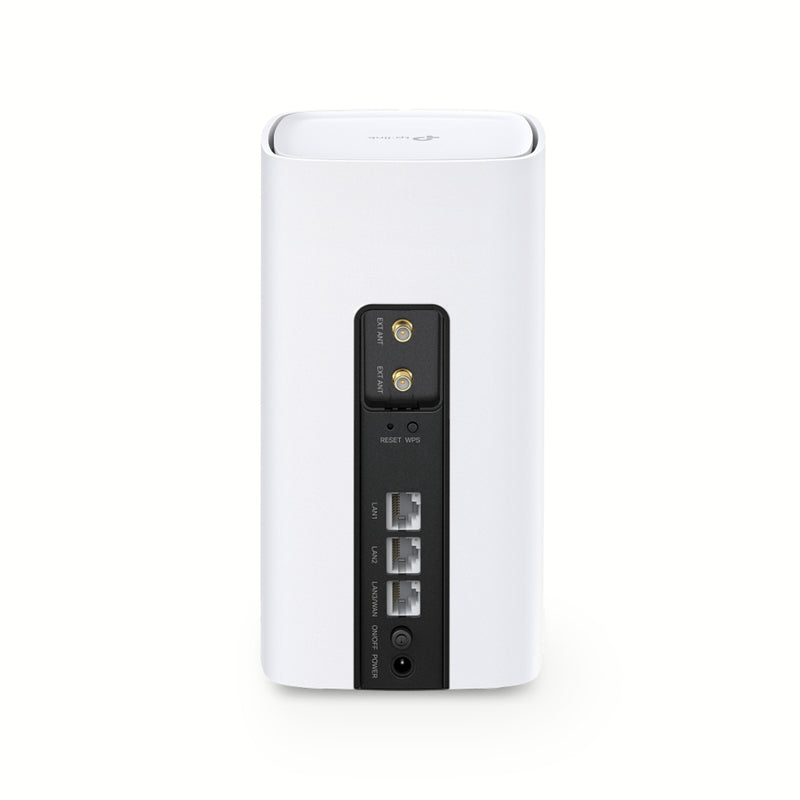

Ports

• 1 x Gigabit WAN/LAN Port
• 2 x Gigabit LAN Ports
• 1 x Nano SIM Slot

Buttons

• WPS Button
• Wi‑Fi On/Off
• Reset Button
• Power On/Off Button

Security

• WPA/WPA2
• WPA-PSK/WPA2-PSK
• DoS Protection
• SPI Firewall
• IPv4/IPv6 Firewall
• Access Control
• IP & MAC Address Binding

VPN Support

• OpenVPN
• IPSec VPN
• PPTP VPN

Network Features

• Quality of Service (QoS)
• WAN Failover
• Guest Networks
• Dynamic DNS
• Port Forwarding
• DHCP Server
• Remote Management

Smart Features

• EasyMesh Compatible
• TP-Link Tether App
• TP-Link Cloud Management
• Automatic Firmware Updates

Power

• Input: 100–240V AC
• Output: 12V DC, 2A

Physical Specifications

• Dimensions: 99 x 99 x 190mm

Certifications

• CE
• RoHS

Warranty

• Manufacturer Warranty Included

Perfect For

• 5G Home Broadband
• Rural Internet Access
• Remote Working
• Holiday Homes
• Temporary Offices
• Small Businesses
• Streaming & Gaming
• Whole-Home Mesh Networking

What's in the Box?

• TP-Link Archer NX200 5G AX1800 Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Experience the Power of 5G and Wi‑Fi 6

The TP-Link Archer NX200 combines ultra-fast 5G connectivity, AX1800 Wi‑Fi 6 performance, EasyMesh compatibility, Gigabit Ethernet ports and flexible broadband backup functionality, making it the ideal networking solution for users looking for fast, reliable and future-ready internet connectivity.
