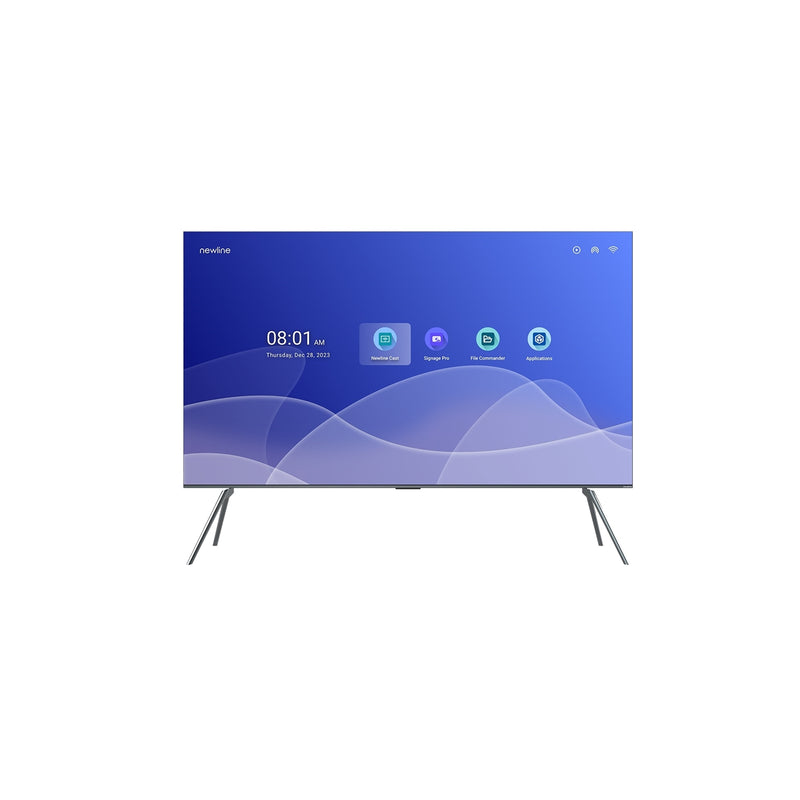

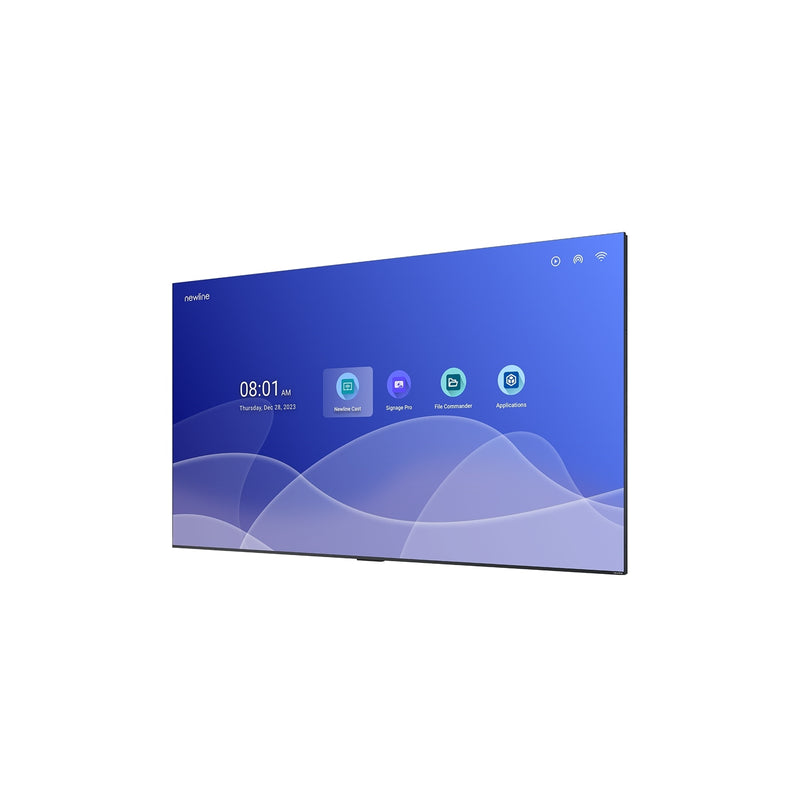

Newline STV+ 65" 4K Digital Signage Display – Android 14 (STV-6524+)

The Newline STV-6524+ STV+ 65 digital signage display delivers powerful visual communication with stunning 4K clarity and advanced smart display features. Designed for business environments, retail spaces, meeting rooms and education settings, this professional-grade display combines vibrant visuals with flexible content management.

Featuring 4K UHD resolution, wide viewing angles and 24/7 operational capability, the STV+ Series is built for continuous digital signage deployment. Integrated Android 14 enables built-in applications, signage tools and wireless casting functionality without requiring an external media player.

With Cast+ wireless sharing, users can instantly mirror or cast content from laptops, tablets and smartphones. When paired with the optional Click2Cast dongle, presentations can be shared with a single button press for effortless collaboration.

The display also integrates seamlessly with the Newline ecosystem, including Signage Pro and Display Management Plus, allowing centralised management, scheduling and monitoring of multiple displays across an organisation.

Key Features & Benefits

✔ 65" 4K Ultra HD Professional Display
Large-format screen with 3840 × 2160 resolution delivers crisp visuals for digital signage, presentations and video playback.

✔ Android 14 Smart Platform
Built-in Android operating system allows apps, signage tools and content playback without the need for an external PC.

✔ Cast+ Wireless Screen Sharing
Easily share content from laptops, tablets or smartphones for meetings, classrooms or collaborative environments.

✔ Compatible with Click2Cast Dongle
Optional Click2Cast hardware enables one-click wireless screen sharing for instant presentations.

✔ 24/7 Continuous Operation
Designed for professional digital signage environments requiring continuous operation.

✔ Powerful Built-In Audio
Dual 15W speakers provide clear audio for presentations, announcements and video content.

✔ Centralised Display Management
Compatible with Display Management Plus and Signage Pro for remote configuration, updates and content control.

✔ Multiple Connectivity Options
HDMI 2.1 inputs, USB ports, LAN connectivity and RS232 provide flexible integration with AV systems and media devices.

✔ Sleek Professional Design
Modern slim bezel design makes the display suitable for corporate offices, retail environments and public information displays.

Technical Specifications

Model
Newline STV+ 65
Manufacturer Part Number: STV-6524+

Display

Display Type: Direct LED
Screen Size: 65 Inch
Resolution: 3840 × 2160 (4K UHD)
Aspect Ratio: 16:9

Display Area: 1428 × 804 mm

Colours: 1.07 Billion
Brightness: 300 cd/m²
Contrast Ratio: 5000:1
Response Time: 6.5 ms
Viewing Angle: 178°

Refresh Rate: 60 Hz
Display Lifetime: 50,000 hours
Haze: 2%

Operating Time: 24 Hours / 7 Days

Smart System

CPU:
4 × Cortex-A73 @ 2.2 GHz
4 × Cortex-A53 @ 2.2 GHz

GPU: Arm Mali-G52

RAM: 4GB
Storage: 16GB

Operating System: Android 14

Wireless Connectivity:
Wi-Fi 5
Bluetooth 5.0

Audio

Speaker System: 2.0
Speakers: 2 × 15W
Speaker Position: Rear

Audio Outputs:
Line Out
Optical S/PDIF

Ports & Connectivity

Rear I/O:

3 × HDMI 2.1 Inputs (HDCP 2.2, 4K @ 30Hz)
1 × USB 3.0 Type-A
1 × USB 2.0 Type-A
1 × LAN (RJ-45)
1 × RS232
1 × AV Input
1 × Audio Line Out
1 × Optical S/PDIF Out

Extra Features

Wake-on-LAN Support
Wake-on-WiFi
OTA Firmware Updates
HDMI EDID 1.4 / 2.0 Support
HDMI ARC / eARC Support
Wireless Hotspot (2.4GHz / 5GHz)
Failover Support

Newline Ecosystem Compatibility

Cast+ Wireless Casting
Broadcast
Display Management Plus
Signage Pro
Newline App Store

Compatible Accessory: Click2Cast Wireless Casting Dongle

Power Consumption

Standard Mode: 94W
Standby Mode: 0.5W

Physical Specifications

Dimensions (W × H × D)
1446 × 831 × 85 mm

Net Weight
16.5 kg

Gross Weight
24.1 kg

VESA Mount
400 × 300 mm

Environmental Conditions

Operating Temperature
0°C to 40°C

Storage Temperature
-20°C to 60°C

Operating Humidity
10% – 90% (Non-Condensing)

Storage Humidity
20% – 80% (Non-Condensing)

Why Choose the Newline STV+ 65 Digital Signage Display

The Newline STV+ 65 offers a powerful combination of 4K visual performance, Android smart functionality and enterprise signage management tools. Designed for professional communication environments, it enables organisations to display dynamic content clearly and efficiently.

With 24/7 reliability, wireless casting, centralised display management and seamless integration with the Newline ecosystem, it provides an ideal solution for digital signage networks, conference rooms, classrooms and commercial installations.
