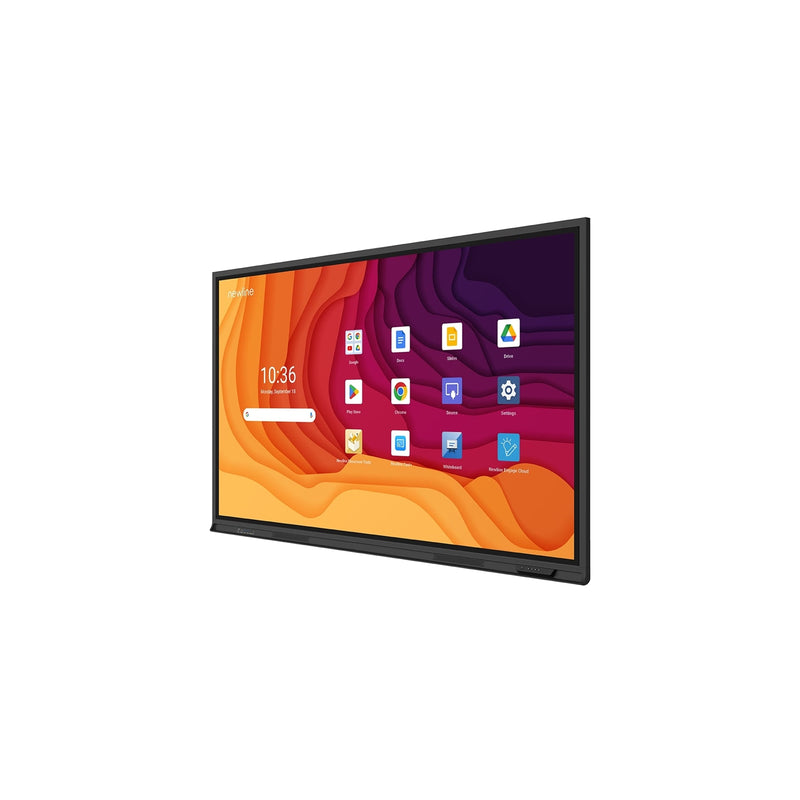

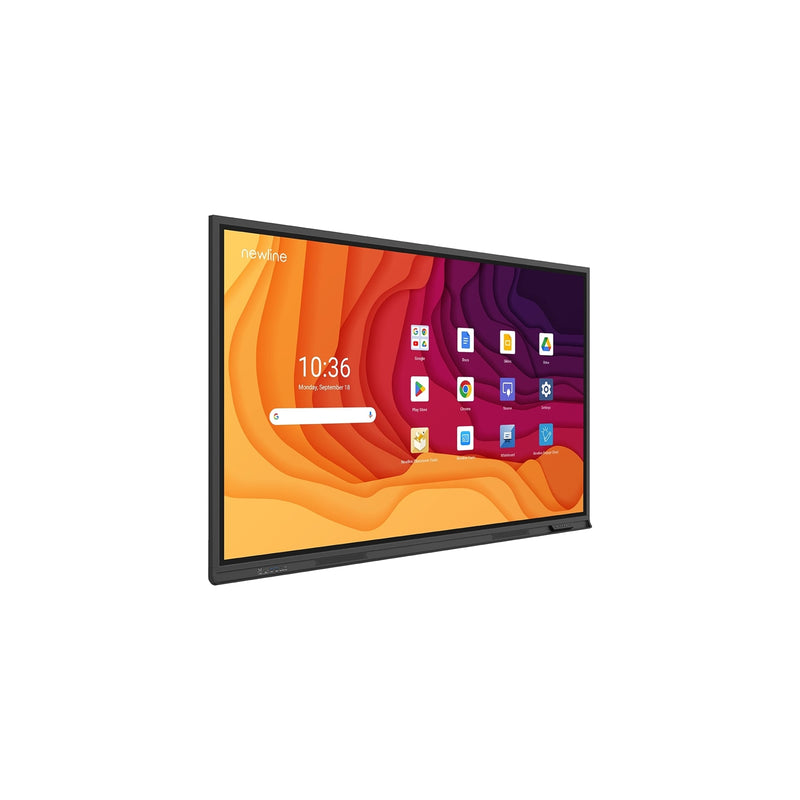

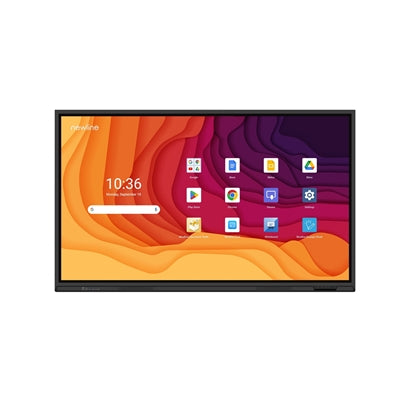

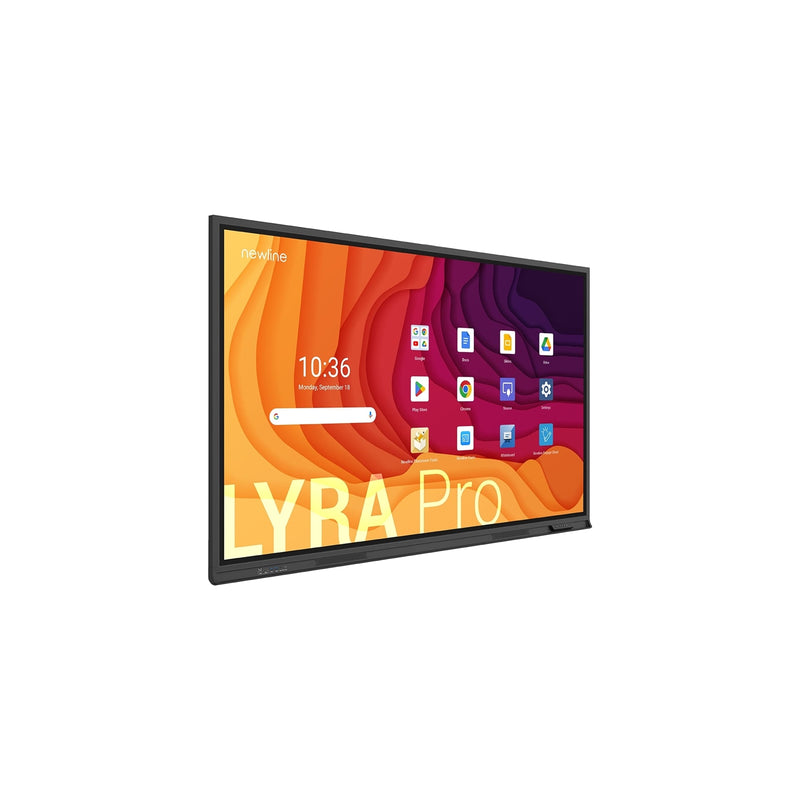

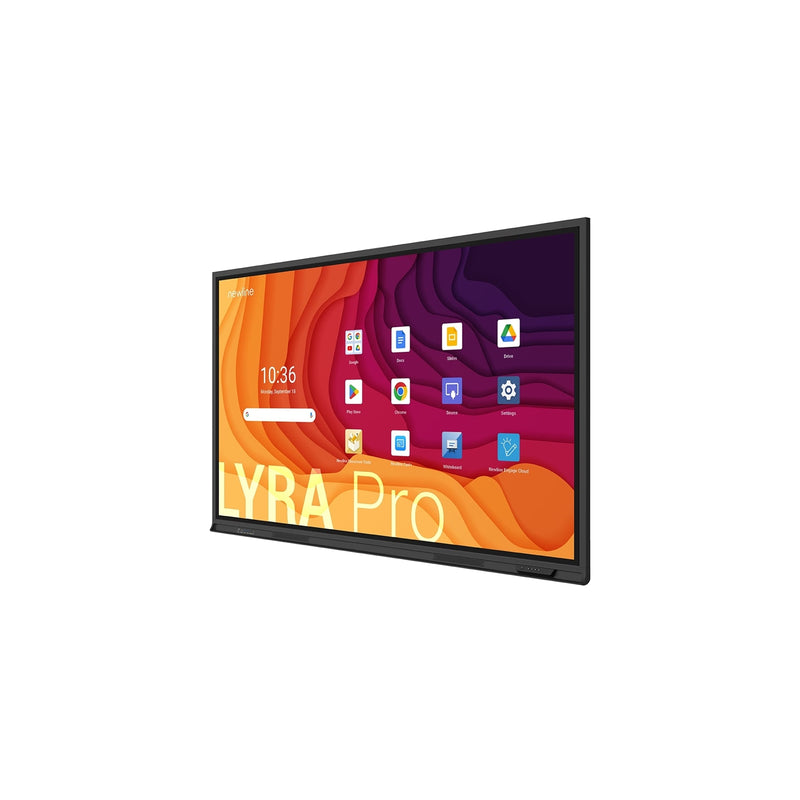

Newline Lyra Pro 65" Touch Display TT-6523QA – 4K EDLA Interactive Panel
Newline Lyra Pro 65" Interactive Touch Display (TT-6523QA)
The Newline Lyra Pro 65" delivers a secure, enterprise-ready interactive display designed for modern business environments. With Google EDLA certification, zero-bonding touch technology, advanced security features and seamless Google Workspace integration, it transforms collaboration, communication and productivity across meeting rooms, training spaces and hybrid workplaces.
Built for reliability and performance, Lyra Pro combines a crystal-clear 4K display, antimicrobial glass, modular upgrade options and a secure Android 14 platform, making it a powerful long-term investment for organisations that demand premium quality and robust security.
Key Features & Benefits
Secure EDLA-Certified Platform
Designed for enterprise use, Lyra Pro runs on a secure Android 14 EDLA-certified OS, ensuring safe deployment, verified apps and seamless compatibility with Google Workspace.
Zero-Bonding Precision Touch
Certified zero-bonding technology provides ultra-smooth writing with high-accuracy performance. Ideal for presenting, annotating and real-time collaboration.
4K UHD Display with Premium Glass
Wide-colour-gamut LED panel, anti-glare, anti-fingerprint and antimicrobial tempered glass deliver exceptional clarity and lasting durability.
Powerful Sound for Presentations
Built-in front-facing 20W stereo speakers provide clear audio for meetings, conferencing and multimedia playback.
Flexible Modular System
Compatible with Newline’s accessory ecosystem, allowing optional camera modules, OPS PC modules and expansion components for tailored deployment.
Seamless Connectivity
USB-C with 65W power delivery, multiple HDMI ports, front and rear USB, Gigabit LAN, RS232, DisplayPort and more to support any professional setup.
Enterprise-Grade Productivity
Multi-user profiles, embedded Google apps and wide format support ensure efficient workflows across teams, departments and hybrid workers.
Technical Specifications
Model
• Lyra Pro 65 – TT-6523QA
Panel
• Backlight: Direct LED (Wide Colour Gamut + Anti-Blue Light)
• Surface: Anti-Glare, Anti-Fingerprint, Antimicrobial Tempered Glass
• Bonding: Certified Zero Bonding
• Display Area: 1428 × 803 mm
• Aspect Ratio: 16:9
• Resolution: 3840 × 2160 (4K UHD)
• Colours: 1.07 Billion
• Brightness: 450 cd/m²
• Contrast Ratio: 5000:1
• Response Time: 5 ms
• Viewing Angle: 178°
• Lifetime: 50,000 hours
• Transparency: >88%
• Haze: 2% – 5%
• Surface Hardness: 7H
Power Consumption
• Standard Mode: 106 W
• Standby: <0.5 W
Touch
• Technology: Stellar Touch Technology
• Touch Points: 50 (Windows), 20 (Android/Mac/Linux)
• Writing Tools: Passive Pen, Finger, Fist
• Stylus Included: 2
• Accuracy: ≤1 mm
• Palm Rejection: Yes
Speakers
• Front-facing stereo speakers
• Maximum Output: 20W × 2
Front I/O
• 1 × USB-C (65W power delivery)
• 1 × HDMI IN 2.1 with HDCP 2.2
• 1 × USB-B (Touch)
• 2 × USB 3.2 Type-A
• 1 × Microphone In
Rear I/O
• 2 × HDMI IN 2.1 (4K @ 60Hz)
• 1 × DisplayPort 1.2
• 3 × USB-B (Touch)
• 1 × USB-C (15W)
• 2 × USB 3.2 Type-A
• 1 × USB 3.2 Type-A to Android
• 1 × HDMI OUT 2.0 (4K @ 60Hz)
• RS232, SPDIF, Audio Line Out
• Gigabit LAN In/Out
• OPS Slot and SDM-S Slot
• Power Out (180W)
Smart System
• Chipset: Amlogic A311D2 octa-core (4× Cortex-A73, 4× Cortex-A53)
• GPU: Arm Mali-G52
• RAM: 8GB DDR4
• Storage: 128GB (expandable)
• OS: Android 14 (Google EDLA Certified)
• Wi-Fi 6 + Bluetooth 5.2 (replaceable module)
• Supported image, video and audio formats: Wide multimedia compatibility
• Camera Slot: 1
Dimensions & Weight
• Dimensions (excl. wall mount): 1513 × 927 × 118 mm
• Net Weight: 39 kg
• VESA Mount: 600 × 400 mm
Why Choose the Newline Lyra Pro 65"?
The Lyra Pro 65" is a secure, professional-grade interactive solution designed to enhance collaboration and productivity. Its EDLA-certified platform, precision touch, 4K visual performance and extensive connectivity make it ideal for enterprise environments requiring reliability, security and long-term performance. With modular upgrade options and seamless Google integration, it adapts easily to evolving organisational needs.
