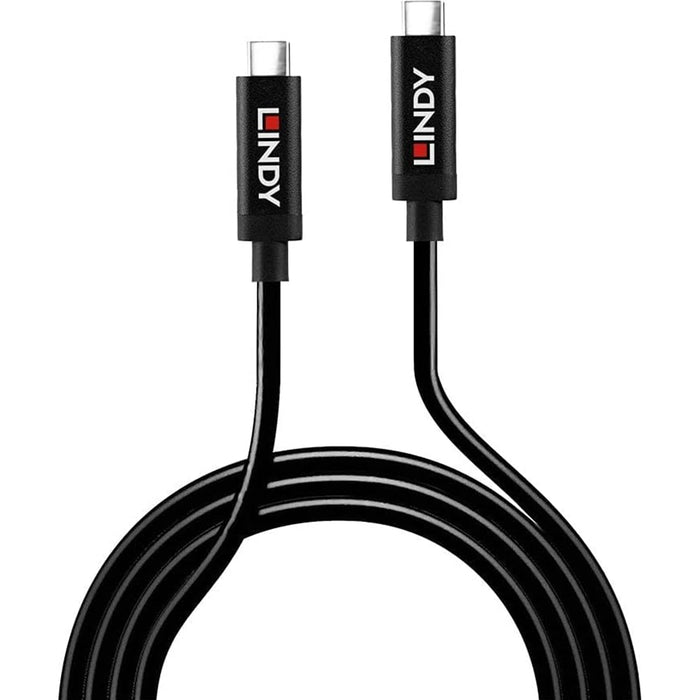

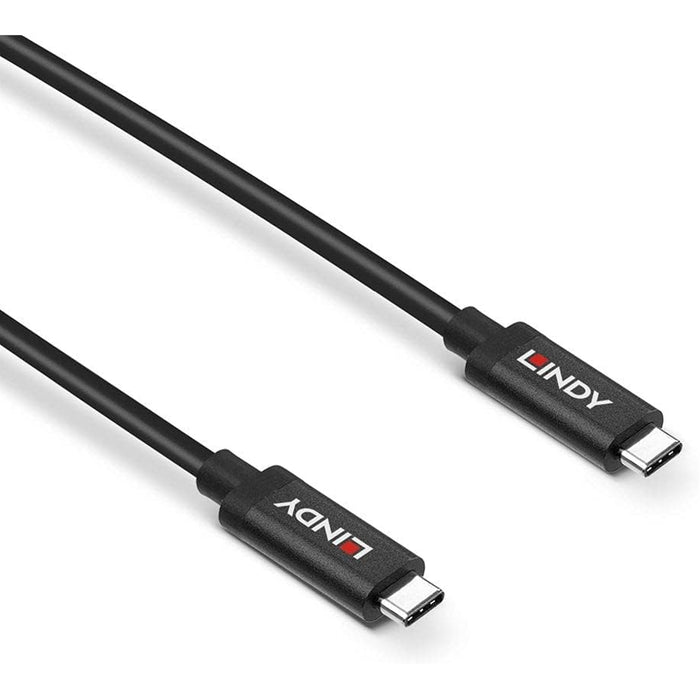

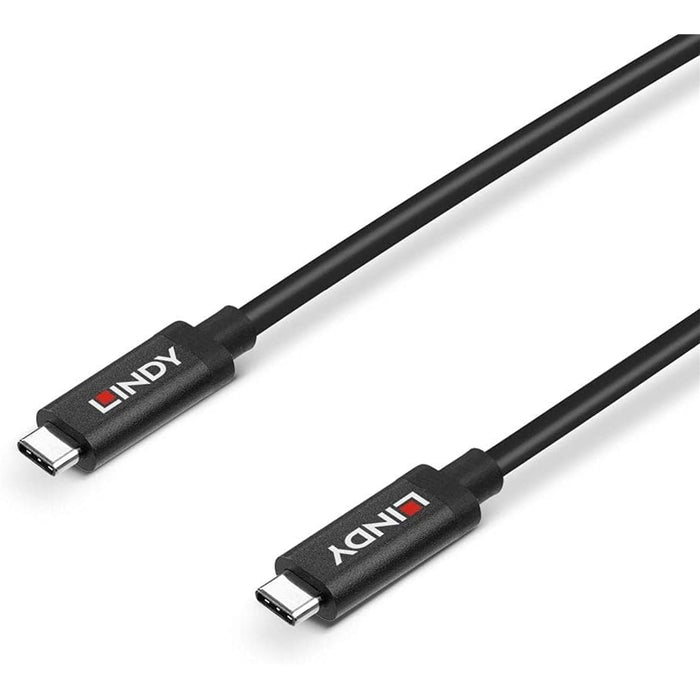

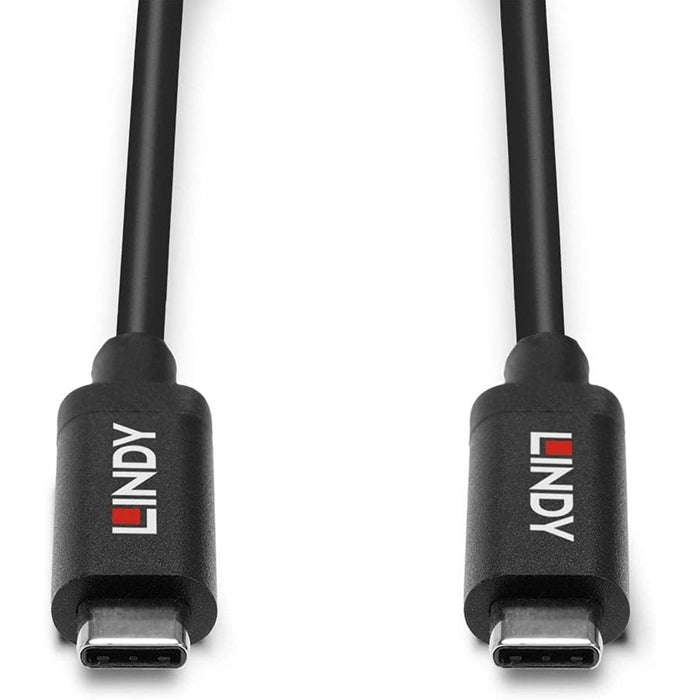

Lindy 43348 3m USB-C Active Cable 10Gbps 8K 60W

LINDY 43348 USB-C 3.2 Gen 2 Active Cable 3m – 10Gbps, 8K Video, 60W Power Delivery

The LINDY 43348 USB Type-C Active Cable is a professional-grade solution for extending USB-C connections while maintaining full high-speed data transfer, video output and power delivery over longer distances.

Using integrated active signal-boosting electronics, this 3-metre cable supports USB 3.2 Gen 2 speeds up to 10Gbps, DisplayPort 1.4 Alternate Mode video up to 8K, and USB Power Delivery up to 60W – all through a single cable.

It is ideally suited for modern offices, meeting rooms, classrooms, digital signage, touch displays and docking environments, where reliable long-distance USB-C connectivity is essential.

Key Features

✅ Active electronics for stable long-distance USB-C connections
✅ USB 3.2 Gen 2 data transfer speeds up to 10Gbps
✅ DisplayPort 1.4 Alternate Mode video support
✅ Supports UHD resolutions up to 8K 7680×4320@60Hz
✅ Supports 4K 4096×2160@120Hz
✅ USB Power Delivery up to 60W (20V / 3A)
✅ Data, video and power combined in a single cable
✅ Compatible with USB-C and Thunderbolt 3 / 4 devices
✅ Plug and play – no drivers required
✅ Ideal for LFDs, touch panels, docking stations and laptops
✅ Robust professional construction with gold-plated contacts

Designed for Professional Installations

Unlike passive cables, the LINDY 43348 integrates active signal amplification to ensure:

• Stable high-speed data transmission
• Reliable high-resolution video output
• Consistent power delivery
• Reduced signal degradation over longer distances

This makes it particularly suitable for conference rooms, education environments, corporate workstations and AV installations.

Important Performance Notes

• When using DisplayPort 1.4 video, USB data is limited to USB 2.0 (480Mbps)
• For USB 3.2 Gen 2 at 10Gbps, DisplayPort 1.2 is supported up to 4K@60Hz

This behaviour is inherent to current USB-C bandwidth allocation standards.

Technical Specifications

Connectors

Connector A: USB Type-C Male
Connector B: USB Type-C Male
Power Delivery: Up to 60W (20V / 3A)
Housing Material: PVC overmold
Connector Plating: Nickel plated
Pin Construction: Copper
Pin Plating: Gold

Connector Dimensions:
28.5 × 6.2 × 12mm (each end)

Cable Construction

Length: 3m (9.84ft)
Standard: USB 3.2 / 3.1 Gen 2
Colour: Black
Type: Round
Jacket Diameter: 5.3mm
Jacket Material: TPE
Conductor Material: Tinned copper
Conductor Gauge: 31AWG + 32AWG + 34AWG
Shielding: 85% tinned copper

Performance

Supported Bandwidth: 10Gbps
Maximum Resolution:
7680×4320@60Hz
4096×2160@120Hz

Minimum Bend Radius: 53mm
Transmission Medium: Twisted pair
Transmission Technology: USB 3.2 / 3.1 Gen 2

Environmental

Operating Temperature: 0°C to 40°C
Storage Temperature: -10°C to 60°C

Miscellaneous

Packaging: Polybag
Net Weight: 0.13kg
Gross Weight: 0.20kg
Warranty: 2 years
Certifications: CE, UKCA, FCC, RoHS, REACH

Box Contents

• 3m Active USB-C 3.2 Gen 2 Cable
• Lindy manual

Ideal For

• USB-C laptops and MacBooks
• Thunderbolt 3 / 4 devices
• Docking stations
• Interactive displays and touch panels
• Conference rooms and classrooms
• High-resolution external monitors
• Corporate and enterprise workspaces
