Compact Business Performance with Enterprise-Grade Reliability

The Lenovo ThinkCentre M70q Gen 5 Tiny is a powerful and highly compact business desktop designed for professional environments where performance, security and space efficiency are essential. Built around the Intel Core i5-14400T processor, this 1-litre PC delivers responsive multitasking, strong productivity performance and enterprise-level manageability in an ultra-small footprint.

Featuring 16GB DDR5 memory, a fast 512GB PCIe 4.0 NVMe SSD, Wi‑Fi 6E, Windows 11 Pro and advanced security features, the M70q Gen 5 Tiny is ideal for offices, education, healthcare and modern hybrid workplaces.

Key Features & Benefits

Intel Core i5-14400T Performance

Powered by a 14th Generation Intel Core processor featuring 10 cores and 16 threads for efficient multitasking and business productivity.

Ultra-Compact 1L Design

The Tiny form factor saves valuable desk space and supports flexible deployment options, including VESA mounting.

Fast DDR5 Memory

16GB DDR5 memory delivers improved responsiveness and efficient handling of demanding business applications.

High-Speed PCIe 4.0 SSD

A 512GB NVMe SSD ensures rapid boot times, fast file transfers and responsive application performance.

Enterprise Connectivity

Equipped with USB-C, USB 3.2 Gen 2, HDMI 2.1, DisplayPort 1.4a and Gigabit Ethernet for broad compatibility.

Wi-Fi 6E & Bluetooth 5.3

Enjoy fast and reliable wireless networking with support for the latest connectivity standards.

Advanced Security

Includes discrete TPM 2.0 security, chassis intrusion detection and Kensington lock support for enhanced protection.

Toolless Serviceability

Easy maintenance and upgrades with Lenovo's toolless chassis design.

Built for Business

Windows 11 Pro, enterprise-grade reliability and Lenovo Premier Support make it ideal for professional deployments.

Military-Tested Durability

Passed MIL-STD-810H testing for durability and reliability in challenging environments.

Technical Specifications

Model

• Lenovo ThinkCentre M70q Gen 5 Tiny
• Part Number: 12TD009UUK

Processor

CPU

• Intel® Core™ i5-14400T
• 10 Cores (6 Performance + 4 Efficient)
• 16 Threads
• P-Core Frequency: 1.5GHz Base / 4.5GHz Turbo
• E-Core Frequency: 1.1GHz Base / 3.2GHz Turbo
• 20MB Intel Smart Cache

Graphics

• Integrated Intel® UHD Graphics 730

Chipset

• Intel® Q670 Chipset

Memory

• Installed Memory: 16GB DDR5-4800
• Configuration: 1 × 16GB SODIMM
• Memory Slots: 2 × DDR5 SODIMM
• Dual-Channel Supported
• Maximum Capacity: 64GB (2 × 32GB)

Storage

Installed Storage

• 512GB M.2 2280 PCIe 4.0 x4 NVMe Opal SSD

Storage Expansion

• Supports Up To 2 × M.2 SSDs
• M.2 2280 SSD Support Up To 2TB Per Drive

RAID

• No RAID Preset

Audio

• Realtek ALC233VB or Conexant CX11771 HD Audio Codec
• 1 × Integrated 2W Speaker
• Headphone/Microphone Combo Jack

Networking

Wired LAN

• Gigabit Ethernet (10/100/1000Mbps)

Wireless

• Intel® Wi‑Fi 6E AX211
• 802.11ax 2×2

Bluetooth

• Bluetooth® 5.3

Ports & Connectivity

Front I/O

• 1 × USB-C® 3.2 Gen 1 (5Gbps)
• 2 × USB-A 3.2 Gen 2 (10Gbps)
• 1 × 3.5mm Headphone / Microphone Combo Jack

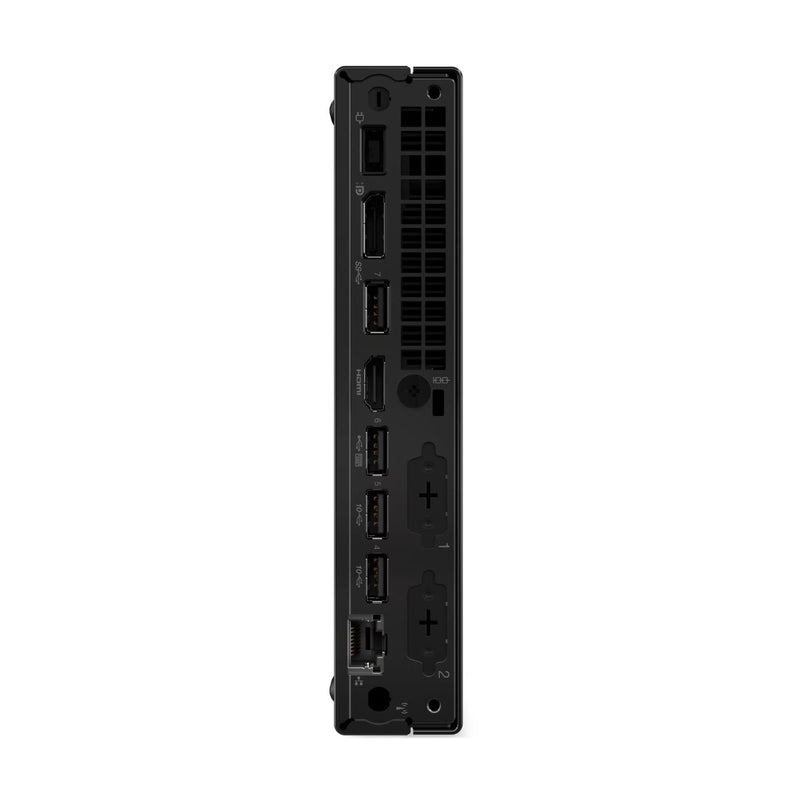

Rear I/O

• 1 × USB 2.0 (Smart Power-On)
• 1 × USB 3.2 Gen 1 (5Gbps)
• 2 × USB 3.2 Gen 2 (10Gbps)
• 1 × HDMI® 2.1
• 1 × DisplayPort™ 1.4a
• 1 × RJ-45 Ethernet Port

Expansion

• 3 × M.2 Slots Total
  • 1 × M.2 WLAN Slot
  • 2 × M.2 SSD Slots

Security Features

Hardware Security

• Discrete TPM 2.0
• TCG Certified
• FIPS 140-2 Certified

Physical Security

• Kensington Security Slot®
• Chassis Intrusion Switch

Physical Specifications

Form Factor

• Tiny (1L)

Colour

• Raven Black

Dimensions

• Width: 179mm
• Depth: 182.9mm
• Height: 36.5mm

Weight

• Approx. 1.25kg

Mounting

• VESA Mount Compatible

Serviceability

• Toolless Chassis Screw Design

Power Supply

• 90W External Power Adapter
• 89% Efficiency

Input Devices

• USB Traditional Keyboard (UK Layout)
• USB Calliope Mouse

Operating System

• Windows 11 Pro (English)

Warranty & Support

Standard Warranty

• 1-Year Onsite Warranty

Included Upgrades

• 3-Year Onsite Warranty Upgrade
• 1-Year Lenovo Premier Support
• 0.5 Ton Carbon Offset Service

Environmental Certifications

• ENERGY STAR® 9.0
• EPEAT 2.0 Silver Registered
• TCO Certified
• ErP Lot 3/7
• RoHS Compliant

Durability Testing

MIL-STD-810H Tested Against:

• High & Low Temperature
• Temperature Shock
• Humidity
• Dust & Sand
• Vibration
• Mechanical Shock
• Solar Radiation
• Fluid Contamination
• Salt Fog
• Altitude

What's in the Box?

• Lenovo ThinkCentre M70q Gen 5 Tiny PC
• Lenovo USB UK Keyboard
• Lenovo USB Mouse
• 90W Power Adapter
• Documentation

Why Choose the Lenovo ThinkCentre M70q Gen 5 Tiny?

The Lenovo ThinkCentre M70q Gen 5 Tiny delivers impressive business performance in a remarkably compact 1-litre chassis. Equipped with an Intel Core i5-14400T processor, 16GB DDR5 memory, 512GB PCIe 4.0 SSD, and Wi‑Fi 6E, it offers the speed and flexibility needed for modern professional workloads.

Its enterprise-grade security features, extensive connectivity, MIL-STD-tested durability and included support upgrades make it an excellent choice for businesses seeking a reliable, space-saving desktop solution that is easy to deploy, manage and expand.
