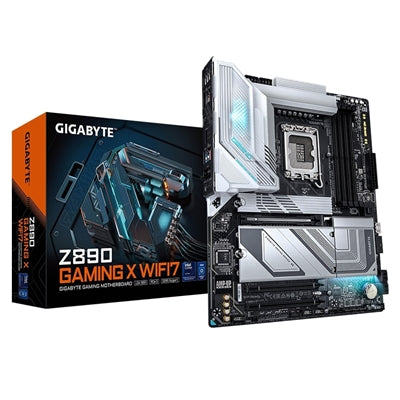

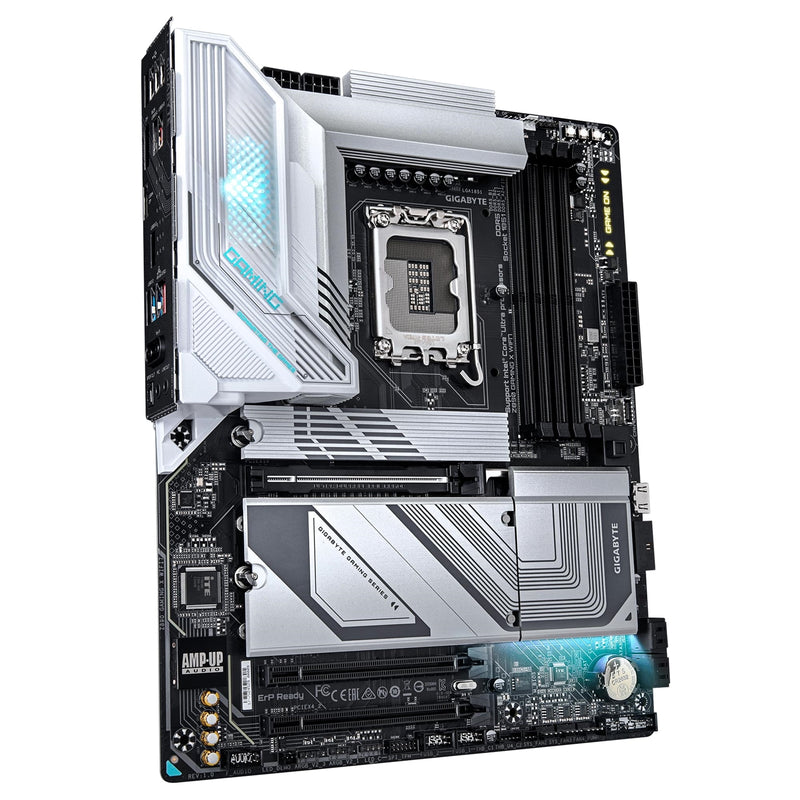

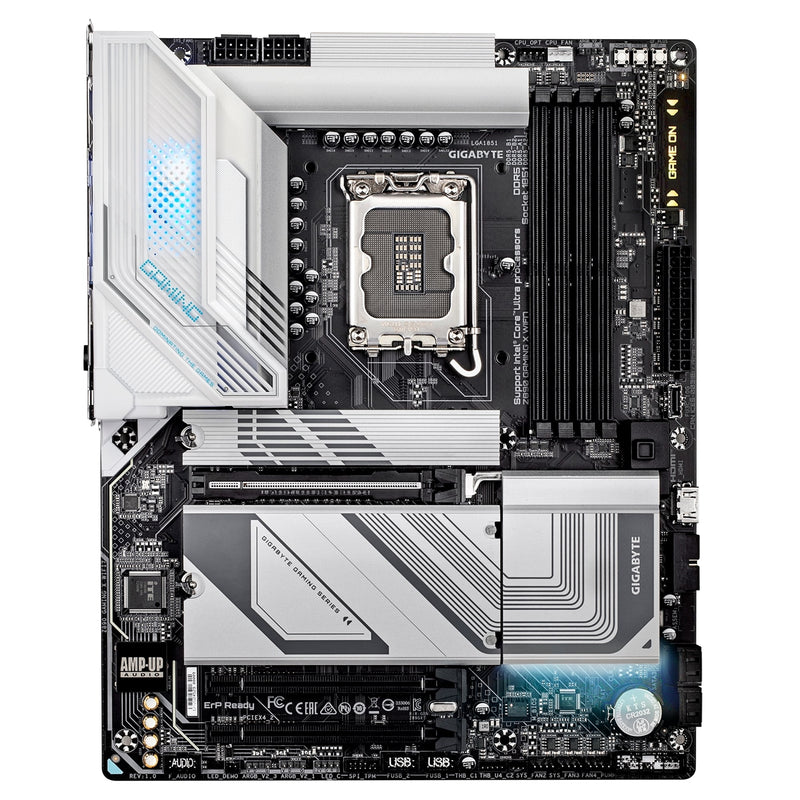

Gigabyte Z890 GAMING X WIFI7 LGA1851 DDR5 ATX Motherboard

Built for Intel Core Ultra Performance

The Gigabyte Z890 GAMING X WIFI7 is a feature-packed ATX motherboard designed to unlock the full potential of Intel® Core™ Ultra Series 2 processors. Combining cutting-edge DDR5 memory support, PCIe 5.0, Wi-Fi 7, USB4 connectivity, and advanced AI-enhanced performance technologies, it provides the ideal foundation for high-performance gaming PCs, content creation systems and enthusiast workstations.

With premium power delivery, comprehensive cooling solutions and DIY-friendly features, the Z890 GAMING X WIFI7 delivers the performance, stability and future-ready connectivity demanded by modern PC builders.

Key Features & Benefits

Supports Intel® Core™ Ultra Processors (Series 2)

Engineered for Intel's latest LGA1851 platform, delivering exceptional performance for gaming, streaming, content creation and AI-enhanced workloads.

Advanced 16+1+2 Digital Twin VRM Design

The robust power delivery system features:

• 16 x 60A DrMOS VCore Phases
• 1 x 40A VCCGT Phase
• 2 x 60A VCCSA Phases

Providing stable power for high-end CPUs and overclocking performance.

DDR5 Memory Support up to 8800MT/s (OC)

Unlock extreme memory performance with:

• 4 x DDR5 DIMM Slots
• Up to 256GB Capacity
• Intel XMP Support
• DDR5 Overclocking up to 8800MT/s

Gigabyte's D5 Bionic Corsa technology enhances memory optimisation and stability for demanding applications.

AI-Enhanced Overclocking & Performance

Take advantage of intelligent optimisation features including:

• D5 Bionic Corsa
• AI PerfDrive
• HyperTune BIOS
• AORUS AI Snatch Auto-Overclocking

Designed to maximise system performance with minimal manual tuning.

PCIe 5.0 Graphics Support

The reinforced PCIe UD Slot X provides:

• Full PCIe 5.0 x16 Bandwidth
• Enhanced Structural Strength
• 10x Load-Bearing Capacity
• Improved GPU Protection

Perfect for the latest high-performance graphics cards.

Ultra-Fast Storage Capabilities

Store more games and applications with:

• 4 x M.2 SSD Slots
• 1 x PCIe 5.0 M.2 Slot
• 3 x PCIe 4.0 M.2 Slots
• 4 x SATA 6Gb/s Ports

Supporting ultra-fast SSD performance and flexible storage configurations.

Native USB4 Connectivity

Experience next-generation connectivity with:

• Rear USB4 Type-C Port
• Up to 40Gbps Bandwidth
• DisplayPort Alt Mode
• High-Speed Data Transfer

Wi-Fi 7 & 2.5GbE Networking

Stay connected with premium networking features:

• Wi-Fi 7 (802.11be)
• Bluetooth 5.4
• 2.5 Gigabit Ethernet
• High-Gain Directional Antenna

Delivering ultra-fast wireless and wired connectivity.

Comprehensive Thermal Design

Advanced cooling solutions include:

• VRM Thermal Armour
• Massive Full-Metal Heatsinks
• M.2 Thermal Guard
• Smart Fan 6 Control
• Extended M.2 Heatsink Coverage

Helping maintain optimal performance during intensive workloads.

DIY-Friendly Installation Features

Built for easier assembly with Gigabyte's latest innovations:

• EZ-Latch Plus for PCIe & M.2 Devices
• EZ-Latch Click M.2 Heatsinks
• WIFI EZ-Plug Antenna Design
• Integrated I/O Shield
• Q-Flash Plus BIOS Updates

Why Choose the Gigabyte Z890 GAMING X WIFI7?

The Gigabyte Z890 GAMING X WIFI7 combines premium features normally found on enthusiast motherboards with excellent value for gamers and power users. With support for the latest Intel processors, next-generation DDR5 memory, PCIe 5.0 graphics, USB4 and Wi-Fi 7, it offers the performance headroom needed for current and future hardware upgrades.

Its advanced power delivery, AI-assisted tuning features and robust cooling design make it an outstanding platform for building a powerful gaming or productivity system.

Technical Specifications

CPU Support

• Socket: LGA1851
• Compatible CPUs: Intel® Core™ Ultra Processors (Series 2)

Chipset

• Intel® Z890 Express Chipset

Memory

• 4 x DDR5 DIMM Slots
• Maximum Capacity: 256GB
• Dual Channel Architecture
• Memory Speeds: Up to DDR5-8800 (OC)
• Intel XMP Support
• CUDIMM Support
• ECC & Non-ECC Support (Model Dependent)

Graphics Outputs

• 1 x USB4 Type-C with DisplayPort
• 1 x DisplayPort 2.1
• 1 x HDMI
• Supports up to 3 Displays

Expansion Slots

• 1 x PCIe 5.0 x16 Slot
• 2 x PCIe 4.0 x4 Slots

Storage

• 1 x PCIe 5.0 x4 M.2 Slot
• 3 x PCIe 4.0 M.2 Slots
• 4 x SATA 6Gb/s Ports
• NVMe & SATA RAID Support

Networking

• Realtek 2.5GbE LAN
• Wi-Fi 7
• Bluetooth 5.4

Audio

• Realtek High Definition Audio
• 7.1-Channel Audio
• Optical S/PDIF Output
• Audio Noise Guard
• Premium Audio Capacitors

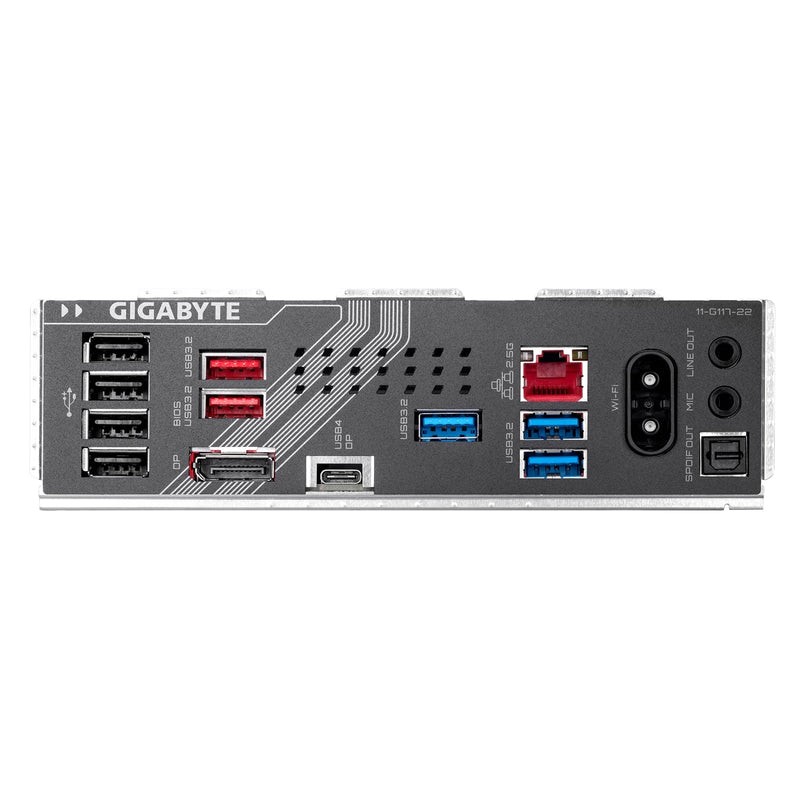

Rear I/O

• 1 x USB4 Type-C (40Gbps)
• 2 x USB 3.2 Gen 2 Type-A
• 3 x USB 3.2 Gen 1
• 4 x USB 2.0
• 1 x DisplayPort
• 1 x RJ-45 LAN
• Optical S/PDIF Out
• Audio Jacks
• Wi-Fi Antenna Connectors

Internal Connectivity

• 1 x USB-C Header (USB 3.2 Gen 2)
• 1 x USB 3.2 Gen 1 Header
• 2 x USB 2.0 Headers
• 4 x SATA Connectors
• 4 x M.2 Connectors
• RGB & ARGB Headers
• Multiple Fan & Pump Headers

Cooling Features

• VRM Thermal Armour
• M.2 Thermal Guard
• Smart Fan 6
• Water Cooling Support
• Advanced Temperature Monitoring

Form Factor

• ATX

Special Features

• Integrated I/O Shield
• Q-Flash Plus
• EZ-Latch Plus
• EZ-Latch Click
• WIFI EZ-Plug
• Sensor Panel Link
• Gigabyte Control Centre
• RGB Fusion
• AI PerfDrive
• HyperTune BIOS

Perfect For

• Intel Core Ultra Gaming PCs
• High-End DDR5 Builds
• PCIe 5.0 Graphics Cards
• Content Creation Systems
• Streaming PCs
• AI Workloads
• Enthusiast Overclocking
• Future-Proof Gaming Setups

What's in the Box?

• Gigabyte Z890 GAMING X WIFI7 Motherboard
• Wi-Fi 7 Antenna
• SATA Cables
• Documentation
• Installation Accessories

Next-Generation Gaming Starts Here

With Intel LGA1851 support, DDR5 memory up to 8800MT/s, PCIe 5.0, Wi-Fi 7, USB4, 2.5GbE networking and four M.2 slots, the Gigabyte Z890 GAMING X WIFI7 delivers the performance, connectivity and reliability needed to power the next generation of gaming and professional PC builds.
