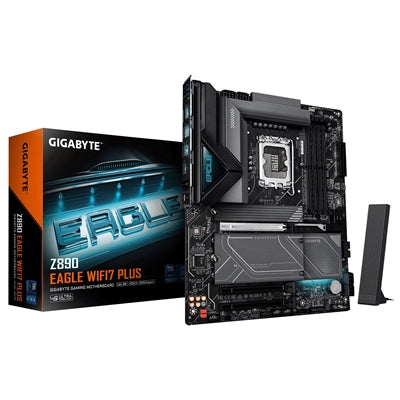

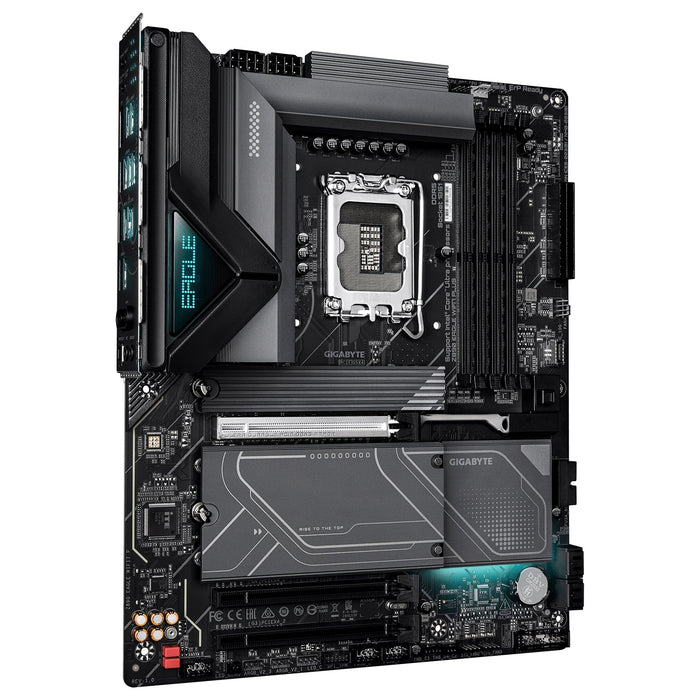

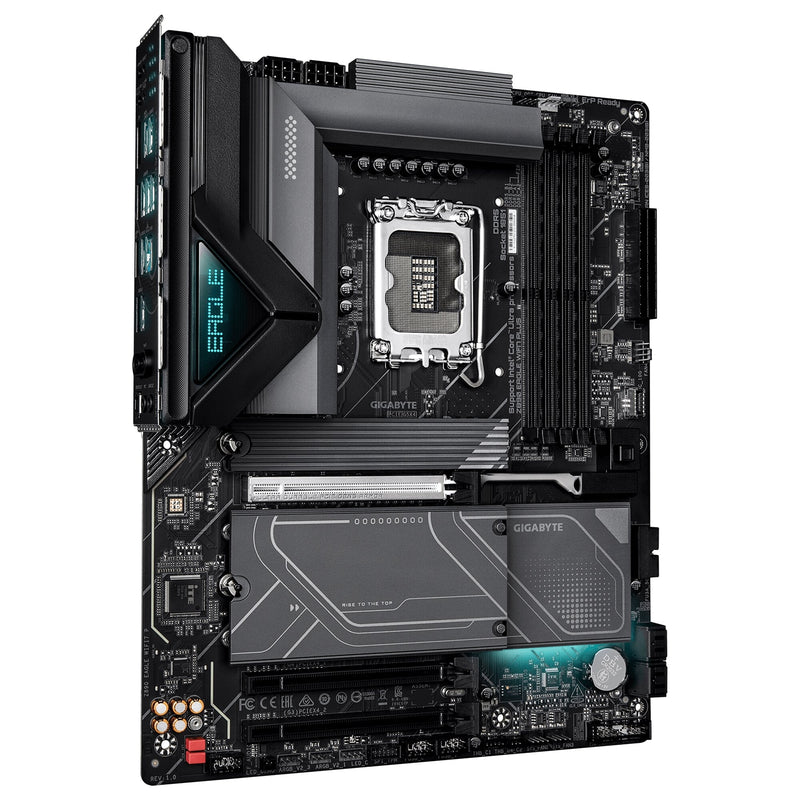

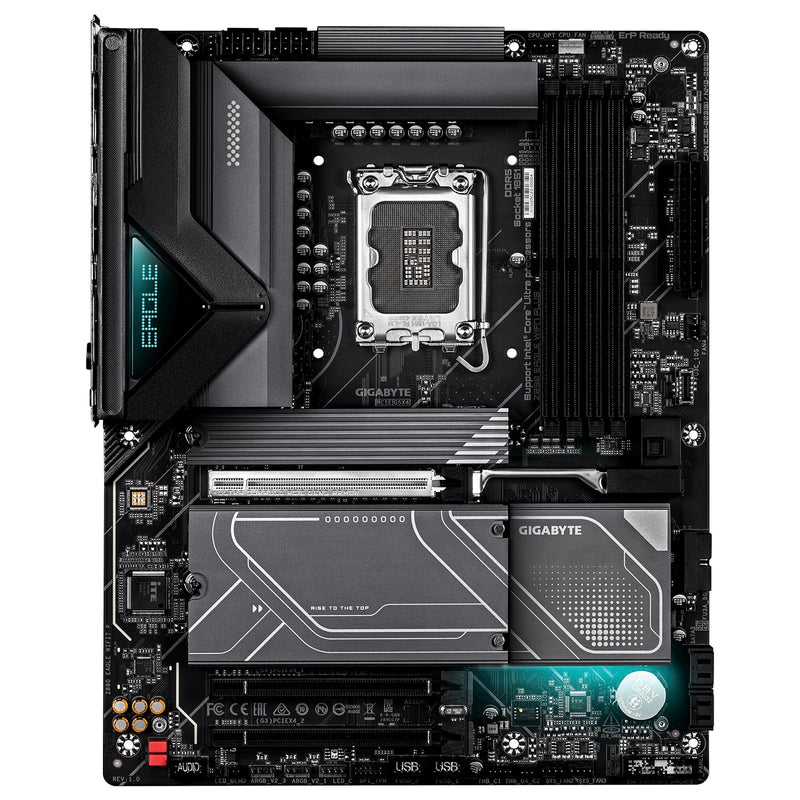

Gigabyte Z890 EAGLE WIFI7 PLUS Intel LGA1851 ATX Motherboard

Build for the Future with Intel Core Ultra and Next-Generation Connectivity

The Gigabyte Z890 EAGLE WIFI7 PLUS is a feature-packed ATX motherboard designed to deliver exceptional performance, high-speed connectivity and outstanding reliability for modern PC builders. Built around the latest Intel Z890 chipset and supporting Intel Core Ultra Series 2 processors, this motherboard provides the ideal foundation for gaming, content creation and demanding productivity workloads.

Featuring a robust 14+1+2 phase digital power design, support for DDR5 memory up to 9466+ MT/s, PCIe 5.0 expansion, USB4 connectivity, Wi-Fi 7, and 2.5GbE LAN, the Z890 EAGLE WIFI7 PLUS combines cutting-edge technology with user-friendly features to create a powerful and future-ready platform.

Key Features & Benefits

Ready for Intel Core Ultra Series 2 Processors

Designed for the Intel LGA1851 platform, the Z890 EAGLE WIFI7 PLUS fully supports the latest Intel Core Ultra processors, providing outstanding performance for modern gaming, creative workloads and multitasking applications.

Reliable 14+1+2 Digital Power Design

A high-quality 14+1+2 phase VRM solution delivers clean and efficient power to your processor, ensuring system stability during heavy workloads and providing the performance headroom needed for demanding applications.

Exceptional DDR5 Memory Support

Unlock the full potential of next-generation memory with support for:

• Up to 256GB DDR5 memory
• Speeds up to DDR5-9466+ MT/s (OC)
• Intel XMP profiles
• Dual-channel architecture
• CUDIMM compatibility

Gigabyte's advanced D5 Bionic Corsa technology helps maximise memory efficiency, bandwidth and overall system responsiveness.

AI-Driven Performance Optimisation

AI PerfDrive intelligently fine-tunes BIOS settings, helping users achieve the ideal balance of performance, cooling and power efficiency without complex manual adjustments.

Ultra-Fast PCIe 5.0 and M.2 Storage

Built for modern high-speed storage, the motherboard provides:

• 1 x PCIe 5.0 x4 M.2 slot
• 3 x PCIe 4.0 x4 M.2 slots
• 4 x SATA 6Gb/s ports
• RAID 0, 1, 5 and 10 support

The dedicated PCIe 5.0 M.2 slot allows users to benefit from the latest generation of ultra-fast SSDs for rapid boot times and faster application loading.

Advanced Networking for Modern PC Users

Stay connected with the latest networking technologies:

• Intel Wi-Fi 7
• Bluetooth 5.4
• Realtek 2.5GbE LAN

Whether gaming online, streaming 4K content or transferring large files, you'll enjoy fast, reliable and low-latency network performance.

Efficient Cooling and Thermal Management

Designed to maintain high performance under load, the motherboard includes:

• VRM Thermal Armour
• Advanced M.2 Thermal Guard
• Multiple fan and pump headers
• Comprehensive system monitoring

Advanced thermal solutions help keep components running efficiently and reliably during intensive workloads.

Easy DIY Installation Features

Gigabyte's user-friendly design simplifies building and upgrading:

• EZ-Latch Plus PCIe quick-release mechanism
• Screwless M.2 installation design
• EZ-Latch Click M.2 heatsinks
• WiFi EZ-Plug antenna system
• Q-Flash Plus BIOS updates without CPU installation

These features reduce build time and make future upgrades easier.

Premium High-Definition Audio

The onboard Realtek ALC1220 audio codec paired with WIMA audiophile-grade capacitors delivers rich, detailed sound quality for gaming, entertainment and media creation.

Technical Specifications

Processor Support

• Intel LGA1851 Socket
• Supports Intel Core Ultra Processors (Series 2)

Chipset

• Intel Z890 Express Chipset

Memory

• 4 x DDR5 DIMM Slots
• Dual Channel Architecture
• Up to 256GB Capacity
• DDR5 9466+ MT/s (OC)
• Intel XMP Support
• Non-ECC Unbuffered DIMM Support

Graphics Outputs

• 1 x USB4 Type-C with DisplayPort Alt Mode
• 1 x DisplayPort 2.1
• Up to 3840 x 2160 @ 144Hz

Expansion Slots

• 1 x PCIe 5.0 x16 Slot
• 2 x PCIe 4.0 x4 Slots

Storage

• 1 x PCIe 5.0 x4 M.2 Slot
• 3 x PCIe 4.0 x4 M.2 Slots
• 4 x SATA 6Gb/s Ports
• RAID 0 / 1 / 5 / 10 Support

Networking

• Realtek 2.5GbE LAN
• Intel Wi-Fi 7
• Bluetooth 5.4

Audio

• Realtek ALC1220 High Definition Audio
• 2 / 4 / 5.1 / 7.1-Channel Audio
• Optical S/PDIF Output

USB Connectivity

Rear I/O

• 1 x USB4 Type-C
• 2 x USB 3.2 Gen 2 Type-A
• 3 x USB 3.2 Gen 1
• 4 x USB 2.0

Internal Headers

• 1 x USB Type-C Header (USB 3.2 Gen 2)
• 1 x USB 3.2 Gen 1 Header
• 2 x USB 2.0 Headers

Internal Connectors

• 24-Pin ATX Power Connector
• Dual 8-Pin CPU Power Connectors
• 4 x M.2 Connectors
• 4 x SATA Ports
• RGB & ARGB Headers
• Multiple Fan & Pump Headers
• TPM Header
• Thunderbolt Add-In Card Headers

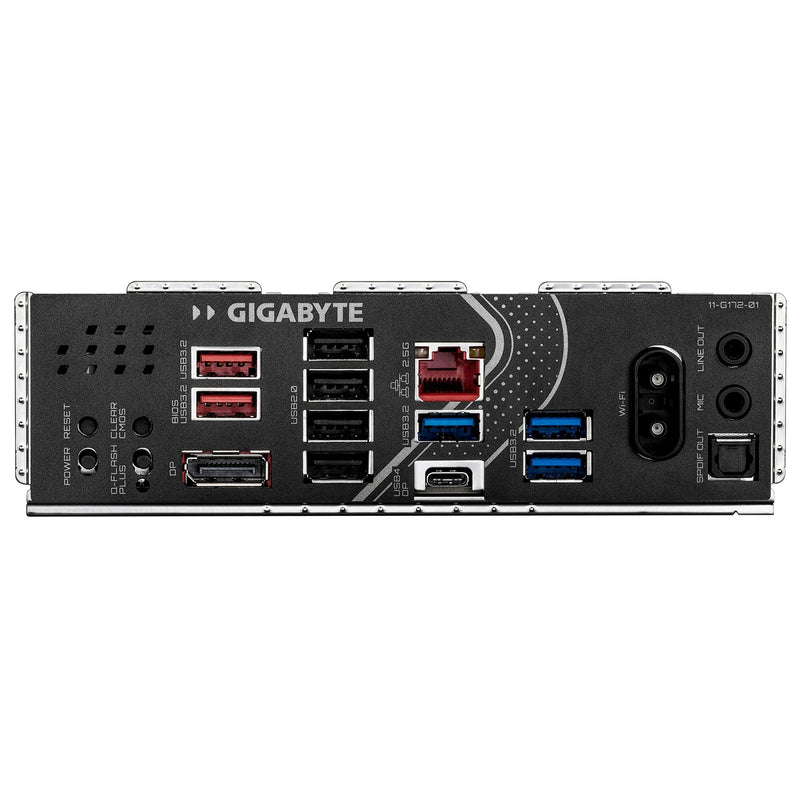

Rear I/O Ports

• 1 x USB4 Type-C
• 2 x USB 3.2 Gen 2 Type-A
• 3 x USB 3.2 Gen 1
• 4 x USB 2.0
• 1 x DisplayPort
• 1 x 2.5GbE RJ45 Port
• 2 x Wi-Fi Antenna Connectors
• Optical S/PDIF Out
• Audio Jacks
• Power Button
• Reset Button
• Q-Flash Plus Button
• Clear CMOS Button

Form Factor

• ATX
• 305 x 244 mm

Operating System Support

• Windows 11 64-bit

Why Choose the Gigabyte Z890 EAGLE WIFI7 PLUS?

The Gigabyte Z890 EAGLE WIFI7 PLUS delivers an impressive combination of performance, connectivity and value for users building a next-generation Intel platform. With support for Intel Core Ultra processors, ultra-fast DDR5 memory, PCIe 5.0 storage, Wi-Fi 7, USB4 and advanced thermal solutions, it offers all the essential technologies required for a powerful gaming or productivity system.

Whether you're upgrading an existing PC or creating a brand-new high-performance build, the Z890 EAGLE WIFI7 PLUS provides the speed, expansion capabilities and reliability needed to stay ahead of the competition while remaining ready for future hardware advancements.
