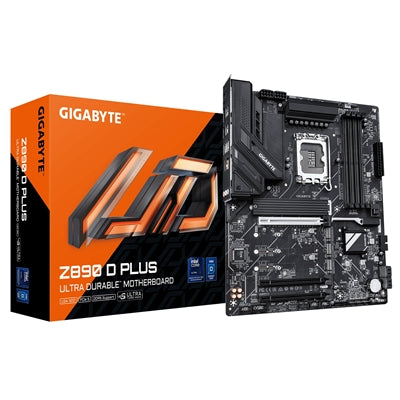

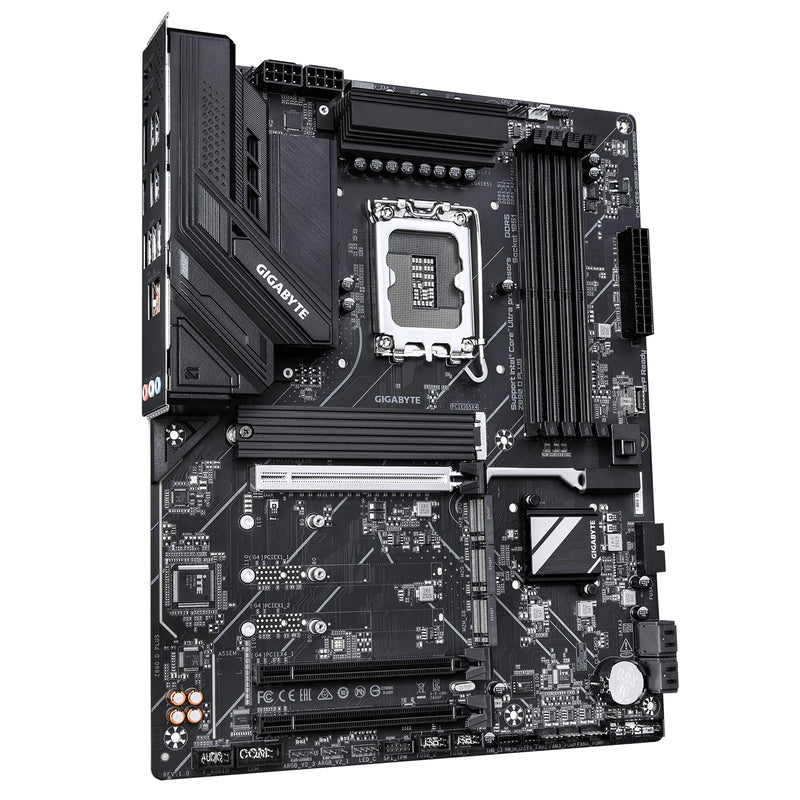

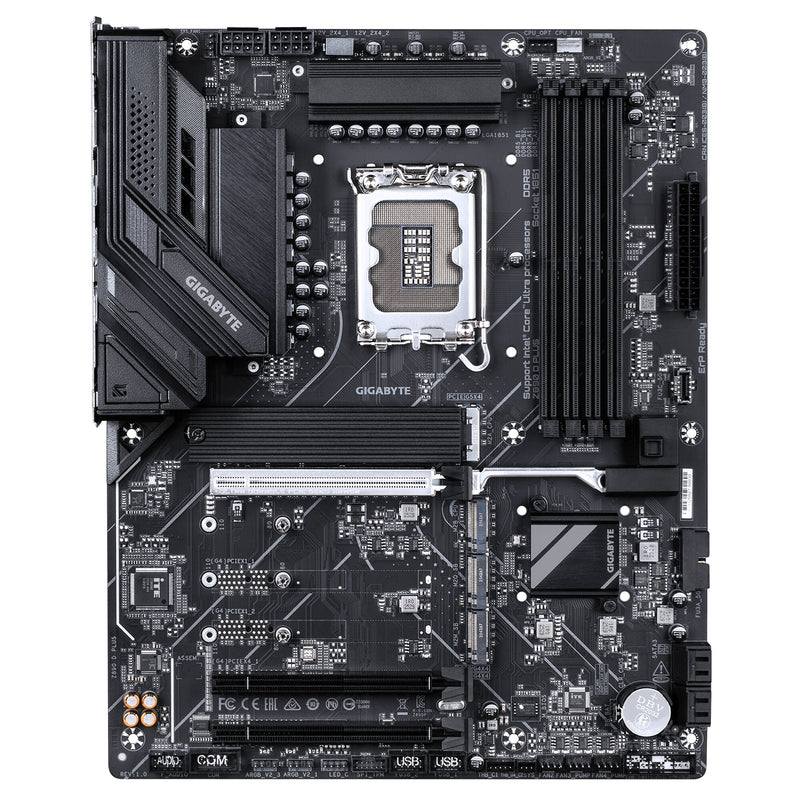

Gigabyte Z890 D PLUS DDR5 PCIe 5.0 Intel ATX Motherboard

Gigabyte Z890 D PLUS Intel LGA1851 ATX Motherboard – DDR5, PCIe 5.0, High Performance

Build a powerful next-generation PC with the Gigabyte Z890 D PLUS, a high-performance ATX motherboard designed for Intel Core Ultra (Series 2) processors. Featuring advanced power delivery, ultra-fast storage and DDR5 memory support, this motherboard is ideal for gaming, content creation and demanding workloads.

Key Features & Benefits

Next-Generation Intel Core Ultra Support
Designed for Intel LGA1851 processors, delivering exceptional performance, efficiency and future-ready compatibility.

High-Speed DDR5 Memory Performance
Supports up to 256GB DDR5 RAM with ultra-fast speeds exceeding 9466MT/s (OC), ensuring outstanding responsiveness and multitasking capabilities.

PCIe 5.0 for Next-Gen GPUs & Storage
The PCIe 5.0 x16 slot provides maximum bandwidth for modern graphics cards, ensuring future-proof performance.

Quad M.2 Storage Configuration
Equipped with 4 M.2 slots, including a PCIe 5.0 slot, enabling ultra-fast NVMe SSD performance and flexible storage expansion.

Advanced 12+1+2 Phase VRM Power Design
Ensures stable power delivery for high-performance CPUs, improving reliability during gaming, multitasking and intensive workloads.

AI & Performance Optimisation Tools

• Ultra Turbo Mode to unlock additional CPU performance
• AI tuning and HWinfo integration for real-time monitoring
  Helps maximise system efficiency and performance.

Efficient Thermal Design
Features VRM Thermal Armor and M.2 Thermal Guard, providing effective cooling to maintain stable performance under load.

EZ-Latch Tool-Free Design
Simplifies installation with PCIe quick-release slots, making GPU upgrades fast and convenient.

2.5GbE High-Speed Networking
Integrated 2.5 Gigabit Ethernet delivers fast, stable and low-latency wired connectivity.

Expandable Connectivity & Future Upgrade Support
Includes USB-C, multiple PCIe slots and Thunderbolt add-in support, ensuring flexibility for future expansions.

Technical Specifications

CPU Support

• Intel LGA1851 Socket
• Supports Intel Core Ultra Processors (Series 2)

Chipset

• Intel Z890

Memory

• 4 x DDR5 DIMM Slots
• Up to 256GB Capacity
• Dual Channel Architecture
• Speeds up to 9466MHz+ (OC)
• XMP Support

Storage

• 1 x M.2 PCIe 5.0 x4 Slot
• 3 x M.2 PCIe 4.0 Slots
• 4 x SATA 6Gb/s Ports
• RAID 0 / 1 / 5 / 10 Support

Graphics Output

• 1 x DisplayPort (up to 4K@60Hz)

Expansion Slots

• 1 x PCIe 5.0 x16
• 2 x PCIe 4.0 x16 (x4 mode)

Networking

• Realtek 2.5GbE LAN

Audio

• Realtek HD Audio
• 2/4/5.1/7.1-channel support

USB Connectivity

• USB-C (rear & internal header)
• USB 3.2 Gen2 & Gen1
• USB 2.0 ports

Internal Connectivity

• 4 x M.2 slots
• 3 x ARGB headers (Gen2)
• 1 x RGB header
• Multiple fan & pump headers
• TPM header
• Thunderbolt add-in support

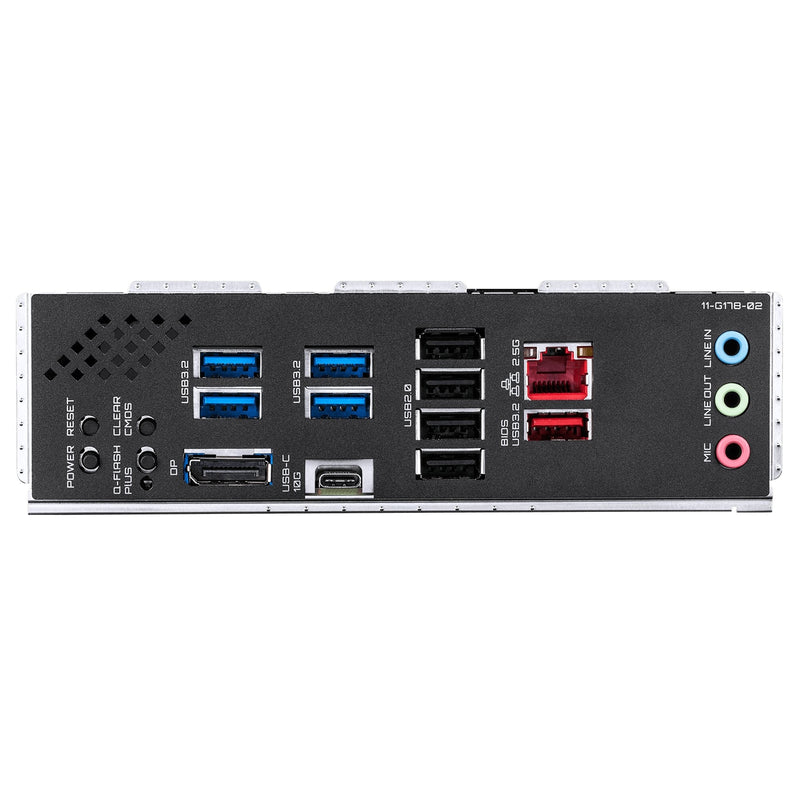

Rear I/O Ports

• DisplayPort
• USB-C & USB-A ports
• 2.5GbE LAN
• Audio jacks
• BIOS buttons (Q-Flash, Reset, Clear CMOS)

Form Factor

• ATX (30.5cm x 24.4cm)

Operating System Support

• Windows 11 (64-bit)

Why Choose the Gigabyte Z890 D PLUS?

The Gigabyte Z890 D PLUS is a powerful, feature-rich motherboard designed for next-generation Intel systems. With DDR5 memory support, PCIe 5.0 capabilities and quad M.2 storage, it provides exceptional speed and flexibility.

Perfect for gamers, creators and high-performance users, it offers strong power delivery, advanced cooling and future-ready expansion, making it a reliable foundation for cutting-edge PC builds.
