Gigabyte X870I AORUS PRO ICE Mini-ITX AM5 WiFi 7 USB4

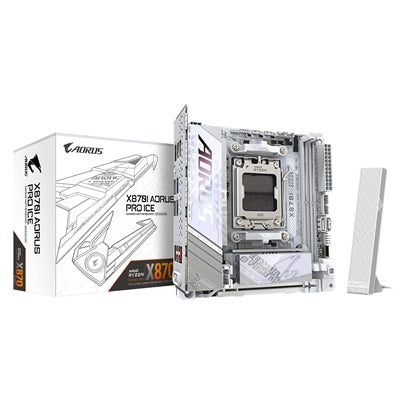

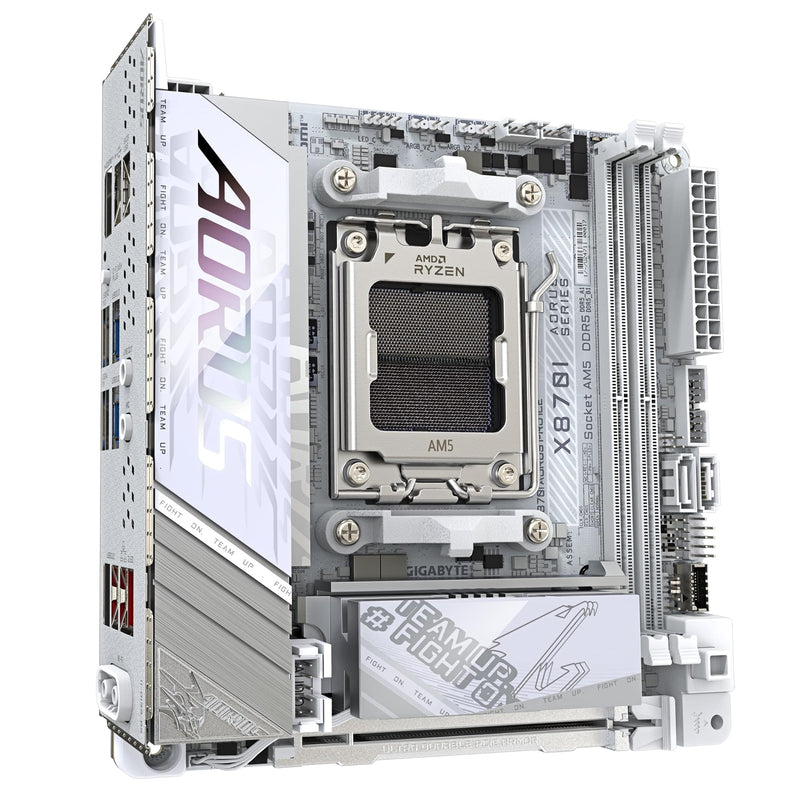

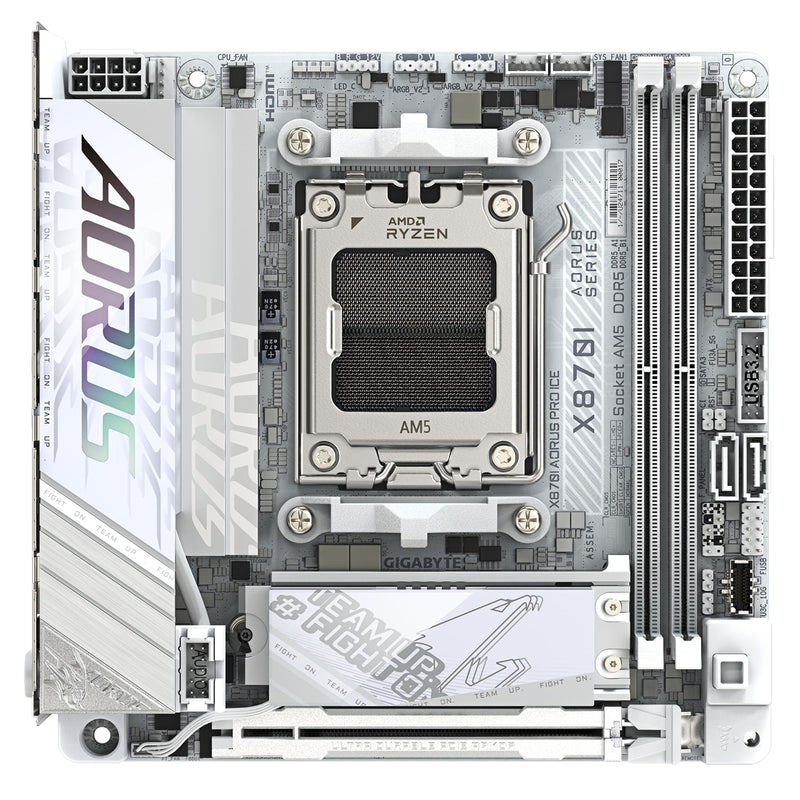

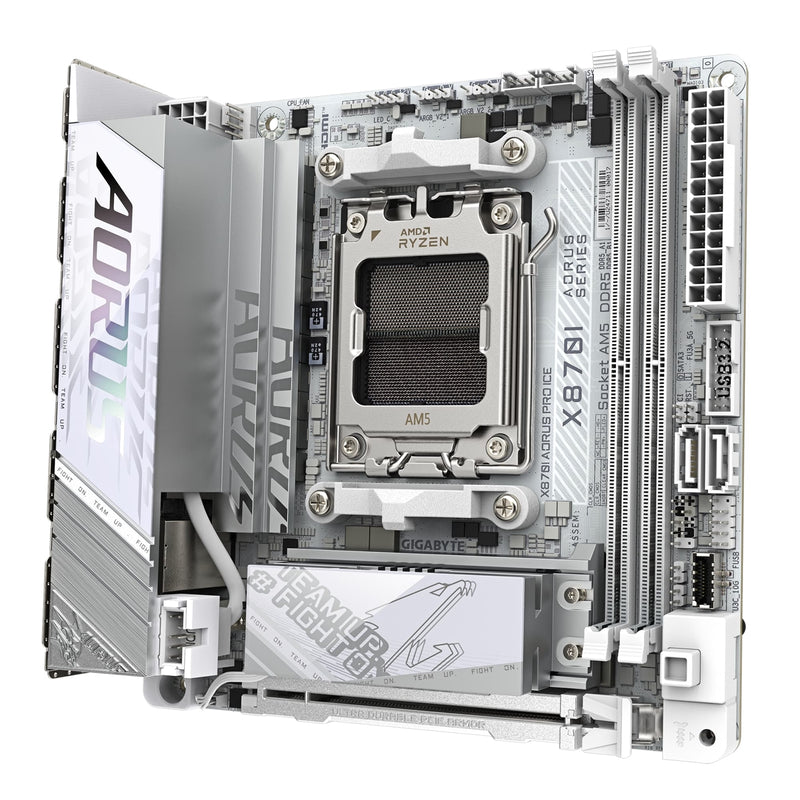

Gigabyte X870I AORUS PRO ICE Mini-ITX AM5 Motherboard
Build a powerful small form factor system with the Gigabyte X870I AORUS PRO ICE, a premium Mini-ITX motherboard engineered for next-generation AMD Ryzen processors. Combining cutting-edge connectivity, robust power delivery, and advanced thermal design, this compact board delivers exceptional performance for gaming and content creation.
With support for PCIe 5.0, DDR5 memory, WiFi 7, and USB4, it offers everything needed for a future-ready, high-performance build in a compact footprint.
Key Features & Benefits
✔ AM5 Socket with X870 Chipset – Supports AMD Ryzen 9000, 8000 and 7000 series processors
✔ Compact Mini-ITX Powerhouse – High-end performance in a space-saving 17cm x 17cm form factor
✔ Advanced VRM Design (8+2+1 Phases) – Stable and efficient power delivery for high-performance CPUs and overclocking
✔ DDR5 Memory Support – Dual-channel DDR5 up to 8400MHz (OC) with AMD EXPO support
✔ PCIe 5.0 Ready – Reinforced PCIe 5.0 x16 slot for next-generation graphics cards
✔ Dual M.2 Storage – Includes PCIe 5.0 and PCIe 4.0 slots for ultra-fast NVMe SSDs
✔ WiFi 7 & 2.5GbE LAN – Ultra-fast networking for gaming, streaming, and large data transfers
✔ USB4 Type-C Connectivity – High-speed data transfer with DisplayPort support
✔ Enhanced Thermal Design – VRM Thermal Armour and M.2 heatsinks for optimal cooling
✔ EZ-Latch & Tool-Free Design – Quick installation for GPU and SSD components
✔ Premium Audio – Realtek ALC4080 with audiophile-grade capacitors for clear sound
Technical Specifications
CPU Support
- AMD Socket AM5
- Compatible with Ryzen 9000 / 8000 / 7000 Series
Chipset
- AMD X870
Memory
- 2 x DDR5 DIMM Slots
- Up to 128GB
- Speeds up to 8400MHz (OC)
- Dual-channel architecture
- AMD EXPO & XMP support
Expansion Slots
- 1 x PCIe 5.0 x16 slot (reinforced)
Storage
- 1 x M.2 PCIe 5.0 x4
- 1 x M.2 PCIe 4.0 x4 (rear-mounted)
- 2 x SATA 6Gb/s
- RAID support (0, 1, 5, 10)
Networking
- 2.5GbE LAN

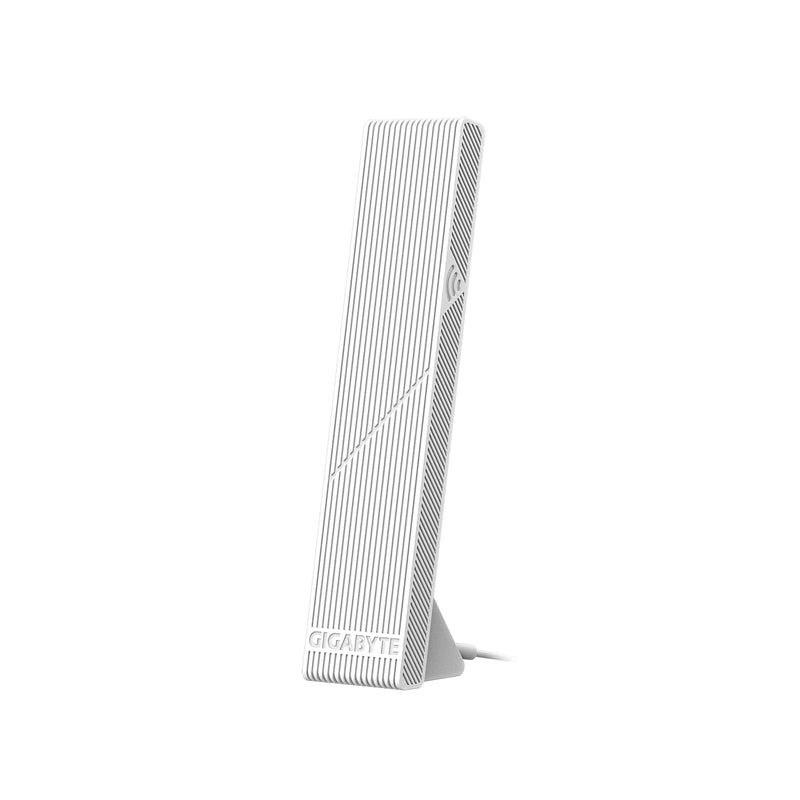

- WiFi 7 (802.11be)
- Bluetooth 5.4
Graphics Outputs
- 1 x HDMI
- 1 x USB4 Type-C (DisplayPort Alt Mode)

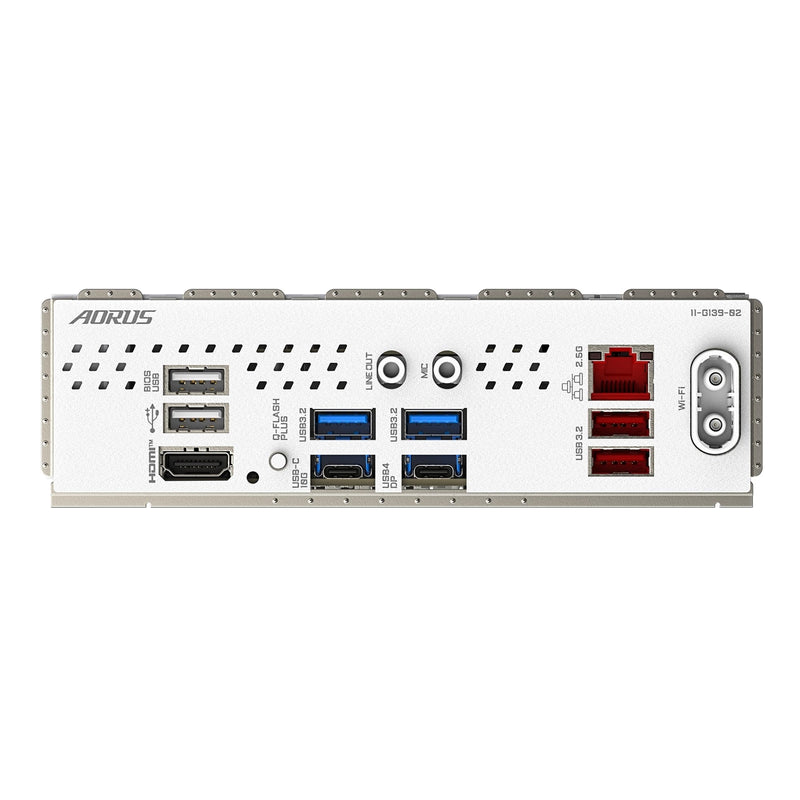

USB Ports
- USB4 Type-C
- USB 3.2 Gen 2 Type-C
- USB 3.2 Gen 2 Type-A
- USB 3.2 Gen 1
- USB 2.0
Audio
- Realtek ALC4080 HD Audio
Internal Connectivity
- USB-C header (Gen 2)
- USB 3.2 Gen 1 header
- USB 2.0 headers
- RGB and ARGB headers
Cooling & Monitoring
- Multiple fan headers
- Temperature and voltage monitoring
- Water cooling flow rate detection
Form Factor
- Mini-ITX (17.0cm x 17.0cm)
Operating System Support
- Windows 11 (64-bit)
Why Choose the Gigabyte X870I AORUS PRO ICE?
This motherboard is built for enthusiasts who want maximum performance in a compact build. It delivers the full power of AMD’s latest AM5 platform in a Mini-ITX form factor without compromising on features.
With PCIe 5.0, DDR5 support, WiFi 7, and USB4 connectivity, it ensures your system is ready for the latest hardware and future upgrades. The premium VRM design and advanced cooling solutions also make it ideal for high-performance CPUs and demanding workloads.
If you’re building a high-end small form factor gaming or creator PC, the X870I AORUS PRO ICE offers exceptional performance, connectivity, and reliability in a compact design.
