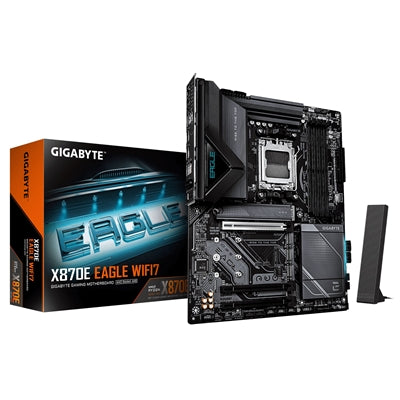

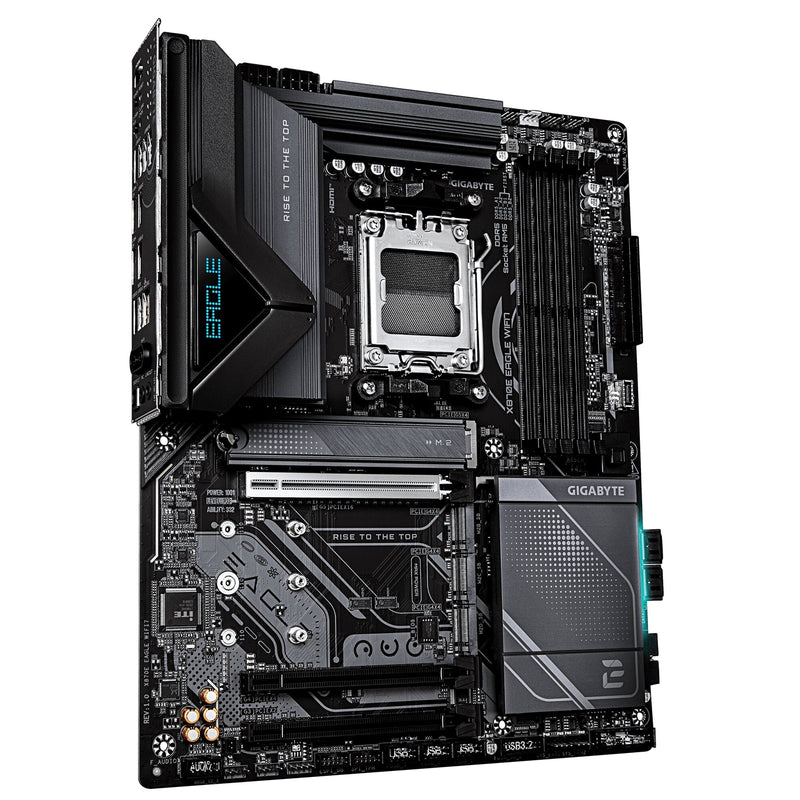

Gigabyte X870E EAGLE WiFi 7 AM5 DDR5 ATX Motherboard

Gigabyte X870E EAGLE WIFI7 AM5 ATX Motherboard – PCIe 5.0, DDR5, USB4, WiFi 7

Push your system to the cutting edge with the Gigabyte X870E EAGLE WIFI7, a premium ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 Series processors. With next-generation technologies including PCIe 5.0, DDR5 memory, USB4 and WiFi 7, this board delivers elite-level performance for gaming, content creation and professional workloads.

Key Features & Benefits

Next-Gen AMD AM5 Platform
Supports the latest Ryzen 7000, 8000 and 9000 Series CPUs, offering exceptional computing power and future-ready compatibility.

Advanced 16+2+2 Phase VRM Power Design
The digital twin VRM solution ensures stable power delivery, enabling consistent high performance under heavy workloads and overclocking.

DDR5 Memory for Maximum Performance
Supports up to 256GB DDR5 RAM with speeds up to 8200MHz (OC), delivering outstanding bandwidth and responsiveness.

Ultra-Fast PCIe 5.0 Storage
Featuring 4 x M.2 slots, including PCIe 5.0 support, enabling lightning-fast NVMe SSD performance and reduced load times.

Dual USB4 Type-C Connectivity
Equipped with 2 x USB4 ports, offering ultra-high speeds, display output support and versatile connectivity for modern peripherals.

WiFi 7 & 5GbE High-Speed Networking
Experience next-generation networking with WiFi 7 and 5GbE LAN, providing ultra-fast speeds, lower latency and improved network efficiency.

Advanced Thermal Design
Includes VRM Thermal Armour and M.2 Thermal Guard, ensuring optimal cooling and preventing performance throttling.

EZ-Latch & Tool-Free Design

• PCIe and M.2 EZ-Latch Plus for quick installation
• Screwless M.2 heatsinks for effortless upgrades
  Simplifies building and maintenance.

AI Performance Optimisation
AI PerfDrive intelligently adjusts BIOS settings to maximise system performance without manual tuning.

Premium Audio Experience
Featuring Realtek ALC1220 audio with audiophile-grade capacitors, delivering clear, immersive sound for gaming and media.

Technical Specifications

CPU Support

• AMD AM5 Socket
• Ryzen 9000 / 8000 / 7000 Series

Chipset

• AMD X870E

Memory

• 4 x DDR5 DIMM Slots
• Up to 256GB Capacity
• Dual Channel Architecture
• Speeds up to 8200MHz (OC)
• AMD EXPO & XMP Support

Storage

• 1 x M.2 PCIe 5.0 x4 Slot
• 3 x M.2 PCIe 4.0 Slots
• 4 x SATA 6Gb/s Ports
• RAID 0 / 1 / 5 / 10 Support

Graphics Outputs

• 2 x USB4 Type-C (Display output supported)
• 1 x HDMI 2.1 (4K support)

Expansion Slots

• 1 x PCIe 5.0 x16
• 1 x PCIe 4.0 x16 (x4 mode)
• 1 x PCIe 3.0 x16 (x2 mode)

Networking

• 5GbE LAN
• WiFi 7 (2.4/5/6 GHz bands)
• Bluetooth 5.4

Audio

• Realtek ALC1220 HD Audio
• 2/4/5.1/7.1-channel
• Optical S/PDIF Out

USB Connectivity

• 2 x USB4 Type-C (rear)
• USB-C internal header (USB 3.2 Gen 2x2)
• USB 3.2 Gen2 & Gen1 ports
• USB 2.0 ports

Internal Connectivity

• 4 x M.2 slots
• 3 x ARGB headers (Gen2)
• 1 x RGB header
• Multiple fan & pump headers
• TPM header

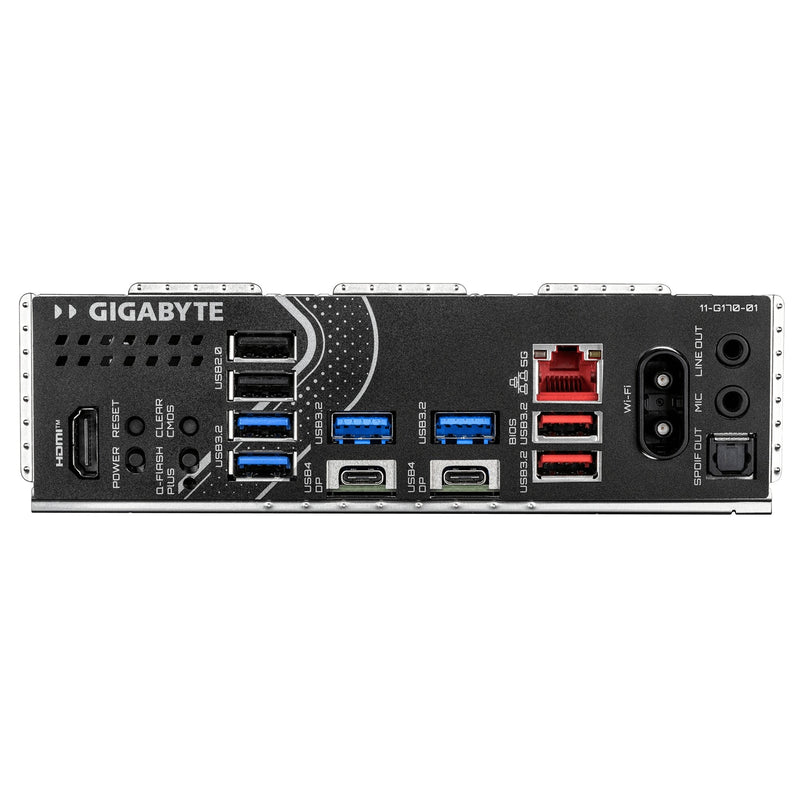

Rear I/O Ports

• HDMI 2.1
• Dual USB4 Type-C
• USB 3.2 Gen2 & Gen1 ports
• 5GbE LAN
• WiFi antenna connectors
• Optical audio out
• Audio jacks

Form Factor

• ATX (30.5cm x 24.4cm)

Operating System Support

• Windows 11 (64-bit)

Why Choose the Gigabyte X870E EAGLE WIFI7?

The X870E EAGLE WIFI7 is a true next-generation motherboard, combining PCIe 5.0, DDR5, USB4 and WiFi 7 to deliver unmatched speed and connectivity. Built for enthusiasts and professionals, it offers exceptional performance, advanced cooling and future-proof technology.

Whether you’re building a high-end gaming rig or a powerful workstation, this motherboard provides a robust, feature-rich foundation designed for the demands of tomorrow’s computing.
