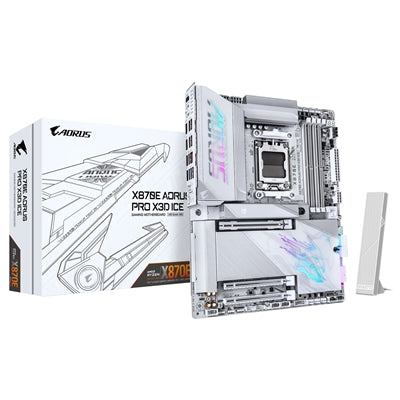

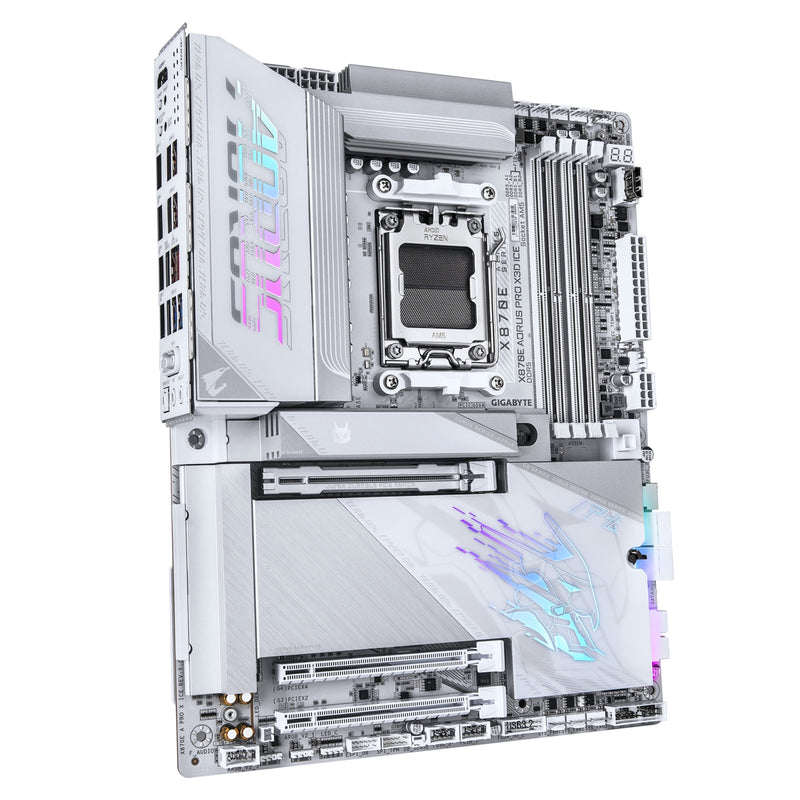

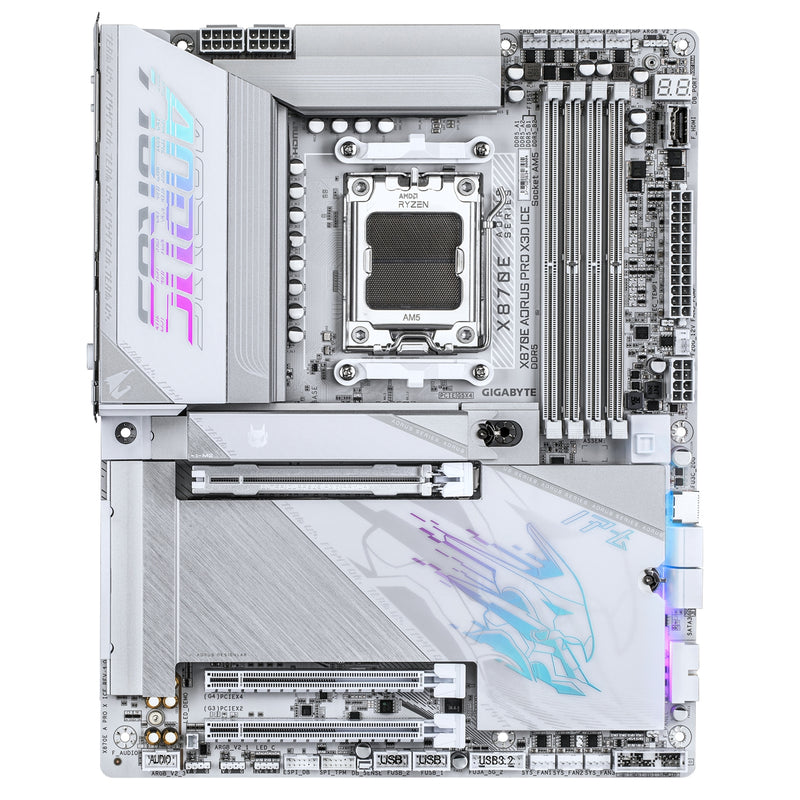

Gigabyte X870E AORUS PRO X3D ICE AM5 ATX Motherboard

PCIe 5.0 | DDR5 9000MT/s | 4x M.2 | 5GbE LAN | Wi-Fi 7 | Dual USB4 | ICE White Design

The Gigabyte X870E AORUS PRO X3D ICE is a premium white-themed ATX motherboard built to maximise the performance of AMD Ryzen X3D processors. Combining elite power delivery, extreme DDR5 overclocking support and next-generation connectivity, it provides a high-end foundation for advanced gaming and enthusiast PC builds.

Designed for performance, thermal stability and refined aesthetics, the ICE edition delivers cutting-edge technology in a striking white finish.

Key Features & Benefits

X3D Turbo Mode 2.0 – AI-Enhanced Gaming Performance

Purpose-built for X3D processors, X3D Turbo Mode 2.0 uses intelligent optimisation to extract maximum performance with minimal manual tuning.

Supports:

• AMD Ryzen 9000 Series

• AMD Ryzen 8000 Series

• AMD Ryzen 7000 Series

Unlock enhanced gaming performance with intelligent CPU optimisation tailored for AMD’s 3D V-Cache architecture.

Extreme DDR5 Overclocking – Up to 9000MT/s (OC)

• 4 x DDR5 DIMM slots

• Dual-channel architecture

• Up to 256GB total capacity

• AMD EXPO™ & XMP support

Engineered for high-frequency DDR5 memory, delivering exceptional bandwidth for gaming, content creation and demanding workflows.

PCIe 5.0 Graphics & Storage

• Reinforced PCIe 5.0 x16 graphics slot (10X strength design)

• 2 x PCIe 5.0 x4 M.2 slots

• 2 x PCIe 4.0 x4 M.2 slots

• 4 x SATA 6Gb/s

With four M.2 sockets and PCIe 5.0 support, this board is ready for ultra-fast NVMe SSDs and next-generation GPUs.

Advanced Power & Thermal Architecture

• Digital twin 18+2+2 phase VRM solution

• VRM Thermal Armour

• Advanced M.2 Thermal Guard & Thermal Guard Ext.

• M.2 EZ-Flex heat dissipation baseplate

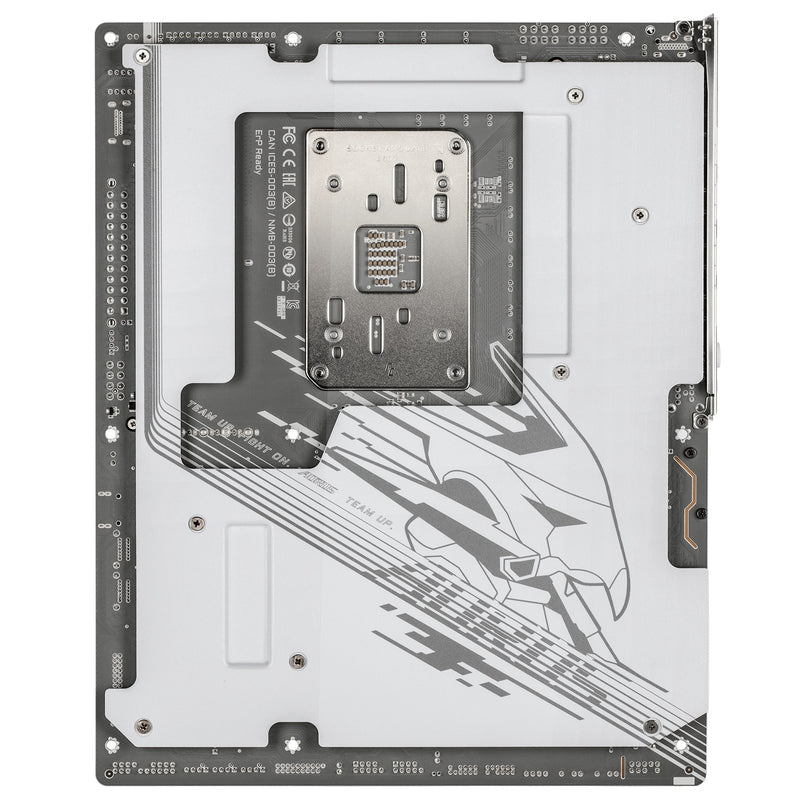

• PCB Thermal Plate with 14% improved thermal efficiency

Built for sustained high-load performance, overclocking stability and long-term durability.

Next-Generation Networking

• Realtek 5GbE LAN

• Qualcomm Wi-Fi 7 (802.11be, 320MHz support)

• Bluetooth 5.4

• Directional high-gain antenna

Experience ultra-low latency gaming, high-speed downloads and future-ready wireless connectivity.

Dual USB4 & Extended Connectivity

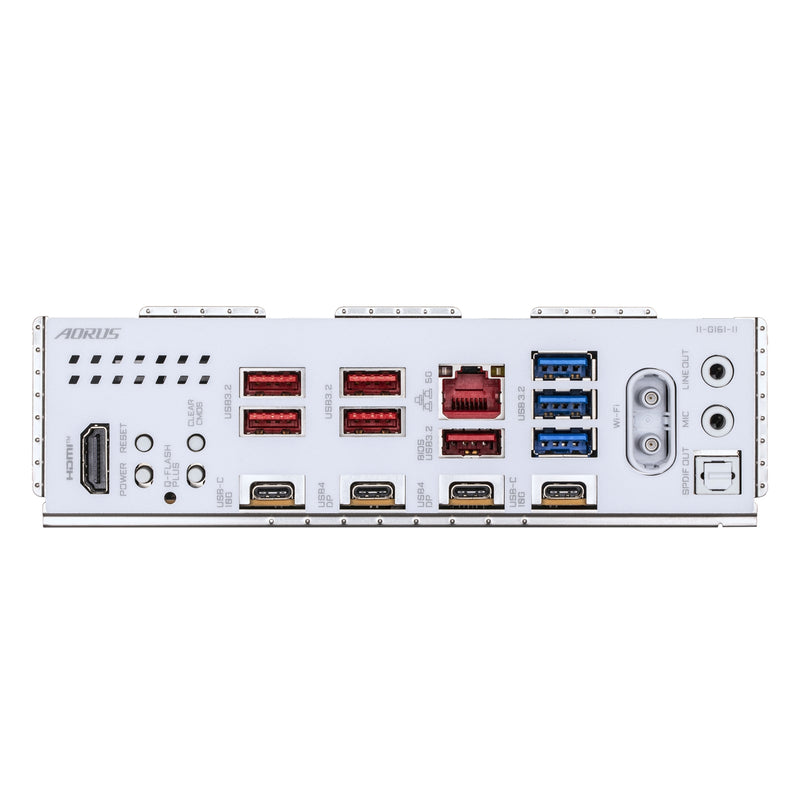

Rear connectivity includes:

• 2 x USB4 Type-C (DisplayPort Alt Mode, up to 4K 240Hz support via integrated graphics)

• 2 x USB Type-C (USB 3.2 Gen 2)

• 5 x USB 3.2 Gen 2 Type-A

• HDMI 2.1

• Optical S/PDIF

• Clear CMOS, Q-Flash Plus and reset buttons

Front USB-C header supports up to 65W PD 3.0 / QC 4+ fast charging for modern cases and devices.

Builder-Friendly Engineering

• Pre-fitted I/O shield

• M.2 EZ-Latch Click Plus (screwless installation)

• WiFi EZ-Plug antenna design

• Q-Flash & Q-Flash Plus BIOS update support

• Multi-theme BIOS with advanced fan and AIO controls

Designed to simplify installation, upgrades and system tuning.

Technical Specifications

Chipset

AMD X870E

Socket

AMD AM5

Memory

4 x DDR5 DIMM
Up to 256GB
Supports up to 9000MT/s (OC)

Expansion Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 3.0 x2

Storage

4 x M.2 (2 x PCIe 5.0, 2 x PCIe 4.0)
4 x SATA 6Gb/s
RAID 0/1/5/10 (NVMe)

Networking

5GbE LAN
Wi-Fi 7
Bluetooth 5.4

Audio

Realtek ALC1220
High Definition 7.1 Channel Audio
Optical S/PDIF Out

Form Factor

ATX (30.5cm x 24.4cm)

Operating System

Windows 11 64-bit support

Why Choose the X870E AORUS PRO X3D ICE?

The X870E AORUS PRO X3D ICE delivers elite AM5 performance with next-generation connectivity and premium thermal engineering, wrapped in a clean white aesthetic ideal for modern showcase builds.

With PCIe 5.0 graphics and storage, extreme DDR5 headroom, AI-enhanced CPU optimisation and Wi-Fi 7 networking, it offers a future-ready platform for high-end gaming and professional workloads.

For builders seeking performance, stability and standout design in one premium motherboard, this ICE edition provides a powerful and visually striking solution.
