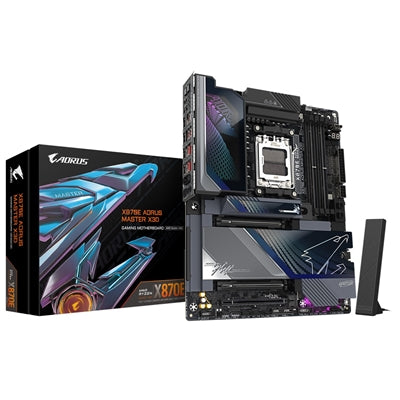

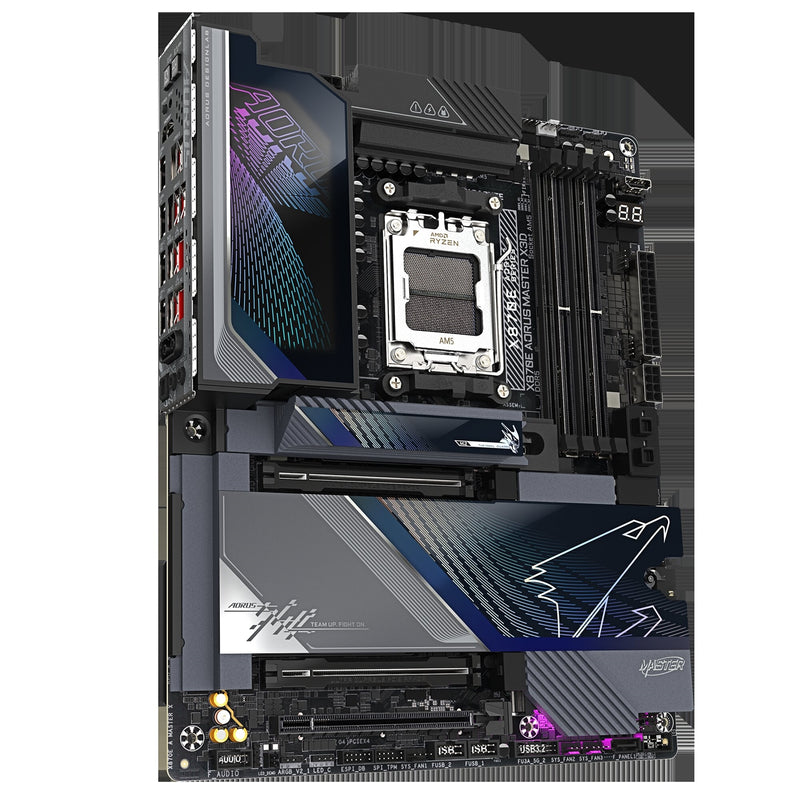

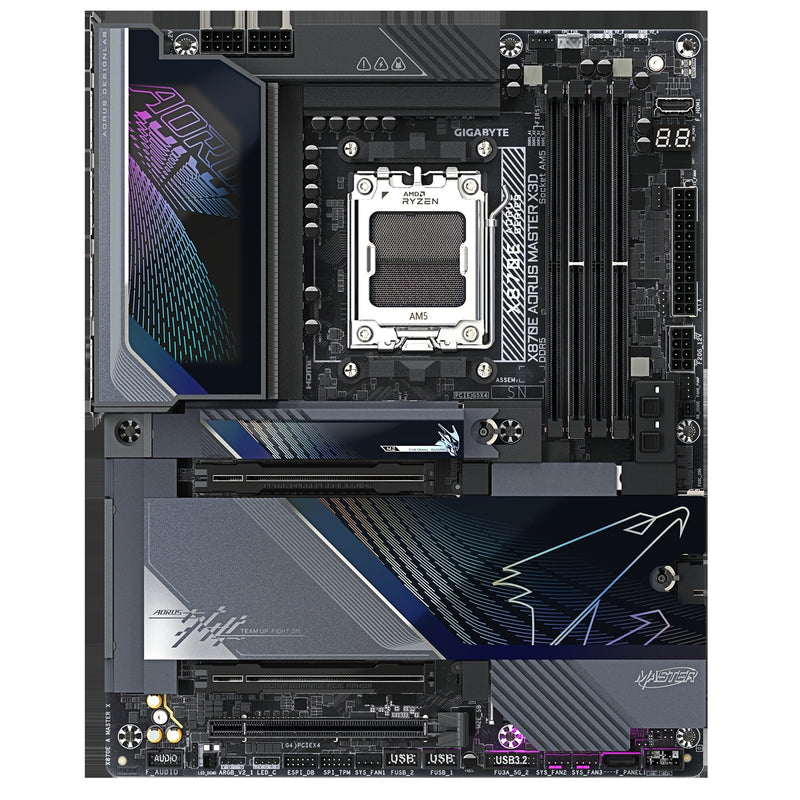

Gigabyte X870E AORUS Master X3D AM5 WiFi 7 ATX Motherboard

Gigabyte X870E AORUS MASTER X3D AM5 ATX Motherboard – Ultimate Performance, PCIe 5.0, WiFi 7

Unleash elite-tier performance with the Gigabyte X870E AORUS MASTER X3D, a flagship motherboard engineered for AMD Ryzen 7000, 8000 and 9000 Series processors. Designed for enthusiasts and professionals, it delivers cutting-edge technology including PCIe 5.0, DDR5 memory, USB4 and ultra-fast networking, making it the ultimate foundation for high-end gaming and workstation builds.

Key Features & Benefits

Extreme X3D Gaming Performance (Turbo Mode 2.0)
Maximise gaming potential with AI-driven X3D Turbo Mode 2.0, optimising performance dynamically for supported Ryzen processors.

Advanced 18+2+2 Phase Power Design
The high-end digital VRM solution ensures stable and efficient power delivery, ideal for overclocking and demanding workloads.

Next-Level DDR5 Memory Performance
Supports up to 256GB DDR5 RAM, with overclocking speeds up to 9000MHz, delivering exceptional bandwidth and responsiveness.

Ultra-Fast PCIe 5.0 Storage Expansion
Features 5 M.2 slots, including PCIe 5.0 support, enabling lightning-fast SSD performance and extensive storage flexibility.

Dual LAN + WiFi 7 Connectivity

• 10GbE + 5GbE LAN for ultra-fast wired networking
• WiFi 7 with Bluetooth 5.4 for next-generation wireless performance
  Perfect for gaming, streaming and high-bandwidth workloads.

Dual USB4 Type-C Ports
Experience ultra-fast data transfer, display output and modern connectivity with dual USB4 ports, including DisplayPort Alt Mode.

Premium Thermal Design & Stability
Includes VRM Thermal Armour, M.2 Thermal Guards and PCB thermal plate, ensuring optimal cooling and long-term system stability.

EZ-Latch & Tool-Free Installation

• PCIe EZ-Latch Plus Duo for easy GPU removal
• M.2 EZ-Latch Click Plus for screwless SSD installation
  Simplifies building and upgrading your system.

High-End Audio with DAC Support
Equipped with Realtek ALC1220 and ESS ES9118 DAC, plus DTS:X Ultra support for immersive, high-fidelity audio.

PCIe UD Slot X Reinforcement
A reinforced PCIe 5.0 x16 slot with enhanced durability, designed to support heavy next-gen GPUs.

Technical Specifications

CPU Support

• AMD AM5 Socket
• Ryzen 9000 / 8000 / 7000 Series

Chipset

• AMD X870E

Memory

• 4 x DDR5 DIMM Slots
• Up to 256GB Capacity
• Dual Channel Architecture
• Speeds up to 9000MHz (OC)
• AMD EXPO & XMP Support

Storage

• 2 x M.2 PCIe 5.0 x4 Slots
• 3 x M.2 PCIe 4.0 Slots
• 2 x SATA 6Gb/s Ports
• RAID 0 / 1 / 5 / 10 Support

Graphics Outputs

• 2 x USB4 Type-C (Display output supported)
• 1 x HDMI (up to 4K@60Hz)
• Front HDMI support

Expansion Slots

• 1 x PCIe 5.0 x16
• 1 x PCIe 5.0/4.0 x16 (CPU dependent)
• 1 x PCIe 4.0 x16 (x4 mode)

Networking

• 10GbE LAN
• 5GbE LAN
• WiFi 7 (2.4 / 5 / 6 GHz)
• Bluetooth 5.4

Audio

• Realtek ALC1220 + ESS ES9118 DAC
• DTS:X Ultra Support
• 2/4/5.1-channel
• Optical S/PDIF Out

USB Connectivity

• 2 x USB4 Type-C (rear)
• USB-C (Gen2x2 & Gen2, rear & internal)
• USB 3.2 Gen2 Type-A
• USB 3.2 Gen1 & USB 2.0

Internal Connectivity

• 5 x M.2 slots
• 4 x ARGB headers (Gen2)
• 1 x RGB header
• Multiple fan & pump headers
• TPM header
• Temperature sensor headers

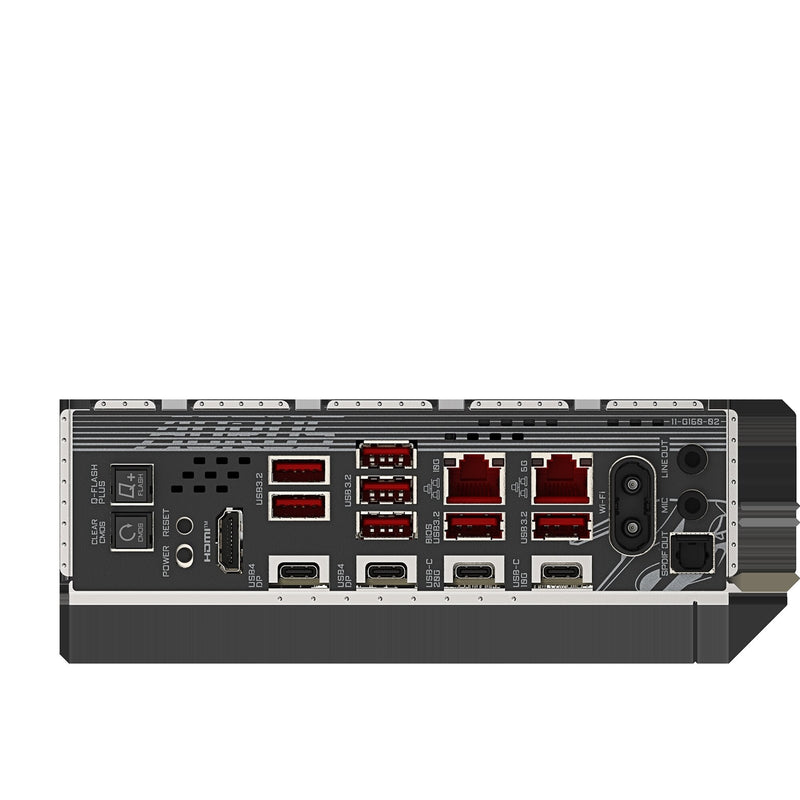

Rear I/O Ports

• HDMI
• Dual USB4 Type-C
• USB 3.2 Gen2 Type-A ports
• Dual LAN ports (10GbE + 5GbE)
• WiFi antenna connectors
• Optical audio out
• Audio jacks

Form Factor

• ATX (30.5cm x 24.4cm)

Operating System Support

• Windows 11 (64-bit)

Why Choose the Gigabyte X870E AORUS MASTER X3D?

The X870E AORUS MASTER X3D is a flagship motherboard built for enthusiasts who demand the best. With extreme power delivery, PCIe 5.0 storage, DDR5 speeds and next-generation networking, it provides exceptional performance for gaming and professional applications.

If you want a system that is future-proof, ultra-fast and designed for peak performance, this motherboard delivers an uncompromising foundation for high-end builds.
