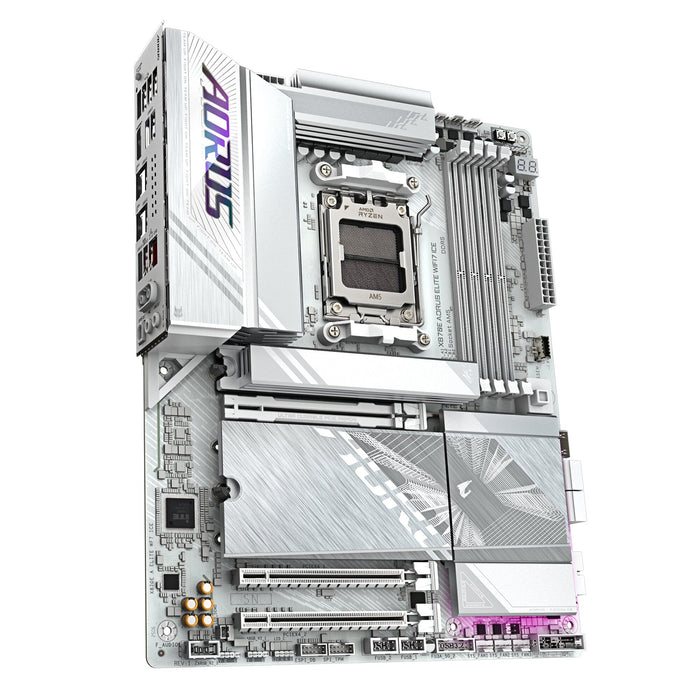

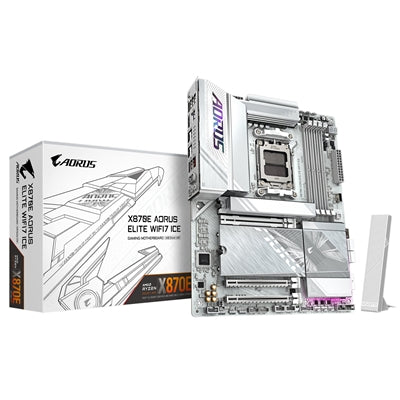

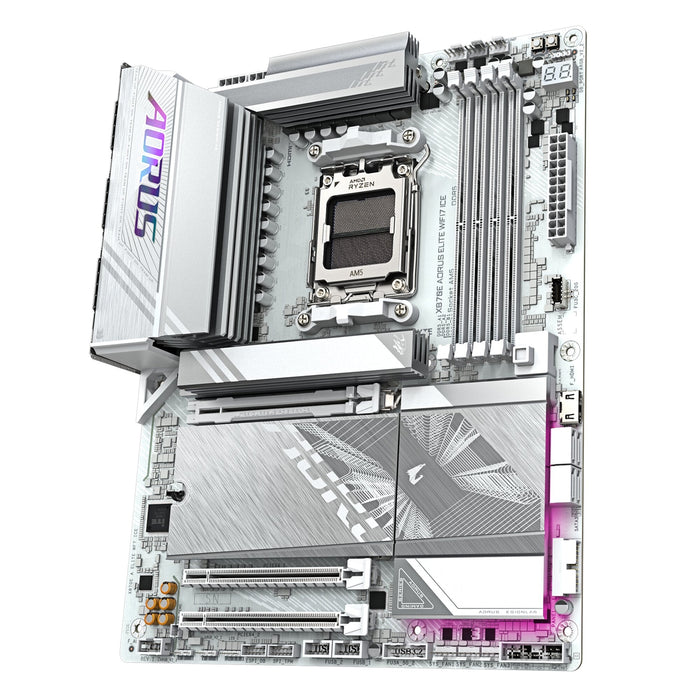

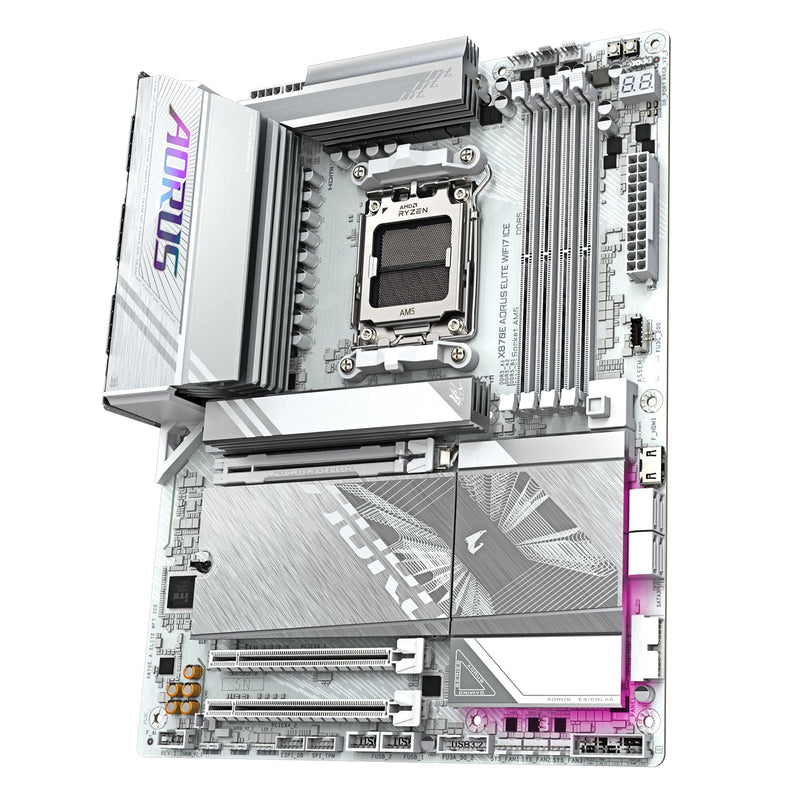

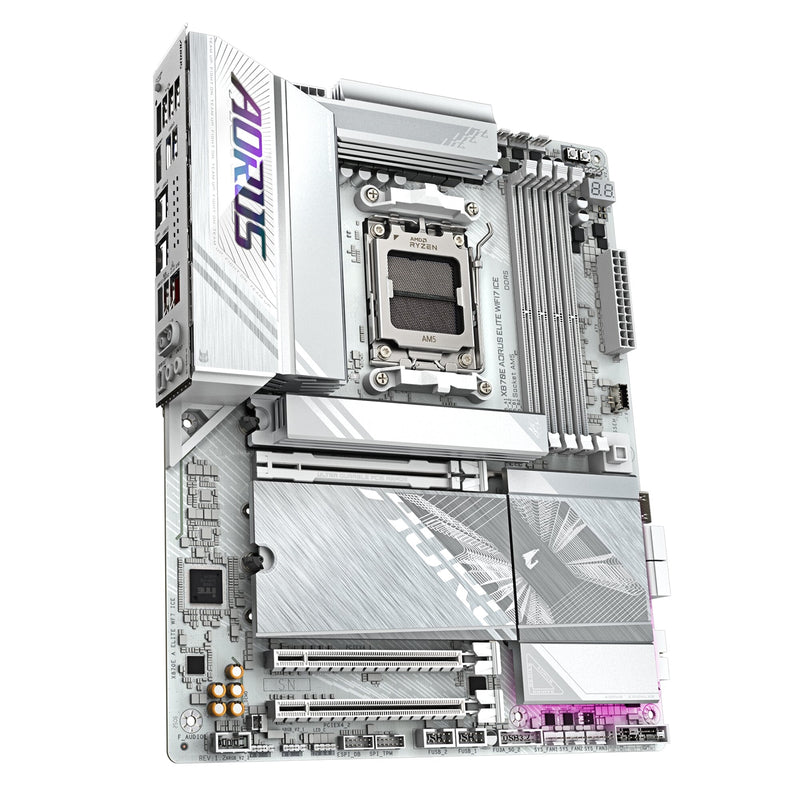

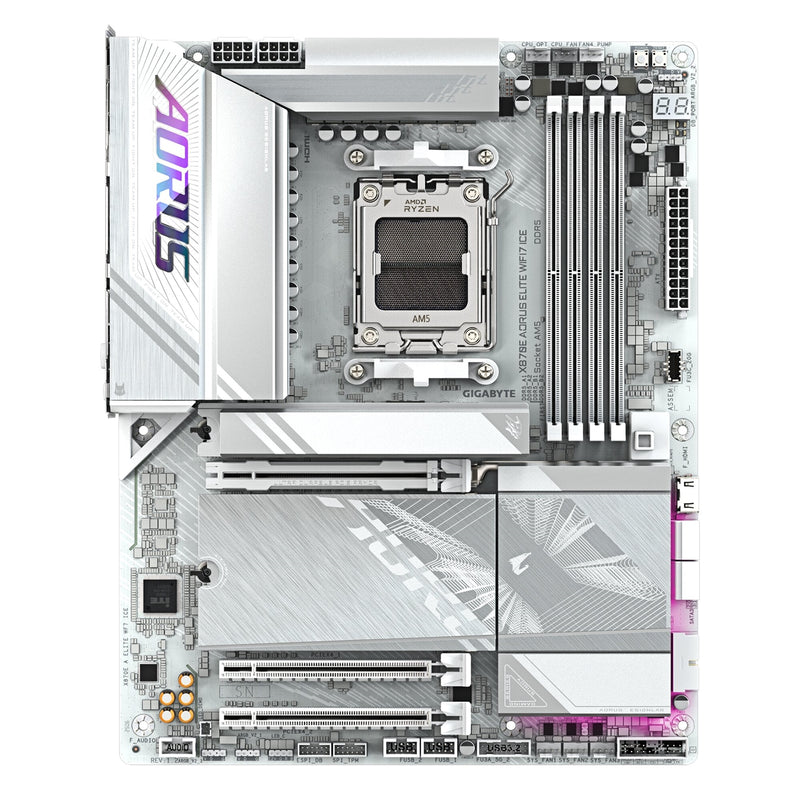

Gigabyte X870E AORUS ELITE WIFI7 ICE AM5 ATX DDR5 Motherboard
Gigabyte X870E AORUS ELITE WIFI7 ICE AM5 ATX Motherboard
Overview
The Gigabyte X870E AORUS ELITE WIFI7 ICE is a premium ATX motherboard engineered for next-generation AMD Ryzen platforms. Built on the X870E chipset, it delivers cutting-edge performance with PCIe 5.0, DDR5 memory support, Wi-Fi 7 connectivity, and advanced thermal design—making it ideal for high-performance gaming, content creation, and enthusiast builds.
Key Features & Benefits
✔ Supports AMD Ryzen 9000, 8000 and 7000 Series processors (AM5)
✔ Digital Twin 16+2+2 phase VRM for stable, high-performance power delivery
✔ DDR5 memory support up to 8200MHz (OC) with AMD EXPO
✔ 4 x M.2 slots including 3 x PCIe 5.0 for ultra-fast storage
✔ PCIe 5.0 x16 reinforced slot for next-gen graphics cards
✔ Wi-Fi 7 with ultra-high gain antenna and Bluetooth 5.4
✔ Dual USB4 Type-C ports with DisplayPort Alt Mode
✔ 2.5GbE LAN for high-speed wired networking
✔ Advanced thermal design with VRM heatsinks and M.2 Thermal Guard
✔ EZ-Latch screwless design for PCIe and M.2 installation
✔ Q-Flash Plus for BIOS updates without CPU or memory
✔ High-end Realtek ALC1220 audio with audiophile capacitors
Next-Generation Performance Platform
Powered by the AMD X870E chipset, this motherboard unlocks the full potential of Ryzen processors with support for PCIe 5.0 across both GPU and storage. Combined with ultra-fast DDR5 memory, it provides a solid foundation for high-end gaming rigs and workstation builds.
Advanced Power & Thermal Design
The Digital Twin 16+2+2 VRM design ensures stable and efficient power delivery, even under heavy loads or overclocking scenarios. Large heatsinks, VRM Thermal Armour, and M.2 Thermal Guard technology maintain optimal temperatures across critical components.
Ultra-Fast Connectivity
Equipped with Wi-Fi 7 and 2.5GbE LAN, the X870E AORUS ELITE WIFI7 ICE offers next-level networking performance. Dual USB4 ports provide high-speed data transfer and display output, while multiple USB options ensure extensive peripheral support.
Builder-Friendly Innovation
Gigabyte’s EZ-Latch Plus and EZ-Latch Click designs allow tool-free installation of PCIe cards and M.2 drives, simplifying the building process. The integrated I/O shield and intuitive BIOS interface further enhance ease of use for both beginners and experienced builders.
Technical Specifications
CPU & Chipset
- Socket: AMD AM5
- Chipset: AMD X870E
- CPU Support: Ryzen 9000 / 8000 / 7000 Series
Memory
- 4 x DDR5 DIMM Slots (up to 256GB)
- Speeds up to 8200MHz (OC)
- AMD EXPO & XMP Support
- Dual Channel Architecture
Expansion Slots
- 1 x PCIe 5.0 x16
- 1 x PCIe 4.0 x16 (x4 mode)
- 1 x PCIe 3.0 x16 (x4 mode)
Storage
- 4 x M.2 slots (3 x PCIe 5.0, 1 x PCIe 4.0)
- 4 x SATA 6Gb/s
- RAID 0/1/5/10 support
Networking
- 2.5GbE LAN (Realtek)
- Wi-Fi 7 (802.11be)
- Bluetooth 5.4
Graphics & Display
- 2 x USB4 Type-C (DisplayPort Alt Mode)
- 1 x HDMI

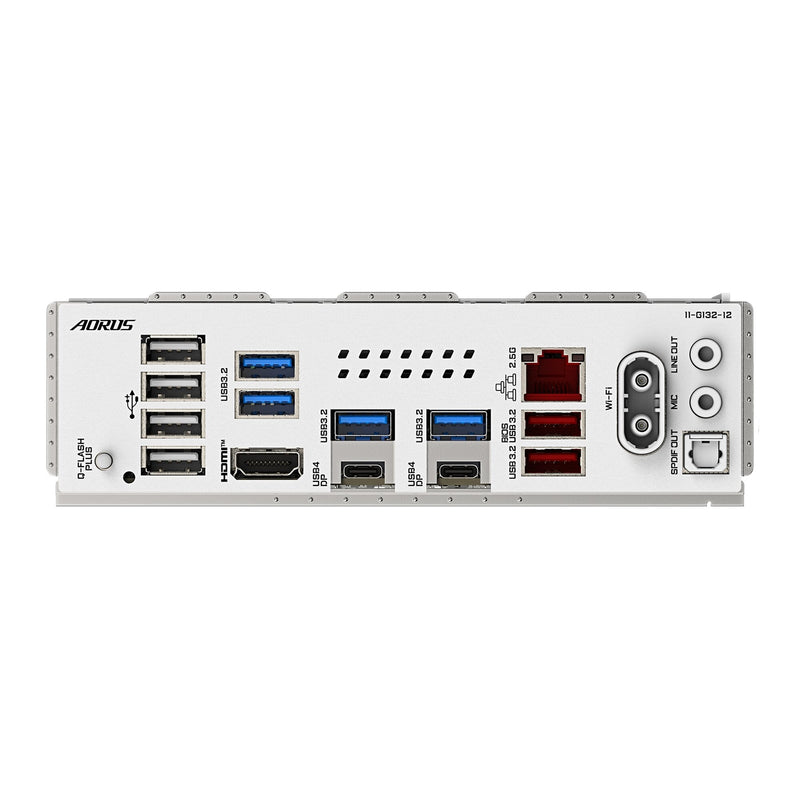

USB Connectivity
- 2 x USB4 Type-C
- Multiple USB 3.2 Gen 2 / Gen 1 / USB 2.0 ports
Audio
- Realtek ALC1220 HD Audio
- 7.1-channel support
- Optical S/PDIF Out
Internal Connectivity
- Multiple fan and pump headers
- RGB and ARGB headers
- USB-C front header (Gen 2x2)
- TPM support
Form Factor
- ATX (30.5cm x 24.4cm)
Why Choose the Gigabyte X870E AORUS ELITE WIFI7 ICE?
This motherboard is built for users who demand top-tier performance, next-gen connectivity, and long-term reliability. With PCIe 5.0, DDR5, Wi-Fi 7, and robust power delivery, it is ready for the latest CPUs and GPUs. Combined with user-friendly features and premium build quality, it is an excellent foundation for high-end gaming and professional PC builds.
