Gigabyte X870E AERO X3D Dark Wood WiFi7 AM5 ATX Motherboard
Gigabyte X870E AERO X3D DARK WOOD AM5 ATX Motherboard – DDR5, PCIe 5.0, USB4, WiFi 7
Experience premium performance and refined design with the Gigabyte X870E AERO X3D DARK WOOD, a flagship ATX motherboard designed for AMD Ryzen 7000, 8000 and 9000 Series processors. Featuring a distinctive dark wood aesthetic, powerful hardware capabilities and next-generation connectivity, it is ideal for creators, professionals and high-end gaming systems.
Key Features & Benefits
Unique Dark Wood Design
A premium natural-inspired dark wood finish delivers a sophisticated, stylish look—perfect for standout workstation or showcase builds.
AI-Enhanced X3D Turbo Mode 2.0
Maximise performance with AI-driven optimisation, unlocking exceptional gaming and multitasking performance on supported Ryzen X3D processors.
Advanced 16+2+2 Phase VRM Design
Ensures stable, high-efficiency power delivery, supporting heavy workloads, overclocking and sustained performance.
Extreme DDR5 Memory Speeds
Supports up to 256GB DDR5 RAM with speeds up to 9000MT/s (OC), providing exceptional bandwidth and responsiveness.
Ultra-Fast Storage with Quad M.2
Includes 4 M.2 slots, featuring PCIe 5.0 support, delivering lightning-fast storage performance and flexible expansion.
Dual 5GbE LAN & WiFi 7 Connectivity
- Dual 5GbE Ethernet ports for ultra-fast wired networking
-
WiFi 7 + Bluetooth 5.4 for next-generation wireless connectivity
Ideal for content creation, large file transfers and high-performance networking.
Dual USB4 Type-C Ports
Offers high-speed 40Gbps connectivity with DisplayPort support, perfect for external storage, displays and professional workflows.
Advanced Thermal Architecture
Features VRM Thermal Armor, extended M.2 Thermal Guard and PCB thermal plate, improving cooling efficiency and system durability.
Tool-Free Installation with EZ-Latch Design
- Screwless M.2 installation
- Quick-release PCIe slots
Simplifies upgrades and system building.
High-Quality Audio Experience
Powered by Realtek ALC1220 codec, delivering clear and immersive audio with S/PDIF output support.
Technical Specifications
CPU Support
- AMD AM5 Socket
- Ryzen 9000 / 8000 / 7000 Series
Chipset
- AMD X870E
Memory
- 4 x DDR5 DIMM Slots
- Up to 256GB Capacity
- Dual Channel Architecture
- Speeds up to 9000MHz (OC)
- AMD EXPO & XMP Support
Storage
- 2 x M.2 PCIe 5.0 x4 Slots
- 2 x M.2 PCIe 4.0 Slots
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 2 x USB4 Type-C (Display output supported)
- 1 x HDMI (up to 4K@60Hz)
- Front HDMI support
Expansion Slots
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 5.0 x8 Slot
- 1 x PCIe 4.0 x16 (x4 mode)
Networking
- Dual 5GbE LAN
- WiFi 7 (2.4 / 5 / 6 GHz)
- Bluetooth 5.4
Audio
- Realtek ALC1220 HD Audio
- 2/4/5.1/7.1-channel
- Optical S/PDIF Out
USB Connectivity
- 2 x USB4 Type-C (rear)
- USB-C (Gen2x2 & Gen2)
- USB 3.2 Gen2 & Gen1 ports
- USB 2.0 ports
Internal Connectivity
- 4 x M.2 slots
- 3 x ARGB headers (Gen2)
- 1 x RGB header
- Multiple fan & pump headers
- TPM header
- Temperature sensor headers

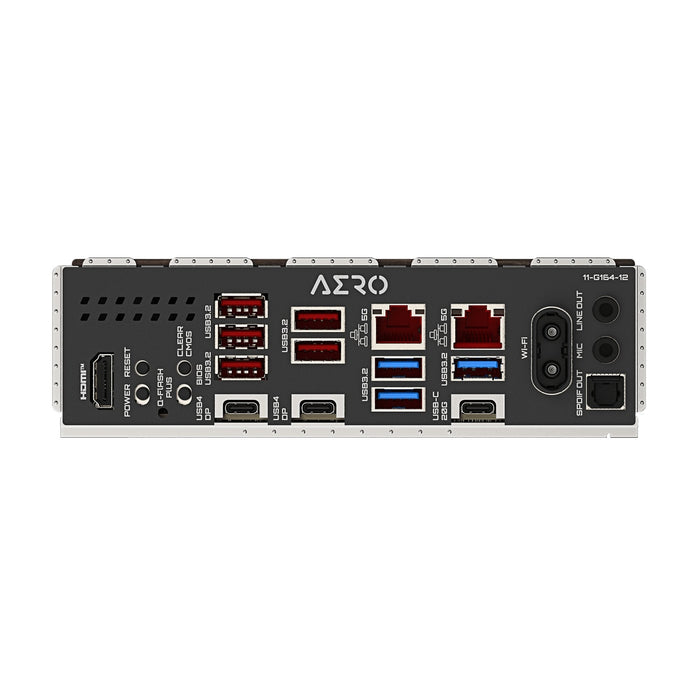

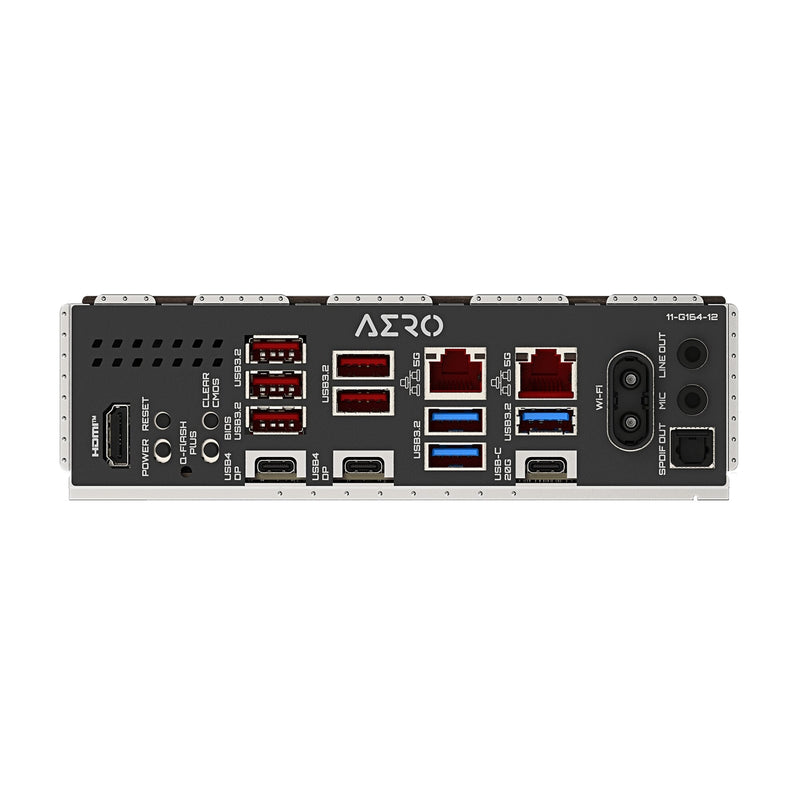

Rear I/O Ports
- HDMI
- Dual USB4 Type-C
- USB 3.2 Gen2 Type-A ports
- Dual 5GbE LAN ports
- WiFi antenna connectors
- Optical audio out
- Audio jacks
Form Factor
- ATX (30.5cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
Why Choose the Gigabyte X870E AERO X3D DARK WOOD?
The X870E AERO X3D DARK WOOD is a premium, creator-focused motherboard that blends high-end performance with elegant aesthetics. With DDR5 speeds, PCIe 5.0 storage, dual 5GbE networking and USB4 connectivity, it offers everything needed for demanding workloads and high-performance gaming.
Perfect for enthusiasts, creators and professionals, it delivers powerful performance, advanced connectivity and a unique premium design, making it a standout choice for cutting-edge AM5 systems.
