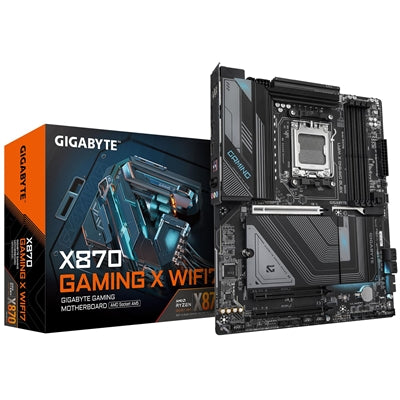

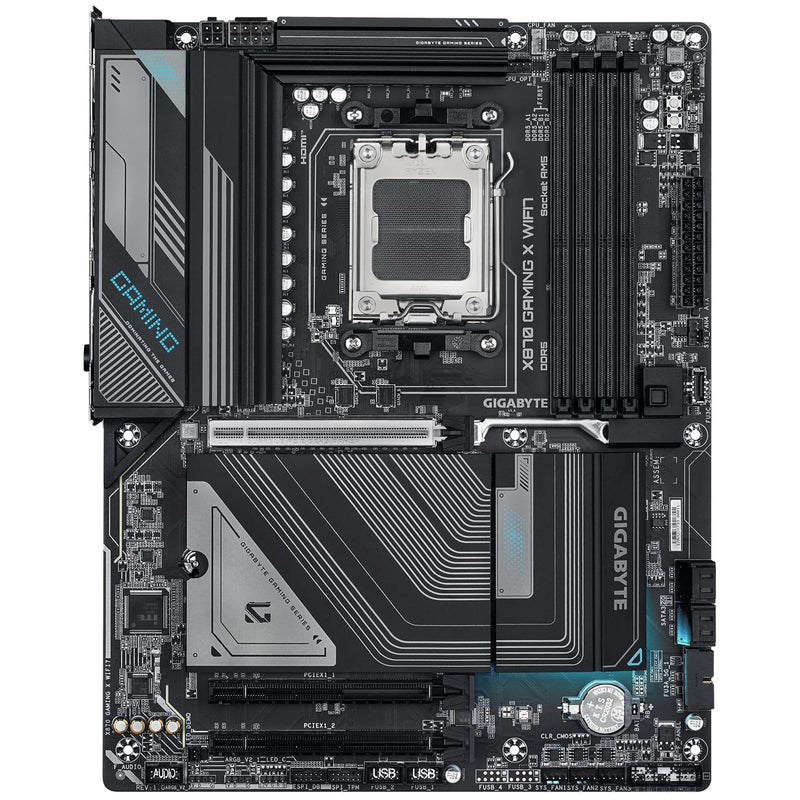

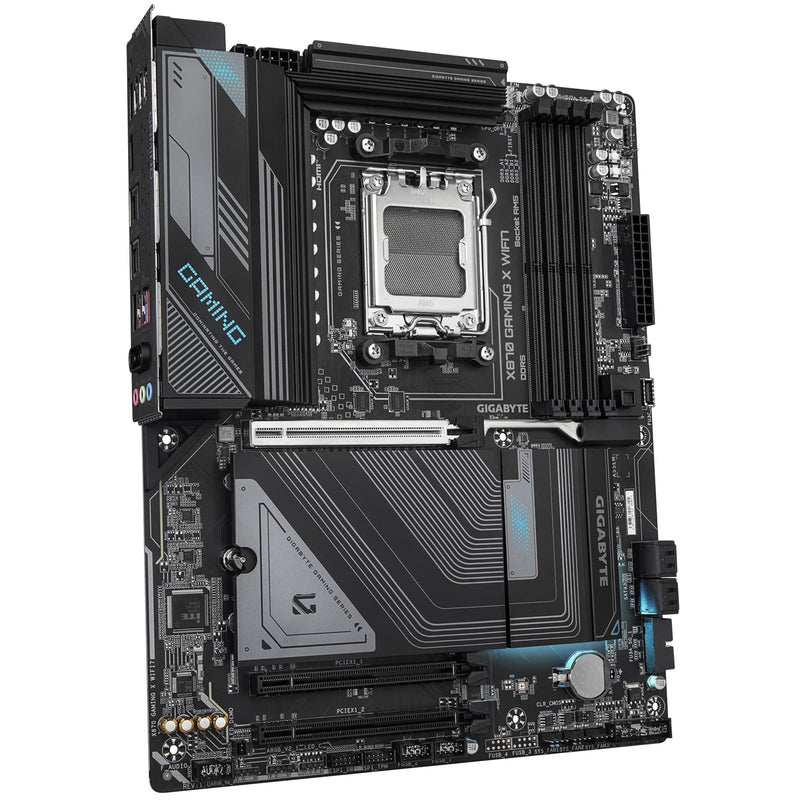

Gigabyte X870 GAMING X WiFi7 AM5 DDR5 ATX Motherboard
Gigabyte X870 GAMING X WIFI7 AM5 ATX Motherboard – DDR5, PCIe 5.0, USB4, WiFi 7
Take your build to the next level with the Gigabyte X870 GAMING X WIFI7, a powerful ATX motherboard designed for AMD Ryzen 7000, 8000 and 9000 Series processors. Featuring cutting-edge technologies such as DDR5 memory, PCIe 5.0 storage, USB4 connectivity and WiFi 7, this motherboard delivers exceptional performance for gaming, streaming and demanding workloads.
Key Features & Benefits
Next-Generation AMD AM5 Support
Compatible with Ryzen 7000, 8000 and 9000 Series CPUs, offering high performance and long-term platform support.
Advanced Digital VRM Power Design
The 16+2+2 phase VRM solution ensures stable and efficient power delivery, supporting high-performance CPUs and overclocking.
High-Speed DDR5 Memory Performance
Supports up to 256GB DDR5 RAM with speeds up to 8000MHz (OC), delivering improved multitasking and system responsiveness.
PCIe 5.0 Storage Ready
Equipped with 3 M.2 slots, including PCIe 5.0 support, allowing ultra-fast NVMe SSD performance and scalable storage configurations.
Next-Gen WiFi 7 & 2.5GbE LAN
Experience ultra-fast networking with WiFi 7 and 2.5 Gigabit Ethernet, ensuring low latency, high bandwidth and stable connectivity.
Dual USB4 Type-C Connectivity
Includes 2 USB4 ports, providing up to 40Gbps transfer speeds with DisplayPort support—perfect for high-speed peripherals and displays.
Advanced Thermal Design
Features VRM Thermal Armour and M.2 Thermal Guard, keeping temperatures low and ensuring peak performance under heavy workloads.
EZ-Latch Tool-Free Installation
- EZ-Latch Plus for PCIe and M.2 slots
-
EZ-Latch Click for screwless heatsinks
Makes building and upgrading faster and easier.
Triple Display Support
Includes HDMI and dual USB4 display outputs, supporting multiple high-resolution monitors for productivity and content creation.
AI-Optimised Performance
Built-in tools for automatic DDR5 tuning and performance optimisation, enhancing efficiency with minimal manual setup.
Technical Specifications
CPU Support
- AMD AM5 Socket
- Ryzen 9000 / 8000 / 7000 Series
Chipset
- AMD X870
Memory
- 4 x DDR5 DIMM Slots
- Up to 256GB Capacity
- Dual Channel Architecture
- Speeds up to 8000MHz (OC)
- AMD EXPO & XMP Support
Storage
- 1 x M.2 PCIe 5.0 x4 Slot
- 2 x M.2 PCIe 4.0 Slots
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 2 x USB4 Type-C (Display output supported)
- 1 x HDMI (up to 4K@60Hz)
Expansion Slots
- 1 x PCIe 5.0 x16 Slot
- 2 x PCIe x16 Slots (x1 mode)
Networking
- Realtek 2.5GbE LAN
- WiFi 7 (2.4 / 5 / 6 GHz bands)
- Bluetooth 5.4
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
USB Connectivity
- 2 x USB4 Type-C (rear)
- USB-C header (Gen2x2)
- USB 3.2 Gen2 & Gen1 ports
- USB 2.0 ports
Internal Connectivity
- 3 x M.2 slots
- ARGB & RGB headers
- Multiple fan headers
- TPM header

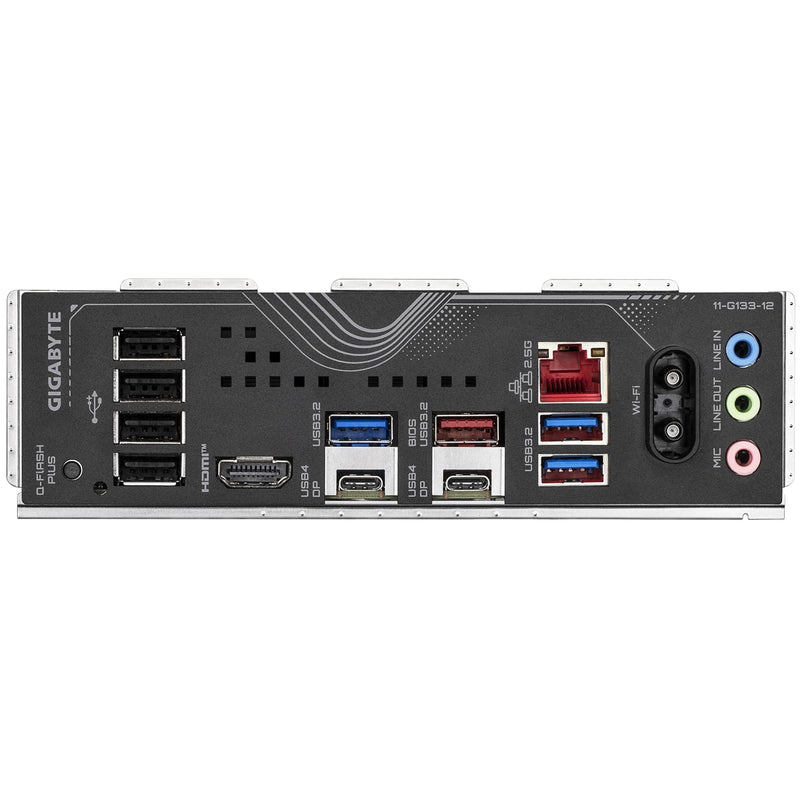

Rear I/O Ports
- HDMI
- Dual USB4 Type-C
- USB 3.2 Gen2 Type-A
- USB 3.2 Gen1 & USB 2.0 ports
- RJ-45 LAN
- WiFi antenna connectors
- Audio jacks
Form Factor
- ATX (30.5cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
Why Choose the Gigabyte X870 GAMING X WIFI7?
The Gigabyte X870 GAMING X WIFI7 is a high-performance, feature-rich motherboard built for modern computing demands. With DDR5 memory, PCIe 5.0 storage and next-generation WiFi 7 connectivity, it delivers outstanding speed, responsiveness and reliability.
Perfect for gamers, creators and enthusiasts, it offers powerful performance, advanced cooling and future-ready technology, making it an excellent foundation for high-end AMD builds.
