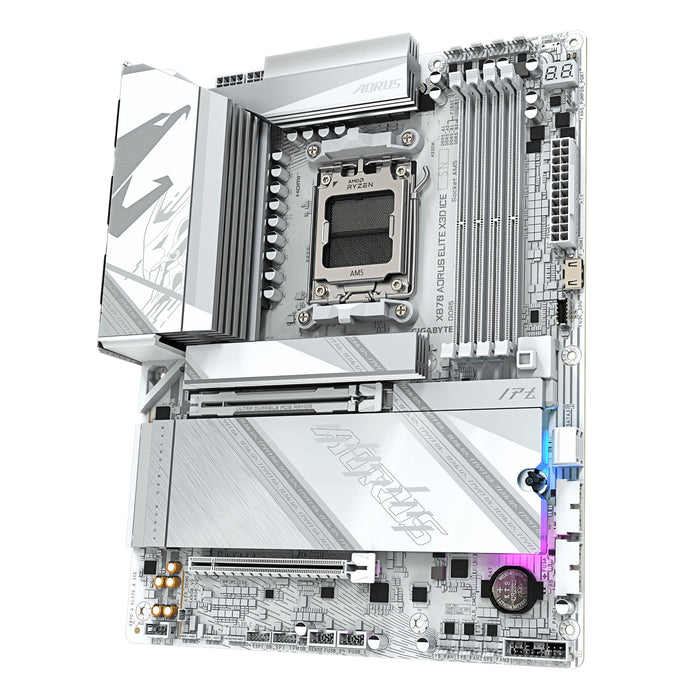

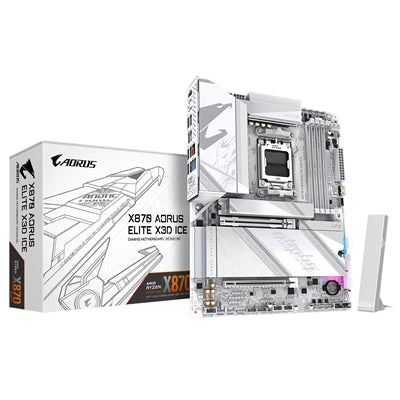

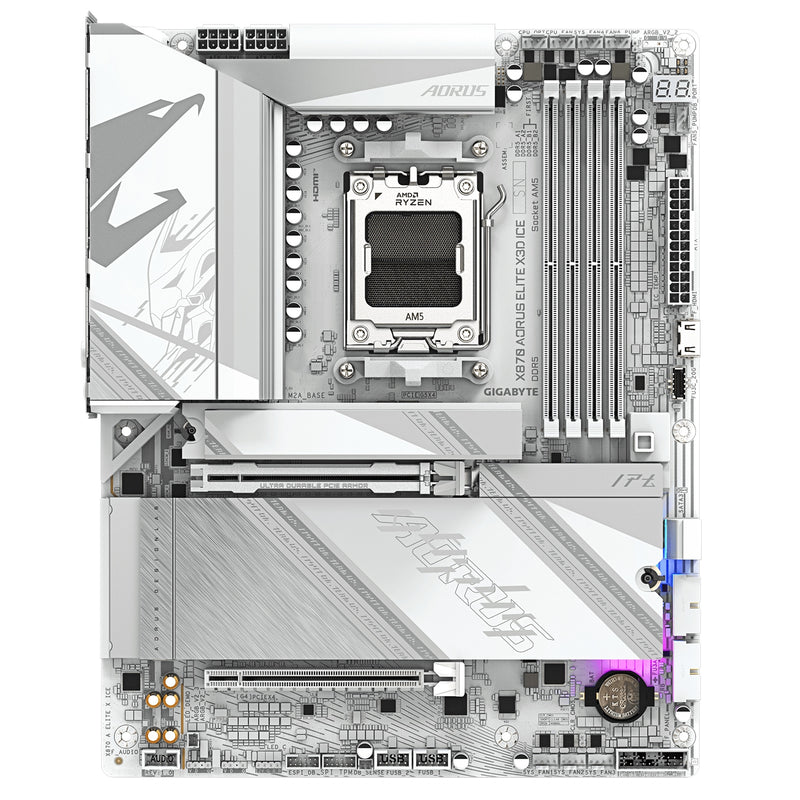

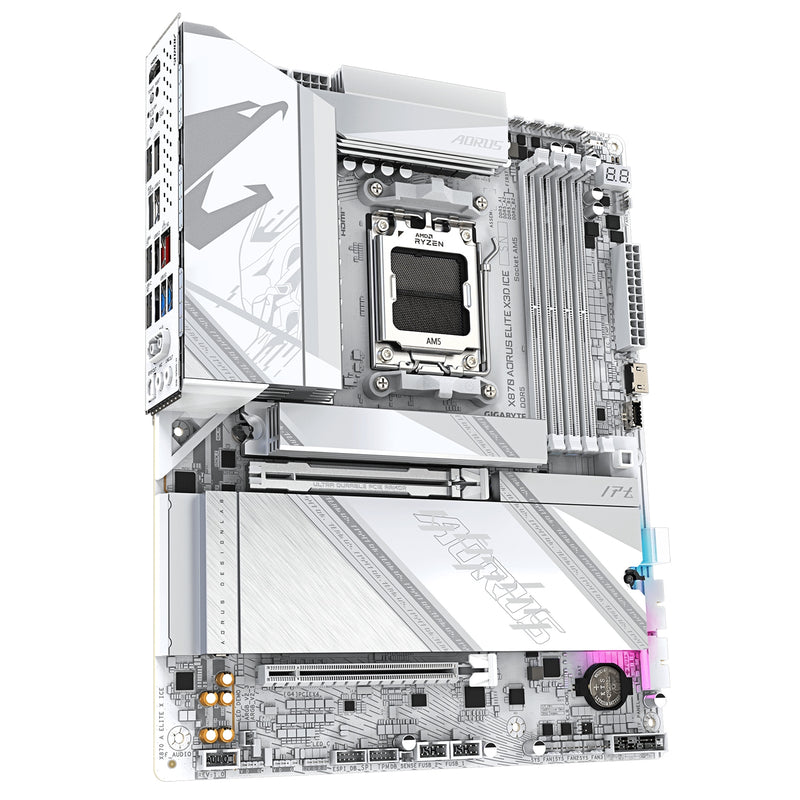

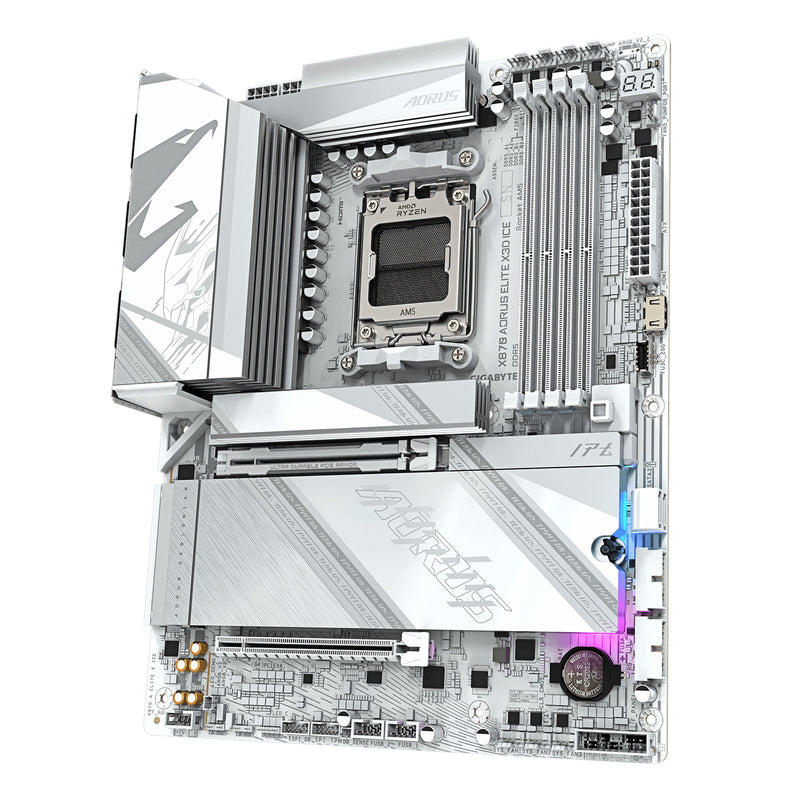

Gigabyte X870 AORUS ELITE X3D ICE AM5 ATX WiFi 7 DDR5 Motherboard
Gigabyte X870 AORUS ELITE X3D ICE AMD AM5 ATX Motherboard – DDR5, Wi-Fi 7, 5GbE LAN, PCIe 5.0, USB4
The Gigabyte X870 AORUS ELITE X3D ICE motherboard is engineered for high-performance AMD gaming and workstation systems. Designed around the AMD X870 chipset and AMD AM5 socket, it supports AMD Ryzen 9000 Series processors, AMD Ryzen 8000 Series processors, and AMD Ryzen 7000 Series processors.
Built with X3D Turbo Mode 2.0, advanced VRM design, and next-generation connectivity, this motherboard unlocks exceptional performance for gaming, content creation, and enthusiast PC builds. With PCIe 5.0 graphics support, four M.2 slots, Wi-Fi 7, and 5GbE LAN, it delivers cutting-edge speed across storage, networking, and expansion.
The distinctive ICE white design paired with reinforced thermal solutions ensures reliable operation under heavy workloads while enhancing the aesthetics of premium PC builds.
✔ Supports AMD Ryzen 9000, 8000 and 7000 Series processors
✔ AMD X870 chipset with AM5 socket platform
✔ DDR5 memory support up to 8800MT/s (OC)
✔ 4 x DDR5 DIMM slots supporting up to 256GB system memory
✔ X3D Turbo Mode 2.0 for enhanced performance optimisation
✔ PCIe 5.0 x16 graphics slot with reinforced PCIe UD Slot X design
✔ 4 x M.2 NVMe SSD slots including PCIe 5.0 storage support
✔ Advanced VRM Thermal Armor and M.2 Thermal Guard cooling
✔ Built-in Wi-Fi 7 with directional ultra-high gain antenna
✔ Realtek 5GbE LAN for ultra-fast wired networking
✔ Dual USB4 Type-C ports with DisplayPort support
✔ HDMI output with support up to 4K resolution
✔ Q-Flash Plus and user-friendly BIOS interface
✔ EZ-Latch Click screwless M.2 installation design
✔ ATX form factor – ideal for gaming and performance PCs
High-Speed DDR5 Memory
The motherboard supports up to 256GB DDR5 memory across four DIMM slots with speeds up to 8800MT/s overclocked. Compatibility with AMD EXPO and XMP profiles enables easy memory tuning for improved performance and stability.
Next-Generation PCIe and Storage
Equipped with PCIe 5.0 graphics support and four M.2 SSD slots, this board delivers exceptional storage bandwidth and GPU performance. The M.2 EZ-Flex thermal system and integrated heatsinks help maintain optimal temperatures during intensive workloads.
Advanced Networking and Connectivity
The Wi-Fi 7 wireless module combined with Realtek 5GbE LAN provides lightning-fast network speeds and low-latency connections, ideal for gaming, streaming, and high-speed file transfers.
Intelligent Cooling and Power Design
A 16+2+2 phase digital VRM solution paired with VRM Thermal Armor ensures stable power delivery to modern Ryzen processors. Multiple fan and pump headers allow extensive cooling configuration for high-performance systems.
Specifications
Socket: AMD AM5
Chipset: AMD X870
Form Factor: ATX (30.5cm x 24.4cm)
Memory Support:
4 x DDR5 DIMM slots
Up to 256GB system memory
DDR5 up to 8800MT/s (OC)
Expansion Slots:
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (x4 mode)
Storage:
4 x M.2 NVMe SSD slots (including PCIe 5.0)
2 x SATA 6Gb/s ports
RAID support for NVMe and SATA
Networking:
Realtek 5GbE LAN
Wi-Fi 7 (802.11be)
Bluetooth 5.4

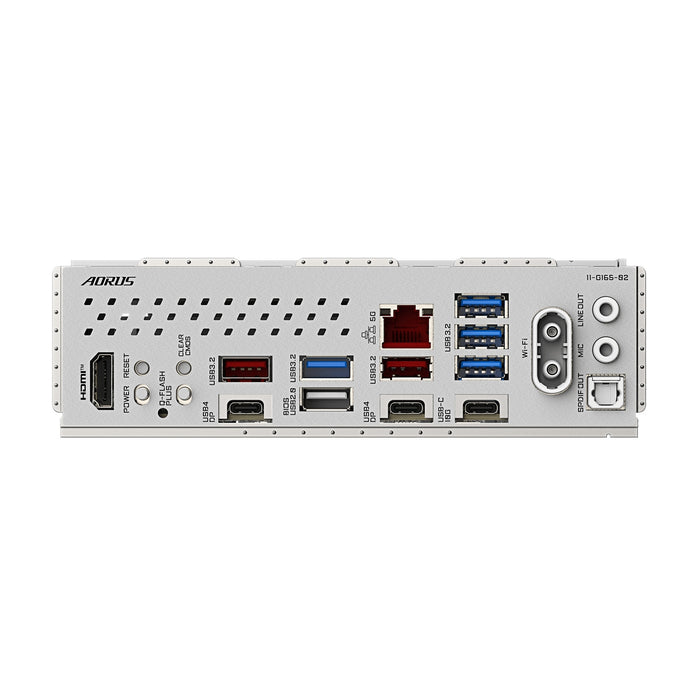

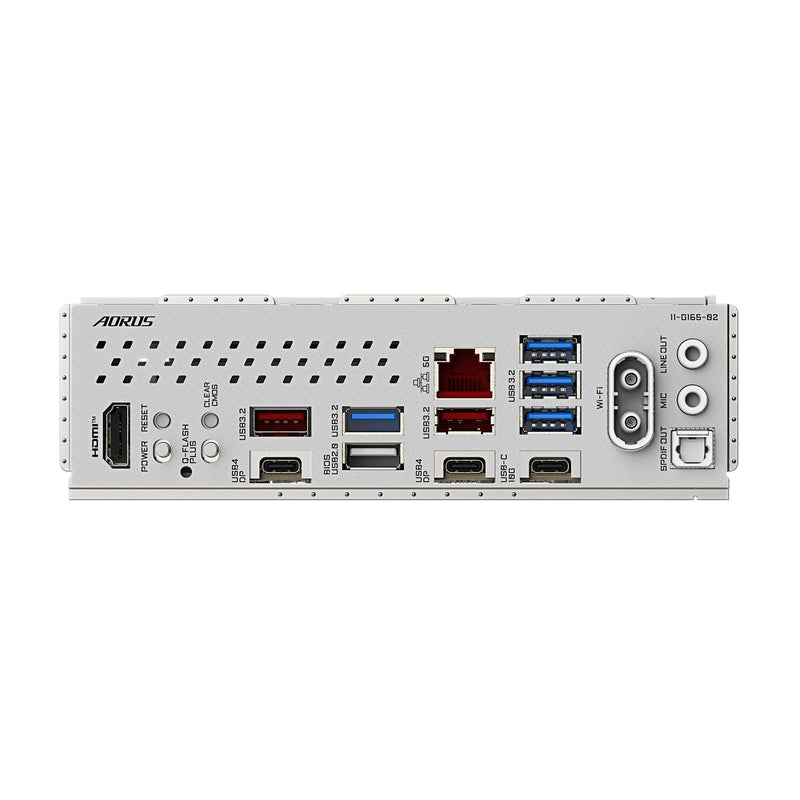

Rear I/O Connectivity:
2 x USB4 Type-C
1 x USB-C (USB 3.2 Gen 2)
2 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1
1 x USB 2.0
1 x HDMI
1 x RJ-45 LAN
Optical S/PDIF
Audio jacks
Wi-Fi antenna connectors
Audio:
Realtek ALC1220 HD Audio
7.1-channel support
Operating System:
Windows 11 64-bit
Ideal For
✔ High-end gaming PCs
✔ Ryzen X3D gaming builds
✔ Content creation workstations
✔ High-speed PCIe 5.0 storage systems
