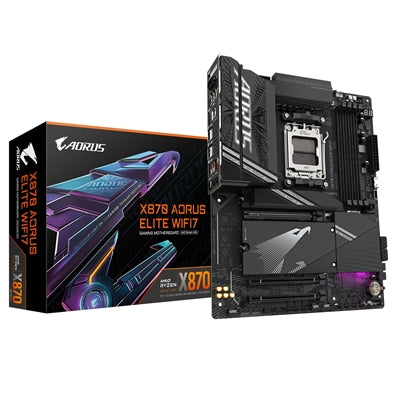

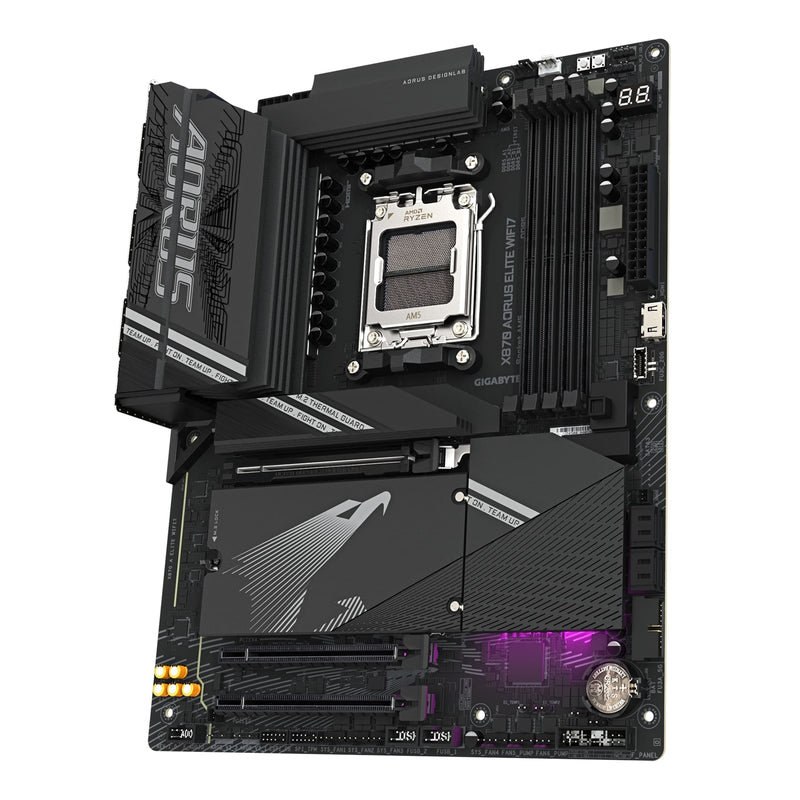

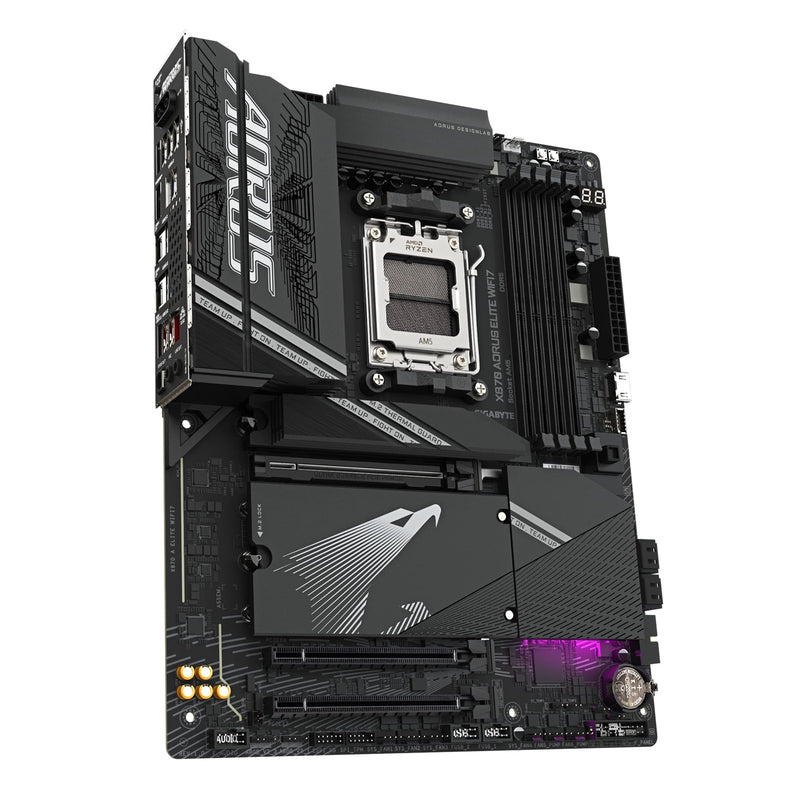

Gigabyte X870 AORUS ELITE WIFI7 AM5 DDR5 ATX Motherboard

PCIe 5.0, Wi-Fi 7, Dual USB4 and Premium Ryzen Performance

The Gigabyte X870 AORUS ELITE WIFI7 is a high-performance ATX motherboard designed for enthusiasts, gamers and content creators looking to unlock the full potential of AMD Ryzen 9000, 8000 and 7000 Series processors. Powered by the advanced AMD X870 chipset, it delivers cutting-edge connectivity, powerful VRM architecture, PCIe 5.0 support and next-generation networking technologies.

Featuring a robust 16+2+2 digital twin VRM design, support for DDR5 memory up to 8000MT/s (OC), Wi-Fi 7, dual USB4 Type-C ports, four M.2 slots including three PCIe 5.0 connections, and premium thermal solutions, the X870 AORUS ELITE WIFI7 is built for demanding gaming systems, professional workstations and future-ready PC builds.

Key Features & Benefits

Supports AMD Ryzen 9000, 8000 & 7000 Series Processors

Built on the AMD AM5 platform, the motherboard supports:

• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors
• AMD Ryzen™ 7000 Series Processors

Perfect for:

• Enthusiast gaming rigs
• Streaming systems
• Creative workstations
• Content creation
• Advanced productivity workloads

Powerful 16+2+2 Digital Twin VRM Design

The advanced power delivery architecture provides stable and reliable power for modern multi-core Ryzen processors.

Benefits include:

• Improved stability
• Enhanced overclocking support
• Better efficiency
• Consistent performance under heavy loads

DDR5 Memory Support up to 8000MT/s

Unlock the latest memory performance with:

• 4 × DDR5 DIMM Slots
• Up to 256GB Capacity
• DDR5 Memory Support up to 8000MT/s (OC)
• AMD EXPO™ Support
• XMP Support
• Dual-Channel Memory Architecture

AORUS AI SNATCH Technology

Enhance memory performance with intelligent one-click optimisation.

Features include:

• Automatic DDR5 memory tuning
• Real-time analysis
• Simplified overclocking
• Improved performance efficiency

Ideal for users who want maximum performance without complex manual tuning.

PCIe 5.0 Graphics Support

The reinforced primary graphics slot supports:

• PCIe 5.0 x16

Providing maximum bandwidth for the latest graphics cards and future GPU upgrades.

The PCIe UD Slot X design offers enhanced strength and durability for large, high-end graphics cards.

Ultra-Fast Storage Expansion

The X870 AORUS ELITE WIFI7 provides extensive storage flexibility with:

• 4 × M.2 SSD Slots
• 3 × PCIe 5.0 x4 M.2 Slots
• 1 × PCIe 4.0 x4 M.2 Slot
• 4 × SATA 6Gb/s Ports

Ideal for:

• Fast operating system drives
• High-performance gaming storage
• Professional content creation
• Large media libraries

Dual USB4 Connectivity

Experience next-generation connectivity with:

• 2 × USB4 Type-C Ports
• DisplayPort Alternate Mode
• High-speed data transfers
• Support for advanced docking solutions
• High-resolution display connectivity

Supporting display outputs up to:

• 3840 × 2160 @ 240Hz via USB4

Integrated Wi-Fi 7 & Bluetooth 5.4

Stay connected with the latest wireless technologies.

Features include:

• Wi-Fi 7 (802.11be)
• 2.4GHz, 5GHz & 6GHz Support
• Bluetooth 5.4
• Ultra-High Gain Directional Antenna
• Faster wireless networking
• Lower latency gaming

Fast 2.5GbE Networking

The integrated Realtek® 2.5 Gigabit LAN controller offers:

• High-speed wired networking
• Improved online gaming responsiveness
• Faster file transfers
• Better network stability

Premium Audio Solution

Powered by the trusted Realtek ALC1220 audio codec, supporting:

• High Definition Audio
• 2 / 4 / 5.1 / 7.1 Channel Audio
• Optical S/PDIF Output
• Audiophile-Grade Capacitors

Delivering immersive sound quality for gaming, media and content creation.

Advanced Thermal Design

The motherboard incorporates comprehensive cooling solutions including:

• VRM Thermal Armor
• Advanced M.2 Thermal Guard
• Large Metal Heatsinks
• Multiple Fan Headers
• Pump Support
• Temperature Monitoring

Helping maintain peak performance during demanding sessions.

Builder-Friendly Features

Designed for a hassle-free assembly experience:

• EZ-Latch Plus PCIe Installation
• EZ-Latch Click M.2 Installation
• WiFi EZ-Plug
• Sensor Panel Link
• Q-Flash Plus BIOS Updates
• Onboard Power & Reset Buttons

Technical Specifications

Processor Support

• AMD Socket AM5
• AMD Ryzen™ 9000 Series
• AMD Ryzen™ 8000 Series
• AMD Ryzen™ 7000 Series

Chipset

• AMD X870

Memory

• 4 × DDR5 DIMM Slots
• Up to 256GB Capacity
• DDR5 up to 8000MT/s (OC)
• AMD EXPO™ Support
• Intel XMP Support
• Dual-Channel Architecture

Graphics Outputs

Rear Panel

• 2 × USB4 Type-C Display Outputs
• 1 × HDMI Port

Internal

• 1 × Front HDMI Header

Maximum Supported Resolutions:

• USB4 DisplayPort: 3840 × 2160 @ 240Hz
• HDMI: 4096 × 2160 @ 60Hz

Expansion Slots

CPU Connected

• 1 × PCIe 5.0 x16 Slot

Chipset Connected

• 1 × PCIe 4.0 x4 Slot
• 1 × PCIe 3.0 x2 Slot

Storage

M.2 Slots

• 3 × PCIe 5.0 x4 M.2
• 1 × PCIe 4.0 x4 M.2

SATA

• 4 × SATA 6Gb/s Ports

RAID Support

• RAID 0
• RAID 1
• RAID 5
• RAID 10

Networking

Wired LAN

• Realtek® 2.5GbE Ethernet

Wireless

• Wi-Fi 7
• Bluetooth 5.4
• 2.4GHz / 5GHz / 6GHz Bands

Audio

• Realtek® ALC1220 Codec
• High Definition Audio
• 7.1 Channel Support
• Optical S/PDIF Output

USB Connectivity

Rear Panel

• 2 × USB4 Type-C
• 2 × USB 3.2 Gen 2 Type-A
• 4 × USB 3.2 Gen 1
• 4 × USB 2.0

Internal

• USB-C 3.2 Gen 2x2 Front Header
• USB 3.2 Gen 1 Header
• USB 2.0 Headers

Internal Connectors

• 24-Pin ATX Power Connector
• 2 × 8-Pin CPU Power Connectors
• 4 × M.2 Connectors
• 4 × SATA Ports
• 3 × ARGB Gen2 Headers
• 1 × RGB Header
• TPM Header
• Temperature Sensor Headers
• Multiple Fan & Pump Headers

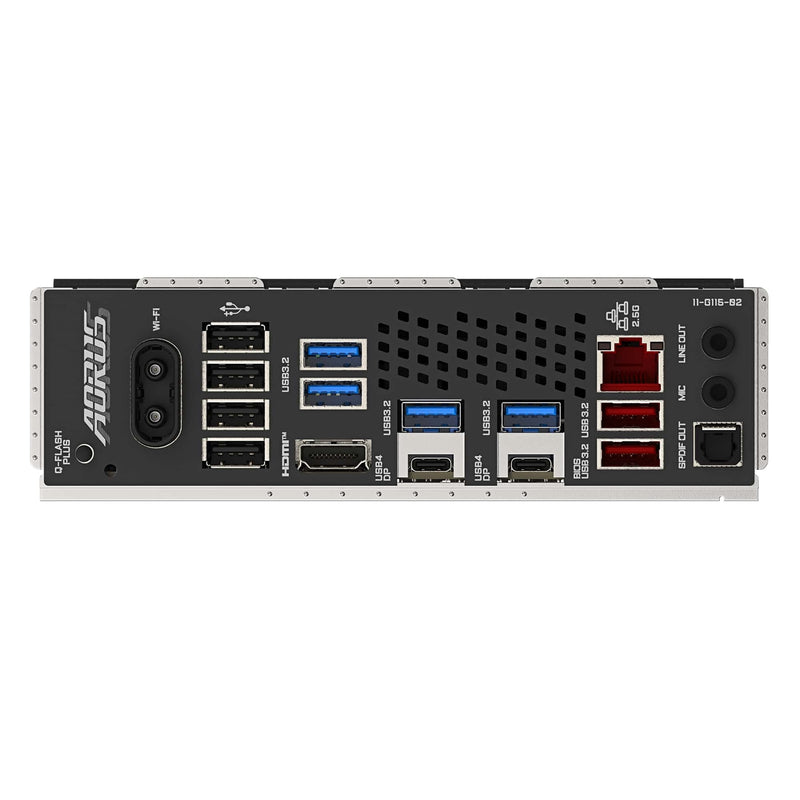

Rear I/O Ports

• 2 × USB4 Type-C
• 2 × USB 3.2 Gen 2 Type-A
• 4 × USB 3.2 Gen 1
• 4 × USB 2.0
• 1 × HDMI
• 1 × RJ45 2.5GbE LAN
• 2 × Wi-Fi Antenna Connectors
• Optical S/PDIF
• Audio Jacks
• Q-Flash Plus Button

BIOS Features

• AMI UEFI BIOS
• Q-Flash
• Q-Flash Plus
• Smart Backup
• Gigabyte Control Center (GCC)

Operating System

• Windows 11 64-bit

Form Factor

• ATX
• 305 × 244 mm

What's in the Box?

• Gigabyte X870 AORUS ELITE WIFI7 Motherboard
• Pre-Installed I/O Shield
• Wi-Fi 7 Antenna
• Documentation
• Installation Accessories

Why Choose the Gigabyte X870 AORUS ELITE WIFI7?

The Gigabyte X870 AORUS ELITE WIFI7 offers a powerful platform for gamers and enthusiasts seeking cutting-edge AMD performance. Combining support for Ryzen 9000 Series processors, DDR5 memory, PCIe 5.0 graphics and storage, dual USB4 ports, Wi-Fi 7, 2.5GbE networking and a premium 16+2+2 phase VRM design, it delivers exceptional speed, reliability and future-proof connectivity.

Whether you're building a high-end gaming PC, content creation workstation or performance-focused enthusiast rig, the X870 AORUS ELITE WIFI7 provides the features, expandability and stability needed for next-generation computing.
