Gigabyte UD750GM PG5 ICE 750W Gold Fully Modular ATX 3.1 PSU
Gigabyte UD750GM PG5 ICE 750W Fully Modular ATX 3.1 Power Supply
The Gigabyte UD750GM PG5 ICE 750W is a high-quality, fully modular power supply engineered for modern gaming PCs and performance workstations. Designed to meet Intel ATX 3.1 standards and support PCIe Gen 5.1 graphics cards, it delivers stable, efficient power with 80 PLUS Gold certification, premium Japanese capacitors, and comprehensive electrical protections.
Its compact 140mm chassis, intelligent 120mm hydraulic bearing fan, and clean modular cabling make it an ideal choice for reliable, quiet, and future-ready PC builds.
Key Features & Benefits
✔ 750W continuous power output suitable for gaming and high-performance desktop systems
✔ ATX 3.1 compliant with native PCIe Gen 5.1 16-pin connector delivering up to 600W for next-generation GPUs
✔ 80 PLUS Gold efficiency providing up to 90% efficiency at typical load for reduced heat and energy use
✔ 100% Japanese capacitors ensuring long lifespan, voltage stability, and dependable operation
✔ Fully modular embossed cables for clean cable management and improved airflow
✔ Single powerful +12V rail for stable power delivery during demanding workloads and GPU spikes

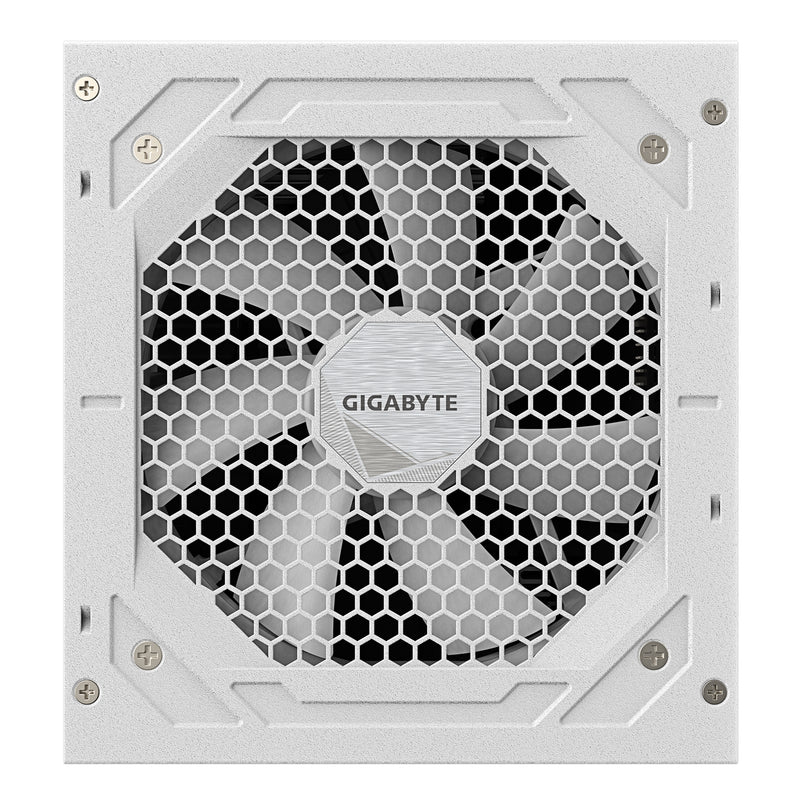

✔ 120mm smart HYB fan with automatic speed control for quiet, efficient cooling
✔ Compact 140mm depth for compatibility with space-constrained PC cases
✔ Advanced protection suite including OVP, OPP, SCP, UVP, OCP and OTP safeguards
✔ Built to Gigabyte Ultra Durable standards for long-term reliability
Technical Specifications
Model: GP-UD750GM PG5 ICE
Form Factor: Intel ATX 12V v3.1
Power Output: 750W continuous
Efficiency Rating: 80 PLUS Gold (~90% at typical load)
PFC: Active PFC (>0.9 typical)
Input Voltage: 100–240V AC (full range)
Input Current: 15–6.5A
Input Frequency: 50–60Hz
MTBF: >100,000 hours
Cooling:
120mm Hydraulic Bearing (HYB) smart fan
Rail Design:
Single +12V rail
Protections:
OVP, OPP, SCP, UVP, OCP, OTP
Hold-up Time: >16ms
Power Good Signal: 100–150ms
Modularity: Fully modular
Cable Type: Embossed white modular cables
Dimensions: 150 × 140 × 86 mm

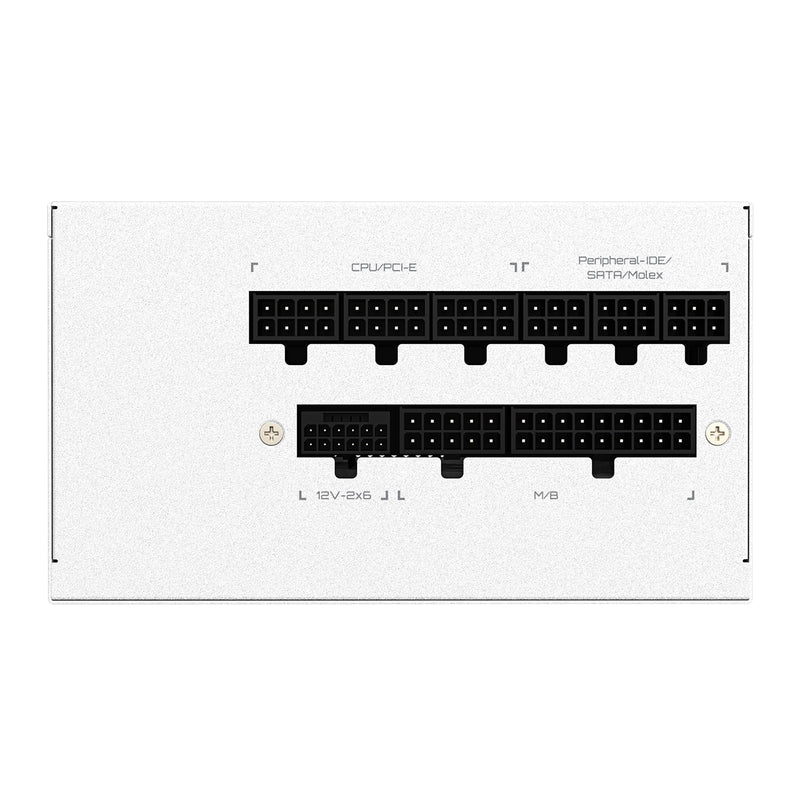

Connectors:
1 × 20+4-pin ATX
2 × 4+4-pin CPU/EPS
4 × 6+2-pin PCIe
1 × 12+4-pin PCIe Gen 5.1 (600W)
8 × SATA
3 × Peripheral + 1 × Floppy
Why Choose the Gigabyte UD750GM PG5 ICE
The UD750GM PG5 ICE offers the ideal combination of efficiency, next-generation GPU readiness, quiet cooling, and premium component quality. With ATX 3.1 compliance, PCIe 5.1 support, and Gold-rated efficiency, it is a dependable long-term power solution for modern gaming and professional PC builds.
A smart choice for customers seeking stable performance, clean cable management, and future-proof reliability from a trusted brand.
