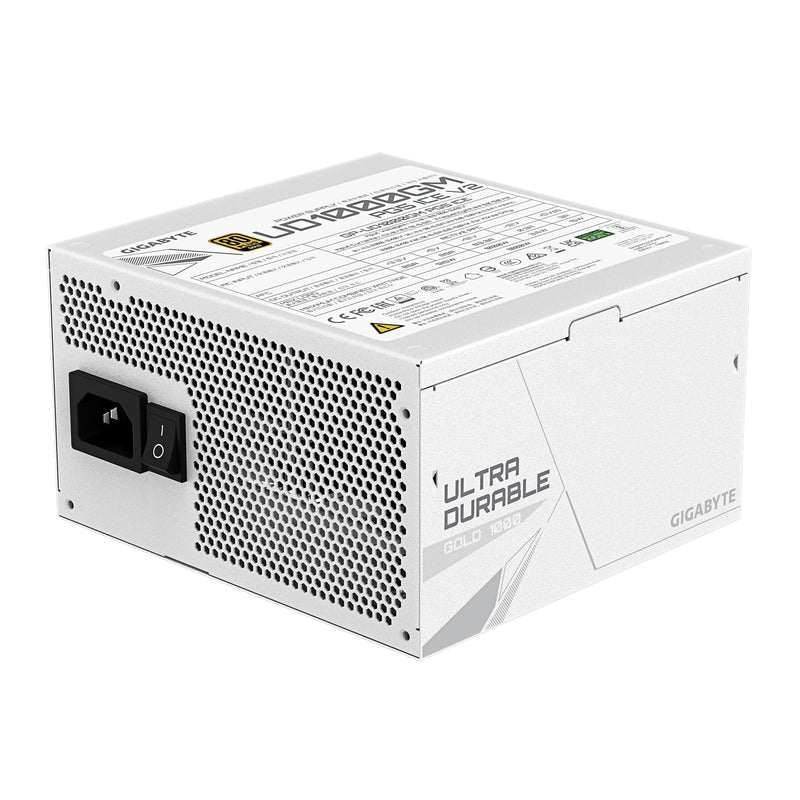

Gigabyte UD1000GM PG5 ICE 1000W 80+ Gold Modular PSU
Gigabyte UD1000GM PG5 ICE 1000W 80+ Gold Fully Modular ATX 3.1 Power Supply
Deliver next-generation power and efficiency to high-performance gaming PCs and professional workstations with the Gigabyte UD1000GM PG5 ICE 1000W PSU V2. Built to Intel ATX 3.1 and PCIe Gen 5.1 standards, this premium fully modular power supply supports modern GPUs with a native 16-pin connector delivering up to 600W, ensuring stable operation for demanding graphics cards including RTX 50-series hardware and beyond.
Engineered with 100% Japanese capacitors, Ultra Durable components, and comprehensive protection circuitry, the UD1000GM PG5 ICE provides exceptional reliability, quiet cooling, and long-term performance. Its 80 PLUS Gold certification guarantees high efficiency with reduced heat and energy waste, while the compact 140mm chassis improves compatibility with a wide range of PC cases.
Key Features
✔ 1000W continuous output for high-end gaming and workstation systems
✔ Intel ATX 3.1 and PCIe Gen 5.1 ready with native 16-pin GPU power (up to 600W)
✔ 80 PLUS Gold efficiency delivering up to 90% efficiency at typical load
✔ Fully modular embossed white cables for clean builds and improved airflow
✔ 100% Japanese capacitors for long-term reliability and stability

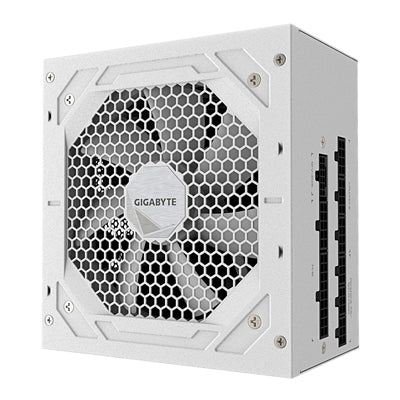

✔ 120mm smart hydraulic bearing fan with semi-passive silent operation
✔ Powerful single +12V rail for consistent power delivery
✔ Advanced protection: OVP, OPP, SCP, UVP, OCP, OTP
✔ Compact 140mm depth for broad chassis compatibility
✔ MTBF over 100,000 hours for dependable long-term use
Technical Specifications

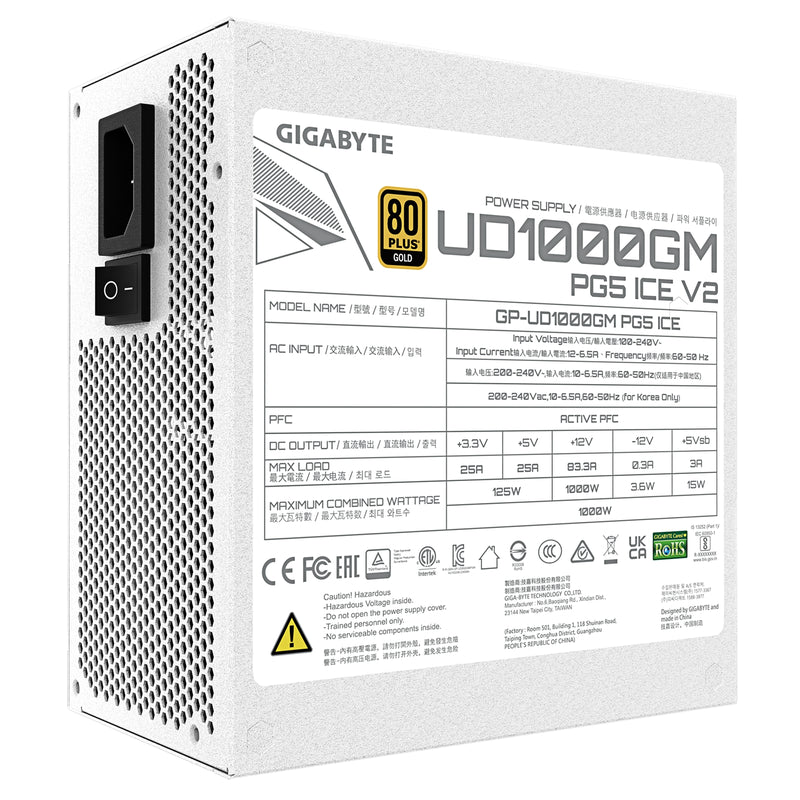

Model: GP-UD1000GM PG5 ICE
Form Factor: Intel ATX 12V v3.1
Output Capacity: 1000W
Efficiency: 80 PLUS Gold (≈90% at typical load)
PFC: Active PFC (>0.9 typical)
Input Voltage: 100–240V AC (full range)
Input Current: 15–6.5A
Input Frequency: 50–60Hz

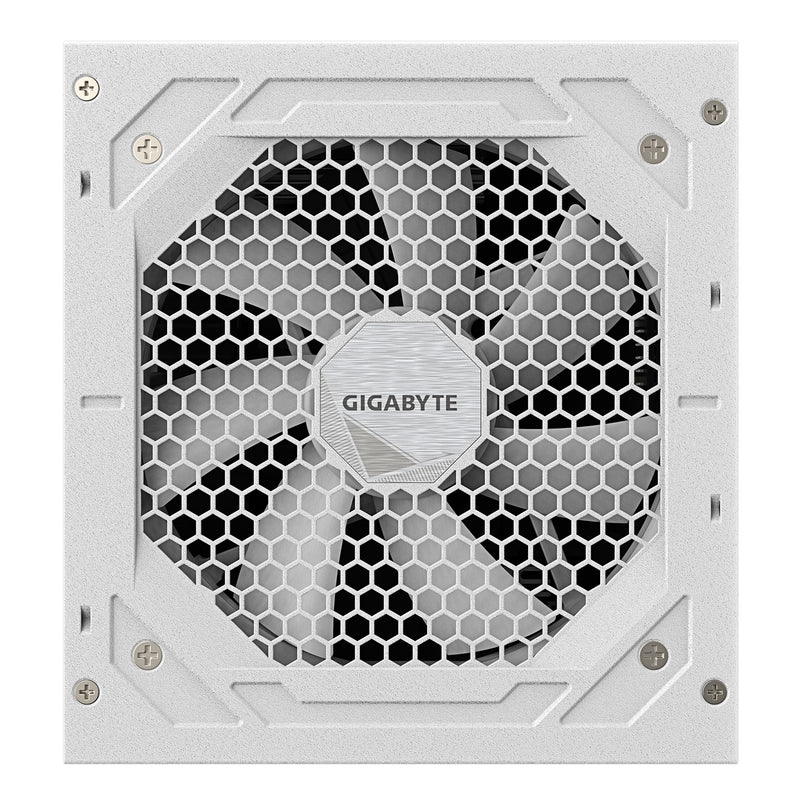

Fan: 120mm Hydraulic Bearing (HYB)
Protections: OVP / OPP / SCP / UVP / OCP / OTP
Hold-Up Time: >16ms
Power Good Signal: 100–150ms
MTBF: >100,000 hours
Dimensions: 150 × 140 × 86 mm

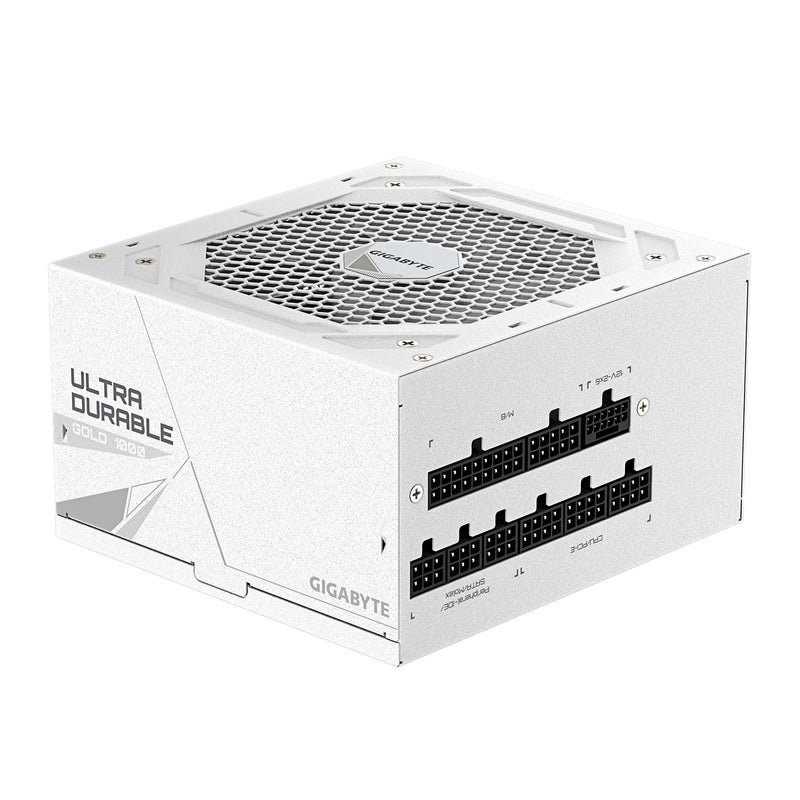

Cable Type: Fully modular, embossed white

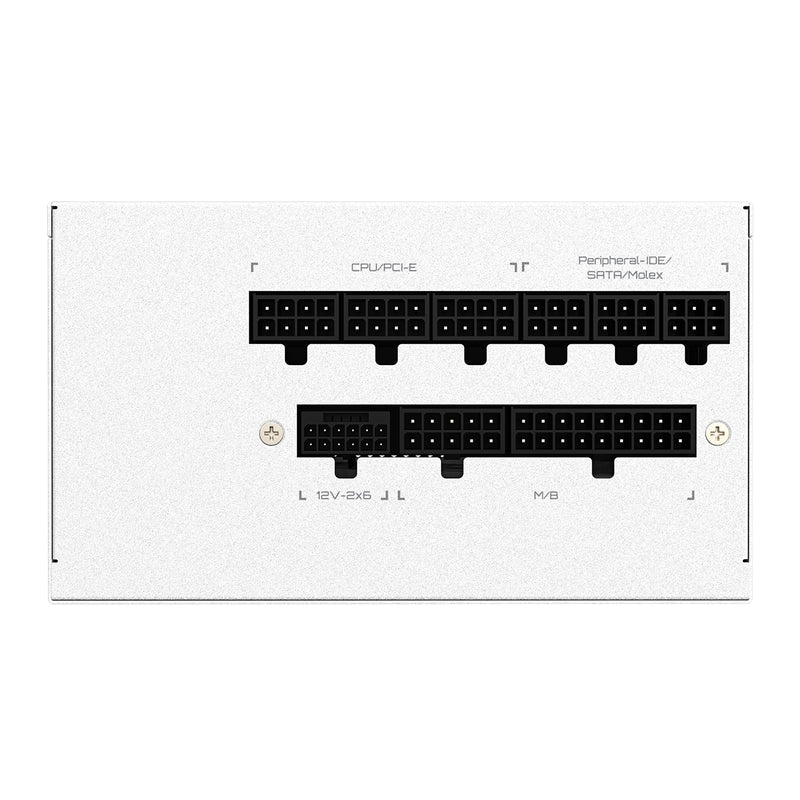

Connectors:
ATX 20+4-pin ×1
CPU/EPS 4+4-pin ×2
PCIe 6+2-pin ×4
PCIe 12+4-pin (16-pin Gen 5) ×1
SATA ×8
Peripheral 4-pin ×3 + Floppy ×1
