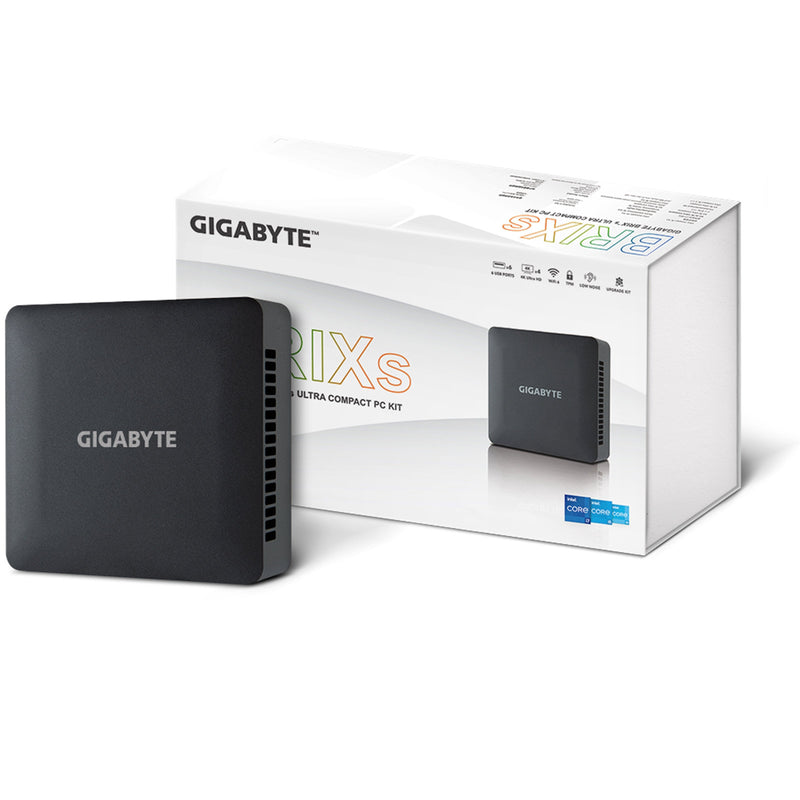

Compact Performance for Business, Home and Productivity

The Gigabyte NUC Mini PC combines powerful computing performance with an ultra-compact design, making it ideal for business users, home offices, education environments and digital signage applications. Powered by the 13th Generation Intel Core i5-1335U processor, this compact system delivers responsive multitasking, excellent connectivity and modern productivity features in a remarkably small footprint.

Pre-installed with Windows 11 Pro, equipped with 16GB DDR4 memory, a 512GB NVMe SSD, Wi-Fi 6, and 2.5 Gigabit Ethernet, this mini PC is ready to work straight out of the box.

Key Features & Benefits

13th Generation Intel Core Performance

Powered by the Intel Core i5-1335U processor with hybrid architecture, combining Performance and Efficient cores for responsive multitasking.

Ultra-Compact Design

Measuring just 124 x 120 x 49.7mm, the Gigabyte NUC provides powerful computing while saving valuable desk space.

Fast 16GB DDR4 Memory

Pre-installed 16GB DDR4 memory delivers smooth performance for office applications, web browsing and multitasking.

High-Speed NVMe Storage

A 512GB PCIe NVMe SSD ensures fast boot times, quick application launches and responsive system performance.

Intel Iris Xe Graphics

Integrated Intel Iris Xe graphics provide excellent visual performance for business tasks, media playback and multi-display productivity.

Quad Display Support

Supports up to four displays simultaneously using dual HDMI 2.1 and dual USB-C DisplayPort outputs.

Wi-Fi 6 & Bluetooth 5.2

Modern wireless connectivity delivers reliable networking and peripheral support.

2.5 Gigabit Ethernet

High-speed wired networking provides faster file transfers and improved network performance.

Windows 11 Pro Pre-Installed

Fully updated and free from unnecessary preloaded software, ready for immediate deployment.

VESA Mount Compatible

Suitable for mounting behind displays or under desks to create a tidy and clutter-free workspace.

Technical Specifications

Processor

CPU

• Intel® Core™ i5-1335U
• 13th Generation Intel Processor
• 10 Cores (2 Performance Cores + 8 Efficient Cores)
• 12 Threads
• 12MB Intel Smart Cache
• Maximum Turbo Frequency: Up to 4.6GHz
• Processor Base Power: 15W

Graphics

Integrated Graphics

• Intel® Iris® Xe Graphics
• 96 Execution Units (EU)
• Up to 1.25GHz Graphics Frequency

Display Support

• Up to Four Displays Simultaneously
• Maximum Resolution: 3840 × 2160 @ 60Hz Per Display

Video Outputs

• 2 × HDMI 2.1
• 2 × USB-C with DisplayPort 1.4a Alt Mode

Memory

Installed Memory

• 16GB DDR4 SODIMM

Configuration

• 1 × 16GB Module

Memory Speed

• DDR4-3200

Maximum Capacity

• Up to 64GB DDR4

Storage

Installed Storage

• ADATA Legend 710 512GB NVMe SSD

Interface

• PCIe Gen3 NVMe M.2 2280

Performance

• Read Speed: Up to 2400MB/s
• Write Speed: Up to 1600MB/s

Networking

Wired Ethernet

• Intel i226V 2.5 Gigabit Ethernet

Wireless

• Intel AX203 Wi-Fi 6
• IEEE 802.11ax

Supported Bands

• 2.4GHz
• 5GHz

Bluetooth

• Bluetooth 5.2

Audio

Audio Codec

• Realtek ALC269 HD Audio

Audio Connections

• 3.5mm Headphone/Microphone Combo Jack

Front I/O Ports

• 2 × USB 3.2 Gen 2 Type-A
• 2 × USB 2.0 Type-A
• 1 × 3.5mm Audio Combo Jack
• 1 × Power Button

Rear I/O Ports

• 1 × 2.5GbE RJ45 Ethernet Port
• 2 × HDMI 2.1 Outputs
• 2 × USB 3.2 Gen 2 Type-C with DisplayPort Alt Mode
• 1 × Kensington Security Lock Slot
• 1 × DC Power Input

Operating System

Installed OS

• Microsoft Windows 11 Professional 64-bit
• Fully Installed and Updated
• Clean Installation
• No Bloatware

Physical Specifications

Dimensions

• Width: 124mm
• Depth: 120mm
• Height: 49.7mm

Design

• Compact Gigabyte NUC Chassis
• Curved Minimalist Design
• Space-Saving Form Factor

Power

External Power Adapter

• Input: 100V - 240V AC
• Output: 19.5V / 6.92A
• Power Rating: 135W

Mounting Support

VESA Compatible

• Supports 75 × 75mm VESA Mounting
• Supports 100 × 100mm VESA Mounting

VESA bracket sold separately.

Environmental Specifications

Operating Temperature

• 0°C to 35°C

Storage Temperature

• -20°C to 60°C

Included Accessories

• Gigabyte NUC Mini PC
• Logitech MK120 Wired Keyboard
• Logitech MK120 Wired Mouse
• Power Adapter
• Documentation

Supported Operating Systems

• Windows 11 64-Bit
• Windows 10 64-Bit

Why Choose the Gigabyte NUC Mini PC?

The Gigabyte NUC Core i5 Mini PC delivers an excellent balance of performance, connectivity and space efficiency. Equipped with a 10-core Intel Core i5-1335U processor, 16GB DDR4 memory, 512GB NVMe SSD, Wi-Fi 6, and 2.5Gb Ethernet, it provides all the power needed for office productivity, remote working, education and digital signage deployments.

Its ability to drive up to four displays, compact footprint, clean Windows 11 Pro installation and future memory expansion capability make it an ideal solution for users seeking a powerful yet discreet desktop computing platform.
