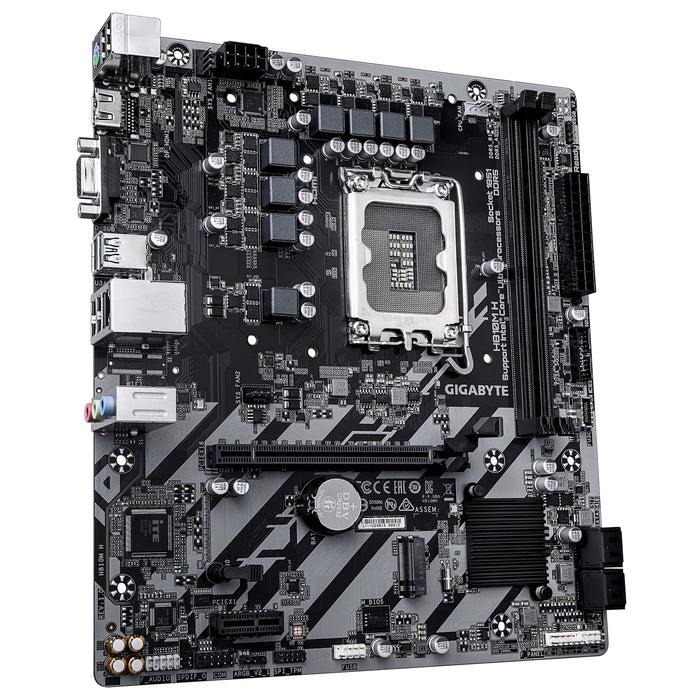

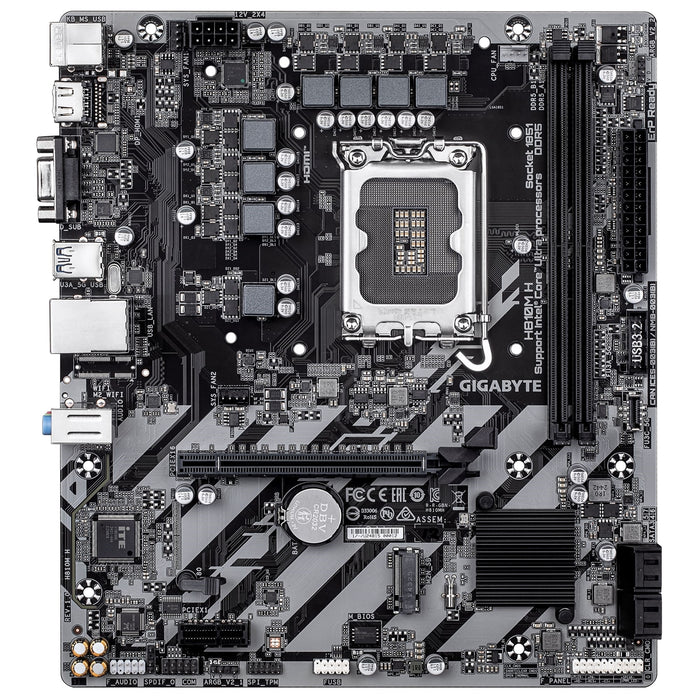

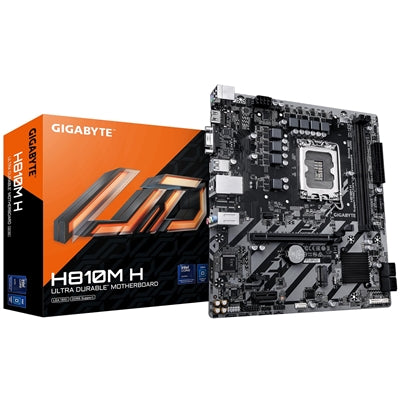

Gigabyte H810M H DDR5 Intel LGA1851 Micro ATX Motherboard
Gigabyte H810M H Intel LGA1851 Micro-ATX Motherboard – DDR5, PCIe 4.0, Ultra Durable
Build a dependable and cost-effective Intel system with the Gigabyte H810M H Motherboard, designed for Intel Core Ultra (Series 2) processors. Combining essential features with reliable performance, this micro‑ATX board is ideal for home, office and entry-level PC builds.
Key Features & Benefits
Supports Intel Core Ultra Processors (LGA1851)
Built for the latest Intel platform, offering efficient performance and upgrade flexibility for modern computing.
DDR5 Memory Support
Supports up to 128GB DDR5 RAM, delivering improved speed, bandwidth and responsiveness compared to previous generations.
PCIe 4.0 Expansion & Storage
- PCIe 4.0 x16 slot for modern GPUs
-
PCIe 4.0 M.2 slot for high-speed NVMe SSDs
Ensuring smooth performance and fast data access.
Reliable Power Delivery (4+1+2 VRM)
Hybrid VRM design ensures stable and efficient power performance for everyday workloads.
Smart Fan 6 Cooling Technology
Advanced cooling system with multiple sensors and fan control, keeping your system cool and quiet.
EZ-Latch PCIe Slot Design
Quick-release PCIe slot allows easy graphics card installation and removal, improving user experience.
Flexible Display Connectivity
Includes HDMI, DisplayPort and legacy D-Sub, enabling multi-display setups and compatibility with older monitors.
Ultra Durable Build Quality
Engineered with high-quality components and anti-sulfur design, ensuring long-term reliability and system stability.
User-Friendly BIOS & Software
Features Q-Flash Auto Scan and intuitive BIOS interface, making system setup and updates simple.
Technical Specifications
CPU Support
- Intel LGA1851 Socket
- Supports Intel Core Ultra Processors (Series 2)
Chipset
- Intel H810
Memory
- 2 x DDR5 DIMM Slots
- Up to 128GB Capacity
- Dual Channel Architecture
- Speeds up to 6400MHz
Storage
- 1 x M.2 PCIe 4.0 x4 Slot
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 1 x HDMI 2.1 (up to 4K@60Hz)
- 1 x DisplayPort (up to 4K@60Hz)
- 1 x D-Sub (legacy support)
- Triple display capability
Expansion Slots
- 1 x PCIe 4.0 x16
- 1 x PCIe 3.0 x1
Networking
- Realtek Gigabit LAN (10/100/1000 Mbps)
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
- S/PDIF support
USB Connectivity
- USB-C header (USB 3.2 Gen1)
- USB 3.2 Gen1 ports
- USB 2.0 ports
Internal Connectivity
- 1 x M.2 slot
- 2 x ARGB headers (Gen2)
- Fan headers (CPU + system)
- TPM header
- SATA connectors

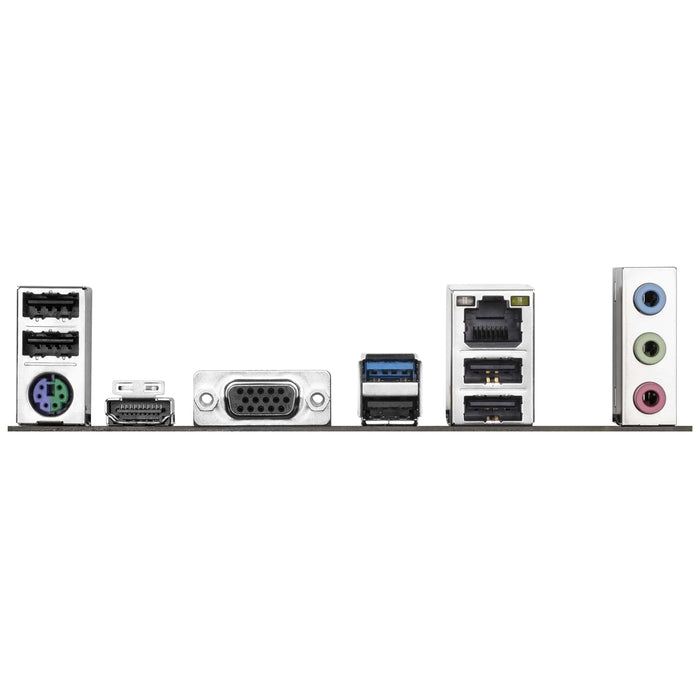

Rear I/O Ports
- HDMI, DisplayPort, D-Sub
- USB 3.2 Gen1 & USB 2.0
- RJ-45 LAN
- Audio jacks
- PS/2 port
Form Factor
- Micro-ATX (24.4cm x 21.5cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte H810M H?
The Gigabyte H810M H is a reliable and budget-friendly motherboard designed for everyday Intel builds. With DDR5 support, PCIe 4.0 storage and solid connectivity, it delivers stable performance for general computing, office tasks and light gaming.
Ideal for entry-level users and system builders, it offers essential features, durable design and great value, making it a dependable foundation for modern PCs.
