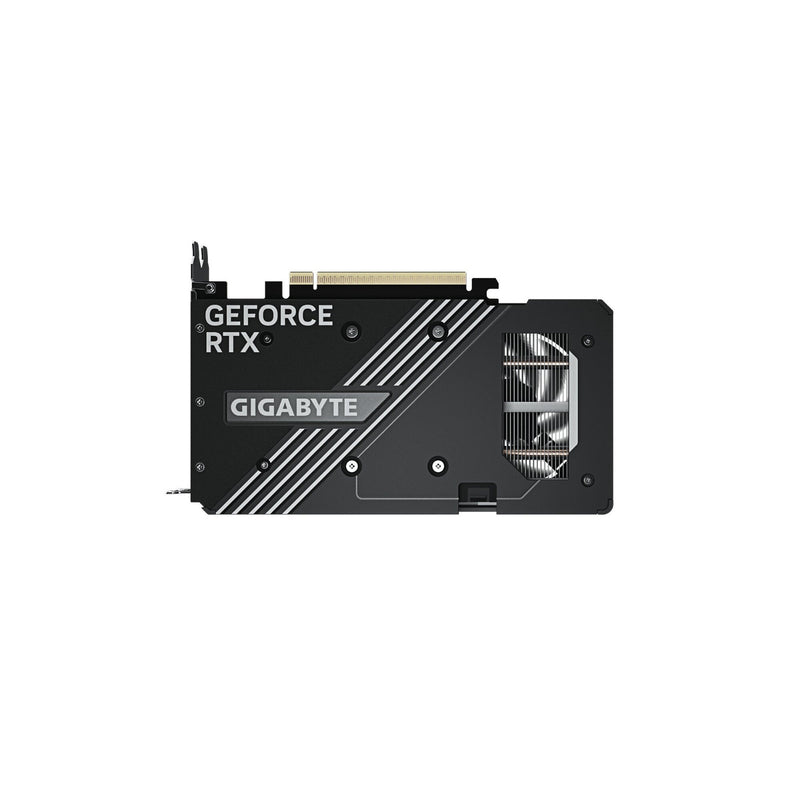

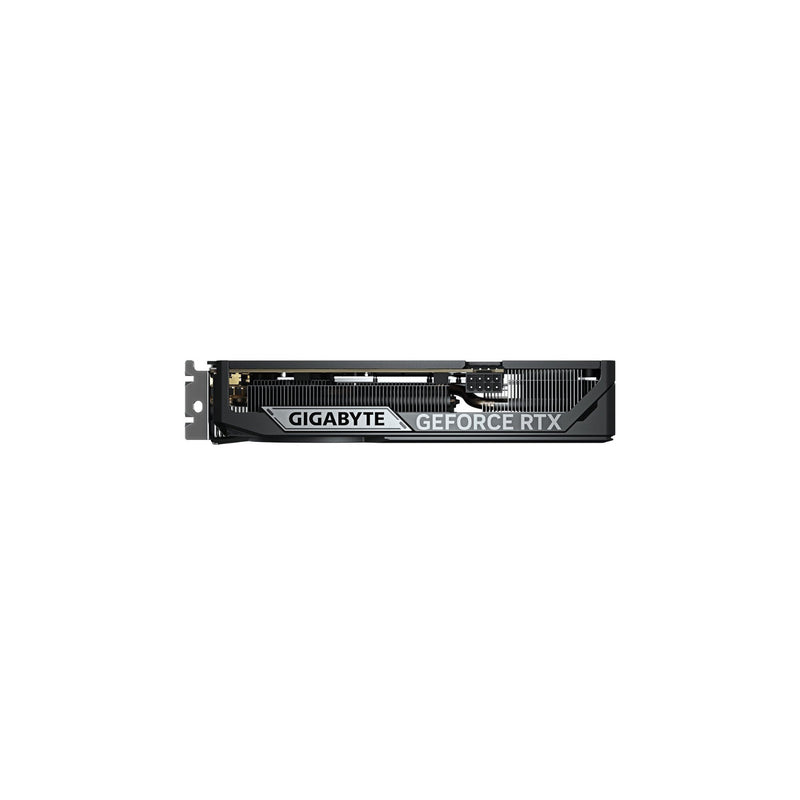

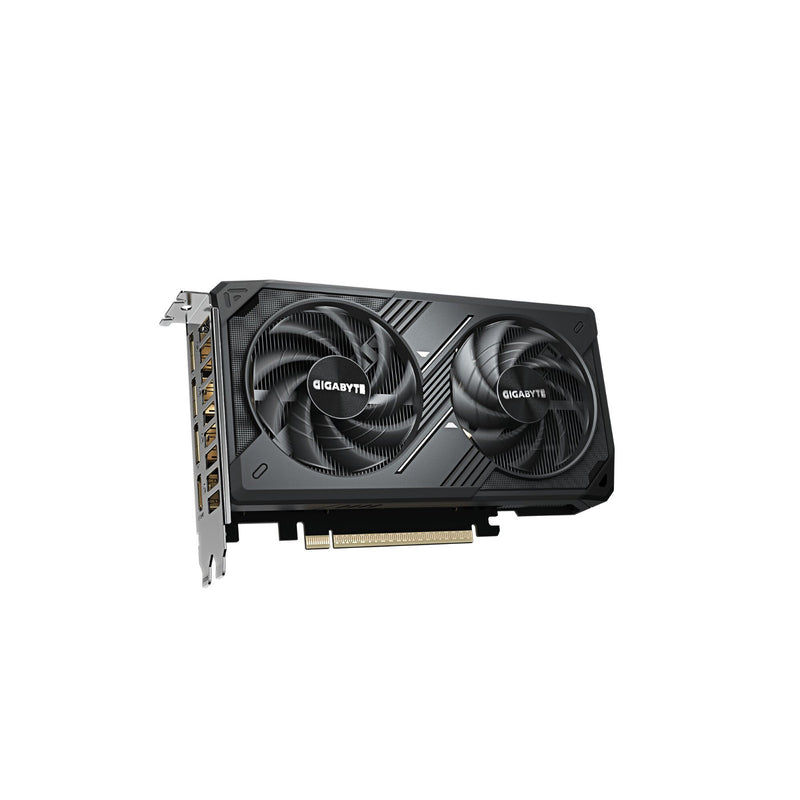

Gigabyte GeForce RTX 5060 WINDFORCE MAX OC V2 8GB GDDR7
Next-Generation Gaming Powered by NVIDIA Blackwell
The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC V2 8GB delivers advanced gaming performance, AI-powered enhancements and efficient cooling for modern gaming PCs. Built on the latest NVIDIA Blackwell architecture, this graphics card combines 3840 CUDA Cores, ultra-fast 8GB GDDR7 memory, and support for DLSS 4 technology to provide smooth gameplay, accelerated content creation and enhanced visual fidelity.
Featuring Gigabyte's proven WINDFORCE cooling system, reinforced construction and a factory overclocked boost clock of 2512MHz, the RTX 5060 WINDFORCE MAX OC V2 is an excellent choice for gamers looking to experience high-refresh-rate 1080p and capable 1440p gaming performance.
Key Features & Benefits
NVIDIA Blackwell Architecture
Built on NVIDIA's latest Blackwell architecture, delivering:
- Improved gaming performance
- Advanced AI processing
- Enhanced ray tracing capabilities
- Better power efficiency
- Next-generation graphics features
DLSS 4 Technology
NVIDIA DLSS 4 uses AI-powered rendering to increase frame rates while maintaining exceptional image quality.
Benefits include:
- Higher FPS in supported games
- Reduced latency
- Enhanced image clarity
- Improved gaming responsiveness
Factory Overclocked Performance
The WINDFORCE MAX OC V2 comes factory tuned with:
- Boost Clock: 2512MHz
- Reference Clock: 2497MHz
Providing additional performance straight out of the box.
8GB GDDR7 Memory
High-speed GDDR7 memory delivers:
- Faster bandwidth
- Reduced texture loading times
- Improved gaming responsiveness
- Better support for modern titles
3840 CUDA Cores
The GPU features 3840 CUDA Cores, enabling accelerated:
- Gaming workloads
- Content creation
- Streaming
- AI-assisted applications
- Rendering tasks

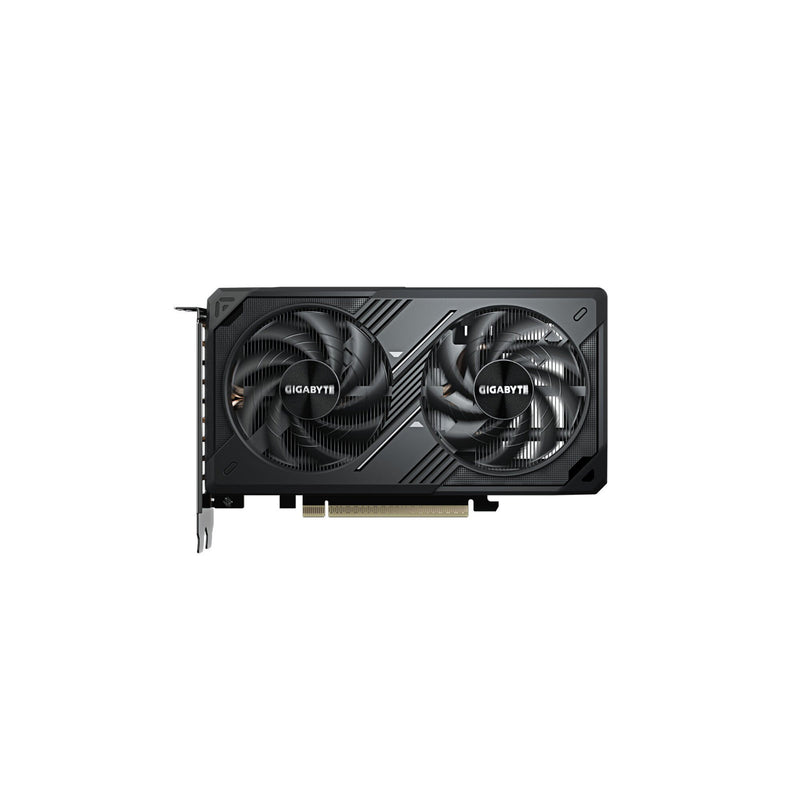

WINDFORCE Cooling System
Gigabyte's WINDFORCE cooling solution helps maintain optimal temperatures during demanding workloads.
Features include:
- Dual-fan design
- Improved airflow efficiency
- Effective heat dissipation
- Quiet operation under load
Hawk Fan Design
Specially engineered Hawk fans improve airflow pressure while reducing turbulence and acoustic noise.
Server-Grade Thermal Conductive Gel
High-quality thermal materials improve heat transfer between components and cooling surfaces for improved stability.
Reinforced Structure
A strengthened card design helps improve durability and structural integrity for long-term reliability.
PCIe 5.0 Ready
Built for modern systems with support for:
- PCI Express 5.0
- High-bandwidth communication
- Future-ready compatibility
Technical Specifications
Graphics Processor
- GPU: NVIDIA GeForce RTX 5060
- Architecture: NVIDIA Blackwell
- CUDA Cores: 3840
Clock Speeds
- Core Clock: 2512MHz
- Reference Core Clock: 2497MHz
Memory
- Memory Capacity: 8GB
- Memory Type: GDDR7
- Memory Interface: 128-bit
- Memory Speed: 28Gbps
Bus Interface
- PCI Express 5.0
Cooling
- WINDFORCE Cooling System
- Dual Hawk Fans
- Server-Grade Thermal Conductive Gel
Display Support
- Maximum Digital Resolution: 7680 x 4320 (8K)
- Maximum Displays Supported: 4

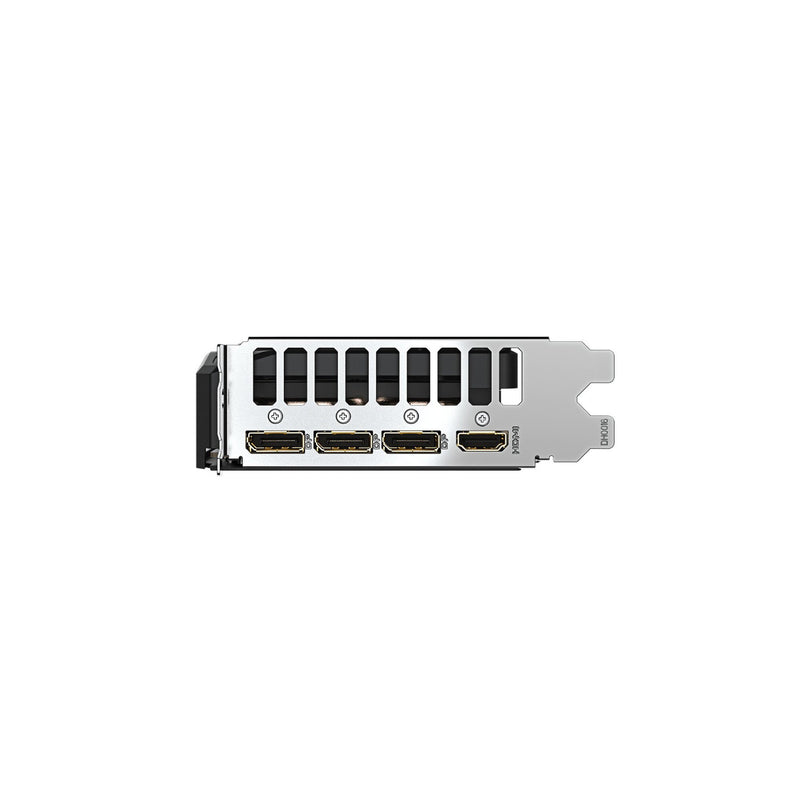

Video Outputs
- 3 x DisplayPort 2.1b
- 1 x HDMI 2.1b
APIs & Technologies
- DirectX 12
- OpenGL 4.6
- NVIDIA DLSS 4
- Ray Tracing Support
- AI-Enhanced Rendering
Power Requirements
- Recommended PSU: 550W
- Power Connector: 1 x 8-Pin PCIe
Physical Dimensions
- Length: 199mm
- Width: 116mm
- Height: 40mm
PCB Form Factor
- ATX
Package Contents
- Gigabyte GeForce RTX 5060 WINDFORCE MAX OC V2 8GB
- Quick Installation Guide
Ideal For
- 1080p High Refresh Rate Gaming
- 1440p Gaming
- Esports Gaming
- Content Creators
- Streamers
- AI-Enhanced Applications
- Gaming PC Upgrades
- Compact ATX Builds
- PCIe 5.0 Systems
- Modern Gaming Setups
Why Choose the Gigabyte RTX 5060 WINDFORCE MAX OC V2?
The Gigabyte GeForce RTX 5060 WINDFORCE MAX OC V2 8GB offers an excellent balance of performance, efficiency and value for gamers seeking next-generation graphics technology. Featuring the latest NVIDIA Blackwell architecture, DLSS 4 support, 3840 CUDA Cores, 8GB of high-speed GDDR7 memory and Gigabyte's effective WINDFORCE cooling system, it delivers the performance needed for today's latest games and AI-powered workloads.
With support for PCIe 5.0, DisplayPort 2.1b, HDMI 2.1b, and up to 8K display output, this compact graphics card is ready to power modern gaming and creative systems while maintaining cool and reliable operation.
