Built to Power. Born to Win.

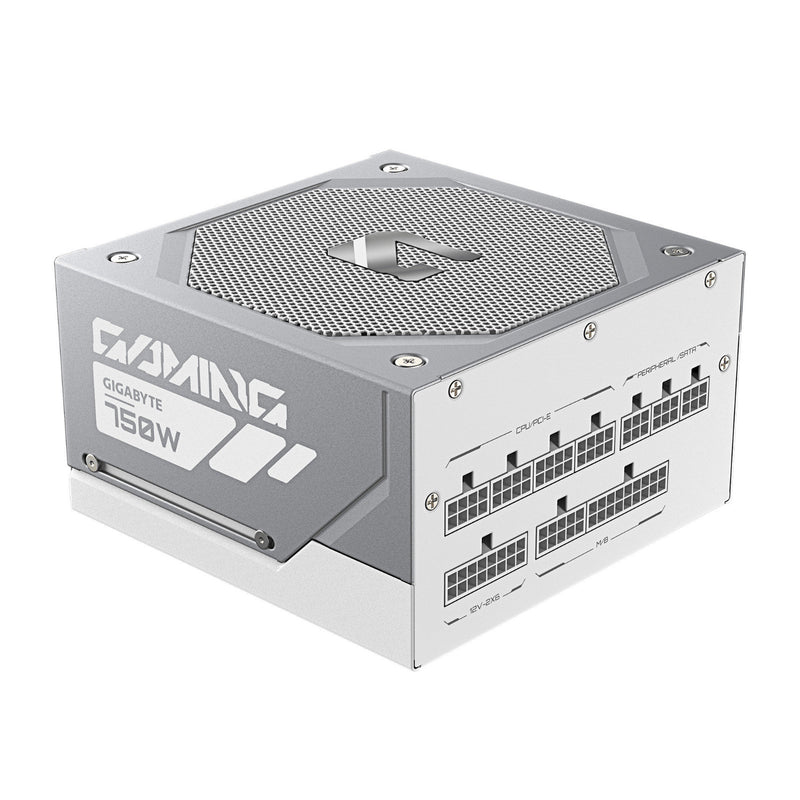

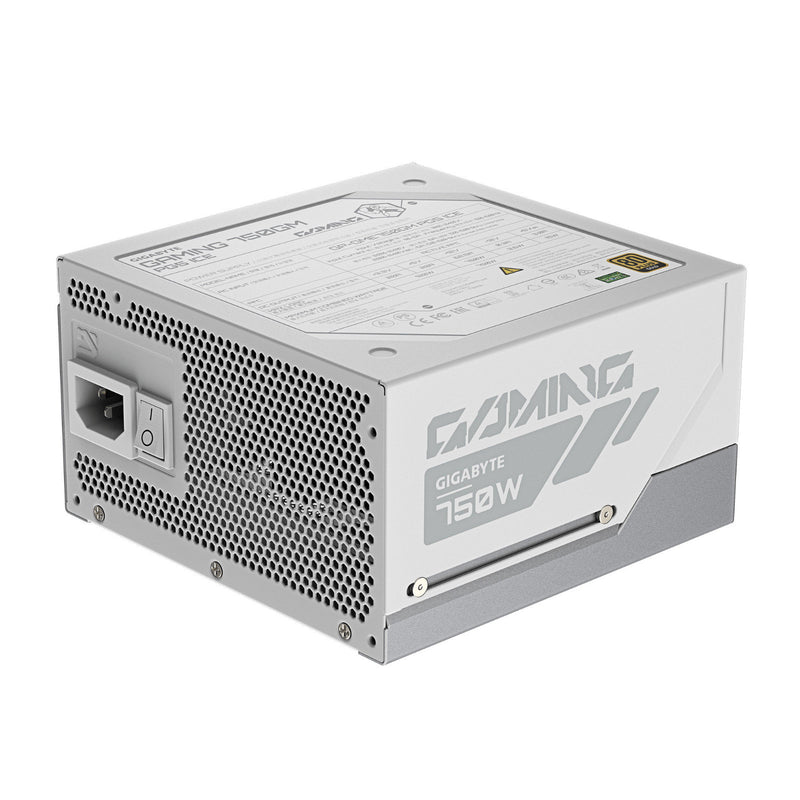

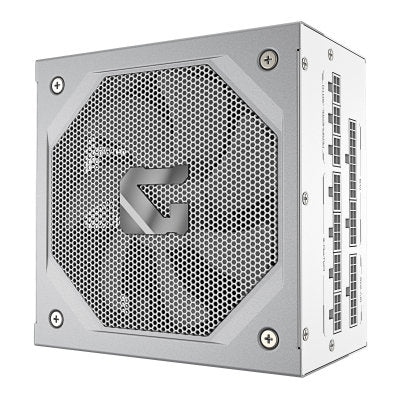

The Gigabyte GAMING 750GM PG5 ICE is a premium 750W fully modular power supply engineered for modern gaming PCs and performance-focused systems. Built to the latest Intel ATX 3.1 standard, it provides reliable power delivery, quiet operation and advanced protection technologies for today's high-performance hardware.

Featuring 80 PLUS Gold certification, Cybenetics ETA Platinum efficiency certification, LAMBDA A+ low-noise certification and a native 12V-2x6 graphics card connector, the GAMING 750GM PG5 ICE is ideal for powering modern gaming builds while complementing white-themed PC aesthetics.

Key Features & Benefits

750W Continuous Power Delivery

Provides dependable power for gaming PCs, content creation systems and performance desktops.

ATX 3.1 Compliant

Supports the latest power standards required by modern graphics cards and processors.

80 PLUS Gold Efficiency

Delivers up to 90% efficiency under typical loads, helping reduce energy waste and excess heat.

Cybenetics Certified

• ETA Platinum Efficiency Rating
• LAMBDA A+ Noise Certification

T-Guard Active GPU Protection

Advanced thermal protection technology monitors the native 12V-2x6 cable and disconnects GPU power if abnormal temperatures are detected, helping protect graphics card hardware.

Native PCIe 5.0 Ready

Includes a dedicated 16-pin 12V-2x6 connector for next-generation graphics cards.

Fully Modular Design

Install only the required power cables for cleaner cable routing and improved airflow.

HybridCool Smart Fan Control

Automatically adjusts cooling performance to balance thermals and acoustic levels.

Premium Japanese Capacitors

Built with 100% Japanese capacitors for enhanced durability, stability and long-term reliability.

ICE-Themed Gaming Design

A distinctive white finish makes this PSU ideal for premium white PC builds and showcase systems.

Technical Specifications

General

Model

• GP-GME750GM PG5 ICE

Form Factor

• Intel ATX 12V v3.1

Output Capacity

• 750W

Efficiency Certification

• 80 PLUS Gold

Cybenetics Certifications

• ETA Platinum
• LAMBDA A+

Electrical Specifications

Active PFC

• Active Power Factor Correction
• Greater than 0.9 Typical

Input Voltage

• 100V – 240V AC

Input Current

• 10A – 5A

Input Frequency

• 50Hz – 60Hz

Typical Efficiency

• Up To 90%

MTBF

• Greater Than 100,000 Hours

Power Good Signal

• 100ms – 150ms

Hold-Up Time

• Greater Than 17ms at 80% Load

Cooling

Fan

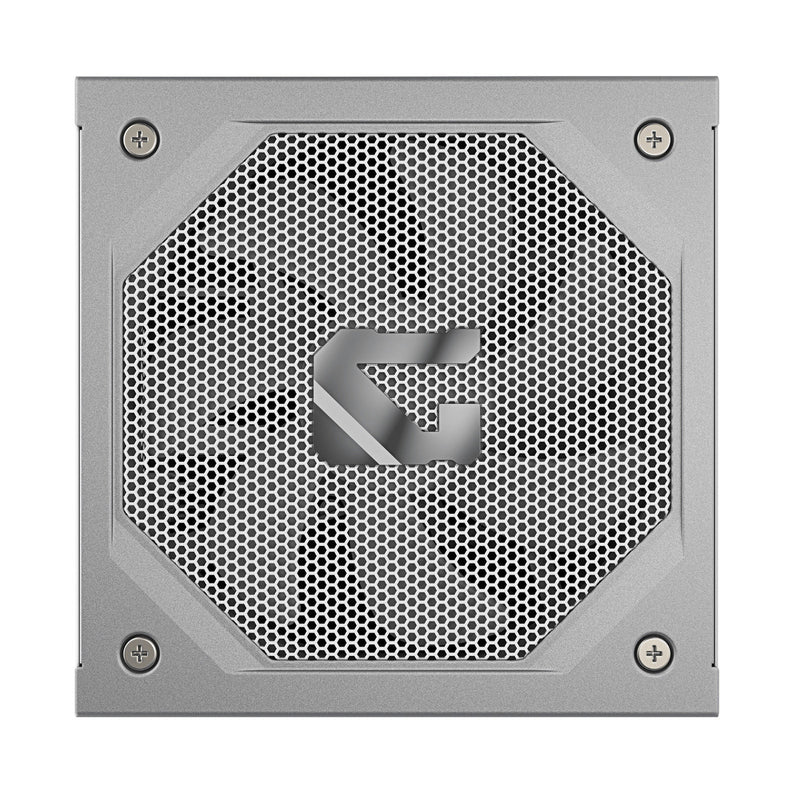

• 135mm Fluid Dynamic Bearing (FDB) Fan

Cooling Features

• HybridCool Smart Fan Control
• Low Noise Operation
• Long-Life Bearing Technology

GPU Safety Features

T-Guard Active GPU Thermal Protection

• Monitors 12V-2x6 cable temperature
• Detects abnormal heat build-up
• Automatically disables GPU power if required
• Helps prevent potential GPU and connector damage
• Allows the system to remain operational to safeguard data

Dual-Colour 12V-2x6 Connector

• Provides visual confirmation of proper connector installation
• Helps reduce connection errors

Protection Features

Comprehensive protection mechanisms include:

• OVP (Over Voltage Protection)
• OPP (Over Power Protection)
• SCP (Short Circuit Protection)
• UVP (Under Voltage Protection)
• OCP (Over Current Protection)
• OTP (Over Temperature Protection)
• NLO (No Load Operation Protection)
• SIP (Surge & Inrush Protection)

Cable Design

Cable Type

• Fully Modular
• Embossed All-Black Modular Cables

Benefits

• Improved Airflow
• Easier Installation
• Cleaner Interior Appearance
• Simplified Cable Management

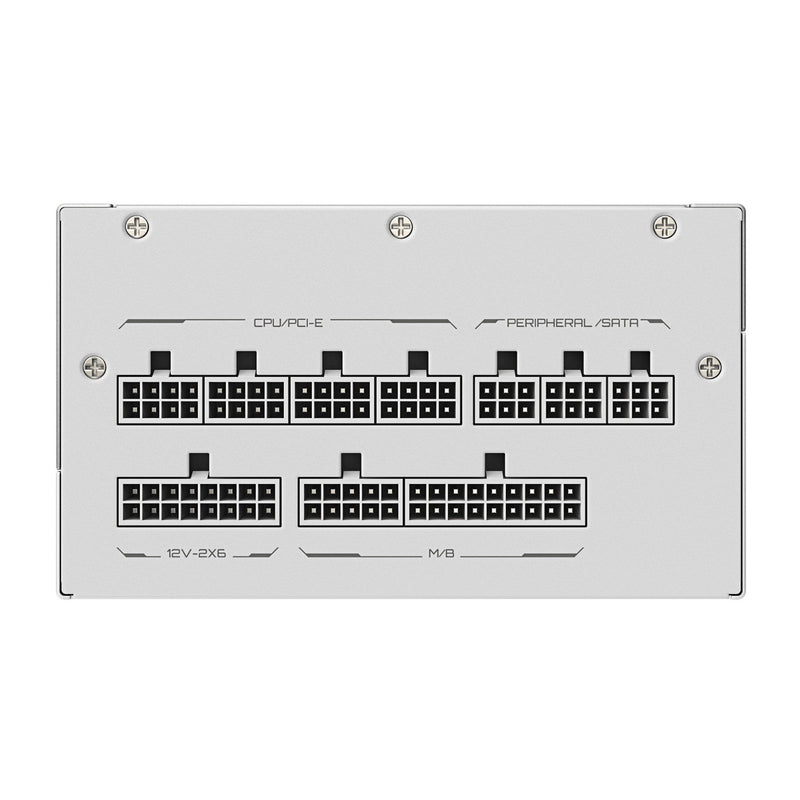

Connectors

Motherboard Power

• 1 × 20+4 Pin ATX Connector
• Cable Length: 610mm

CPU Power

• 2 × 4+4 Pin EPS Connectors
• Cable Length: 600mm Each

Graphics Card Power

• 1 × PCIe 16-Pin (12V-2x6)

• Cable Length: 700mm

• 4 × PCIe 6+2 Pin Connectors

• Cable Length: 600mm + 150mm

SATA Power

• 8 × SATA Connectors
• Cable Length: 600mm + 150mm + 150mm + 150mm

Peripheral Power

• 4 × 4-Pin Peripheral (Molex) Connectors
• Cable Length: 500mm + 150mm + 150mm + 150mm

Physical Specifications

Dimensions

• Length: 150mm
• Width: 150mm
• Height: 86mm

Colour

• White / ICE Edition

Compatibility

Graphics Card Support

• NVIDIA GeForce RTX Series GPUs
• AMD Radeon Graphics Cards
• PCIe 5.0 and PCIe 5.1 Graphics Cards
• Native 12V-2x6 Compatibility

Platform Support

• Intel Gaming Systems
• AMD Gaming Systems
• Performance Workstations
• High-End Gaming PCs

What's in the Box?

• Gigabyte GAMING 750GM PG5 ICE Power Supply
• Fully Modular Cable Set
• Native PCIe 12V-2x6 Power Cable
• AC Power Cable
• Mounting Hardware
• User Documentation

Warranty

• Up to 10-Year Manufacturer Warranty*

*Warranty coverage may vary by region.

Why Choose the Gigabyte GAMING 750GM PG5 ICE?

The Gigabyte GAMING 750GM PG5 ICE is an excellent choice for gamers and PC enthusiasts building a powerful modern system with a clean white aesthetic. Combining 750W of reliable power, ATX 3.1 compliance, 80 PLUS Gold efficiency, Cybenetics ETA Platinum certification, and innovative T-Guard Active GPU Protection, it delivers outstanding performance, efficiency and peace of mind.

With a fully modular design, premium Japanese capacitors, native support for modern graphics cards and an industry-leading warranty, the GAMING 750GM PG5 ICE provides a dependable foundation for today's gaming PCs and tomorrow's upgrades.
