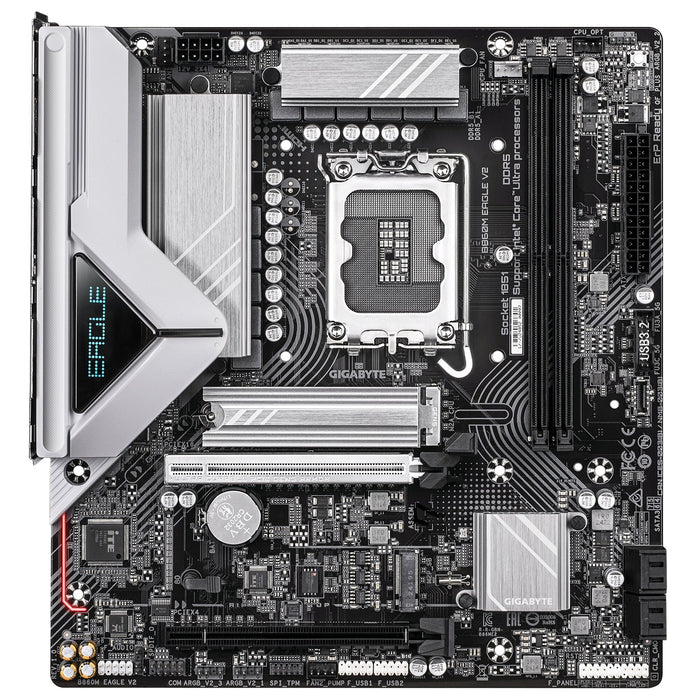

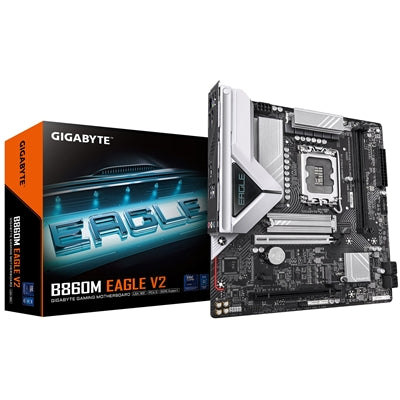

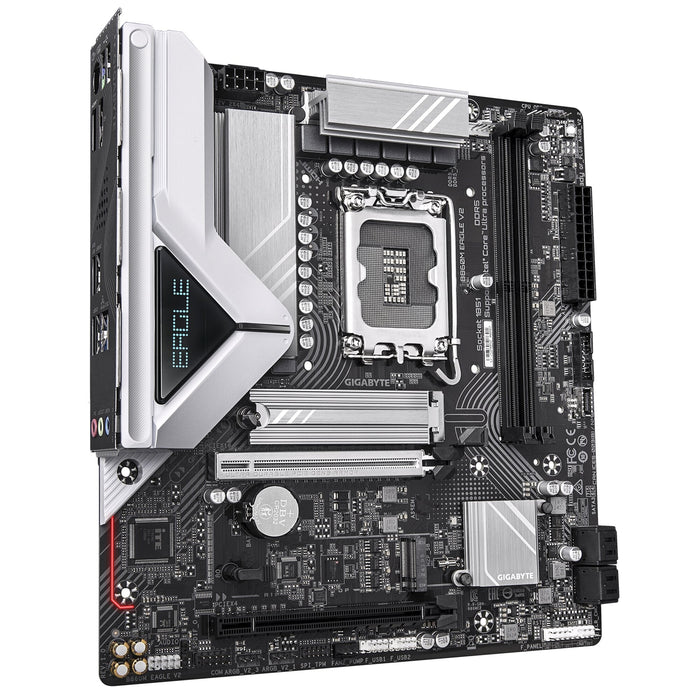

Gigabyte B860M EAGLE V2 DDR5 LGA1851 Micro ATX Board
Gigabyte B860M EAGLE V2 Intel LGA1851 Micro-ATX Motherboard – DDR5, PCIe 5.0, 2.5GbE
Build a next-generation system with the Gigabyte B860M EAGLE V2 Motherboard, designed for Intel Core Ultra processors (Series 2). Combining cutting-edge performance, efficient thermal design and user-friendly features, this micro‑ATX motherboard is ideal for compact high-performance gaming and productivity builds.
Key Features & Benefits
Next-Gen Intel Core Ultra Support (LGA1851)
Designed for the latest Intel platform, delivering high performance, efficiency and future-ready compatibility for demanding applications.
DDR5 Performance & Memory Optimisation
Supports up to 128GB DDR5 memory with speeds up to 9066MHz (OC), enhanced by D5 Bionic Corsa technology for improved stability and performance tuning.
PCIe 5.0 Ultra-Fast Storage
Includes a PCIe 5.0 M.2 slot for next-generation SSDs, along with a second PCIe 4.0 M.2 slot for expanded high-speed storage.
Efficient VRM Power Design
The 6+1+2 phase digital VRM ensures stable power delivery, supporting consistent performance under demanding workloads.
Advanced Thermal Design
Features VRM Thermal Armour and M.2 Thermal Guard, helping to maintain optimal temperatures and prevent performance throttling.
2.5GbE High-Speed Networking
Upgrade your connectivity with 2.5 Gigabit Ethernet, delivering faster speeds and lower latency compared to standard LAN.
EZ-Latch & Tool-Free Installation
- PCIe EZ-Latch for easy GPU installation
-
M.2 EZ-Latch Click for screwless SSD mounting
Simplifies building and upgrading your system.
AI Performance Optimisation
AI PerfDrive intelligently tunes BIOS settings for optimal performance based on your system configuration.
Integrated RGB & Smart Cooling Controls
Multiple ARGB headers and Smart Fan controls allow customised lighting and efficient cooling management.
Technical Specifications
CPU Support
- Intel LGA1851 Socket
- Supports Intel Core Ultra Processors (Series 2)
Chipset
- Intel B860
Memory
- 2 x DDR5 DIMM Slots
- Up to 128GB Capacity
- Dual Channel Architecture
- Speeds up to 9066MHz (OC)
- XMP Support
Storage
- 1 x M.2 PCIe 5.0 x4 Slot
- 1 x M.2 PCIe 4.0 x4 Slot
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 1 x HDMI 2.1 (up to 4K@60Hz)
- 1 x DisplayPort 2.1 (up to 4K@144Hz)
Expansion Slots
- 1 x PCIe 5.0 x16
- 1 x PCIe 4.0 x16 (x4 mode)
Networking
- Realtek 2.5GbE LAN
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
- S/PDIF support
USB Connectivity
- USB-C header (USB 3.2 Gen1)
- USB 3.2 Gen1 ports (rear & internal)
- USB 2.0 ports
Internal Connectivity
- 3 x ARGB headers (Gen2)
- Multiple fan & pump headers
- TPM header
- SATA & M.2 connectors

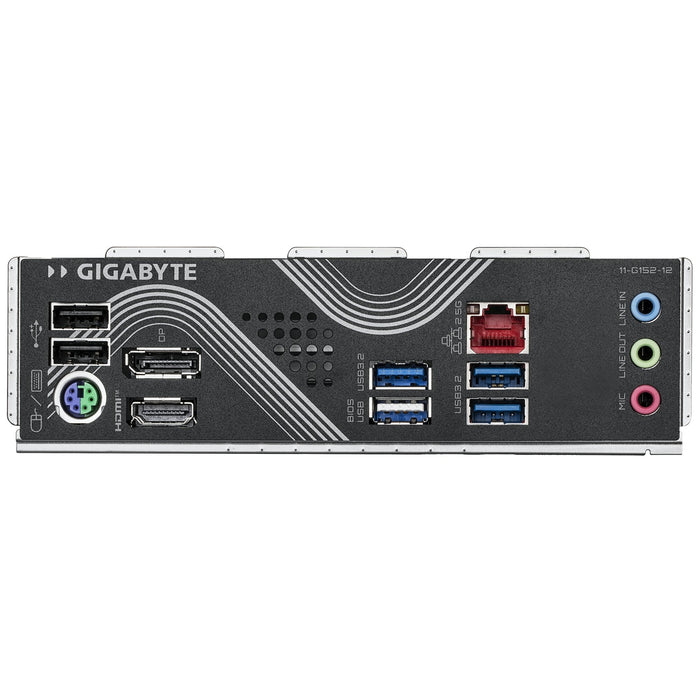

Rear I/O Ports
- HDMI & DisplayPort
- USB 3.2 Gen1 & USB 2.0
- RJ-45 2.5GbE LAN
- PS/2 port
- Audio jacks
Form Factor
- Micro-ATX (24.4cm x 22.5cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte B860M EAGLE V2?
The Gigabyte B860M EAGLE V2 offers a perfect blend of next-generation technology and user-friendly design. With PCIe 5.0 storage, DDR5 memory and high-speed networking, it delivers exceptional performance in a compact form factor.
Ideal for gamers, professionals and enthusiasts, this motherboard provides future-proof capability, efficient thermal design and easy installation, making it a strong foundation for modern Intel builds.
