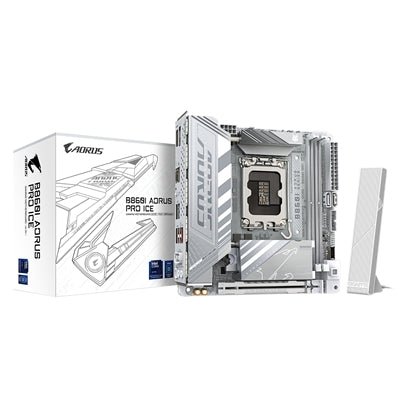

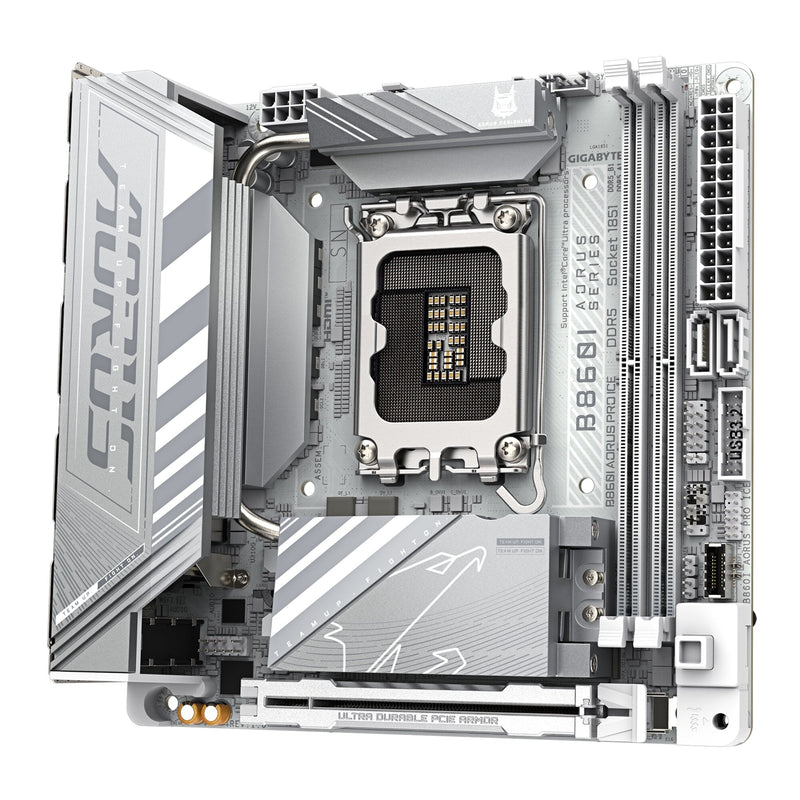

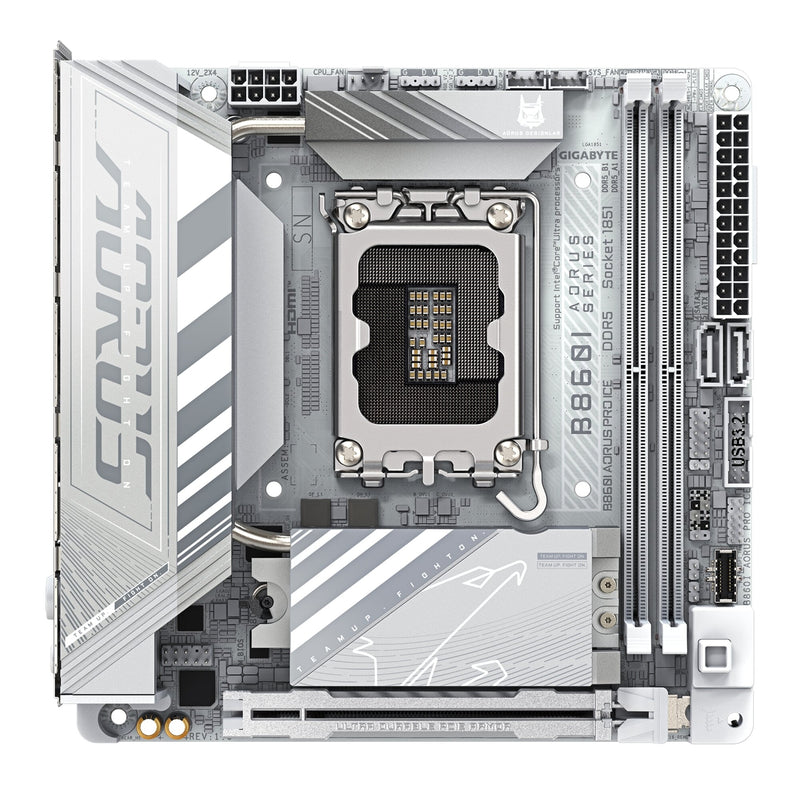

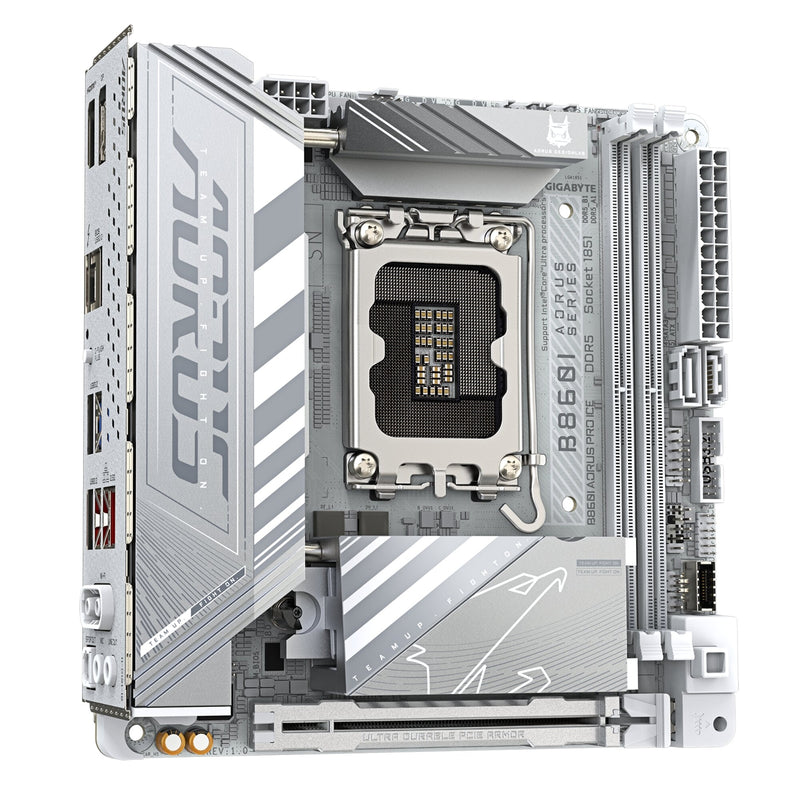

Gigabyte B860I AORUS Pro ICE WiFi7 Intel Mini ITX Motherboard

Gigabyte B860I AORUS PRO ICE Intel LGA1851 Mini-ITX Motherboard – DDR5, PCIe 5.0, WiFi 7

Build a compact yet powerful system with the Gigabyte B860I AORUS PRO ICE, a premium Mini-ITX motherboard designed for Intel Core Ultra (Series 2) processors. Combining cutting-edge performance, advanced connectivity and a sleek ICE white design, it is ideal for high-end small form factor gaming and productivity builds.

Key Features & Benefits

Next-Gen Intel Core Ultra Support
Designed for Intel LGA1851 processors, delivering exceptional performance and efficiency in a compact platform.

DDR5 High-Speed Memory
Supports up to 128GB DDR5 memory with speeds up to 9200MT/s (OC), ensuring ultra-fast multitasking and system responsiveness.

PCIe 5.0 Performance in a Small Form Factor
Equipped with a PCIe 5.0 x16 slot, providing maximum bandwidth for next-generation graphics cards.

Dual M.2 Storage (PCIe 5.0 + 4.0)
Includes 2 M.2 slots, featuring PCIe 5.0 support for ultra-fast NVMe SSDs and expanded storage flexibility.

WiFi 7 & 2.5GbE Networking

• WiFi 7 with ultra-fast wireless speeds and low latency
• 2.5GbE LAN for high-speed wired connectivity
  Perfect for gaming, streaming and high-bandwidth workloads.

Thunderbolt 4 / USB4 Connectivity
Built-in Thunderbolt 4 (USB4 Type-C) port supports fast data transfer, DisplayPort output and external device expansion.

Efficient VRM & Thermal Design
The 8+1+2 phase VRM solution combined with advanced cooling ensures stable performance in compact builds.

EZ-Latch Tool-Free Installation

• Quick-release PCIe slot
• Screwless M.2 installation and heatsinks
  Simplifies building and upgrading your system.

Stylish ICE White Mini-ITX Design
Modern white aesthetic ideal for clean, premium small form factor builds.

Technical Specifications

CPU Support

• Intel LGA1851 Socket
• Supports Intel Core Ultra Processors (Series 2)

Chipset

• Intel B860

Memory

• 2 x DDR5 DIMM Slots
• Up to 128GB Capacity
• Dual Channel Architecture
• Speeds up to 9200MHz (OC)
• XMP Support

Storage

• 1 x M.2 PCIe 5.0 x4 Slot
• 1 x M.2 PCIe 4.0 x4 Slot (rear-mounted)
• 2 x SATA 6Gb/s Ports
• RAID 0 / 1 support

Graphics Outputs

• 1 x Thunderbolt 4 / USB4 Type-C (Display output)
• 1 x DisplayPort (up to 4K@144Hz)
• 1 x HDMI 2.1 (up to 4K@60Hz)

Expansion Slots

• 1 x PCIe 5.0 x16 Slot

Networking

• Realtek 2.5GbE LAN
• WiFi 7 (2.4 / 5 / 6 GHz bands)
• Bluetooth 5.4

Audio

• Realtek HD Audio
• 2/4/5.1/7.1-channel support
• Optical S/PDIF Out

USB Connectivity

• Thunderbolt 4 / USB4 Type-C (rear)
• USB 3.2 Gen2 Type-A
• USB 3.2 Gen1 & USB 2.0 ports

Internal Connectivity

• 2 x M.2 slots
• 2 x ARGB headers (Gen2)
• Fan & pump headers
• TPM header

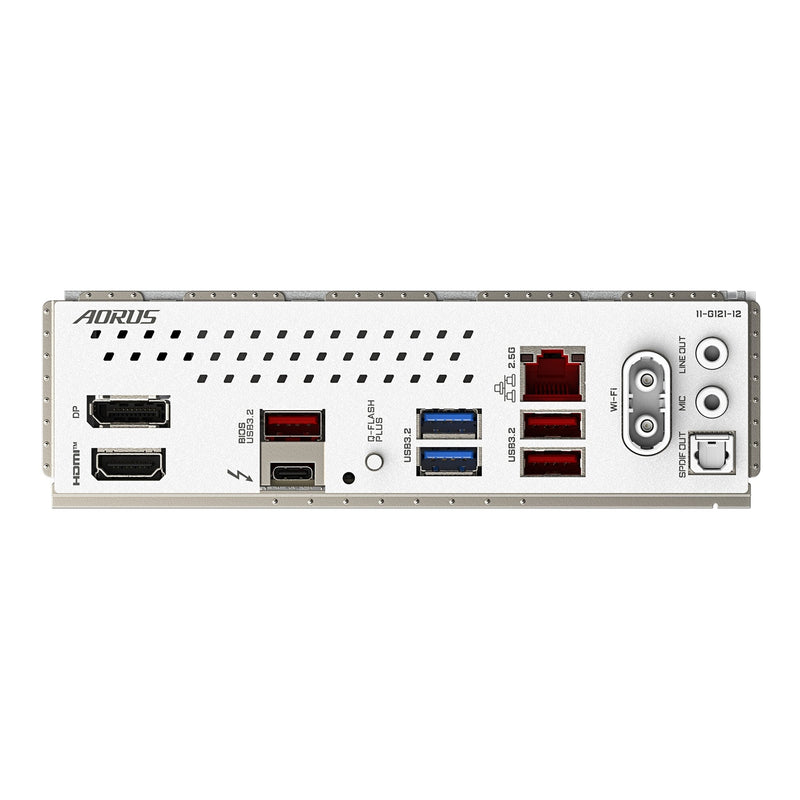

Rear I/O Ports

• DisplayPort & HDMI
• Thunderbolt 4 / USB-C
• USB 3.2 Gen2 & Gen1 ports
• RJ-45 2.5GbE LAN

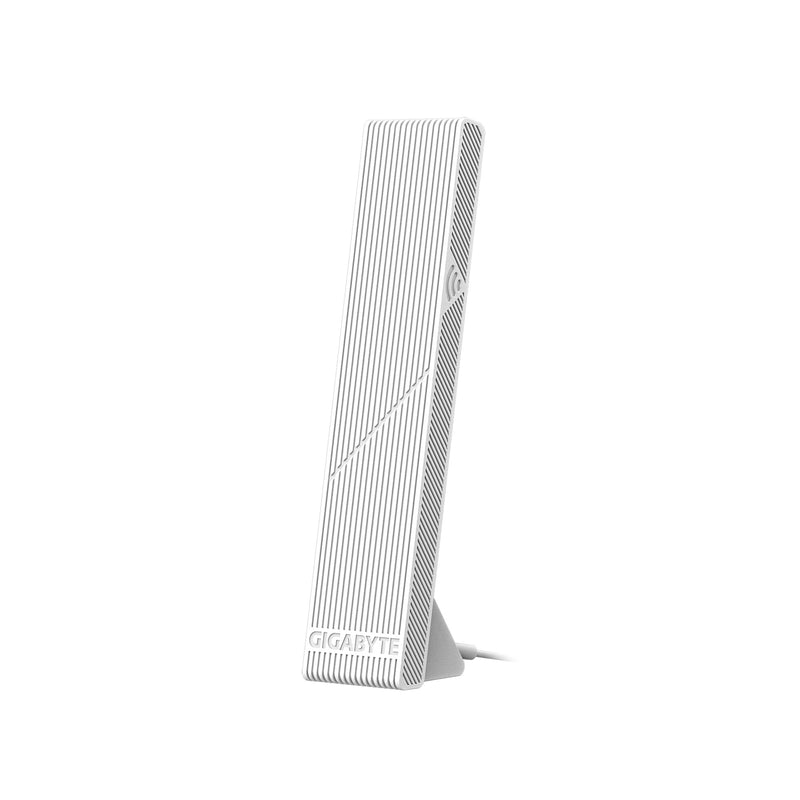

• WiFi antenna connectors
• Optical audio out
• Audio jacks

Form Factor

• Mini-ITX (17.0cm x 17.0cm)

Operating System Support

• Windows 11 (64-bit)

Why Choose the Gigabyte B860I AORUS PRO ICE?

The B860I AORUS PRO ICE is a perfect choice for users who want flagship-level features in a compact Mini-ITX design. With PCIe 5.0, DDR5 memory, WiFi 7 and Thunderbolt 4, it delivers powerful performance and cutting-edge connectivity in a small footprint.

Ideal for compact gaming rigs and premium small form factor builds, it offers high performance, modern features and a sleek design, making it an excellent foundation for next-generation Intel systems.
