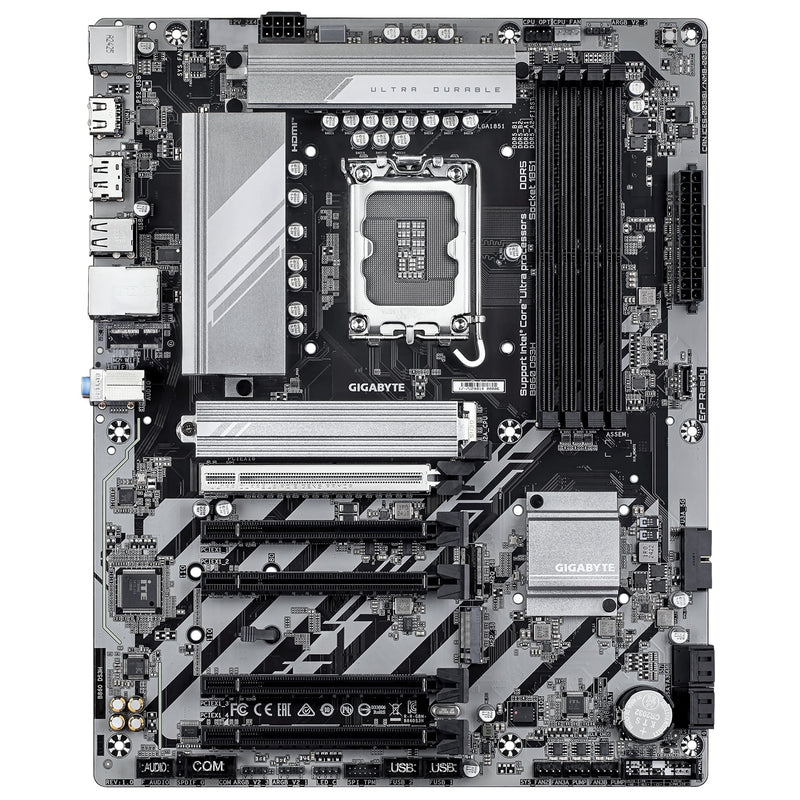

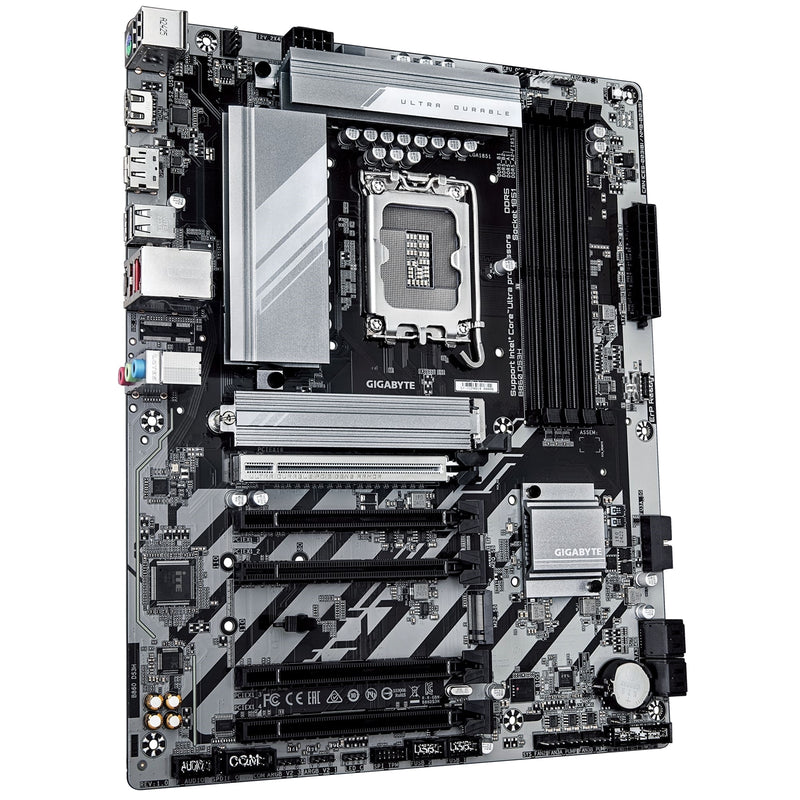

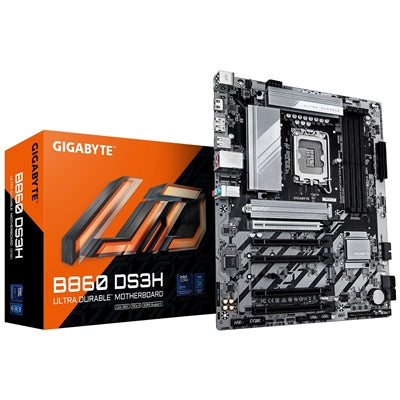

Gigabyte B860 DS3H DDR5 LGA1851 ATX Motherboard WiFi Ready
Gigabyte B860 DS3H Intel LGA1851 ATX Motherboard – DDR5, PCIe 5.0, 2.5GbE
Build next-generation performance with the Gigabyte B860 DS3H Motherboard, engineered for the latest Intel Core Ultra (Series 2) processors. Featuring cutting-edge technologies including DDR5 memory, PCIe 5.0 storage and ultra-fast networking, this ATX motherboard is ideal for high-performance gaming, content creation and professional workstations.
Key Features & Benefits
Supports Intel Core Ultra Processors (LGA1851)
Built for the latest Intel platform, delivering exceptional performance, efficiency and future-ready compatibility for modern computing demands.
Advanced Hybrid VRM Power Design
The 8+1+2 phase digital VRM solution provides stable and efficient power delivery, ensuring reliable performance under heavy workloads.
Next-Generation DDR5 Memory
Supports up to 256GB DDR5 RAM with speeds exceeding 9000MHz (OC), offering incredible bandwidth and responsiveness for demanding applications.
Ultra-Fast PCIe 5.0 Storage
Includes PCIe 5.0 M.2 support, enabling blazing-fast SSD speeds for instant load times and superior data transfer performance.
High-Speed 2.5GbE LAN
Upgrade your network with 2.5 Gigabit Ethernet, delivering faster data transfers, lower latency and improved network performance.
AI Performance Optimisation (AI PerfDrive)
Automatically optimises system settings with custom BIOS profiles, ensuring maximum performance without manual tuning.
EZ-Latch PCIe Quick Release Design
Simplifies GPU installation and removal with a tool-free quick release mechanism.
M.2 Thermal Guard Protection
Maintains optimal SSD performance by preventing overheating and thermal throttling.
Smart Fan 6 Cooling Control
Advanced cooling control system with multiple sensors and hybrid fan headers, ensuring efficient and quiet operation.
Modern Connectivity & Display Support
Includes HDMI 2.1 and DisplayPort 2.1, delivering high-resolution visuals and excellent compatibility with modern displays.
Technical Specifications
CPU Support
- Intel LGA1851 Socket
- Supports Intel Core Ultra Processors (Series 2)
Chipset
- Intel B860
Memory
- 4 x DDR5 DIMM Slots
- Up to 256GB Capacity
- Dual Channel Architecture
- Speeds up to 9066MHz (OC)
- XMP Support
Storage
- 1 x M.2 PCIe 5.0 x4 Slot (CPU)
- 1 x M.2 PCIe 4.0 x4 Slot (Chipset)
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 1 x HDMI 2.1 (up to 4K@60Hz)
- 1 x DisplayPort 2.1 (up to 4K@144Hz)
Expansion Slots
- 1 x PCIe 5.0 x16 Slot
- 4 x PCIe x1 Slots (Gen4)
Networking
- Realtek 2.5GbE LAN
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel
- S/PDIF support
USB Connectivity
- USB-C (USB 3.2 Gen 2x2, rear)
- USB-C header (USB 3.2 Gen1)
- USB 3.2 Gen2 Type-A
- USB 3.2 Gen1 & USB 2.0
Internal Connectivity
- 3 x ARGB headers (Gen2)
- 1 x RGB header
- Multiple fan & pump headers
- TPM header
- SATA & M.2 connectors

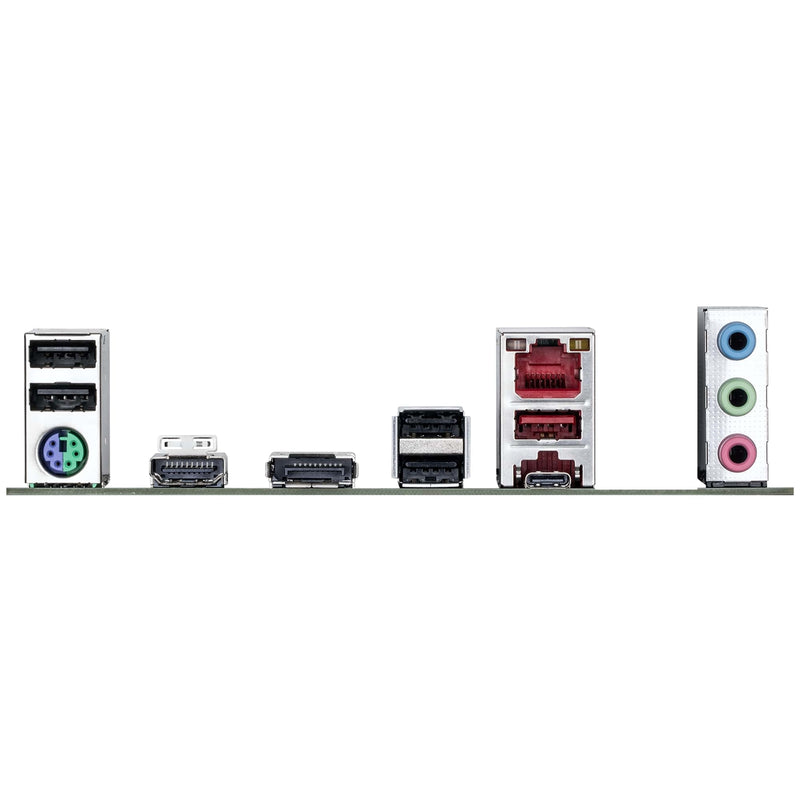

Rear I/O Ports
- HDMI & DisplayPort
- USB-C & USB-A ports
- 2.5GbE LAN
- PS/2 port
- Audio jacks
Form Factor
- ATX (30.5cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte B860 DS3H?
The Gigabyte B860 DS3H is a future-ready motherboard built for performance enthusiasts and professionals. With support for Intel Core Ultra CPUs, PCIe 5.0 storage and ultra-fast DDR5 memory, it provides a powerful foundation for next-generation systems.
Whether you're building a high-performance gaming PC or a professional workstation, this motherboard delivers advanced features, reliable stability and cutting-edge connectivity, making it an excellent long-term investment.
