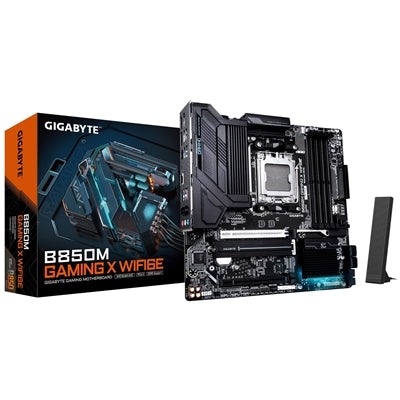

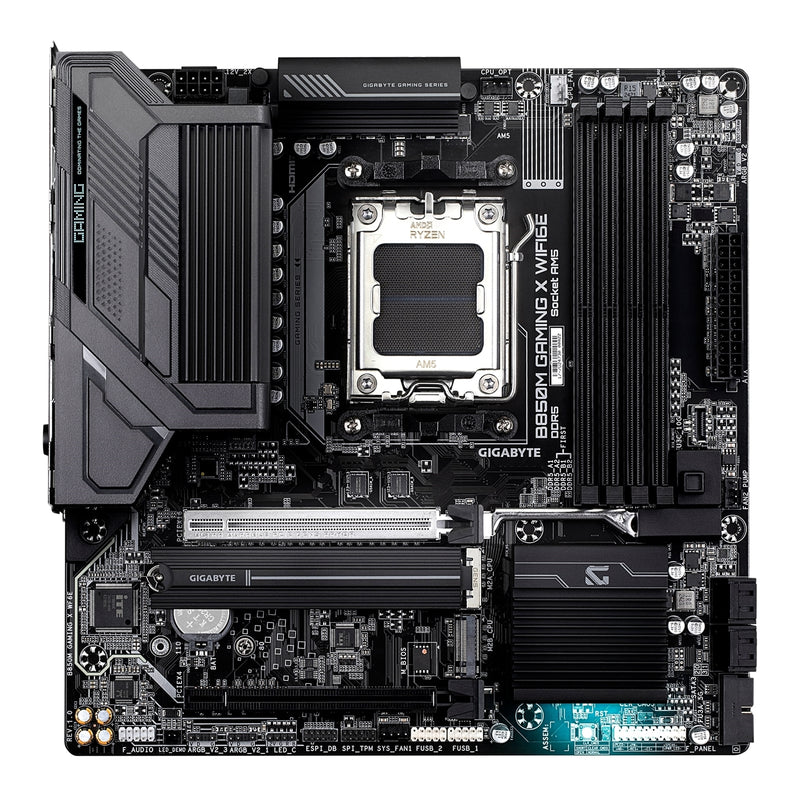

Gigabyte B850M Gaming X WiFi6E AM5 DDR5 Micro ATX Motherboard
Gigabyte B850M GAMING X WIFI6E AM5 Micro-ATX Motherboard – DDR5, PCIe 5.0, WiFi 6E
Build a powerful and future-ready AMD system with the Gigabyte B850M GAMING X WIFI6E, engineered for Ryzen 7000, 8000 and 9000 Series processors. Combining high-speed DDR5 memory, PCIe 5.0 storage and next-generation connectivity, this motherboard delivers strong performance for gaming, multitasking and professional workloads.
Key Features & Benefits
Next-Generation AMD AM5 Platform
Supports Ryzen 7000, 8000 and 9000 Series CPUs, offering exceptional performance and long-term upgrade potential.
High-Speed DDR5 Memory Support
With 4 DDR5 DIMM slots supporting up to 256GB, and speeds up to 8200MHz (OC), this board ensures excellent responsiveness and smooth multitasking.
Advanced Digital VRM Power Design
The 10+2+2 phase VRM solution delivers stable and efficient power, supporting demanding CPUs and consistent performance under load.
PCIe 5.0 & Dual M.2 Storage
Features 2 M.2 slots, including PCIe 5.0 support, enabling ultra-fast SSD performance for rapid boot times and data access.
Integrated WiFi 6E & 2.5GbE LAN
Enjoy next-generation wireless speeds with WiFi 6E alongside 2.5 Gigabit Ethernet for fast, stable and low-latency connectivity.
EZ-Latch Tool-Free Installation
- EZ-Latch Plus & Click enable quick installation of GPUs and SSDs
- Screwless design simplifies upgrades and maintenance
Advanced Thermal Design
Includes VRM Thermal Armour and M.2 Thermal Guard, ensuring efficient cooling and maintaining peak performance.
Triple Display Support
Equipped with 2 DisplayPorts and HDMI, allowing multi-monitor setups ideal for productivity, streaming and content creation.
Smart Fan 6 Cooling Control
Intelligent fan control with multiple temperature sensors, providing efficient cooling and quiet operation.
Technical Specifications
CPU Support
- AMD AM5 Socket
- Ryzen 9000 / 8000 / 7000 Series
Chipset
- AMD B850
Memory
- 4 x DDR5 DIMM Slots
- Up to 256GB Capacity
- Dual Channel Architecture
- Speeds up to 8200MHz (OC)
- AMD EXPO & XMP Support
Storage
- 1 x M.2 PCIe 5.0 x4 Slot
- 1 x M.2 PCIe 4.0 x4 Slot
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 2 x DisplayPort (up to 4K@144Hz)
- 1 x HDMI 2.1 (up to 4K@60Hz)
- Triple display support
Expansion Slots
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe x16 (x4 mode)
Networking
- Realtek 2.5GbE LAN
- WiFi 6E (2.4 / 5 / 6 GHz)
- Bluetooth 5.3
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
USB Connectivity
- USB-C (rear & internal header, USB 3.2 Gen2)
- USB 3.2 Gen2 & Gen1 ports
- USB 2.0 ports
Internal Connectivity
- 3 x ARGB headers (Gen2)
- 1 x RGB header
- Multiple fan & pump headers
- TPM header

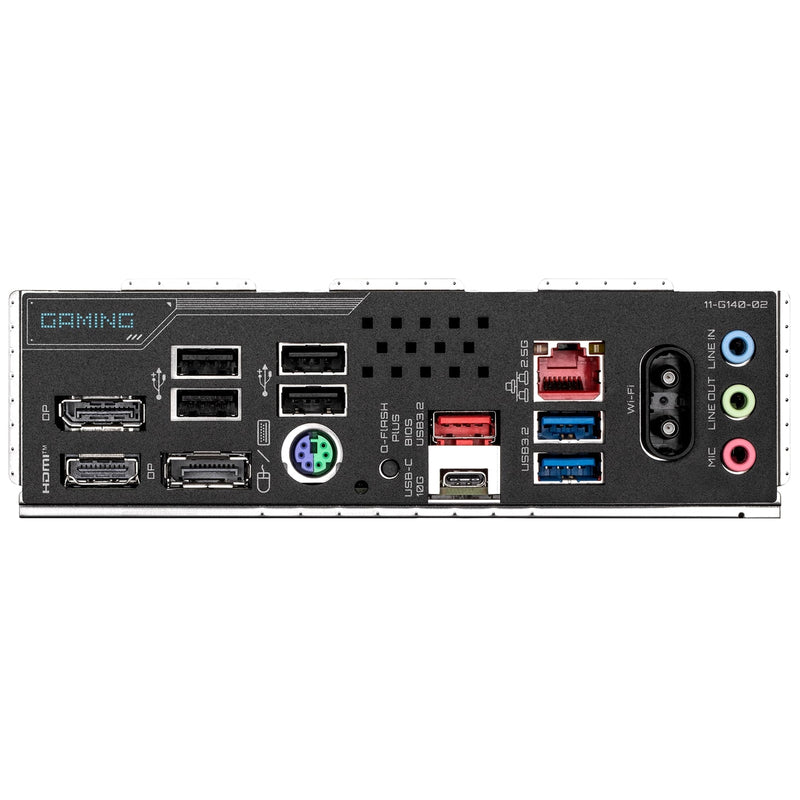

Rear I/O Ports
- 2 x DisplayPort
- 1 x HDMI
- USB-C & USB-A ports
- 2.5GbE LAN
- WiFi antenna connectors
- Audio jacks
Form Factor
- Micro-ATX (24.4cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte B850M GAMING X WIFI6E?
The Gigabyte B850M GAMING X WIFI6E is a high-performance, feature-rich motherboard designed for modern AMD builds. With DDR5 memory, PCIe 5.0 storage and advanced networking, it delivers exceptional speed, responsiveness and flexibility.
Perfect for gamers, professionals and advanced users, it provides reliable performance, efficient cooling and future-ready features, making it an excellent foundation for any powerful AM5 system.
