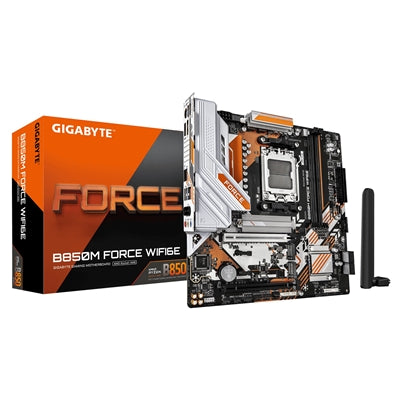

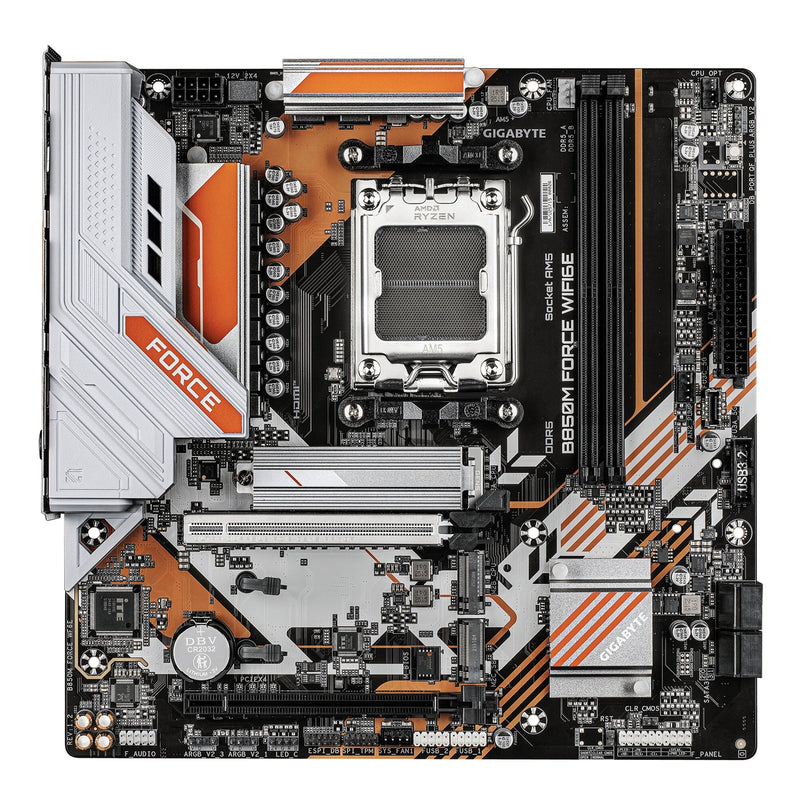

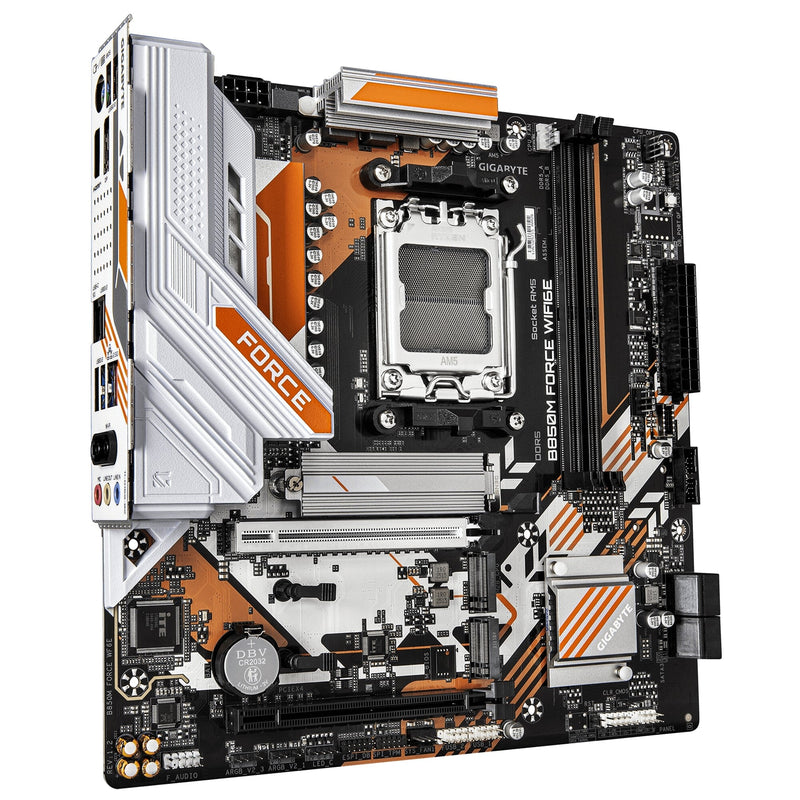

Gigabyte B850M FORCE WiFi6E AM5 DDR5 Micro ATX Motherboard
Gigabyte B850M FORCE WIFI6E AM5 Micro-ATX Motherboard – DDR5, PCIe 5.0, WiFi 6E
Build a powerful and compact AMD system with the Gigabyte B850M FORCE WIFI6E, a feature-rich micro‑ATX motherboard designed for Ryzen 7000, 8000 and 9000 Series processors. With advanced VRM design, ultra-fast storage and next-generation connectivity, this board delivers excellent performance for gaming and productivity.
Key Features & Benefits
Next-Gen AMD AM5 Platform Compatibility
Supports Ryzen 7000, 8000 and 9000 Series CPUs, delivering exceptional performance, efficiency and future upgrade potential.
High-Speed DDR5 Memory Performance
Supports up to 128GB DDR5 RAM with speeds up to 9600MT/s (OC), enabling faster multitasking, improved system responsiveness and high-performance computing.
Triple M.2 Storage with PCIe 5.0 Support
Equipped with 3 M.2 slots, including PCIe 5.0 x4, delivering ultra-fast NVMe storage speeds and flexible expansion options.
Advanced 8+2+2 Phase VRM Design
Provides stable and efficient power delivery, ensuring consistent performance during gaming and demanding workloads.
Integrated WiFi 6E & 2.5GbE LAN
- WiFi 6E (802.11ax) for faster wireless speeds and lower latency
-
2.5GbE LAN for high-speed wired networking
Ideal for modern connectivity needs.
PCIe 5.0 Graphics Support
Includes a PCIe 5.0 x16 slot, offering maximum bandwidth for next-generation GPUs.
EZ-Latch Quick Release Design
Simplifies hardware installation with tool-free GPU and SSD installation mechanisms.
Smart Fan Cooling System
Advanced cooling controls and multiple fan headers keep temperatures optimised for stable performance.
Modern Display Connectivity
Includes HDMI and DisplayPort outputs, supporting high-resolution displays for productivity and entertainment.
X3D Turbo Mode Support
Optimises performance on supported Ryzen X3D processors, enhancing gaming efficiency.
Technical Specifications
CPU Support
- AMD AM5 Socket
- Ryzen 9000 / 8000 / 7000 Series
Chipset
- AMD B850
Memory
- 2 x DDR5 DIMM Slots
- Up to 128GB Capacity
- Dual Channel Architecture
- Speeds up to 9600MHz (OC)
- AMD EXPO & XMP Support
Storage
- 1 x M.2 PCIe 5.0 x4 Slot
- 2 x M.2 PCIe 4.0 Slots
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 1 x HDMI 2.1 (up to 4K@60Hz)
- 1 x DisplayPort (up to 4K@144Hz)
Expansion Slots
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 (x4 mode)
Networking
- Realtek 2.5GbE LAN
- WiFi 6E (2.4 / 5 / 6 GHz)
- Bluetooth 5.3
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
USB Connectivity
- USB-C (rear & internal header)
- USB 3.2 Gen2 Type-A
- USB 3.2 Gen1 & USB 2.0 ports
Internal Connectivity
- 3 x M.2 slots
- 3 x ARGB headers (Gen2)
- 1 x RGB header
- Fan & pump headers
- TPM header

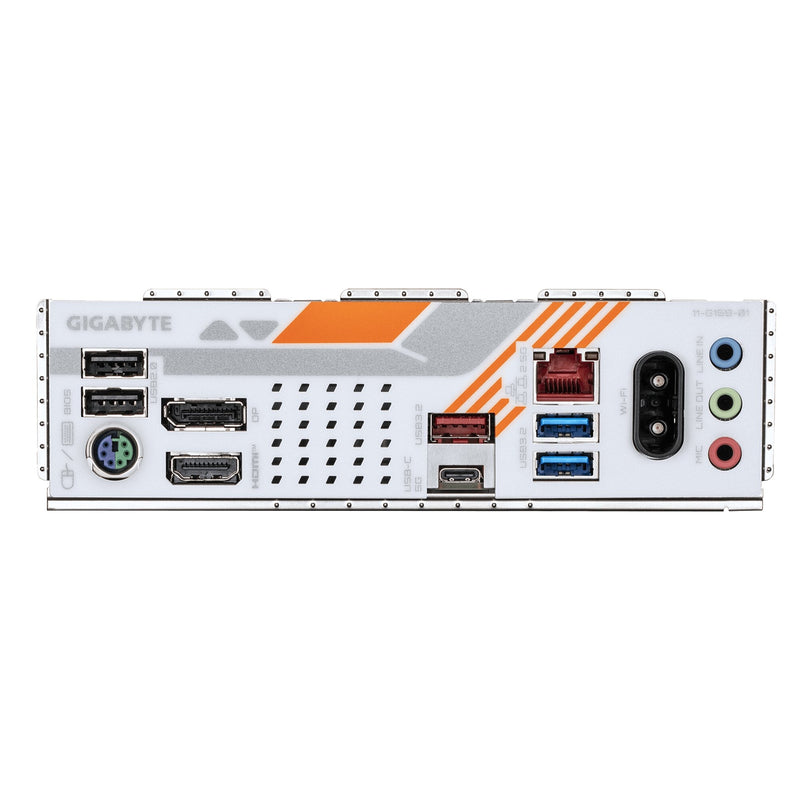

Rear I/O Ports
- HDMI & DisplayPort
- USB-C & USB-A ports
- 2.5GbE LAN
- WiFi antenna connectors
- Audio jacks
- PS/2 port
Form Factor
- Micro-ATX (24.4cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte B850M FORCE WIFI6E?
The Gigabyte B850M FORCE WIFI6E is a compact yet powerful motherboard that brings high-end features to micro‑ATX builds. With DDR5 memory, PCIe 5.0 storage, strong VRM design and modern connectivity, it delivers excellent performance and versatility.
Perfect for gamers and enthusiasts building a space-efficient system, it offers reliable performance, future-ready features and convenient build options, making it a strong foundation for any modern AM5 PC.
