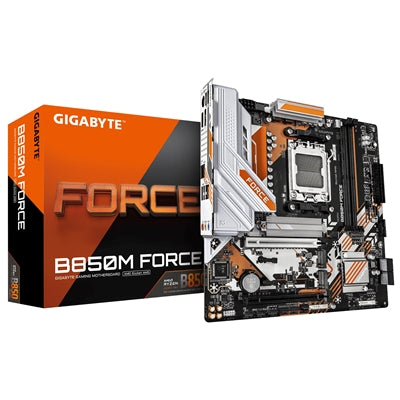

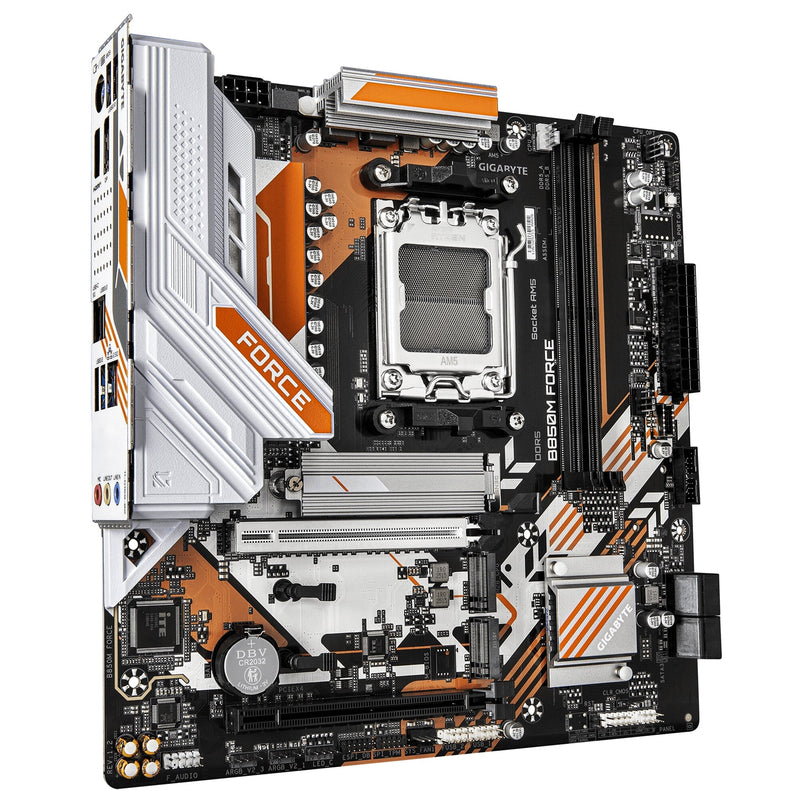

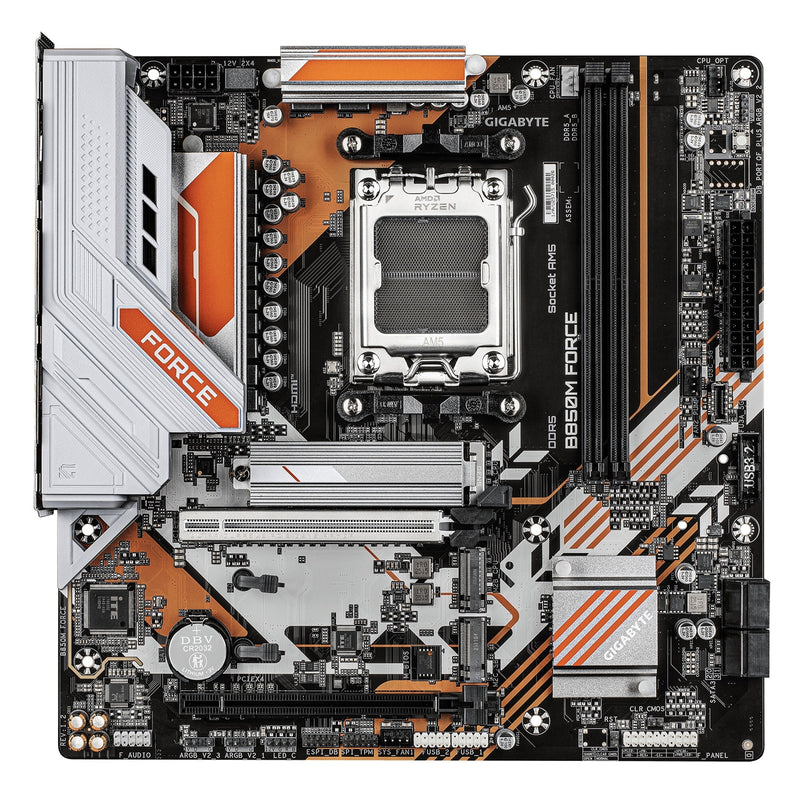

Gigabyte B850M FORCE AM5 DDR5 PCIe 5.0 Micro ATX Motherboard
Gigabyte B850M FORCE AM5 Micro-ATX Motherboard – DDR5, PCIe 5.0, 2.5GbE Performance
Build a powerful and future-ready AMD system with the Gigabyte B850M FORCE Motherboard, designed for Ryzen 7000, 8000 and 9000 Series processors. Combining strong power delivery, next-generation storage and high-speed networking, this micro‑ATX board is ideal for gaming, content creation and high-performance computing.
Key Features & Benefits
Next-Gen AMD AM5 Compatibility
Supports AMD Ryzen 7000, 8000 and 9000 Series CPUs, delivering top-tier performance and long-term upgrade potential.
High-Performance DDR5 Memory
Supports up to 128GB DDR5 RAM with extreme speeds up to 9600MHz (OC), ensuring outstanding responsiveness and multitasking performance.
Advanced PCIe 5.0 Storage
Includes a PCIe 5.0 M.2 slot, enabling ultra-fast next-generation SSDs, alongside additional PCIe 4.0 M.2 slots for expanded storage.
Triple M.2 Storage Design
With 3 M.2 slots, this board provides flexible storage configurations for high-speed performance and large capacity setups.
Enhanced VRM Power Delivery
The 8+2+2 phase digital VRM solution ensures stable and efficient power, supporting demanding workloads and gaming performance.
X3D Turbo Mode for Gaming Boost
Unlock additional performance on compatible processors with X3D Turbo Mode, enhancing gaming responsiveness and efficiency.
2.5GbE High-Speed Networking
Enjoy faster, low-latency wired connectivity with 2.5 Gigabit Ethernet, ideal for gaming, streaming and large file transfers.
Smart Fan 6 Cooling System
Advanced cooling management with multiple sensors and hybrid fan headers, ensuring optimal thermal performance and quiet operation.
EZ-Latch Quick Release Design
Tool-free PCIe slot design makes GPU installation and removal quick and simple, improving overall build experience.
Modern Display Connectivity
Includes HDMI and DisplayPort outputs, supporting high-resolution displays for productivity and entertainment.
Technical Specifications
CPU Support
- AMD AM5 Socket
- Ryzen 9000 / 8000 / 7000 Series
Chipset
- AMD B850
Memory
- 2 x DDR5 DIMM Slots
- Up to 128GB Capacity
- Dual Channel Architecture
- Speeds up to 9600MHz (OC)
- AMD EXPO & XMP Support
Storage
- 1 x M.2 PCIe 5.0 x4 Slot
- 2 x M.2 PCIe 4.0 Slots
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 1 x HDMI 2.1 (up to 4K@60Hz)
- 1 x DisplayPort (up to 4K@144Hz)
Expansion Slots
- 1 x PCIe 5.0 x16
- 1 x PCIe 4.0 x16 (x4 mode)
Networking
- Realtek 2.5GbE LAN
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
USB Connectivity
- USB-C (rear & internal header)
- USB 3.2 Gen2 & Gen1 ports
- USB 2.0 ports
Internal Connectivity
- 3 x ARGB headers (Gen2)
- 1 x RGB header
- Multiple fan & pump headers
- TPM header

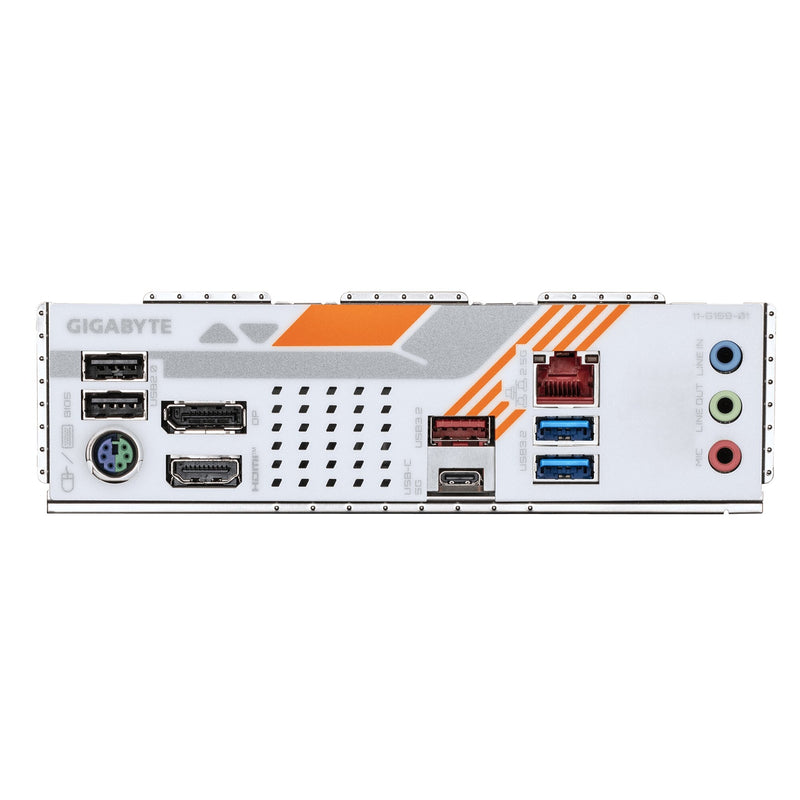

Rear I/O Ports
- HDMI & DisplayPort
- USB-C & USB-A ports
- 2.5GbE LAN
- Audio jacks
- PS/2 port
Form Factor
- Micro-ATX (24.4cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte B850M FORCE?
The Gigabyte B850M FORCE is a high-performance, future-ready motherboard built for modern AMD systems. With PCIe 5.0 storage, DDR5 memory and powerful VRM design, it offers the performance and reliability needed for gaming and professional use.
Perfect for users who want fast storage, strong networking and upgrade flexibility, it provides a solid foundation for building a powerful and efficient PC in a compact micro‑ATX format.
