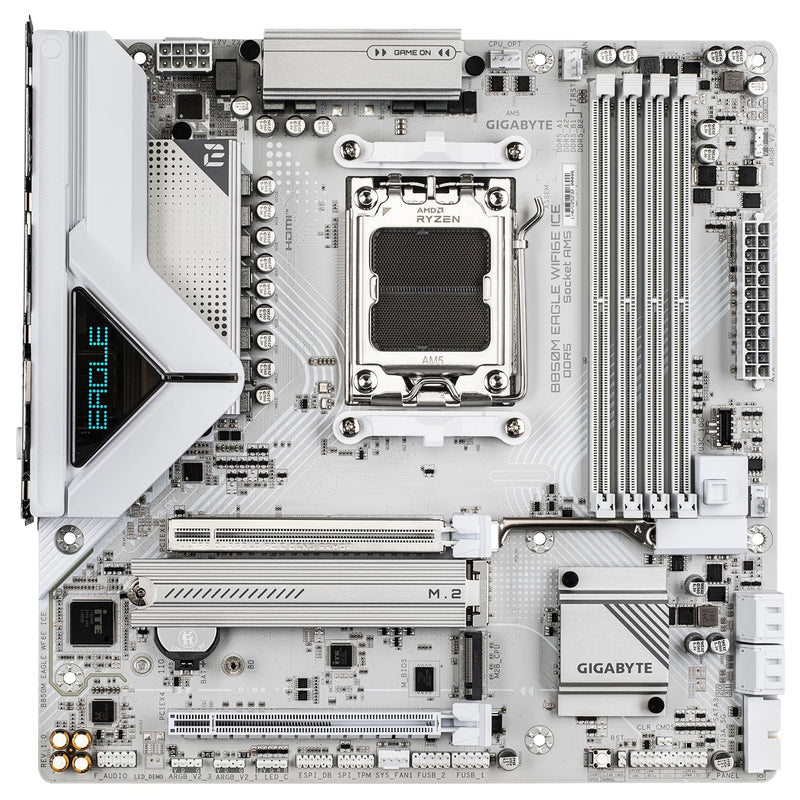

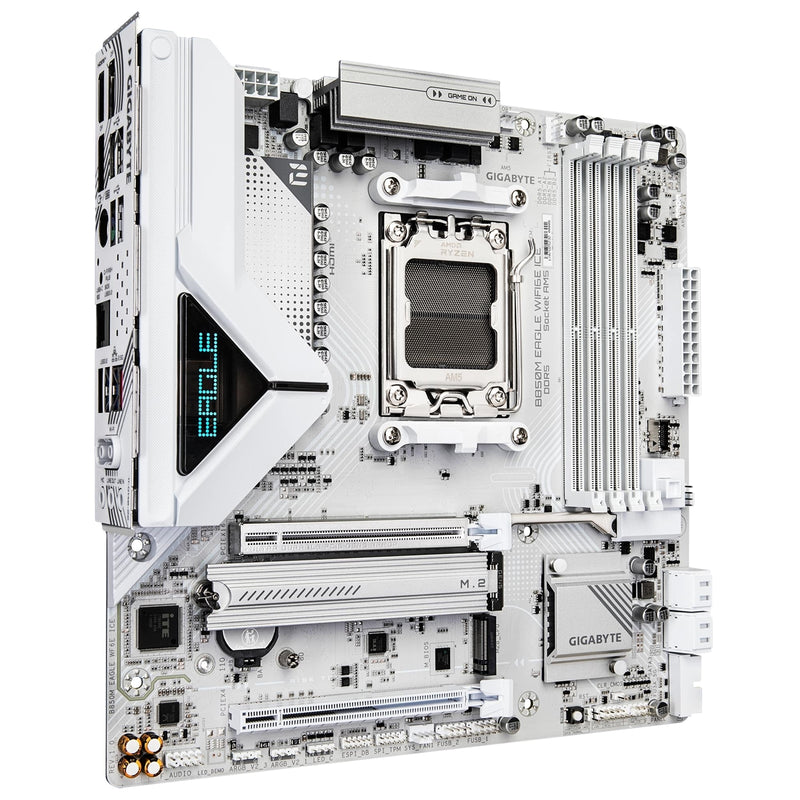

Gigabyte B850M EAGLE WIFI6E ICE AM5 DDR5 Micro ATX Motherboard
Compact AM5 Performance with DDR5, PCIe 5.0 and Wi-Fi 6E
The Gigabyte B850M EAGLE WIFI6E ICE is a feature-rich Micro ATX motherboard built for gamers, PC enthusiasts and DIY builders looking to unlock the full potential of AMD Ryzen processors. Based on the AMD B850 chipset, it supports AMD Ryzen 9000, 8000 and 7000 Series processors, delivering a strong foundation for gaming, content creation and everyday productivity.
Featuring DDR5 memory support up to 8200MT/s, PCIe 5.0 graphics and storage, Wi-Fi 6E, 2.5GbE LAN, advanced thermal protection and Gigabyte's latest DIY-friendly features, the B850M EAGLE WIFI6E ICE offers outstanding performance and value in a compact Micro ATX form factor.
Finished in a stylish white "ICE" design, it is an ideal choice for modern gaming and creator PC builds.
Key Features & Benefits
AMD Ryzen 9000, 8000 & 7000 Series Ready
Built on the latest AM5 platform, the motherboard supports:
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
- AMD Ryzen™ 7000 Series Processors
Delivering exceptional performance for:
- Gaming
- Streaming
- Content creation
- Productivity
- AI-assisted workloads
X3D Turbo Mode Performance Enhancement
Gigabyte's innovative X3D Turbo Mode provides one-click performance optimisation designed to maximise gaming potential.
Benefits include:
- Higher gaming frame rates
- Improved responsiveness
- Reduced latency
- Simplified performance tuning
DDR5 Memory Support up to 8200MT/s
Experience next-generation memory speeds with:
- 4 × DDR5 DIMM Slots
- Up to 256GB Capacity
- DDR5 Up to 8200MT/s (OC)
- AMD EXPO™ Support
- XMP Support
Providing improved bandwidth and system responsiveness for demanding applications.
Stable 8+2+2 Digital Power Design
The motherboard features a robust 8+2+2 phase VRM design, delivering stable power for modern Ryzen CPUs.
Advantages include:
- Reliable system stability
- Enhanced efficiency
- Better thermal performance
- Strong support for gaming workloads
PCIe 5.0 Graphics Support
The primary PCIe slot supports:
- PCIe 5.0 x16
Providing compatibility with current and future high-performance graphics cards.
The reinforced PCIe UD Slot helps improve durability when installing larger GPUs.
Ultra-Fast PCIe 5.0 Storage
Storage options include:
- 2 × M.2 SSD Slots
- 1 × PCIe 5.0 x4 M.2 Slot
- 1 × PCIe 4.0 x4 M.2 Slot
- 4 × SATA 6Gb/s Ports
Perfect for:
- Fast boot drives
- Gaming storage
- Large project files
- Content creation workflows
Next-Generation Wi-Fi 6E
Integrated Wi-Fi 6E provides faster wireless networking with access to the 6GHz frequency band.
Features include:
- Wi-Fi 6E (802.11ax)
- 2.4GHz, 5GHz and 6GHz Support
- 160MHz Channel Support
- Bluetooth 5.3
- High-Gain Antenna Support
2.5 Gigabit Ethernet
The integrated Realtek® 2.5GbE LAN controller delivers:
- Lower latency
- Faster file transfers
- Improved online gaming performance
- Better network responsiveness
Advanced Cooling Design
The comprehensive thermal solution includes:
- Full Metal VRM Heatsinks
- M.2 Thermal Guard
- VRM Thermal Armour
- Multiple Cooling Header Connections
Helping maintain stable temperatures during high-performance workloads.
DIY-Friendly Installation Features
Gigabyte's builder-focused innovations simplify system assembly:
- EZ-Latch Plus Tool-Free PCIe Release
- EZ-Latch Click M.2 Installation
- WiFi EZ-Plug Antenna Design
- Q-Flash Plus BIOS Updates
- Pre-Fitted I/O Shield
Technical Specifications
Processor Support
- AMD Socket AM5
- AMD Ryzen™ 9000 Series
- AMD Ryzen™ 8000 Series
- AMD Ryzen™ 7000 Series
Chipset
- AMD B850
Memory
- 4 × DDR5 DIMM Slots
- Up to 256GB Capacity
- DDR5 Up to 8200MT/s (OC)
- AMD EXPO™ Support
- XMP Support
- Dual Channel Architecture
Graphics Outputs
- 1 × HDMI 2.1
- 2 × DisplayPort 1.4
Maximum Supported Resolutions:
- HDMI: 4096 × 2160 @ 60Hz
- DisplayPort: 3840 × 2160 @ 144Hz
Supports up to three displays simultaneously (CPU dependent).
Expansion Slots
CPU Connected
- 1 × PCIe 5.0 x16 Slot
Chipset Connected
- 1 × PCIe 3.0 x4 Slot
Storage
M.2
- 1 × PCIe 5.0 x4 M.2 Slot
- 1 × PCIe 4.0 x4 M.2 Slot
SATA
- 4 × SATA 6Gb/s Ports
RAID Support
- RAID 0
- RAID 1
- RAID 5 (Ryzen 9000 Series)
- RAID 10
Networking
Wired Networking
- Realtek® 2.5GbE LAN
Wireless Networking
- Realtek® Wi-Fi 6E RTL8852CE
- Bluetooth 5.3
- 2.4GHz / 5GHz / 6GHz Support
Audio
- Realtek® High Definition Audio Codec
- 2 / 4 / 5.1 / 7.1-Channel Audio
USB Connectivity
Rear Panel
- 1 × USB-C 3.2 Gen 2
- 1 × USB 3.2 Gen 2 Type-A
- 2 × USB 3.2 Gen 1
- 4 × USB 2.0
Internal Headers
- USB-C 3.2 Gen 2 Front Panel Header
- USB 3.2 Gen 1 Header
- USB 2.0 Headers
Internal Connectors
- 24-Pin ATX Power Connector
- 8-Pin CPU Power Connector
- 2 × M.2 Connectors
- 4 × SATA Ports
- RGB Header
- 3 × ARGB Gen2 Headers
- TPM Header
- Multiple Fan & Pump Headers

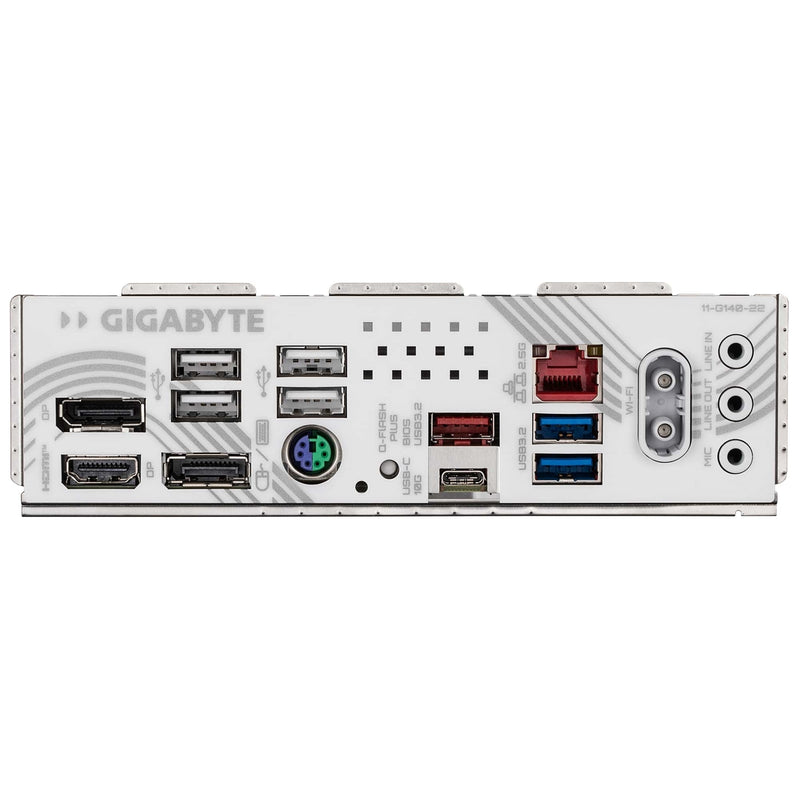

Rear I/O Ports
- 1 × HDMI 2.1
- 2 × DisplayPort 1.4
- 1 × USB-C 3.2 Gen 2
- 1 × USB 3.2 Gen 2 Type-A
- 2 × USB 3.2 Gen 1
- 4 × USB 2.0
- 1 × PS/2 Combo Port
- 1 × RJ45 2.5GbE LAN
- 2 × Wi-Fi Antenna Connectors
- 3 × Audio Jacks
- Q-Flash Plus Button
BIOS Features
- AMI UEFI BIOS
- Q-Flash
- Q-Flash Plus
- Smart Backup
- Gigabyte Control Center (GCC)
Operating System Support
- Windows 11 64-bit
- Windows 10 64-bit
Form Factor
- Micro ATX
- 244 × 244 mm

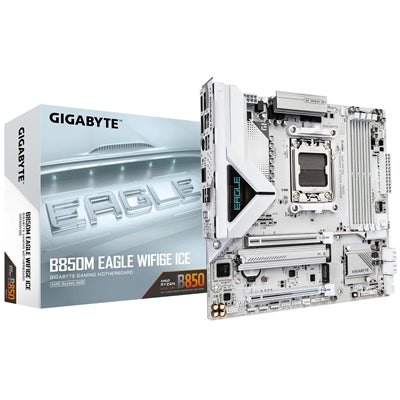

What's in the Box?
- Gigabyte B850M EAGLE WIFI6E ICE Motherboard
- Pre-Fitted I/O Shield
- Wi-Fi Antenna
- Documentation
- Installation Accessories
Why Choose the Gigabyte B850M EAGLE WIFI6E ICE?
The Gigabyte B850M EAGLE WIFI6E ICE delivers an excellent balance of performance, connectivity and value for AMD AM5 builds. With support for Ryzen 9000 Series processors, DDR5 memory up to 8200MT/s, PCIe 5.0 graphics and storage, Wi-Fi 6E, 2.5GbE LAN and advanced thermal solutions, it provides everything needed for a modern gaming or productivity system.
Its compact Micro ATX form factor, stylish white finish and DIY-friendly design make it an excellent choice for gamers and builders looking to create a powerful, future-ready PC without compromising on features.
