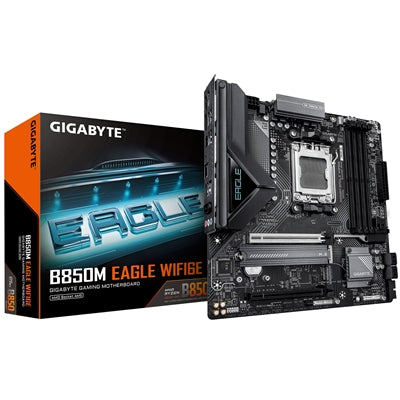

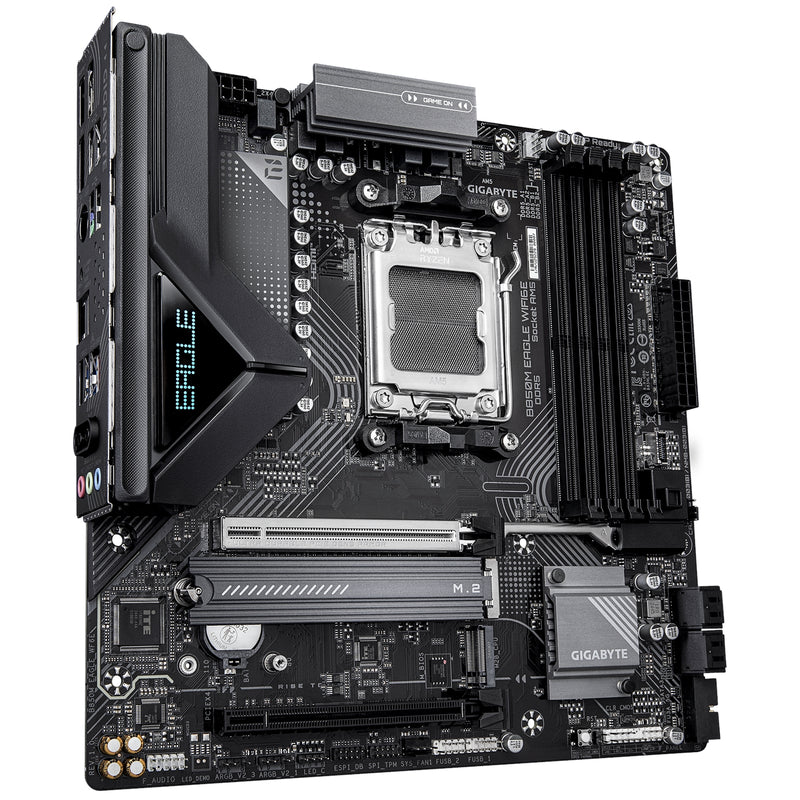

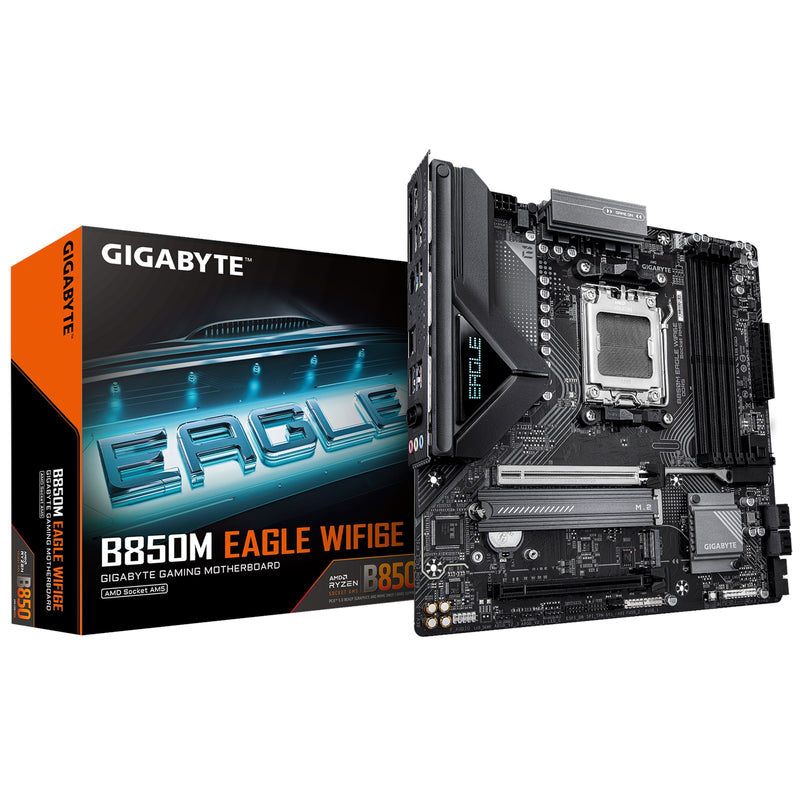

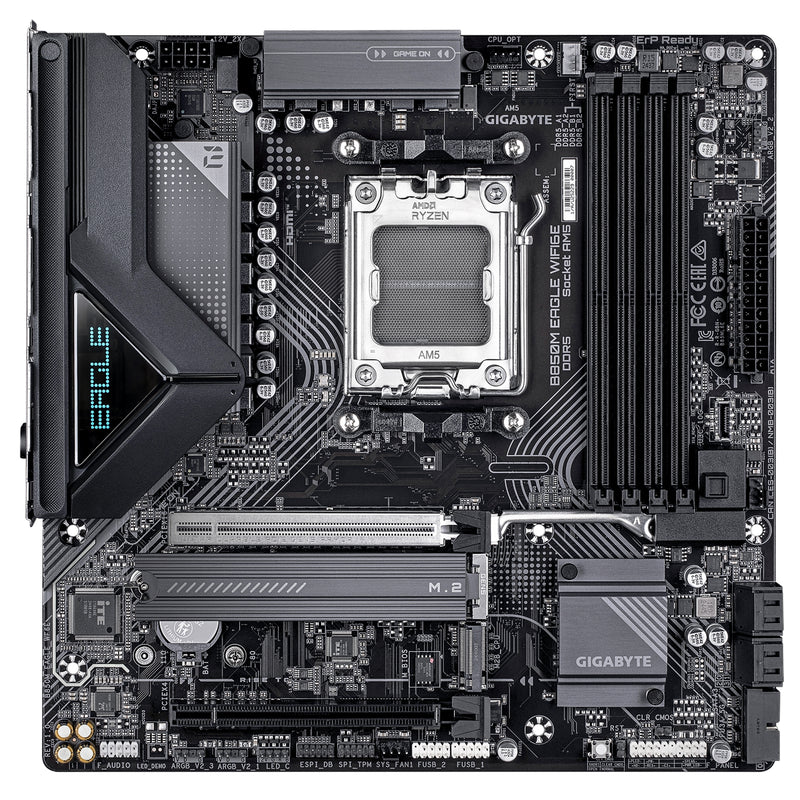

Gigabyte B850M Eagle WiFi6E AM5 Micro ATX DDR5 Motherboard
Gigabyte B850M Eagle WiFi6E AM5 Micro ATX Motherboard
Next-Gen AMD AM5 Performance | DDR5, PCIe 5.0, WiFi 6E Connectivity
The Gigabyte B850M Eagle WiFi6E is engineered for modern AMD Ryzen platforms, delivering high-speed connectivity, advanced thermal design, and exceptional performance for gaming and productivity. Built around the AMD B850 chipset, this Micro ATX motherboard supports the latest Ryzen 9000, 8000 and 7000 series processors, combining cutting-edge features with user-friendly design.
Key Features & Benefits
✔ Supports AMD Ryzen 9000, 8000 and 7000 series processors (AM5)
✔ X3D Turbo Mode boosts gaming performance with one-click optimisation
✔ DDR5 memory support up to 8200MT/s (OC) for maximum system speed
✔ PCIe 5.0 x16 slot for next-generation graphics cards
✔ Dual M.2 slots including PCIe 5.0 for ultra-fast SSD storage
✔ 2.5GbE LAN and WiFi 6E for high-speed wired and wireless networking
✔ Triple display output with HDMI and 2x DisplayPort
✔ Advanced thermal design with VRM heatsinks and M.2 thermal guards
✔ EZ-Latch design for tool-less M.2 and PCIe installation
✔ Durable build quality for long-term stability and reliability
Technical Specifications
Chipset: AMD B850
Socket: AM5
CPU Support:
AMD Ryzen 9000 / 8000 / 7000 Series
Memory:
4 x DDR5 DIMM slots (up to 256GB)
Supports up to 8200MT/s (OC)
Dual-channel architecture
AMD EXPO and XMP support

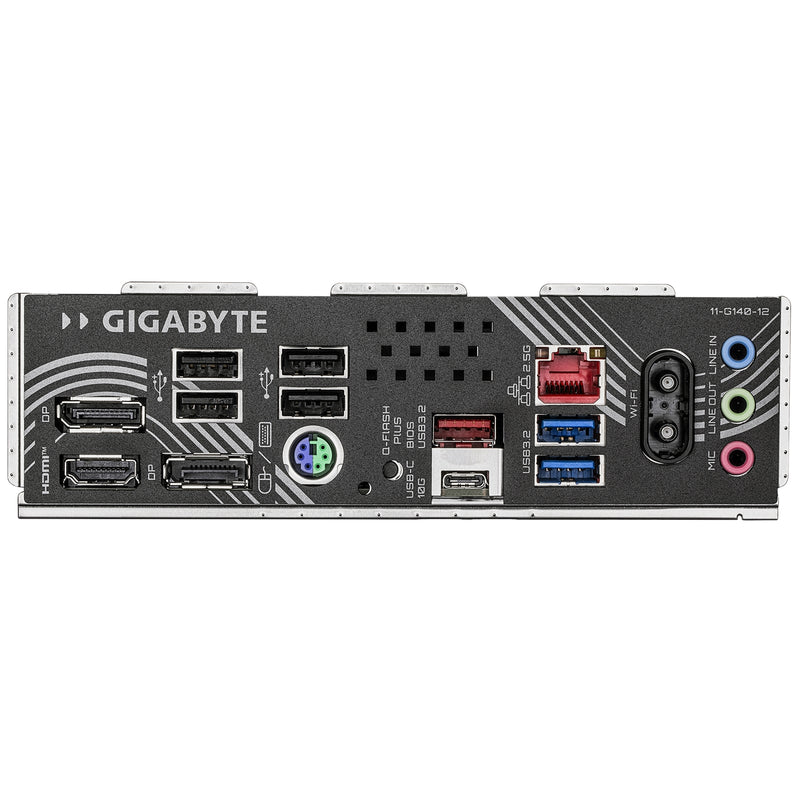

Graphics Output:
1 x HDMI (up to 4K 60Hz)
2 x DisplayPort (up to 4K 144Hz)
Triple display support
Expansion Slots:
1 x PCIe 5.0 x16 slot
1 x PCIe 3.0 x16 (x4 mode)
Storage:
2 x M.2 slots (PCIe 5.0 & 4.0 support)
4 x SATA 6Gb/s ports
RAID 0, 1, 5, 10 support
Networking:
2.5GbE LAN (Realtek)
WiFi 6E (2.4/5/6GHz)
Bluetooth 5.3
USB Connectivity:
USB 3.2 Gen 2 Type-C and Type-A
USB 3.2 Gen 1 ports
USB 2.0 ports
Audio:
High Definition Audio (2/4/5.1/7.1-channel)
Internal Connectors:
RGB and ARGB headers
USB Type-C header
Multiple fan and pump headers
TPM support
Form Factor:
Micro ATX (24.4cm x 24.4cm)
Operating System Support:
Windows 11 / Windows 10 64-bit
Why Choose the Gigabyte B850M Eagle WiFi6E?
This motherboard delivers an excellent balance of performance, connectivity, and ease of use, making it ideal for modern PC builds. With PCIe 5.0 support, DDR5 memory, and ultra-fast networking, it is ready for both current and future hardware.
The inclusion of features like X3D Turbo Mode, advanced cooling solutions, and tool-less installation makes it especially appealing for gamers and builders who want high performance without complexity. Reliable, fast, and future-ready, it forms a strong foundation for any AM5 system.
