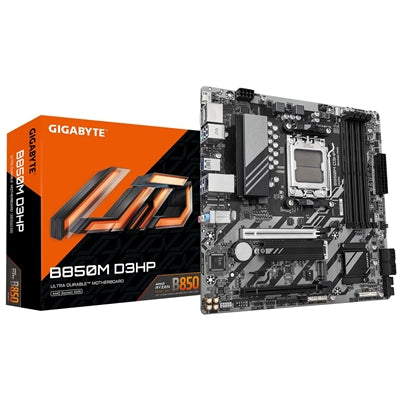

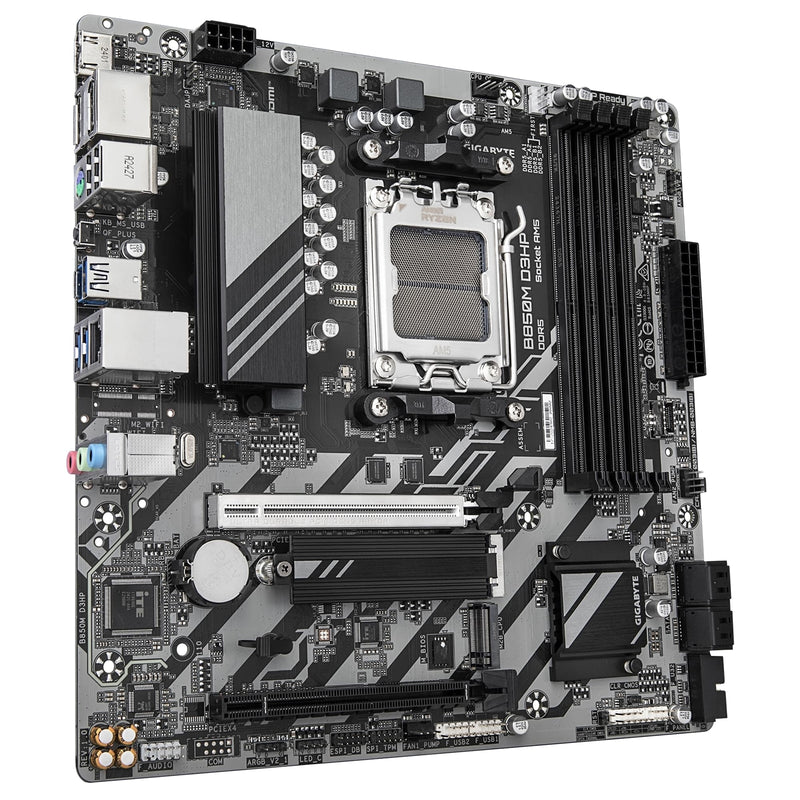

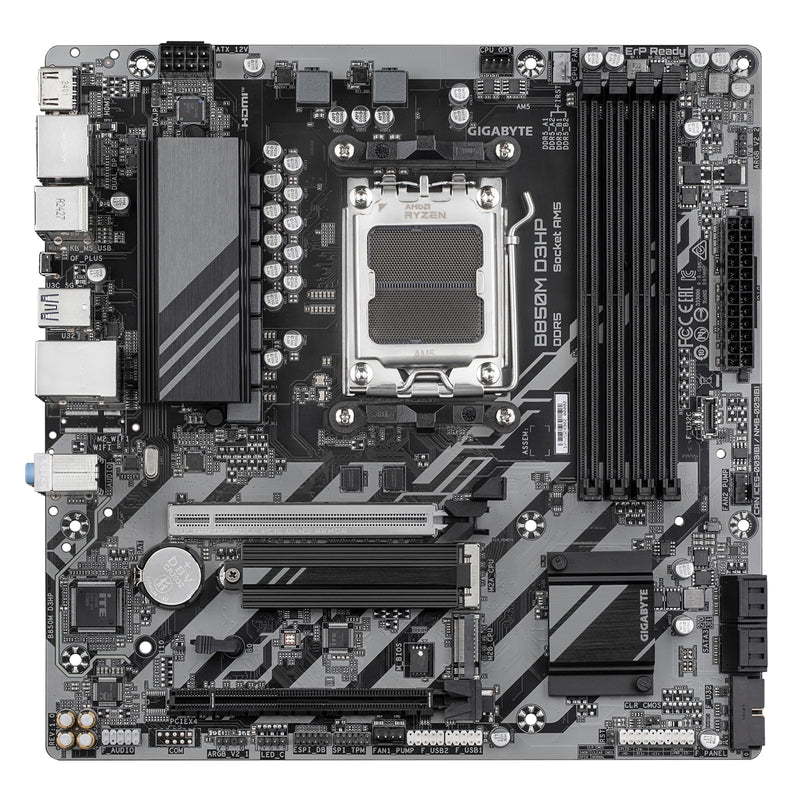

Gigabyte B850M D3HP AM5 DDR5 PCIe 5.0 Micro ATX Motherboard

Gigabyte B850M D3HP AM5 Micro-ATX Motherboard – DDR5, PCIe 5.0, Triple Display

Build your next-generation AMD system with the Gigabyte B850M D3HP Motherboard, designed for Ryzen 7000, 8000 and 9000 Series processors. Combining modern performance, high-speed connectivity and versatile display support, this motherboard offers a reliable platform for gaming, productivity and everyday computing.

Key Features & Benefits

Supports Latest AMD Ryzen Processors
Built on the AM5 socket, supporting Ryzen 7000, 8000 and 9000 Series CPUs for powerful and future-ready performance.

DDR5 Memory Performance
Supports up to 256GB DDR5 RAM with speeds up to 8200MHz (OC), delivering faster data access, improved responsiveness and smooth multitasking.

PCIe 5.0 Storage Capability
Includes PCIe 5.0 M.2 support, enabling ultra-fast SSD speeds for rapid boot times, reduced load times and enhanced system performance.

X3D Turbo Mode for Gaming
Unlock enhanced CPU performance with X3D Turbo Mode, designed to maximise gaming potential on supported Ryzen processors.

Dual M.2 Storage Options
Equipped with 2 M.2 slots (PCIe 5.0 + PCIe 4.0), offering flexible, high-speed storage expansion.

Triple Display Output
Supports dual DisplayPort plus HDMI, enabling multi-monitor setups ideal for productivity, multitasking and creative workflows.

Stable Power Delivery Design
The 5+2+2 phase VRM solution provides consistent and efficient power for reliable system performance.

Smart Fan 6 Cooling Technology
Advanced cooling system with temperature sensors and hybrid fan headers, ensuring optimised airflow and quiet operation.

EZ-Latch Quick Release Design
Simplifies GPU installation and removal with a tool-free PCIe release mechanism.

Reliable Gigabit Networking
Integrated Realtek GbE LAN ensures stable wired connectivity for work, gaming and streaming.

Technical Specifications

CPU Support

• AMD AM5 Socket
• Ryzen 9000 / 8000 / 7000 Series

Chipset

• AMD B850

Memory

• 4 x DDR5 DIMM Slots
• Up to 256GB Capacity
• Dual Channel Architecture
• Speeds up to 8200MHz (OC)
• AMD EXPO & XMP Support

Storage

• 1 x M.2 PCIe 5.0 x4 Slot
• 1 x M.2 PCIe 4.0 x4 Slot
• 4 x SATA 6Gb/s Ports
• RAID 0 / 1 / 5 / 10 Support

Graphics Outputs

• 2 x DisplayPort (up to 4K@144Hz)
• 1 x HDMI 2.1 (up to 4K@60Hz)
• Triple display support

Expansion Slots

• 1 x PCIe 5.0 x16
• 1 x PCIe x16 (x4 mode)

Networking

• Realtek Gigabit LAN (10/100/1000 Mbps)

Audio

• Realtek HD Audio
• 2/4/5.1/7.1-channel

USB Connectivity

• USB-C (rear & internal header)
• USB 3.2 Gen1 ports
• USB 2.0 ports

Internal Connectivity

• 2 x ARGB headers (Gen2)
• 1 x RGB header
• Multiple fan & pump headers
• TPM header
• SATA connectors

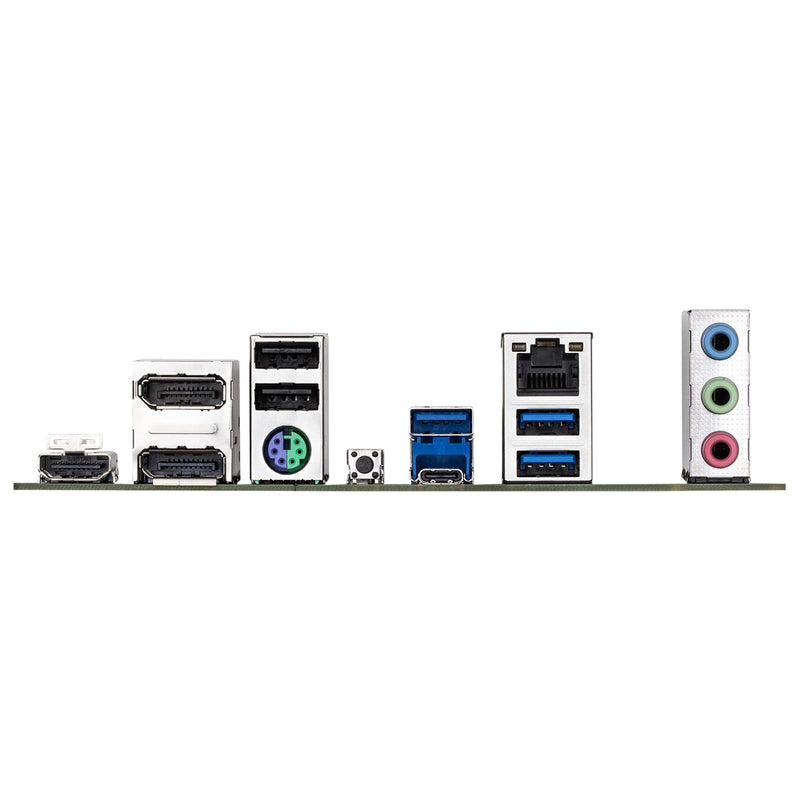

Rear I/O Ports

• 2 x DisplayPort
• 1 x HDMI
• USB-C & USB-A ports
• RJ-45 LAN
• Audio jacks
• PS/2 port

Form Factor

• Micro-ATX (24.4cm x 24.4cm)

Operating System Support

• Windows 11 (64-bit)
• Windows 10 (64-bit)

Why Choose the Gigabyte B850M D3HP?

The Gigabyte B850M D3HP is a future-ready motherboard offering next-generation performance and versatility. With DDR5 memory, PCIe 5.0 storage and multiple display outputs, it provides an excellent foundation for modern AMD systems.

Perfect for gamers, creators and everyday users, it delivers reliable performance, upgrade flexibility and essential features—all within a compact and efficient micro‑ATX form factor.
