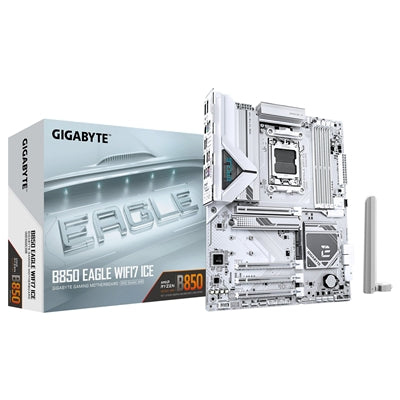

Gigabyte B850 EAGLE WiFi7 ICE AM5 DDR5 ATX Motherboard
Gigabyte B850 EAGLE WIFI7 ICE AM5 ATX Motherboard – DDR5, PCIe 5.0, WiFi 7 (White)
Build a high-performance system with standout aesthetics using the Gigabyte B850 EAGLE WIFI7 ICE, a sleek white ATX motherboard designed for AMD Ryzen 7000, 8000 and 9000 Series processors. Combining next-gen performance with premium design, it delivers DDR5 speed, PCIe 5.0 storage and WiFi 7 connectivity, making it perfect for modern gaming and professional builds.
Key Features & Benefits
Modern AM5 Platform Support
Compatible with Ryzen 7000, 8000 and 9000 Series CPUs, offering powerful performance and future-ready upgrade potential.
High-Speed DDR5 Memory Performance
Supports up to 256GB DDR5 RAM with speeds up to 8200MT/s (OC), ensuring smooth multitasking and improved system responsiveness.
PCIe 5.0 & Triple M.2 Storage
Features 3 M.2 slots, including PCIe 5.0 x4 support, enabling ultra-fast NVMe SSDs and flexible storage configurations.
Enhanced VRM Power Delivery
The 8+2+2 phase digital VRM design ensures stable power and consistent performance for demanding workloads and gaming.
Next-Gen WiFi 7 & 2.5GbE LAN
- WiFi 7 for ultra-fast wireless connectivity and low latency
-
2.5GbE LAN for high-speed wired networking
Perfect for gaming, streaming and heavy data usage.
Stylish ICE White Design
A clean, modern white aesthetic that complements white or themed PC builds, ideal for visually striking systems.
Advanced Thermal Design
Includes VRM Thermal Armour and M.2 Thermal Guard, ensuring optimal cooling and preventing performance throttling.
EZ-Latch Tool-Free Installation
- Quick-release PCIe slot design
- Screwless M.2 heatsinks and slots
Allows easy building and upgrades.
X3D Turbo Mode Support
Enhances gaming performance on compatible Ryzen processors, unlocking additional optimisation potential.
Durable PCIe Slot Reinforcement
The PCIe UD Slot offers enhanced strength, supporting large and heavy modern graphics cards.
Technical Specifications
CPU Support
- AMD AM5 Socket
- Ryzen 9000 / 8000 / 7000 Series
Chipset
- AMD B850
Memory
- 4 x DDR5 DIMM Slots
- Up to 256GB Capacity
- Dual Channel Architecture
- Speeds up to 8200MHz (OC)
- AMD EXPO & XMP Support
Storage
- 1 x M.2 PCIe 5.0 x4 Slot
- 2 x M.2 PCIe 4.0 Slots
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 1 x DisplayPort (up to 4K@144Hz)
- 1 x HDMI 2.1 (up to 4K@60Hz)
Expansion Slots
- 1 x PCIe 5.0 x16 Slot
- 1 x PCIe 4.0 x16 (x4 mode)
- 2 x PCIe x16 (x1 mode)
Networking
- Realtek 2.5GbE LAN
- WiFi 7 (2.4 / 5 / 6 GHz bands)
- Bluetooth 5.4
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
USB Connectivity
- USB-C (rear & internal header)
- USB 3.2 Gen2 & Gen1 ports
- USB 2.0 ports
Internal Connectivity
- 3 x ARGB headers (Gen2)
- 1 x RGB header
- Multiple fan & pump headers
- TPM header

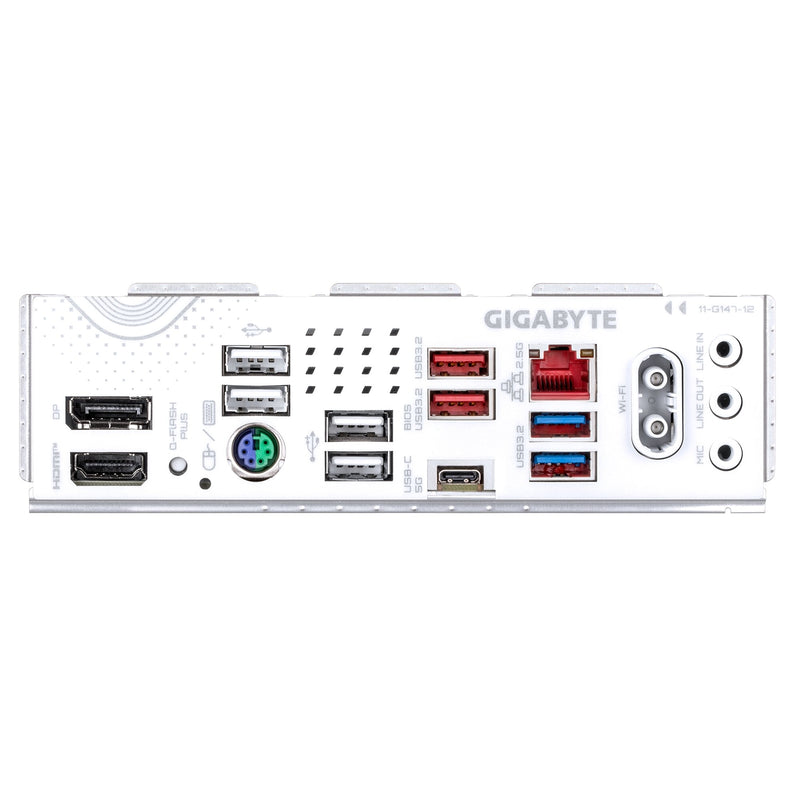

Rear I/O Ports
- DisplayPort & HDMI
- USB-C & USB-A ports
- 2.5GbE LAN
- WiFi antenna connectors
- Audio jacks
- PS/2 port
Form Factor
- ATX (30.5cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
Why Choose the Gigabyte B850 EAGLE WIFI7 ICE?
The Gigabyte B850 EAGLE WIFI7 ICE combines cutting-edge performance with premium aesthetics, making it an excellent choice for users building a modern white-themed PC. With DDR5 memory, PCIe 5.0 storage and next-generation WiFi 7, it delivers powerful, future-proof performance.
Ideal for gamers, creators and enthusiasts, it offers reliable performance, advanced cooling and sleek design, providing a strong foundation for high-performance AM5 systems.
