Gigabyte B760M H V2 DDR5 Intel LGA1700 Micro ATX Board
Gigabyte B760M H V2 Intel LGA1700 Micro-ATX Motherboard – DDR5, PCIe 4.0 Performance
Build a powerful and efficient Intel system with the Gigabyte B760M H V2 Motherboard, designed for reliability, speed and modern connectivity. With support for the latest Intel processors and DDR5 memory, this compact micro‑ATX board delivers excellent performance for home, office and gaming builds.
Key Features & Benefits
Supports Latest Intel Processors
Compatible with Intel 12th, 13th and 14th Gen CPUs, offering flexibility for new builds and easy future upgrades.
Next-Gen DDR5 Memory Support
Equipped with 2 DDR5 DIMM slots supporting up to 128GB, delivering higher speeds, improved bandwidth and better overall system performance.
High-Speed PCIe 4.0 Storage
Includes a PCIe 4.0 M.2 slot for ultra-fast NVMe SSDs, reducing load times and improving system responsiveness.
Stable Power Delivery (5+1+1 VRM)
The hybrid VRM design ensures stable and efficient power delivery, supporting consistent performance for modern processors.
Smart Fan 6 Cooling Control
Advanced thermal control with multiple temperature sensors and fan headers, keeping your system cool and quiet under load.
EZ-Latch PCIe Slot Design
The quick-release PCIe slot makes installing or removing graphics cards simple and hassle-free.
Reliable Gigabit LAN Connectivity
Integrated Realtek GbE LAN ensures stable and fast wired networking for work, gaming and streaming.
Modern Display Connectivity
Includes HDMI and DisplayPort outputs, supporting high-resolution displays for productivity and media setups.
Q-Flash Plus BIOS Update
Update the BIOS without installing a CPU, RAM or GPU, simplifying setup and ensuring compatibility.
Technical Specifications
CPU Support
- Intel LGA1700 Socket
- Supports 12th, 13th and 14th Gen Intel Core, Pentium Gold, Celeron
Chipset
- Intel B760
Memory
- 2 x DDR5 DIMM Slots
- Up to 128GB Capacity
- Dual Channel Architecture
- Speeds up to 8000MHz (OC)
- XMP Support
Storage
- 1 x M.2 PCIe 4.0 x4 Slot
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 1 x HDMI (up to 4K@60Hz)
- 1 x DisplayPort (up to 4K)
Expansion Slots
- 1 x PCIe 4.0 x16
- 1 x PCIe 3.0 x1
Networking
- Realtek Gigabit LAN (10/100/1000 Mbps)
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel support
USB Connectivity
- USB-C header (USB 3.2 Gen1)
- USB 3.2 Gen1 ports (rear & internal)
- USB 2.0 ports
Internal Connectivity
- 2 x ARGB headers (Gen2)
- Fan headers (CPU + system)
- TPM header
- SATA connectors

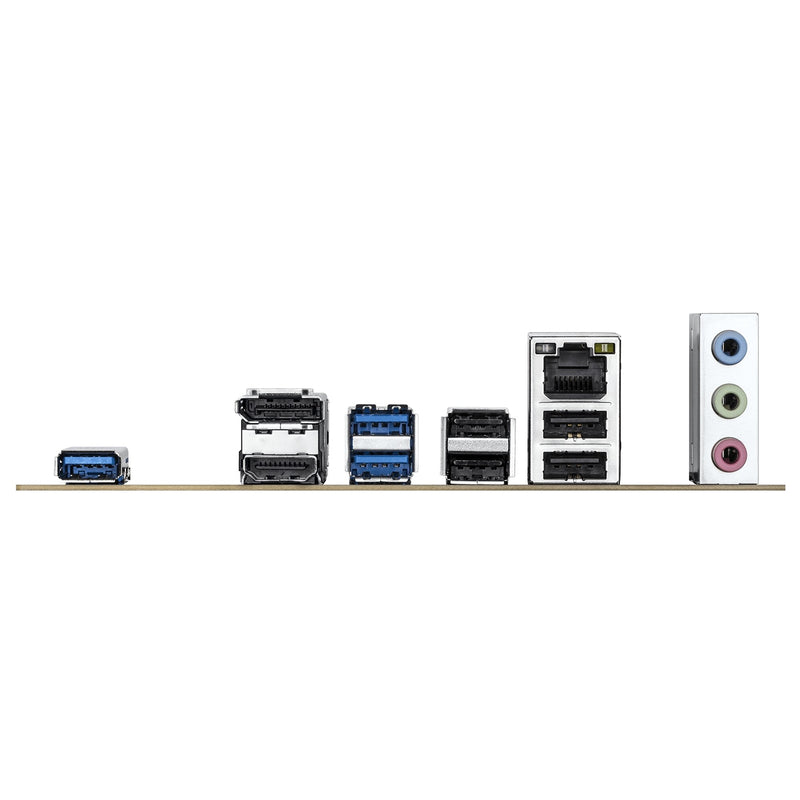

Rear I/O Ports
- HDMI and DisplayPort
- 3 x USB 3.2 Gen1
- 4 x USB 2.0
- RJ-45 LAN
- Audio jacks
Form Factor
- Micro-ATX (24.4cm x 22.0cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte B760M H V2?
The Gigabyte B760M H V2 is a reliable, modern motherboard built for performance and efficiency. With DDR5 memory support, PCIe 4.0 storage and strong power delivery, it provides everything needed for a stable and fast system.
Ideal for everyday builds, office systems and entry-level gaming PCs, it offers excellent value, easy setup and dependable performance, making it a solid foundation for your next Intel PC.
