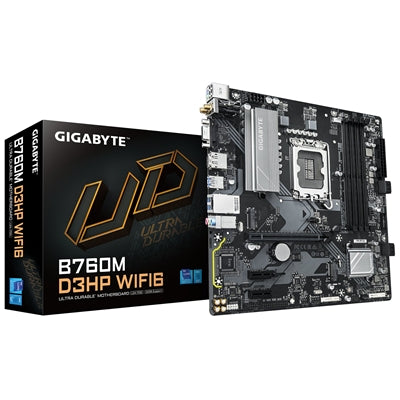

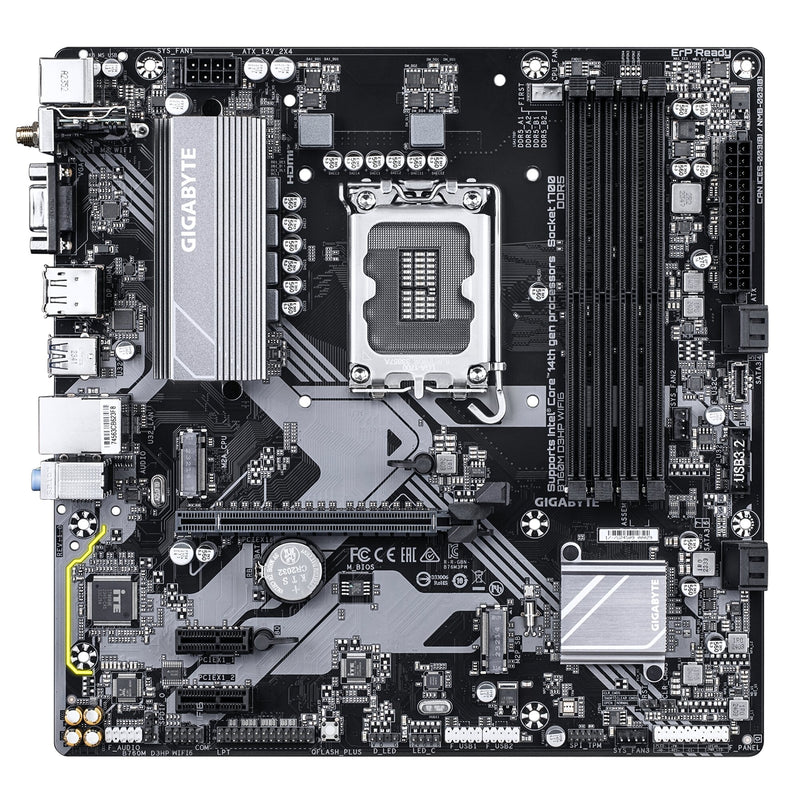

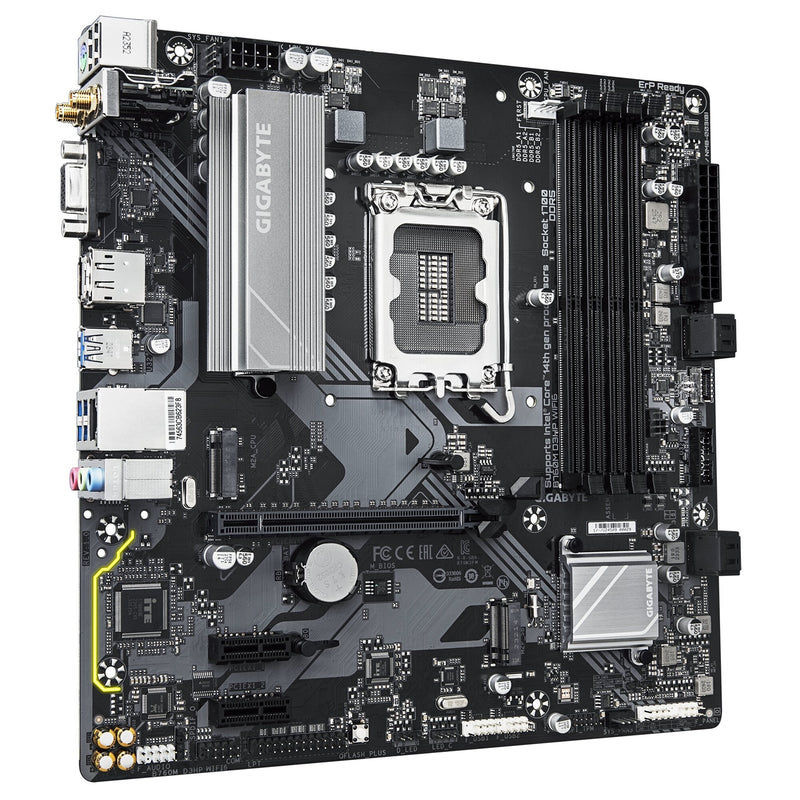

Gigabyte B760M D3HP WiFi 6 DDR5 Intel LGA1700 Motherboard
Gigabyte B760M D3HP WIFI6 Intel LGA1700 Micro-ATX Motherboard – DDR5, PCIe 4.0, WiFi 6
Build a powerful, modern Intel system with the Gigabyte B760M D3HP WIFI6 Motherboard, designed to deliver high-speed performance, advanced connectivity and reliable stability. Supporting the latest Intel processors and DDR5 memory, this micro‑ATX motherboard is ideal for gaming, productivity and professional builds.
Key Features & Benefits
Supports Latest Intel Processors
Compatible with 12th, 13th and 14th Gen Intel Core processors, offering flexibility for new builds and future upgrades.
Next-Generation DDR5 Memory
With 4 DDR5 DIMM slots supporting up to 192GB, benefit from faster speeds, higher bandwidth and enhanced system responsiveness.
Dual PCIe 4.0 M.2 Storage
Equipped with 2 x M.2 PCIe 4.0 slots, enabling ultra-fast SSD storage for quicker boot times, rapid data transfer and improved application performance.
Integrated WiFi 6 & Bluetooth 5.3
Enjoy high-speed wireless connectivity, improved network efficiency and reliable connections for gaming, streaming and work.
Hybrid Digital VRM Power Design
The 4+1+1 phase VRM solution ensures stable power delivery, supporting consistent performance for demanding workloads.
Comprehensive Display Outputs
Includes HDMI, DisplayPort and VGA (D-Sub) for versatile multi-display setups with high-resolution support.
Smart Fan 6 Cooling Technology
Advanced cooling controls with multiple sensors and hybrid fan headers, allowing precise thermal management and quieter operation.
Q-Flash Plus BIOS Update
Update your BIOS easily without installing CPU, RAM or GPU, simplifying setup and future upgrades.
Front USB-C Connectivity
Modern connectivity with front USB-C support, ensuring compatibility with newer devices and peripherals.
Technical Specifications
CPU Support
- Intel LGA1700 Socket
- 14th / 13th / 12th Gen Intel Core, Pentium Gold, Celeron
Chipset
- Intel B760
Memory
- 4 x DDR5 DIMM Slots
- Up to 192GB Capacity
- Dual Channel Architecture
- XMP Support
Storage
- 2 x M.2 PCIe 4.0 x4 Slots
- 4 x SATA 6Gb/s Ports
- RAID 0 / 1 / 5 / 10 Support
Graphics Outputs
- 1 x HDMI (4K@60Hz)
- 1 x DisplayPort
- 1 x D-Sub (VGA)
Expansion Slots
- 1 x PCIe 4.0 x16
- 2 x PCIe 3.0 x1
Networking
- Realtek GbE LAN
- WiFi 6 (802.11ax, 2.4/5GHz)
- Bluetooth 5.3
Audio
- Realtek HD Audio
- 2/4/5.1/7.1-channel
- S/PDIF support
USB Connectivity
- USB-C (internal header, USB 3.2 Gen1)
- USB 3.2 Gen1 ports (rear & internal)
- USB 2.0 ports
Internal Connectors
- RGB & ARGB headers
- Multiple fan headers
- TPM header
- USB headers

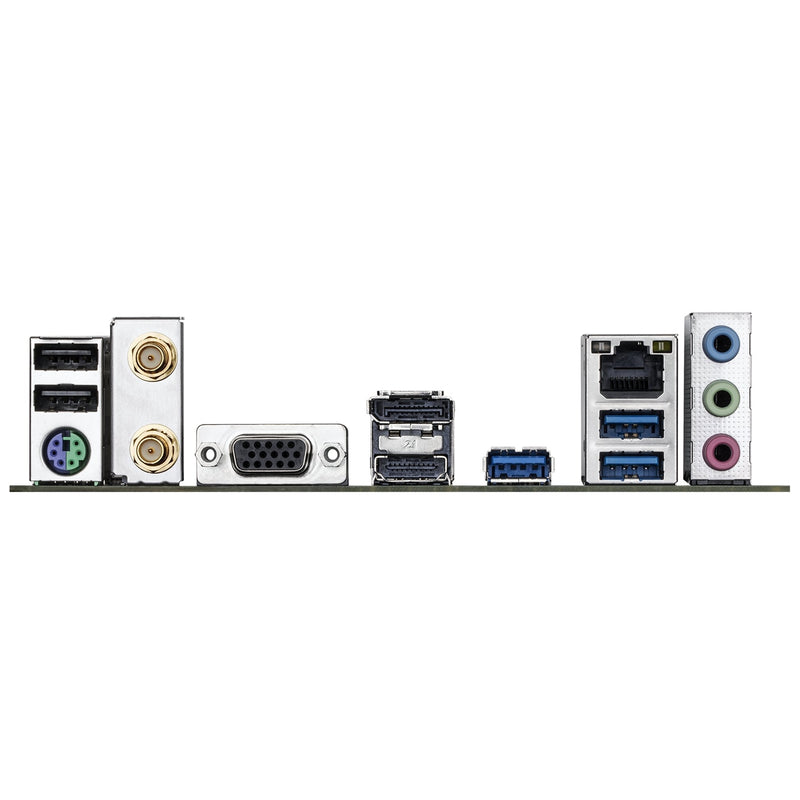

Rear I/O Ports
- HDMI, DisplayPort, D-Sub
- USB 3.2 Gen1 & USB 2.0
- RJ-45 LAN
- WiFi antenna connectors
- Audio jacks
- PS/2 combo port
Form Factor
- Micro-ATX (24.4cm x 24.4cm)
Operating System Support
- Windows 11 (64-bit)
- Windows 10 (64-bit)
Why Choose the Gigabyte B760M D3HP WIFI6?
The Gigabyte B760M D3HP WIFI6 is a feature-rich and future-ready motherboard that delivers the performance needed for modern computing. With DDR5 support, PCIe 4.0 storage and built-in WiFi 6, it ensures speed, flexibility and efficient connectivity.
Ideal for gaming systems, professional workstations or high-performance home PCs, this motherboard provides reliability, upgrade potential and cutting-edge features in a compact micro‑ATX design.
