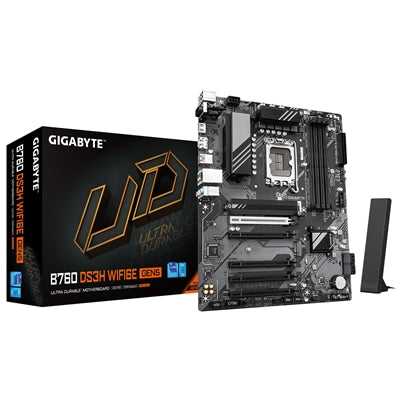

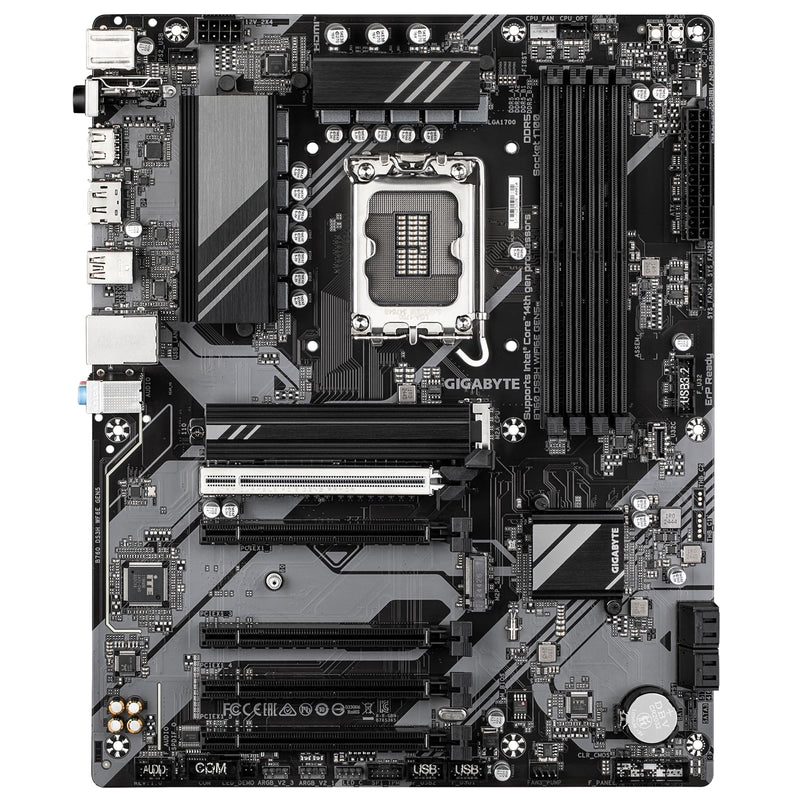

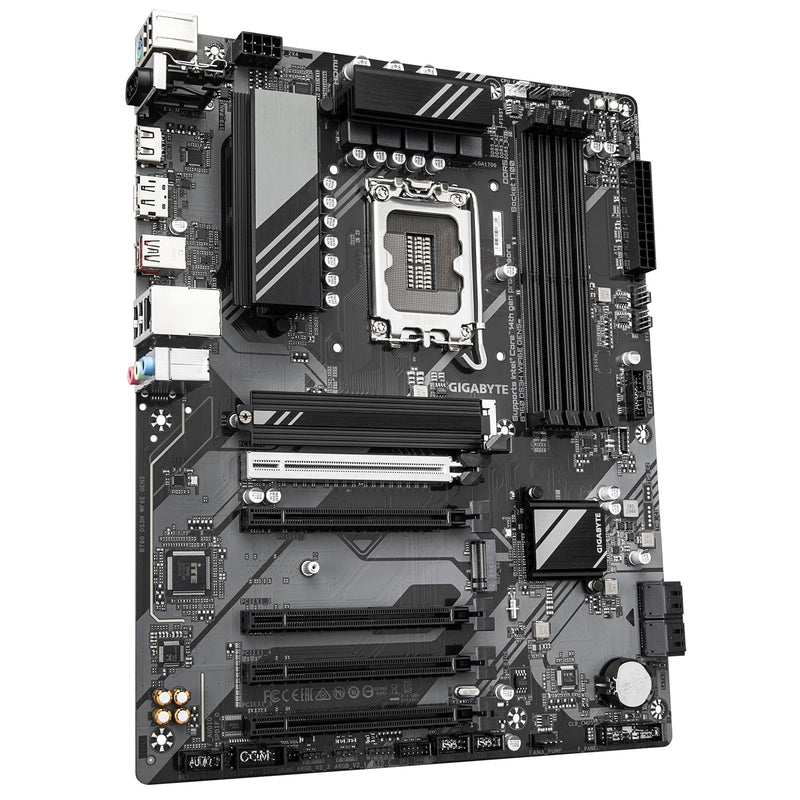

Gigabyte B760 DS3H WiFi 6E GEN5 ATX Motherboard

Reliable Performance with Next-Gen PCIe 5.0 Support

The Gigabyte B760 DS3H WiFi 6E GEN5 motherboard is built to deliver dependable performance and future-ready connectivity for Intel 14th, 13th and 12th Gen processors. With PCIe 5.0 support, DDR5 memory, and WiFi 6E, it provides a strong foundation for modern gaming, productivity, and everyday computing systems.

Key Features & Benefits

✔ Supports Intel 14th, 13th & 12th Gen Core processors (LGA1700)
✔ PCIe 5.0 x16 slot for next-generation graphics performance
✔ 4 x DDR5 DIMM slots supporting up to 256GB memory
✔ Dual PCIe 4.0 M.2 slots for fast NVMe storage
✔ Integrated WiFi 6E and Gigabit LAN connectivity
✔ USB 3.2 Gen2x2 Type-C (20Gbps) for high-speed data transfer
✔ EZ-Latch PCIe slot for easy GPU installation and removal
✔ Smart Fan 6 for advanced cooling control
✔ Q-Flash Plus for BIOS updates without CPU or RAM

Built for Durable, Long-Term Performance

Part of Gigabyte’s Ultra Durable range, this motherboard is engineered with high-quality components and a robust VRM design to ensure long-lasting reliability. The hybrid 8+2+1 phase power delivery system provides stable performance for everyday computing and demanding workloads.

PCIe 5.0 Performance for the Future

Experience next-generation bandwidth with PCIe 5.0 support, delivering double the data transfer rate of PCIe 4.0. This ensures compatibility with the latest graphics cards and future hardware upgrades, making your system more future-proof.

Fast Storage & Expansion

Equipped with dual PCIe 4.0 x4 M.2 slots, the motherboard supports high-speed NVMe SSDs for rapid boot times and data access. Additional SATA ports allow for expanded storage configurations, giving you flexibility for both performance and capacity.

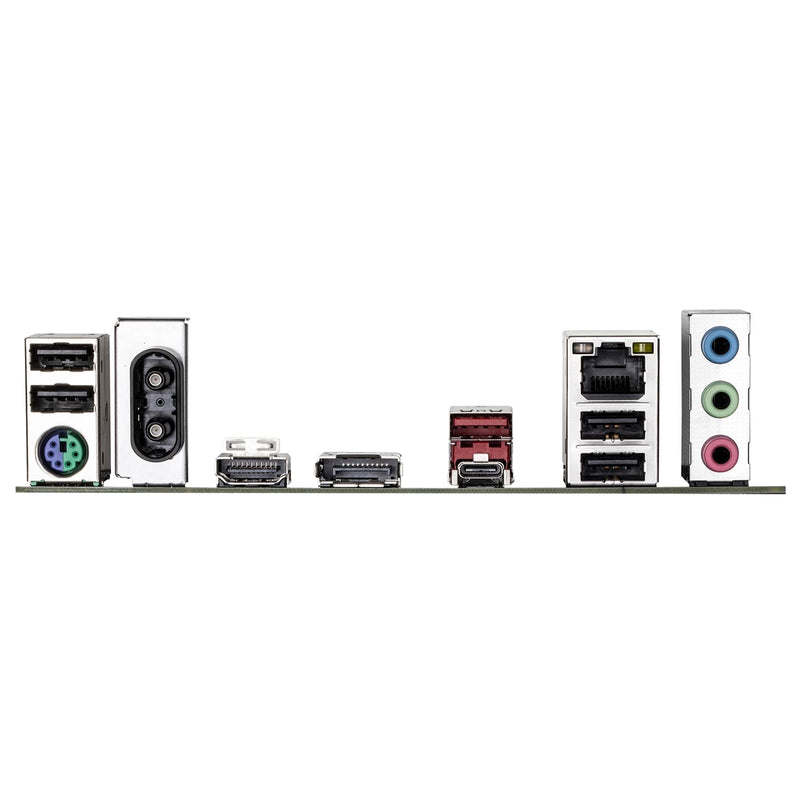

Advanced Connectivity

Stay connected with modern networking and I/O:

✔ WiFi 6E for improved speed, capacity, and lower latency
✔ Gigabit Ethernet for stable wired networking
✔ USB-C 20Gbps for ultra-fast external devices
✔ HDMI and DisplayPort outputs for high-resolution displays

Smart Cooling & Easy Setup

With Smart Fan 6 technology, the motherboard offers multiple temperature sensors and hybrid fan headers, ensuring optimal cooling performance. Features like EZ-Latch and Q-Flash Plus make building and maintaining your system quick and hassle-free.

Technical Specifications

Form Factor
ATX (30.5 cm x 24.4 cm)

CPU Support
Intel Core 14th / 13th / 12th Gen (LGA1700)
Also supports Pentium Gold & Celeron

Chipset
Intel B760

Memory
4 x DDR5 DIMM slots
Dual channel support
Up to 256GB capacity
Supports XMP

Expansion Slots
1 x PCIe 5.0 x16
Multiple PCIe 3.0 slots (x1 mode)

Graphics Output
1 x HDMI (up to 4K 60Hz)
1 x DisplayPort (up to 4K 60Hz)

Storage
2 x PCIe 4.0 x4 M.2
4 x SATA III (6Gb/s)
RAID support (0/1/5/10)

Networking
Gigabit LAN (Realtek)
WiFi 6E (Intel AX210)
Bluetooth 5.3

USB Ports
1 x USB 3.2 Gen2x2 Type-C (Rear)
1 x USB 3.2 Gen2 Type-A (Rear)
Additional USB 3.2 Gen1 & USB 2.0 ports
Front USB-C support

Audio
High Definition Audio
Supports 2/4/5.1/7.1-channel

Special Features
EZ-Latch PCIe Slot
Smart Fan 6
Q-Flash Plus
Gigabyte Control Center (GCC)

Why Choose the Gigabyte B760 DS3H WiFi 6E GEN5

The Gigabyte B760 DS3H WiFi 6E GEN5 is an excellent choice for users seeking a reliable, feature-rich ATX motherboard with next-generation support. With PCIe 5.0, DDR5 memory, and modern connectivity including WiFi 6E, it offers strong performance and upgrade potential at great value.

Ideal for gaming, office systems, and general-purpose builds, it delivers durability, ease of use, and the essential features needed for a modern Intel platform.
